Description

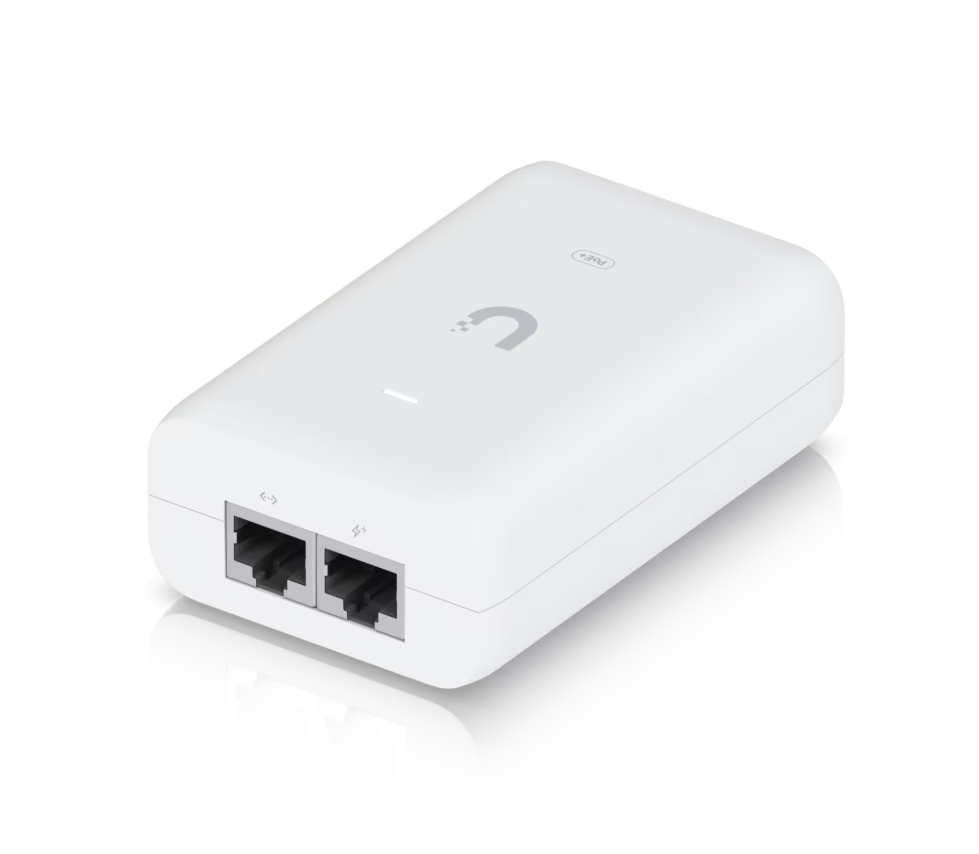

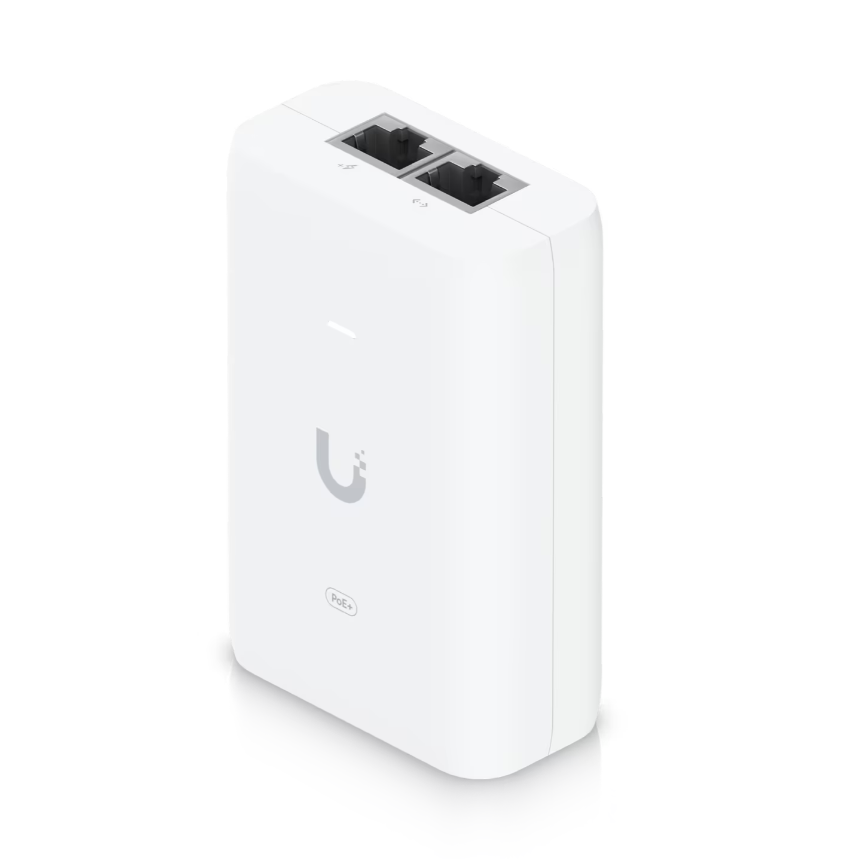

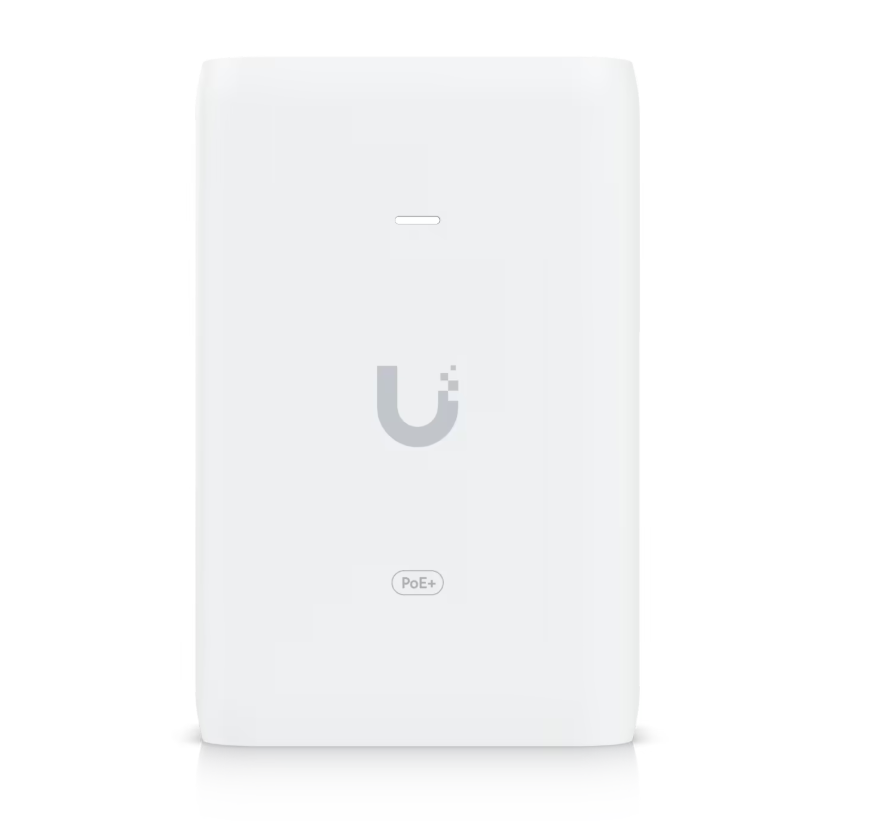

Ubiquiti U-PoE+ PoE+ Adapter (30W)
Product Details
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Features
Delivers up to 30W of PoE
Surge, peak pulse, and overcurrent protection

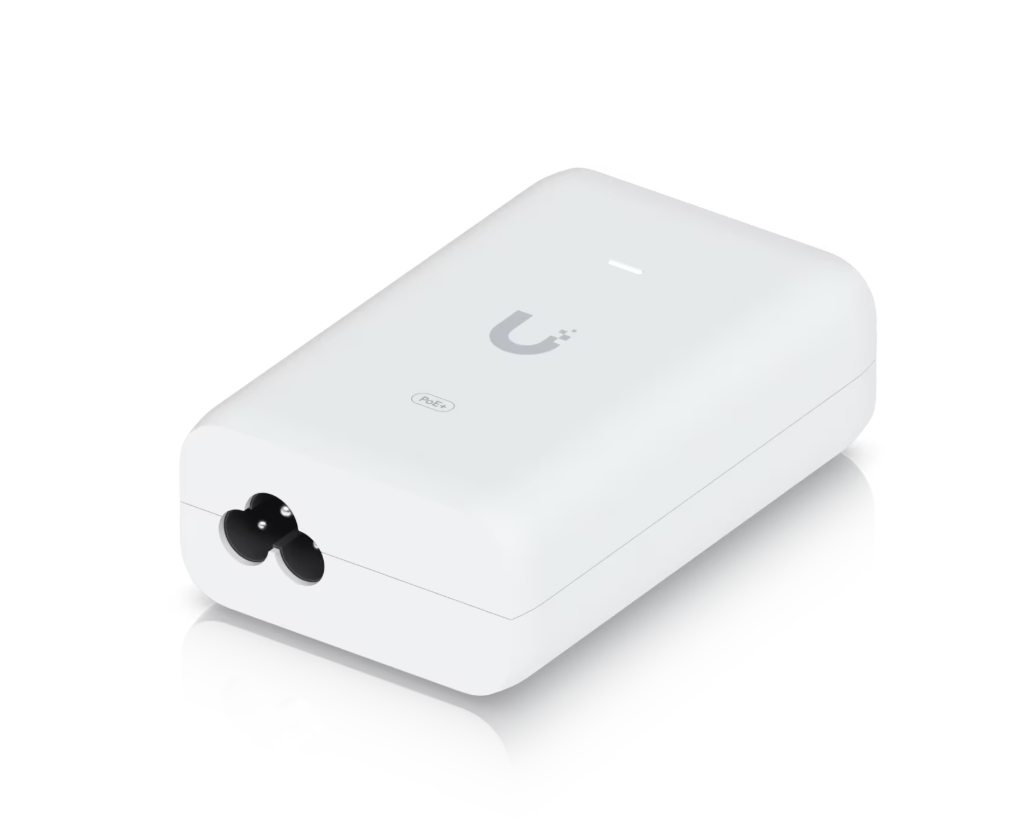

Contains RJ45 data input, AC cable with earth ground, and PoE output
LED indicator for status monitoring
Compatibility
- U6-LR
- UVC-G5-PTZ
- U6-IW
- UVC-AI-DSLR
- UVC-AI-Pro
- UDB-Pro
- UTP-G3-Touch-Wall
- UTP-TouchMax
- UA-Ultra
Specifications
| Specification | Details |
| Dimensions | 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") |
| Weight | 156 g (5.5 oz) |
| Output Voltage | 48V DC @ 0.65A |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Input Current | 0.75A Max. |
| Inrush Current | <100A peak at 26°C |
| Efficiency | 87% |
| Gigabit LAN Port | Yes (✓) |
| LAN Activity Indicator | — |
| Data In / PoE | RJ45 Shielded Socket |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Switching Frequency | 70 kHz Max. |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Operating Temp. | 0 to 40° C (32 to 104° F) |
| Storage Temp. | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 10 to 95% noncondensing |
| Remote Reset | — |
| Reset Button | — |
| NDAA Compliant | Yes (✓) |
| Certifications | CE, FCC, IC, UL, CCC |
