Description
Ubiquiti U-LTE UniFi LTE Backup
Product Details
Seamless internet failover for UniFi gateways. Includes an AT&T SIM and data plan for plug-and-play deployment.
Specifications
| Mechanical | |
|---|---|

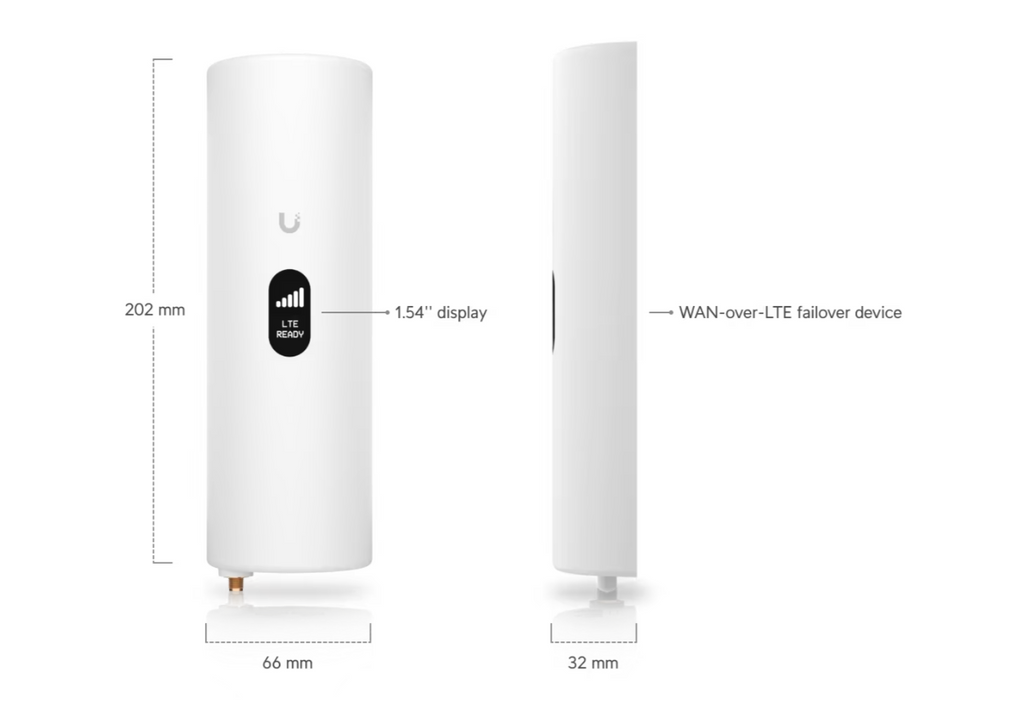

| Dimensions | 66 x 202.12 x 32.2 mm (2.6 x 8 x 1.3") |
| Weight | Without mount: 200 g (7.1 oz) With mount: 316 g (11.2 oz) |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports LTE category 4 radio |
| Management interface | Ethernet Bluetooth |
| SIM | nano-SIM |
| LTE bands | B2, B4, B5, B12 |
| MIMO | 2 x 2 LTE Category 4 |
| Operating frequency | 2400 ‐ 2483.5 MHz |
| Power method | PoE+ (Pairs 1, 2+; 3, 6‐; Pairs 4, 5+; 7, 8‐) |
| Max power consumption | 8.5W |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 44–57V DC |
| External antenna | (1) LTE antenna with RP-SMA female connector |
| LCM display | 1.54" screen |
| Mounting | Wall mount or foot stand (Included) |
| Ambient operating temperature | ‐10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, AT&T |
| Software | |
| Management application | UniFi Network: Version 6.5.55 and later |
Features
- Requires a UniFi Cloud Gateway or UniFi Gateway
- Embedded AT&T SIM
- Flexible mounting
- (1) GbE PoE port (PoE+ required for PoE passthrough)
- Powered using PoE
