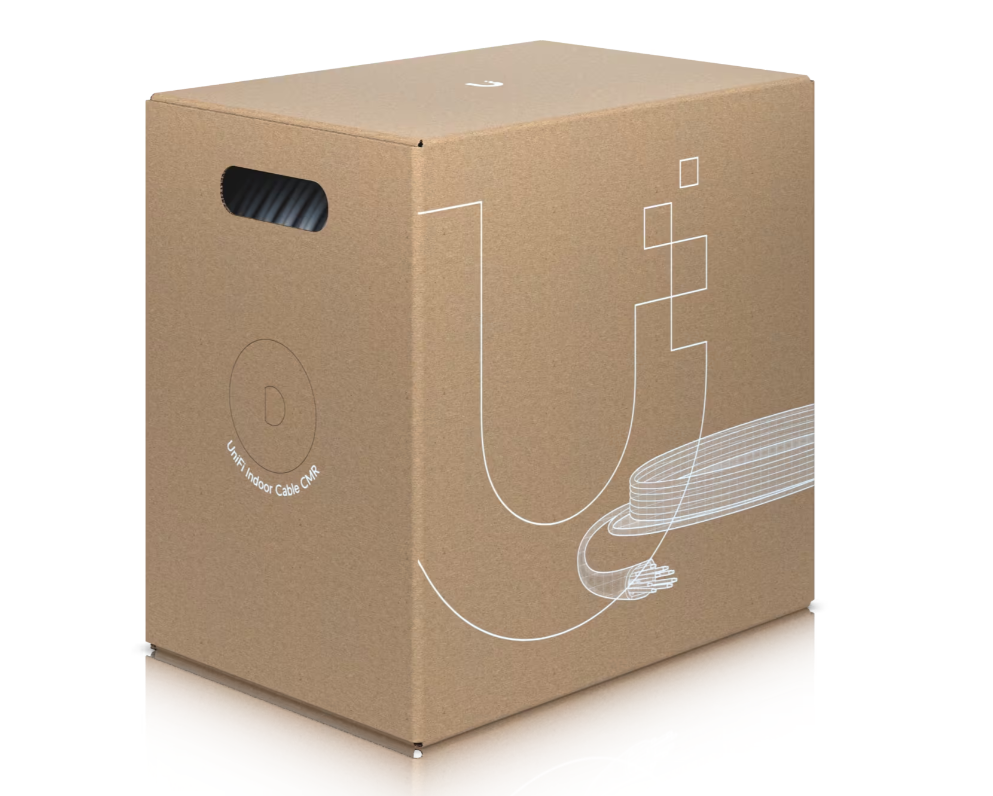

Ubiquiti U-Cable-C6-CMR UniFi Cable Cat6 CMR
Product Details
Category 6 Ethernet cable for high-speed, indoor deployments
Features
- Category 6 UTP communications multipurpose cable
- Riser (CMR)-rated, fire-resistant jacket
- Anti-crosstalk divider
- Cable length 305 m
Specifications
Overview
Length: 305 m (1,000 ft)
Type: Category 6
Flame Rating: CMR
Shielding Type: UTP
Conductor Type: Solid bare copper
Conductor Wire Gauge: 23 AWG
Box Dimensions: 474 x 346 x 458 mm (18.7 x 13.6 x 18")
Color: White
Box Weight: 14.8 kg (32.7 lb)
Cable
Jacket Diameter: 6.0 ± 0.2 mm
Jacket Material: PVC
Bend Radius: Min. 24 mm
Pulling Tension: Max. 110 N
Reference Bandwith: Up to 600 MHz
Anti-Crosstalk Divider: ✓
Ripcord: ✓
Standards
Electrical transmission: ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) IEC 61156-5 (Edition 2.1) Flame test: UL 1666 (CMR) Material and construction: UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD)
Installation Temperature: 0 to 60°C (32 to 140°F)
Ambient Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Operating Temperature: -20 to 60°C (-4 to 140°F)
