Description
Ubiquiti Network Video Recorder Instant Kit
Product Details

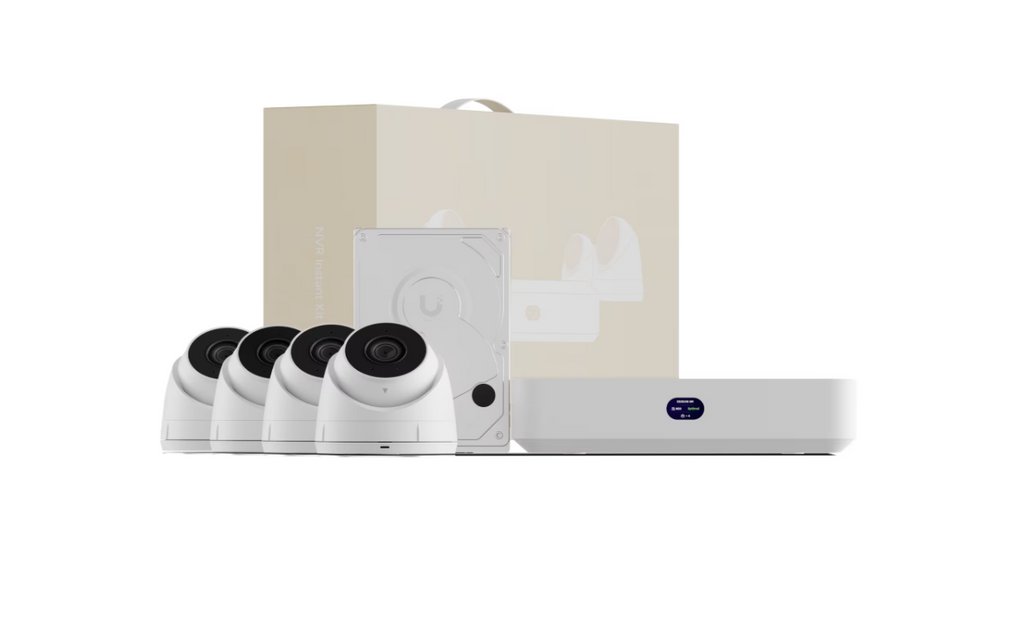

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Note. Requires connection to a Gateway or Layer 3 switch.
Specifications
| Category | Feature | NVR Instant | G5 Turret Ultra | 1TB HDD |
| Physical | Dimensions | 220 x 220 x 47 mm | Ø90 x 71.2 mm | 147 x 101.6 x 26.1 mm |
| Weight | 1.04 kg (2.3 lb) | 330 g (11.6 oz) | 0.45 kg (0.99 lb) | |
| Enclosure Material | Polycarbonate | Aluminum alloy, Polycarbonate | — | |
| Performance | Processor | Quad-core ARM® Cortex®-A55 | Dual-core Arm® Cortex®-A7 | — |
| Memory/Rotation | 4 GB | — | 5400 RPM | |
| Managed Devices | 15 HD / 8 2K / 6 4K | — | — | |
| Video & Imaging | Resolution | — | 2K (4MP, 2688 x 1512) | — |
| Night Vision | — | IR LED (30 m / 98 ft) | — | |
| Field of View | — | H: 102.4°, V: 54.9°, D: 120.6° | — | |
| Networking | Interface | (1) GbE RJ45 Uplink, (6) PoE | (1) 10/100 MbE RJ45 | SATA 6 Gb/s |
| Management | Ethernet, Bluetooth | UniFi Protect | — | |
| Power | Method | 100-240VAC Internal | PoE | 5V/12V input |
| Consumption | 9W (Excluding PoE out) | 4W | — | |
| PoE Budget | 40W Total | — | — | |
| Storage | Capacity | (1) 3.5" Drive Bay | — | 1 TB |
| Workload Rating | — | — | 180 TB/year | |
| MTBF | — | — | 1,000,000 hours | |
| Environmental | Operating Temp | 0 to 40° C | -30 to 50° C | 0 to 65° C |
| Weatherproofing | — | IP66 / IK04 | — | |
| Compliance | NDAA / Certs | ✓ (FCC, IC, CE) | ✓ (CE, FCC, IC) | ✓ (FCC, CE, TUV, etc.) |
