Description

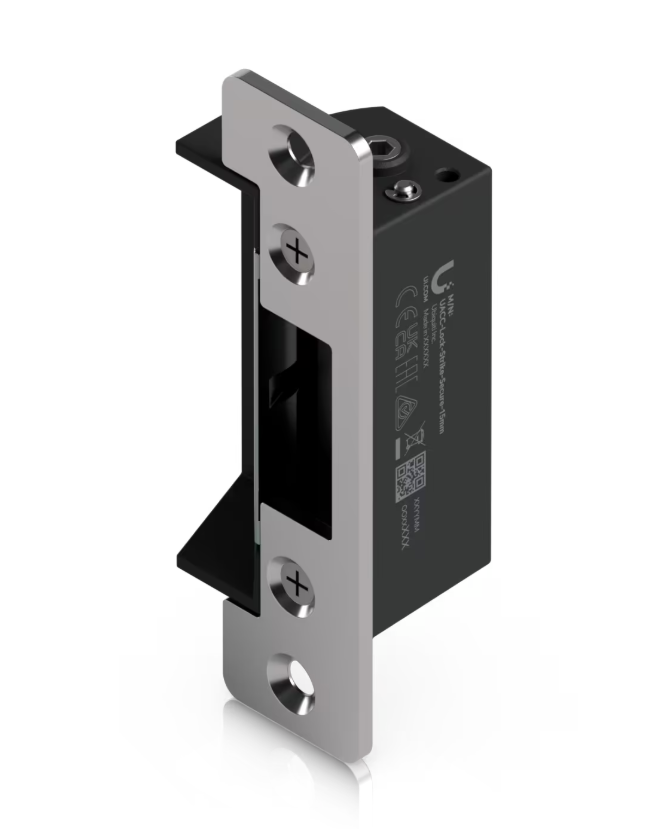

Ubiquiti Fail-Secure Strike Lock
Product Details

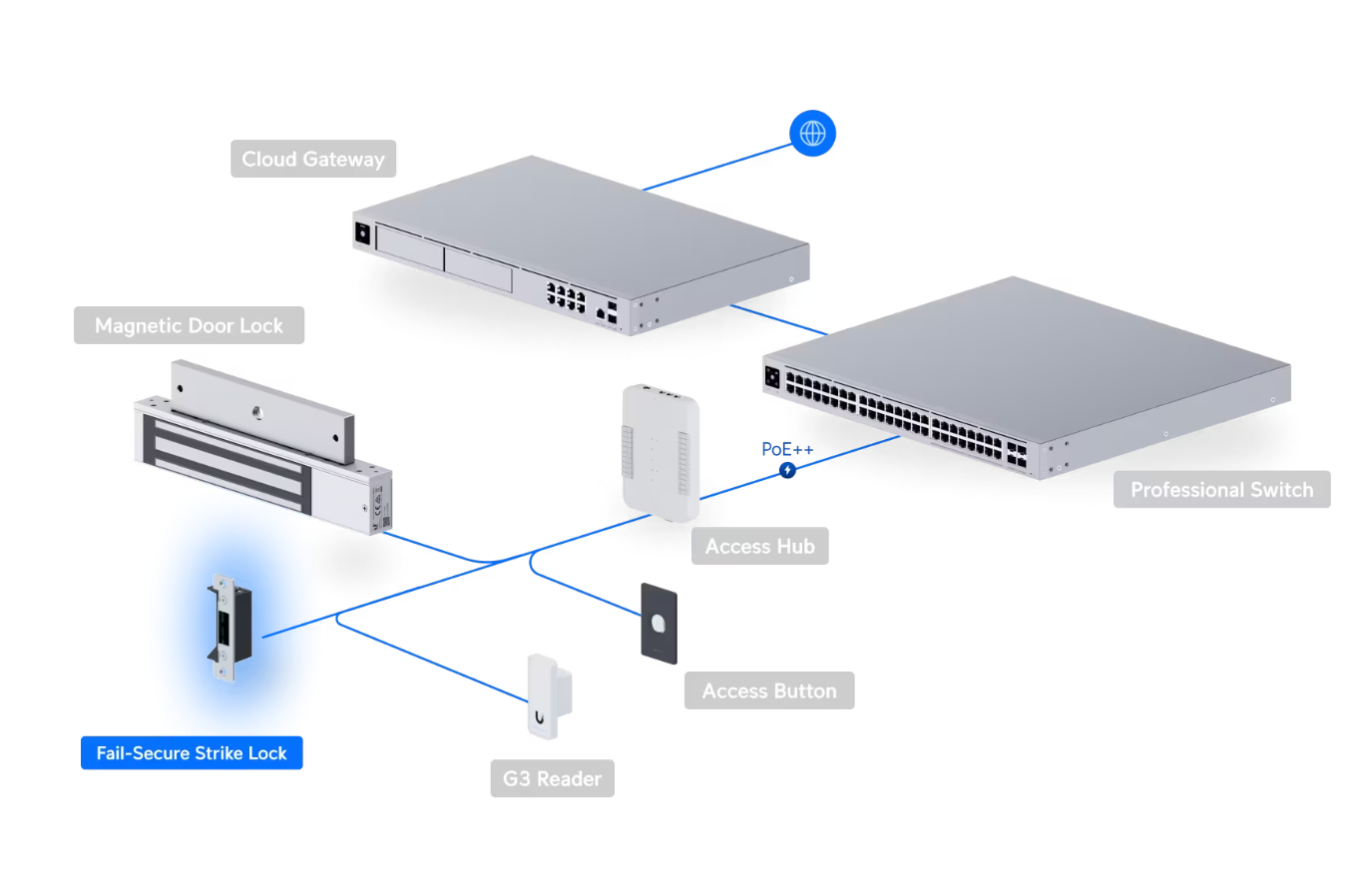

Fail-secure electric strike lock that connects to a UniFi Access Hub.
- Holds up to 1,200 kg (2,645 lb)
- Can be installed on an aluminum, steel, or wooden door frame.
Specifications
| Category | Specification | Details |

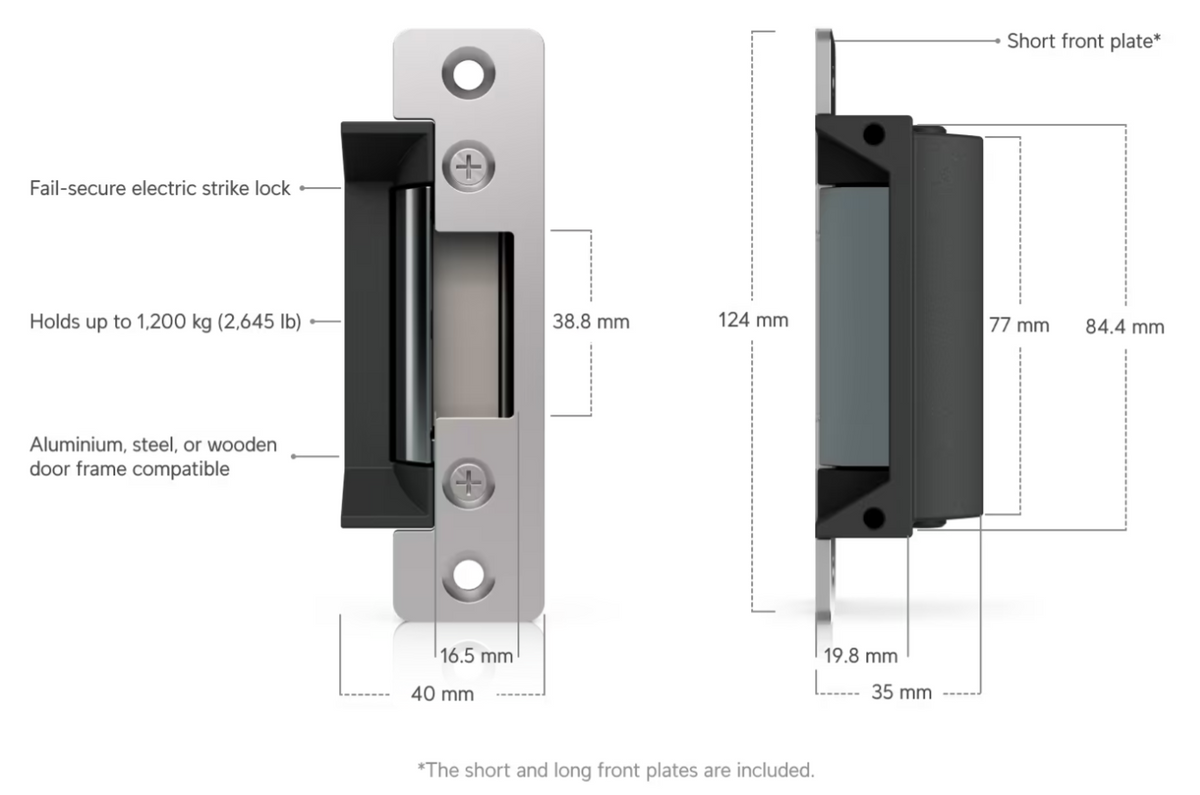

| Dimensions | Lock Body | 80 x 40 x 35 mm (3.2 x 1.6 x 1.4") |
| Short Front Plate | 124 x 32 x 3 mm (4.9 x 1.3 x 0.1") | |
| Long Front Plate | 202 x 36 x 3 mm (7.9 x 1.4 x 0.1") | |
| Weight | Lock Body | 185 g (6.5 oz) |
| Short Front Plate | 50 g (1.8 oz) | |
| Long Front Plate | 130 g (4.6 oz) | |
| Material | Lock Body | Zinc alloy |
| Front Plate/Latches | Stainless steel | |
| Lock Features | Lock Type | Fail secure |
| Support Door Type | Single door (Wooden/metal) | |
| Holding Force | 1,200 kg (2,645 lb) | |
| Mounting | Door frame recess mount | |
| Power & Electrical | Current Power | 400mA ±10% |
| Support Voltage | 12V DC ±10% | |
| Wiring | (1) Red: 12V/NO; (1) Black: 12V/COM | |
| Door Status | Type | Dry contact |
| Logic (Open) | DPS/+ & DPS/- = Open | |
| Logic (Closed) | DPS/+ & DPS/- = Short | |
| Rating | Max. 30V DC, 0.1A | |
| Environment | Operating Temp | -10 to 60° C (14 to 140° F) |
| Storage Temp | -20 to 70° C (-4 to 158° F) | |
| Humidity | 5 to 90% noncondensing | |
| Compliance | Standards | NDAA Compliant, FCC, IC, CE |
