Description
Ubiquiti ETH-SP-G2 Ethernet Surge Protection Outdoor
Features
- ESD protection for outdoor high-speed networks.
- Protects outdoor Ethernet devices

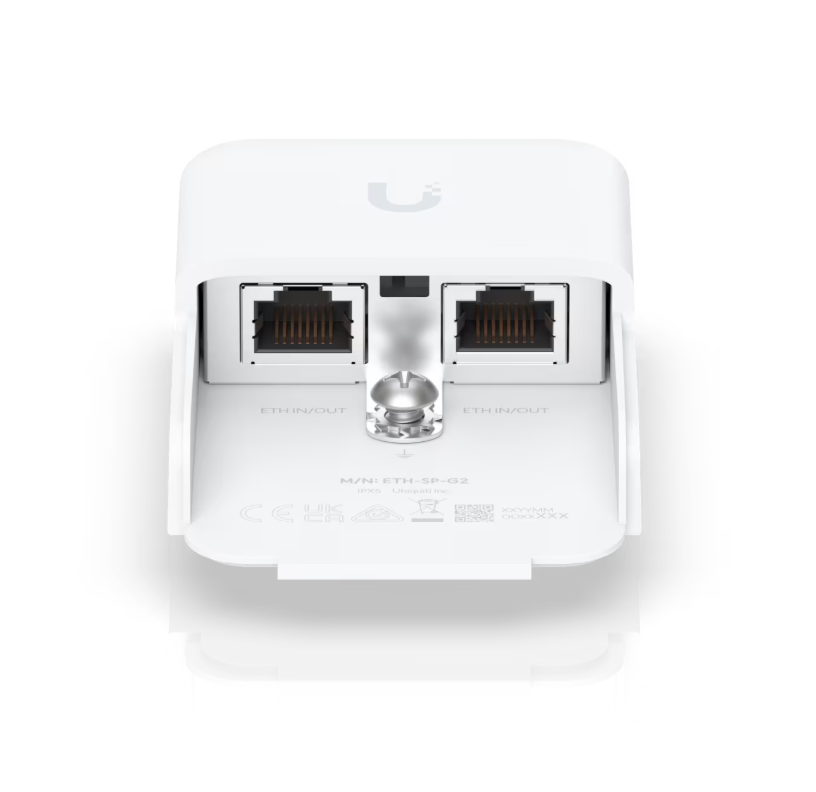

- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Compatible with 2.5 GbE networks
Specifications
| Mechanical | Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Weight | 80 g (2.8 oz) | |
| Enclosure Material | Polycarbonate | |
| Weatherproofing | IPX5 | |
| Hardware | Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s | |
| Max. Impulse Spark-Over Voltage | 700V @ 1kV/µs | |
| Discharge Current | 10kA+ | |
| Insulation | Max. Resistance: 1G ohm @ 50V | |
| Max. Capacitance | 1.0 pF @ 1 MHz | |
| Data Line Protection | Up to 2.5 Gbps | |
| PoE Support | Yes (✓) | |
| ESD Protection | Absorbing transient current (100V/s to 1kV/µs) | |
| Environmental | Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Operating Humidity | 10 to 90% noncondensing | |
| Certifications | ETSI300-019-1.4 Standard (Shock and Vibration) |
