Description

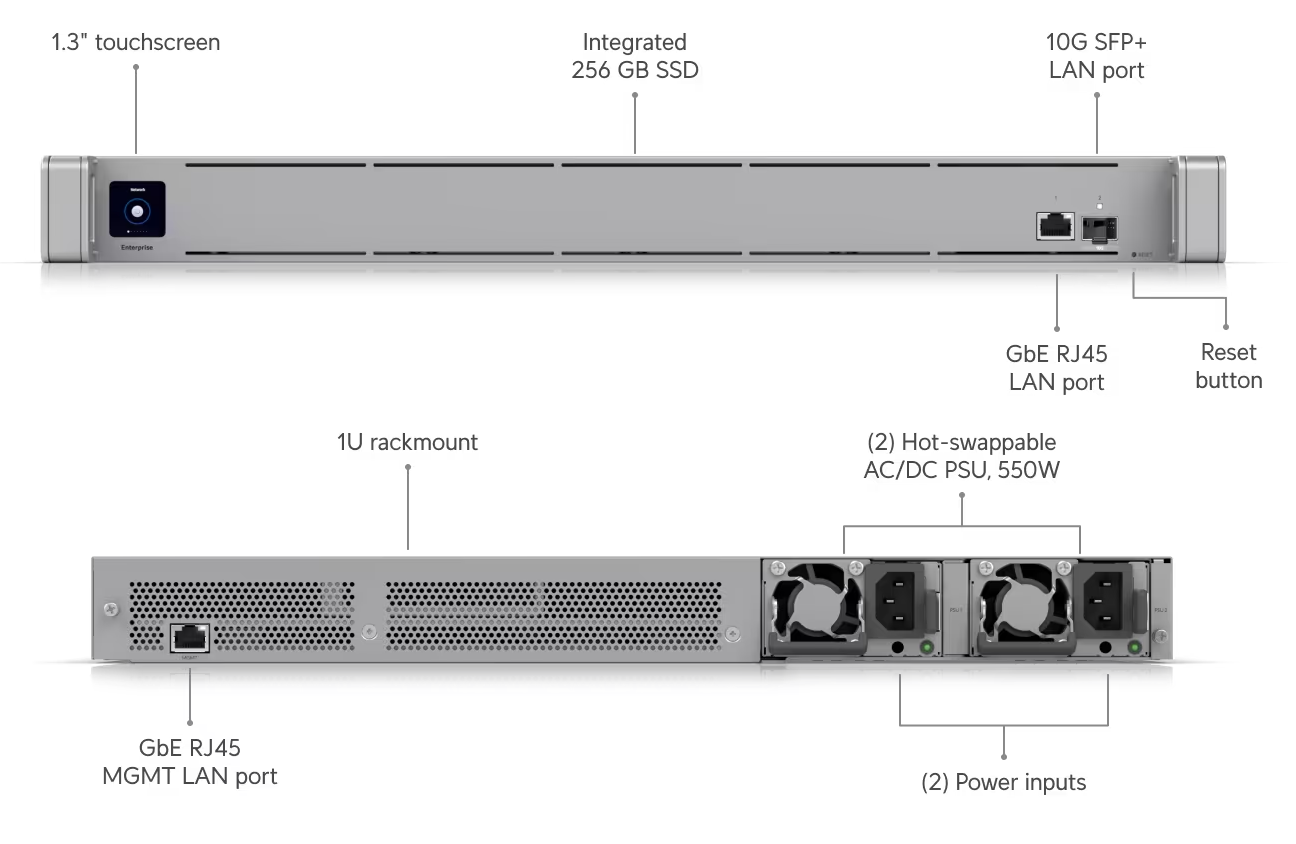

Ubiquiti CK-Enterprise CloudKey Enterprise
Product Details
A UniFi Console designed for managing massive-scale UniFi Networks.
Specifications
Overview
Dimensions: 787 x 43.7 x 481.4 mm (31 x 1.7 x 19")
UniFi Application Suite
Network: ✓
Managed UniFi Devices: 1,000
Simultaneous Users Connected: 10,000
Port Layout
1 GbE RJ45: 2 (1G/100M/10M)
10G SFP+: 1 (10G/1G)
Form Factor: Rack Mount (1U)
Redundancy: (2) Hot-Swappable PSUs
Max. Power Consumption: 190W
Power Method: Universal AC input, 100-240V AC, 7A Max., 50/60 Hz
Power Supply: (2) Hot-Swappable AC/DC 550W PSU
Supported Voltage Range: Universal AC input, 100-240V AC, 7A Max., 50/60 Hz
Processor: 16-core Intel® Xeon®-SP Gold 5218 at 2.3 GHz
System Memory: (2) 16 GB
On-board Storage: (1) 256 GB, M.2 2280 SATA
Weight: 13.1 kg (28.9 lb)
Enclosure Material
Front panel: Aluminium Chassis: SGCC steel
Mount Material: SGCC steel
LCM Display: 1.3" touchscreen
Management: Ethernet Bluetooth
LEDs
Ethernet: ✓
SFP+: ✓
CRPS: ✓
Button: Factory Reset
ESD/EMP Protection: Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature: 0 to 35° C (32 to 95° F)
Ambient Operating Humidity: 8 to 90% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC
Application Requirements
UniFi Network: Version 7.3.83 and later
Features
- Manage 1,000+ UniFi Network devices and 10,000+ clients
- (1) 10G SFP+ and (1) GbE RJ45 LAN port
- (2) 550W redundant power supply units (PSUs)
- Full 1U form factor
- Bluetooth for instant setup
