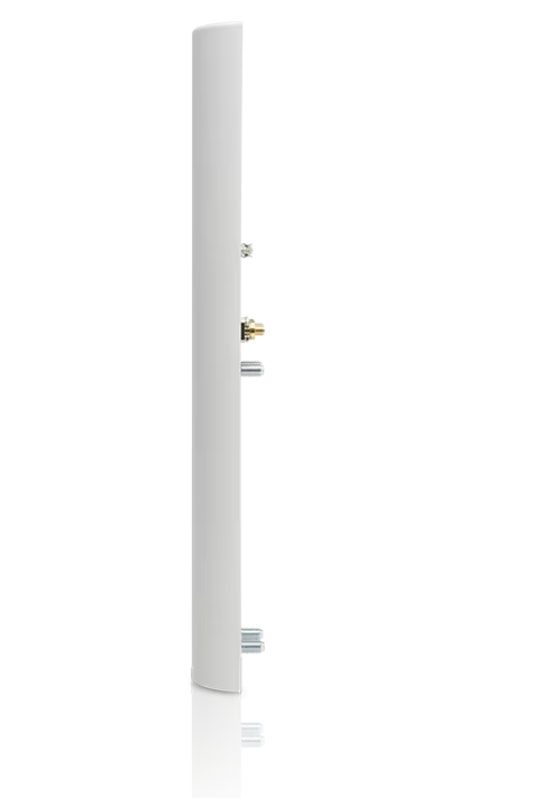

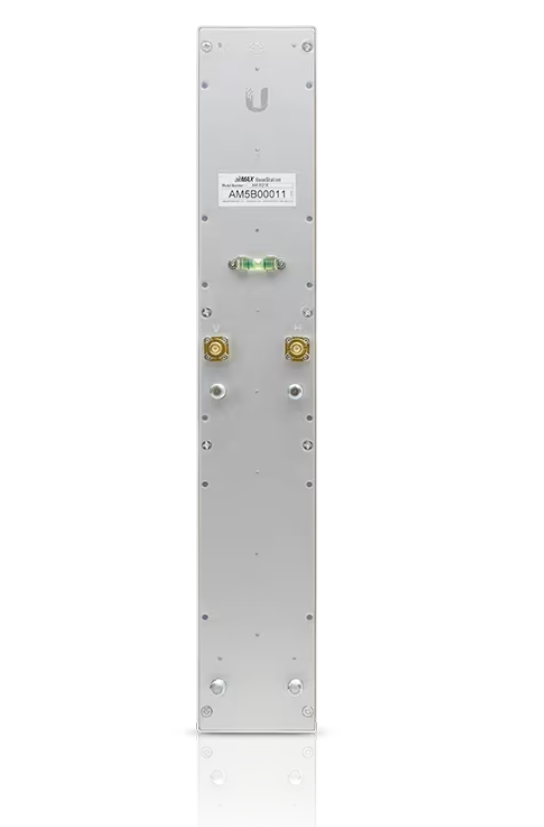

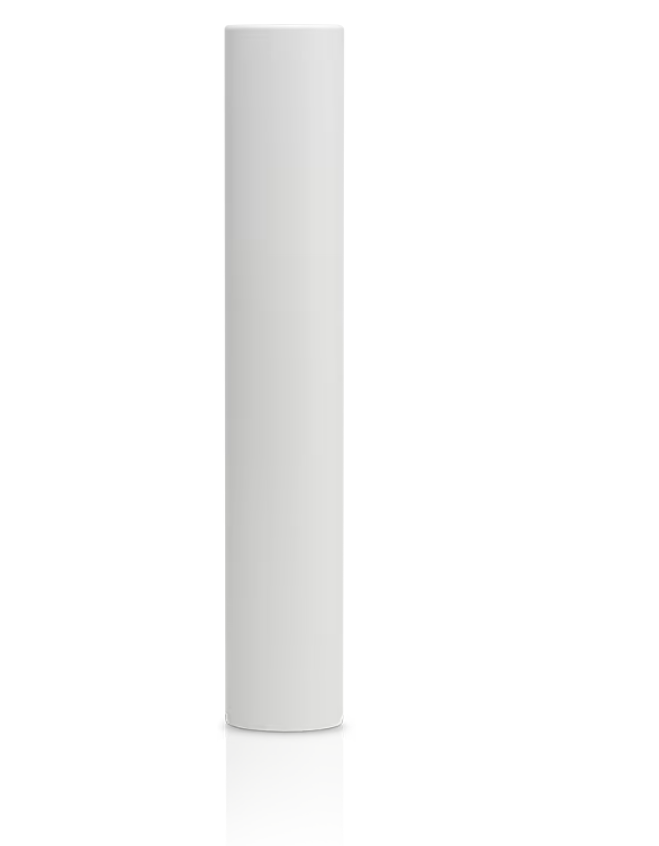

Ubiquiti AM-5G16-120 airMAX 5 GHz, 16/17 dBi Sector
Product Details
5 GHz, 120º, 16 dBi or 90º, 17 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
Specifications
| Dimensions | 367 x 63 x 41 mm (14.4 x 2.5 x 1.6") |
| Weight | 1.1 kg (2.4 lb) |
| Frequency Range | 5.10 - 5.85 GHz |
| Gain | 15.0 - 16.0 dBi |
| HPOL Beamwidth | 137° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Electrical Beamwidth | 8° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 26 N @ 160 km/h (6 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 22 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
