TRENDnetSKU: TPE-TG83
Price:

Login to see pricing

MSRP:
$79.99
Stock:
Call for availability

Description

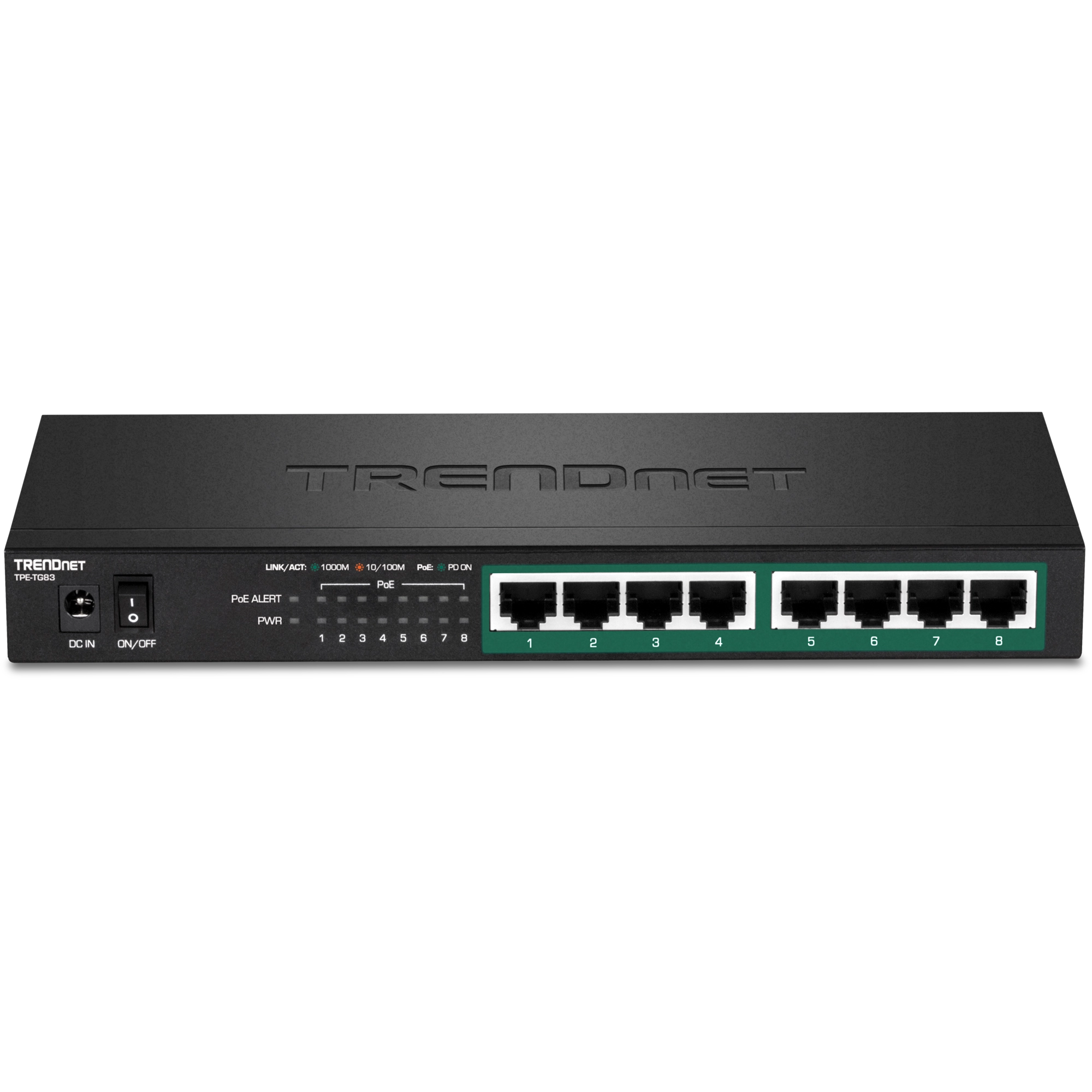

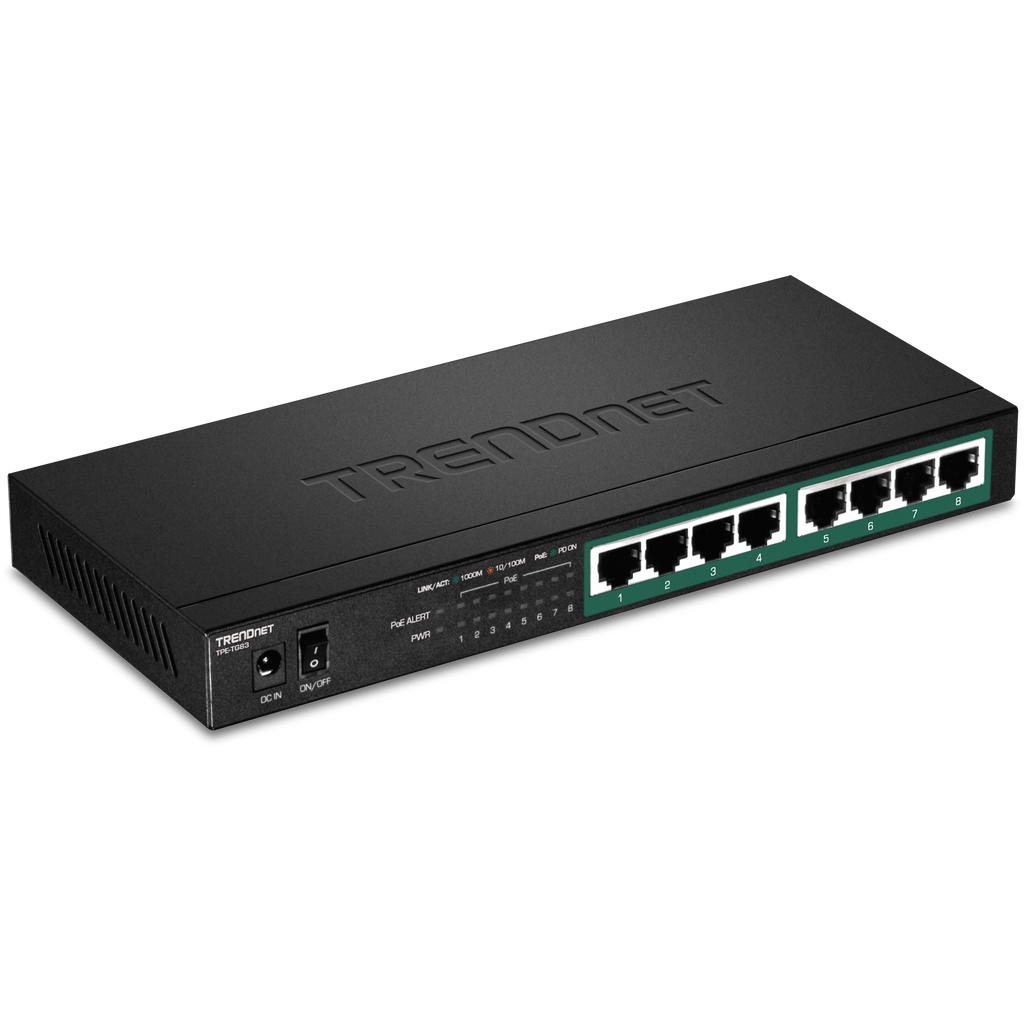

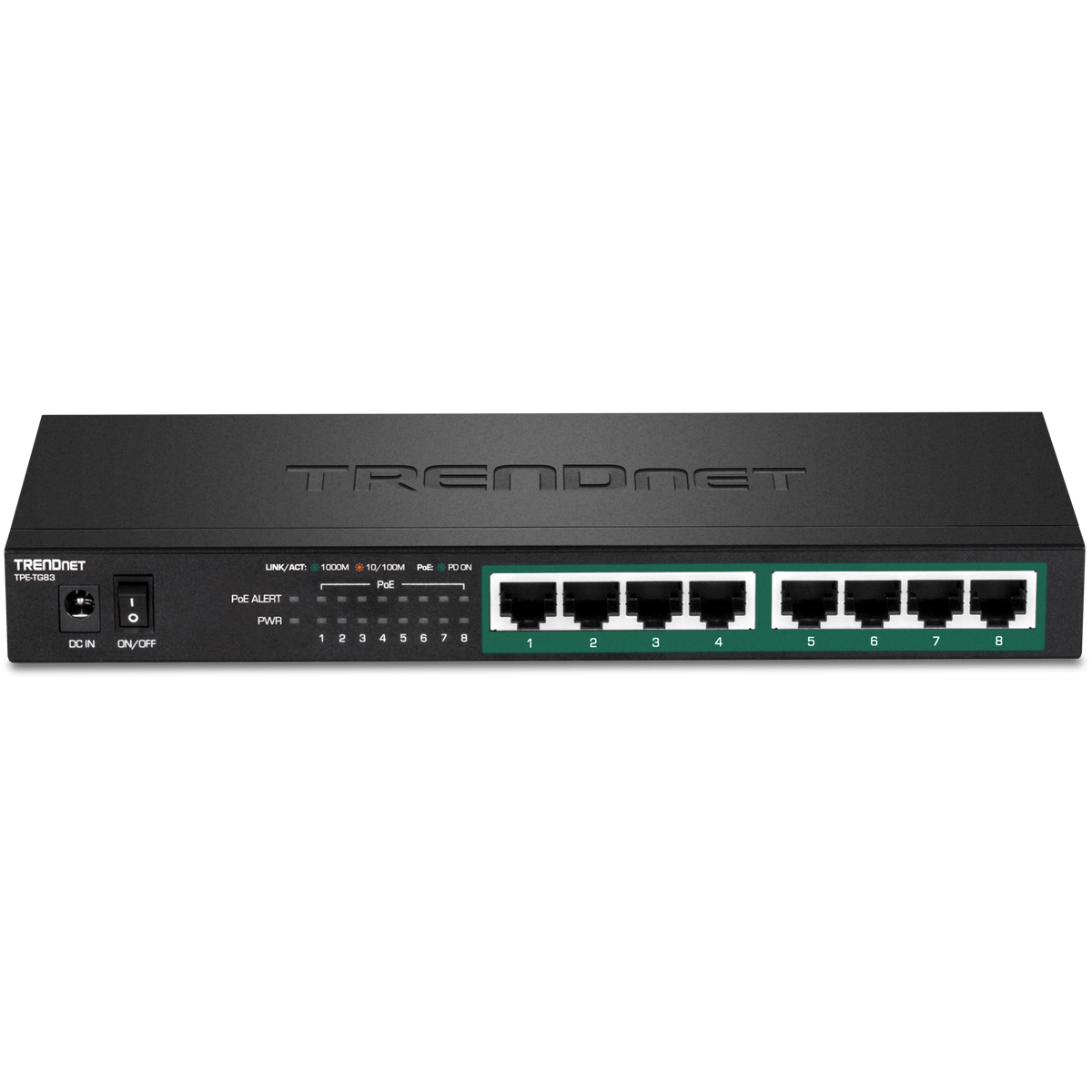

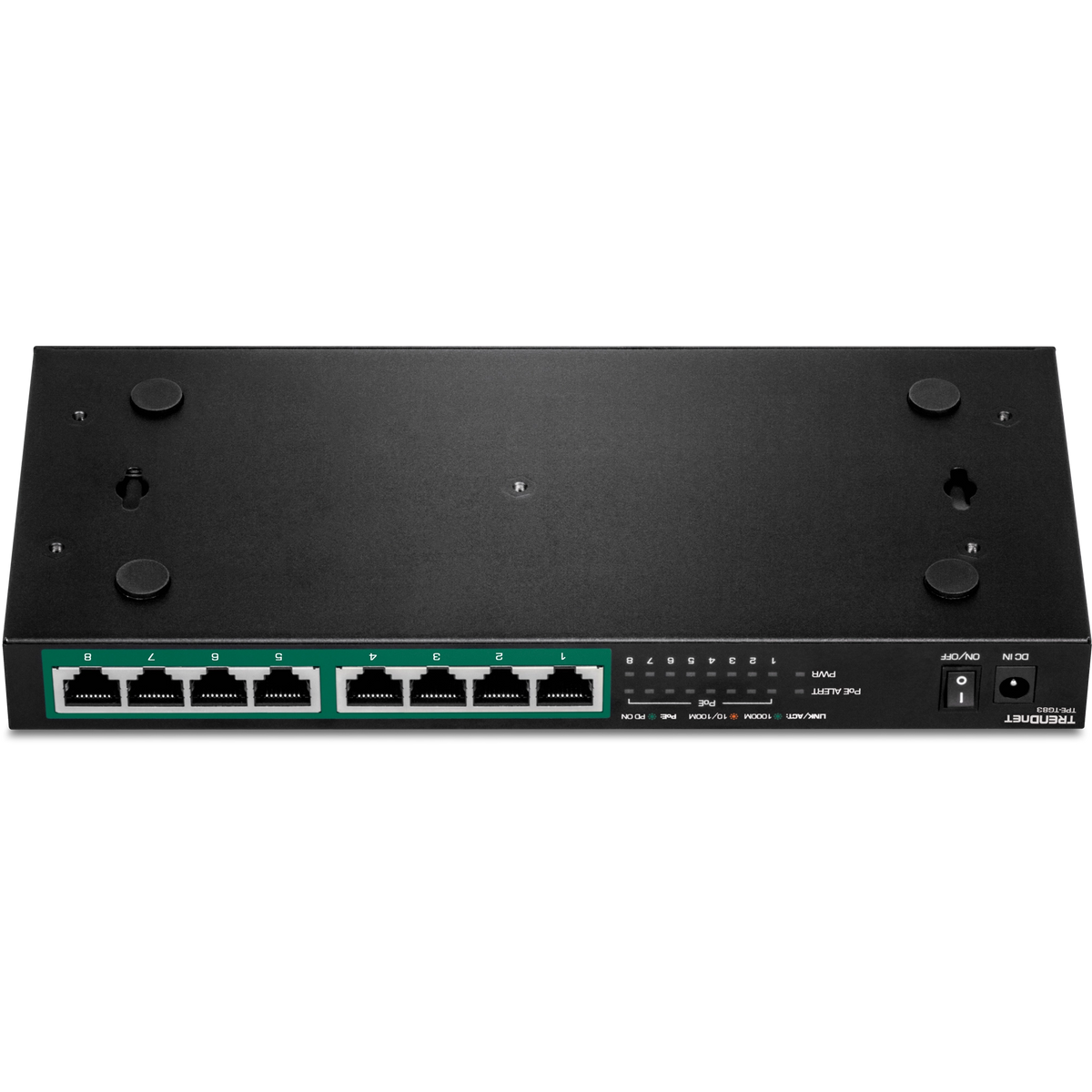

TRENDnet TPE-TG83 8-Port Gigabit PoE+ Switch, 65W PoE Budget

NDAA/TAA Compliant

TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG83, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.

  • 8 x Gigabit PoE+ ports
  • 65W PoE power budget
  • 16Gbps switching capacity
  • IEEE 802.1p QoS and DSCP pass-through support

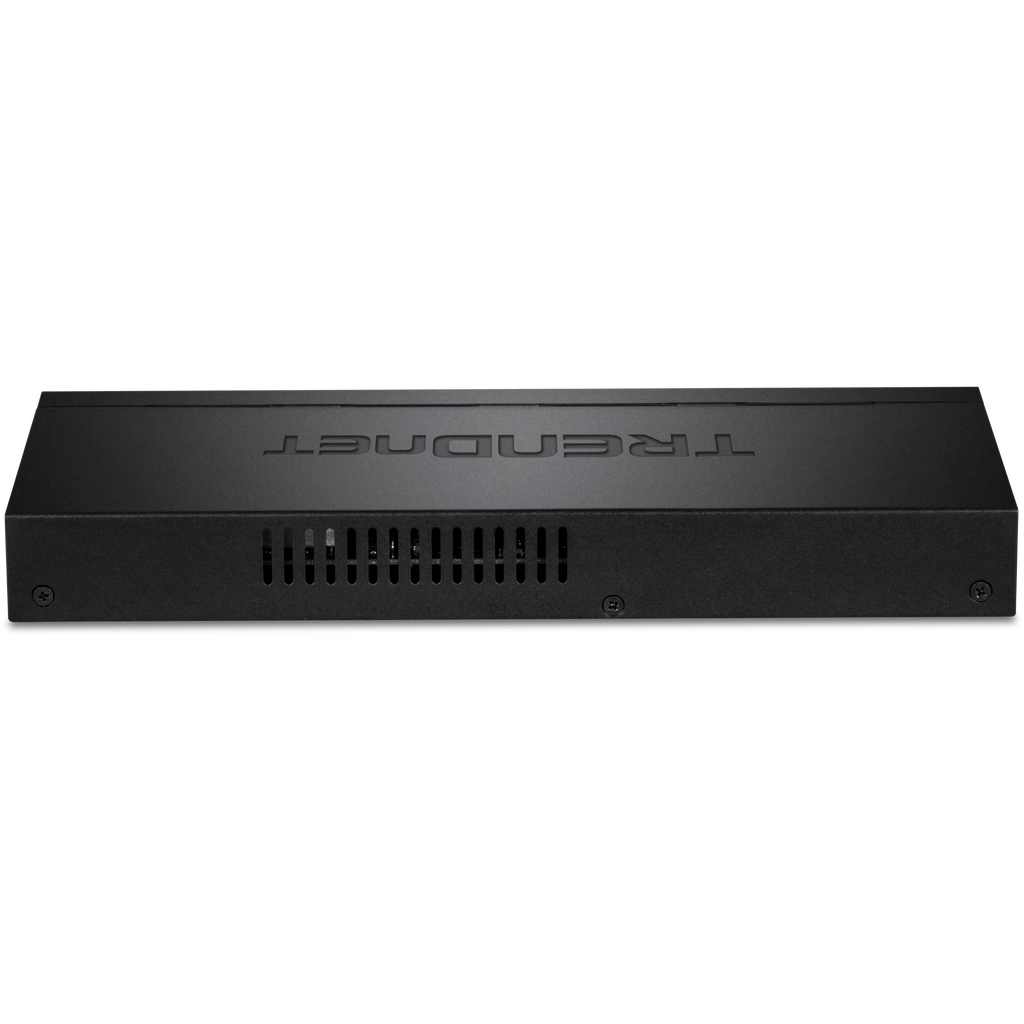

  • Compact fanless design
  • Wall-mountable metal housing
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3p
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 8 x Gigabit PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 16Gbps
  • RAM Buffer: 192KB
  • MAC Address Table: 4K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features
  • 802.1p Class of Service (CoS)

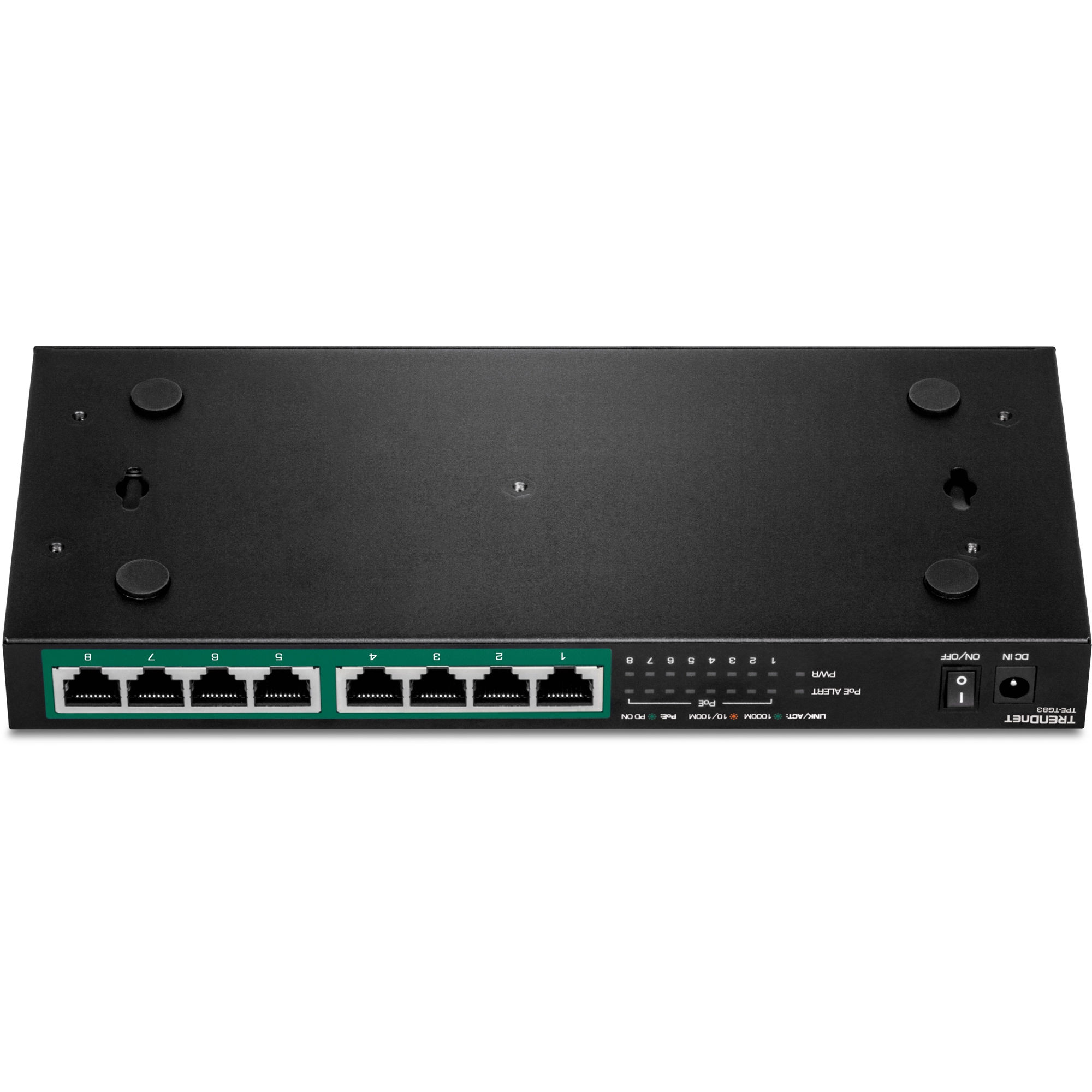

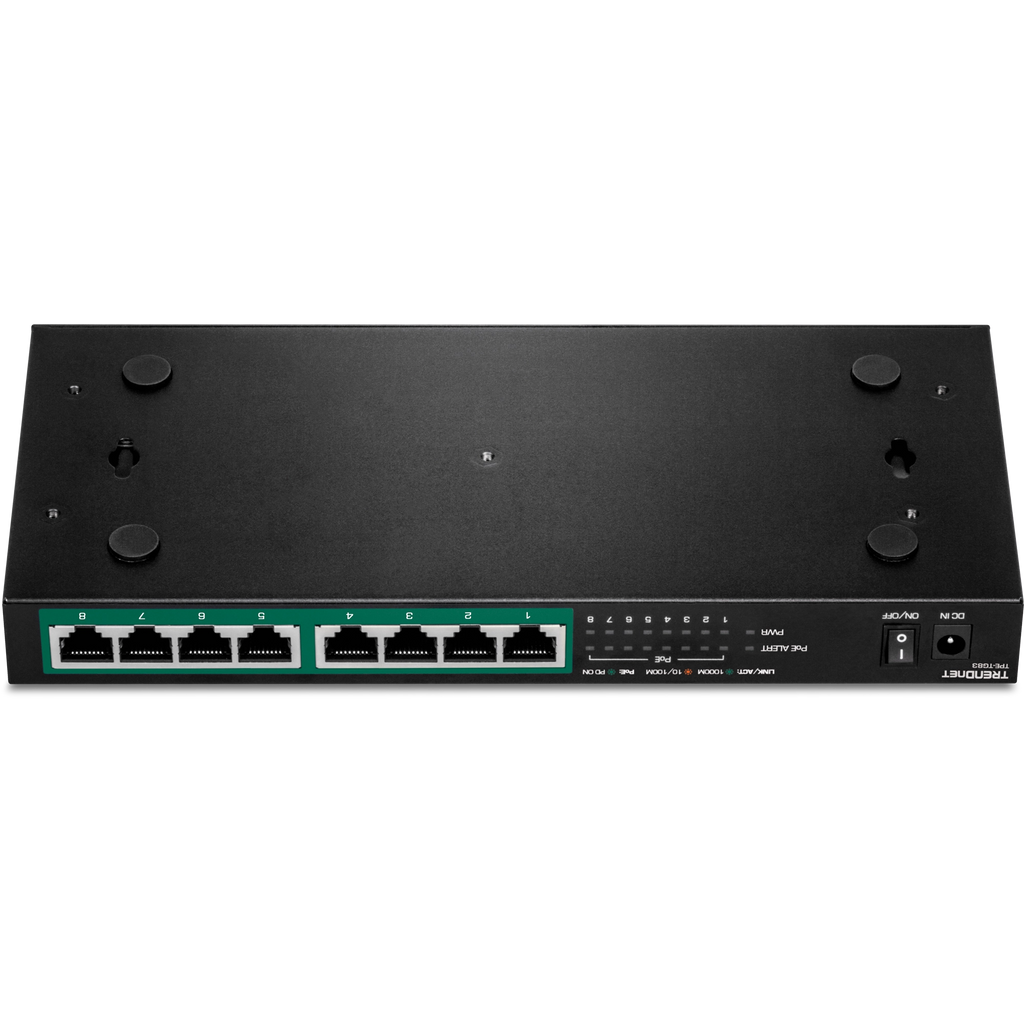

  • Wall mountable
Power
  • Input: 100 – 240 V AC, 50/60Hz, 2.5A
  • Output: 55V DC, 1.3A external power adapter
  • Max. consumption: 71W
PoE
  • PoE budget: 65W
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 240 x 105 x 27mm (9.45 x 4.13 x 1.1 in.)
Weight
  • 580g (20.45 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

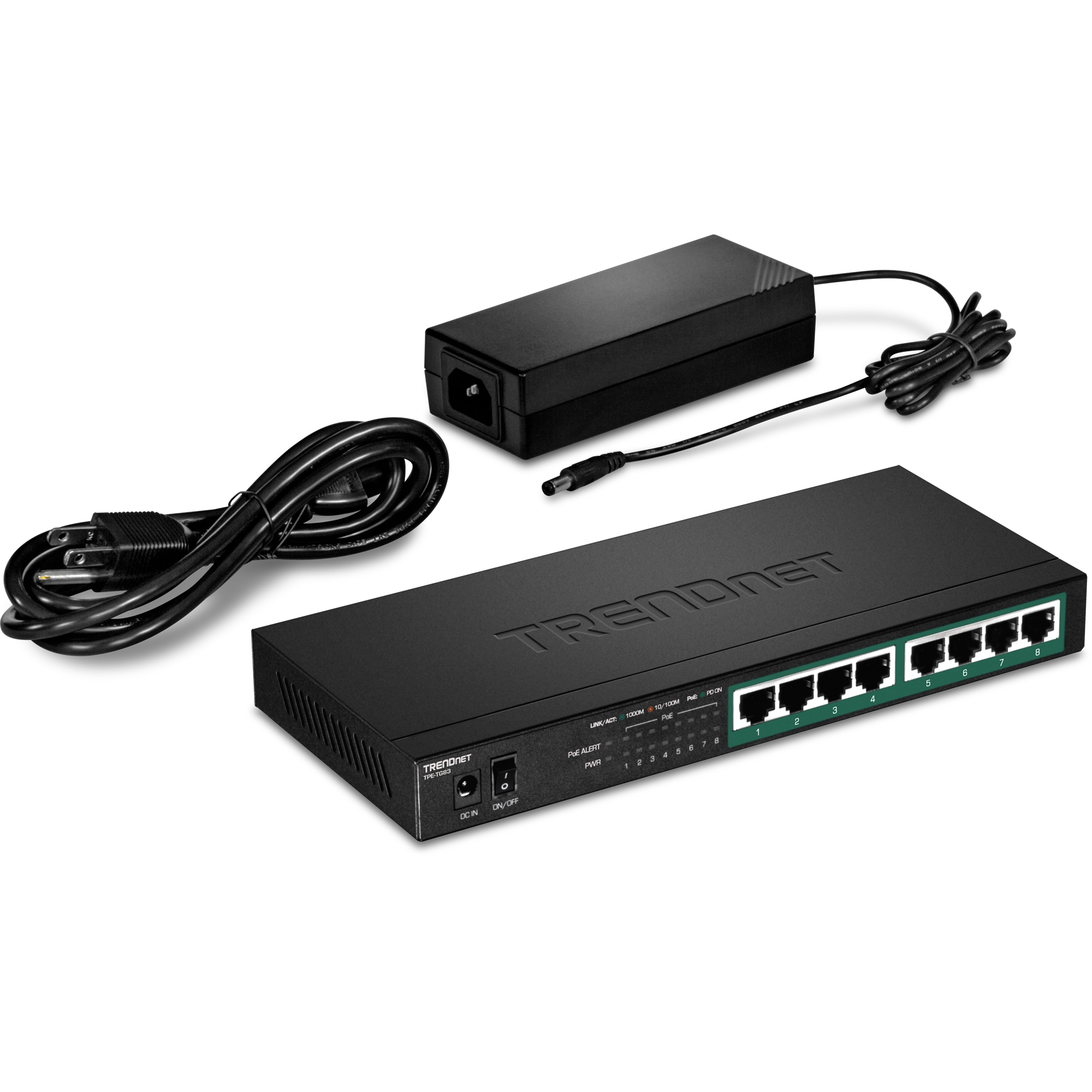

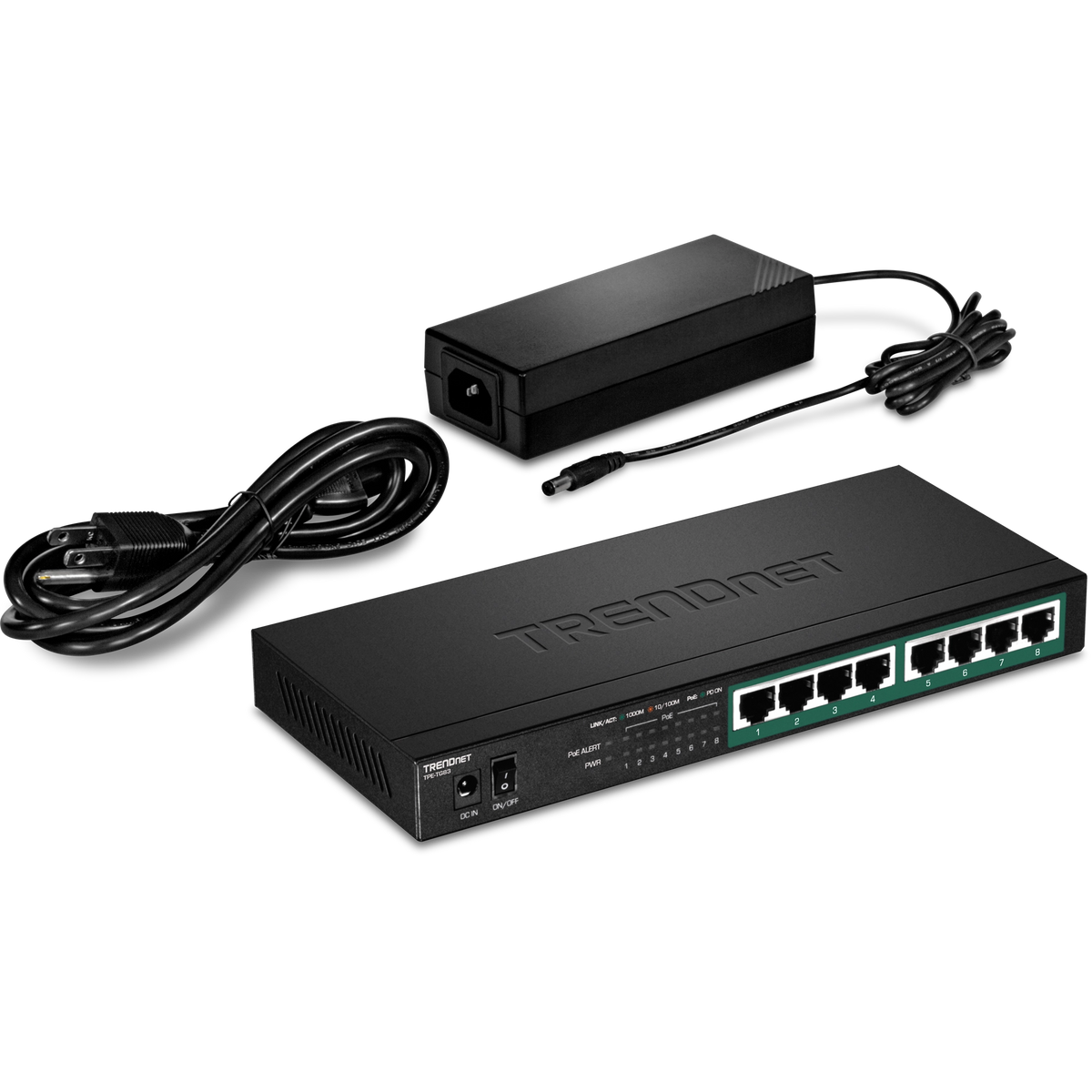

PACKAGE CONTENTS
  • TPE-TG83
  • Quick Installation Guide
  • Power adapter (55V DC, 1.3A)
