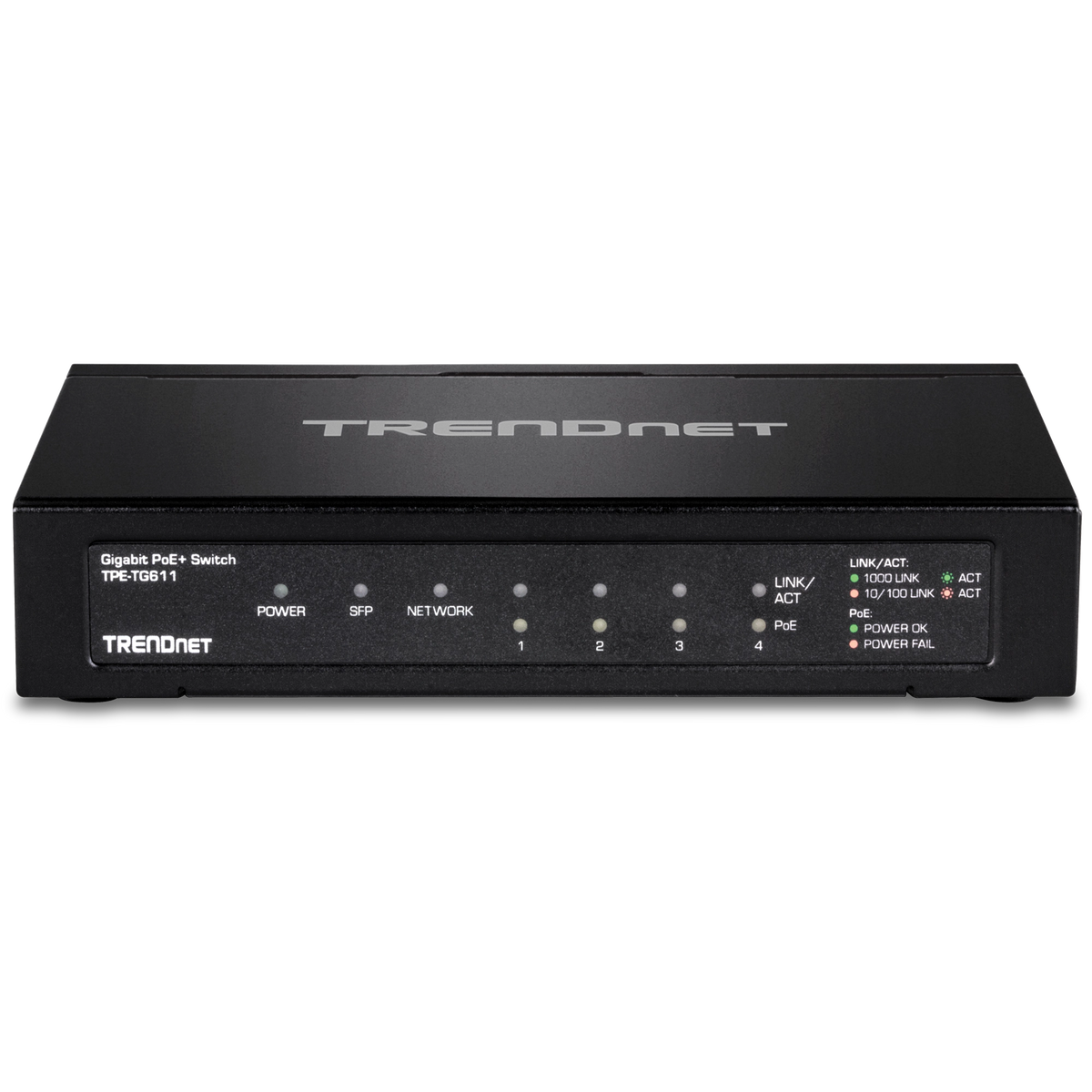

TRENDnet TPE-TG611 6-Port Gigabit PoE+ Switch

NDAA/TAA Compliant

Product Details

TRENDnet's 6-Port Gigabit PoE+ Switch, model TPE-TG611, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This small network switch with SFP support provides four gigabit PoE+ ports with a total PoE power budget of 65W, one gigabit port, and one SFP slot for fiber applications. With PoE technology, users only need one set of cables to deliver both data and power. The small network switch with SFP support allows you to network PoE devices such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. The added SFP slot supports both single mode and multi-mode fiber SFP modules for long-distance fiber networking applications.

Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at

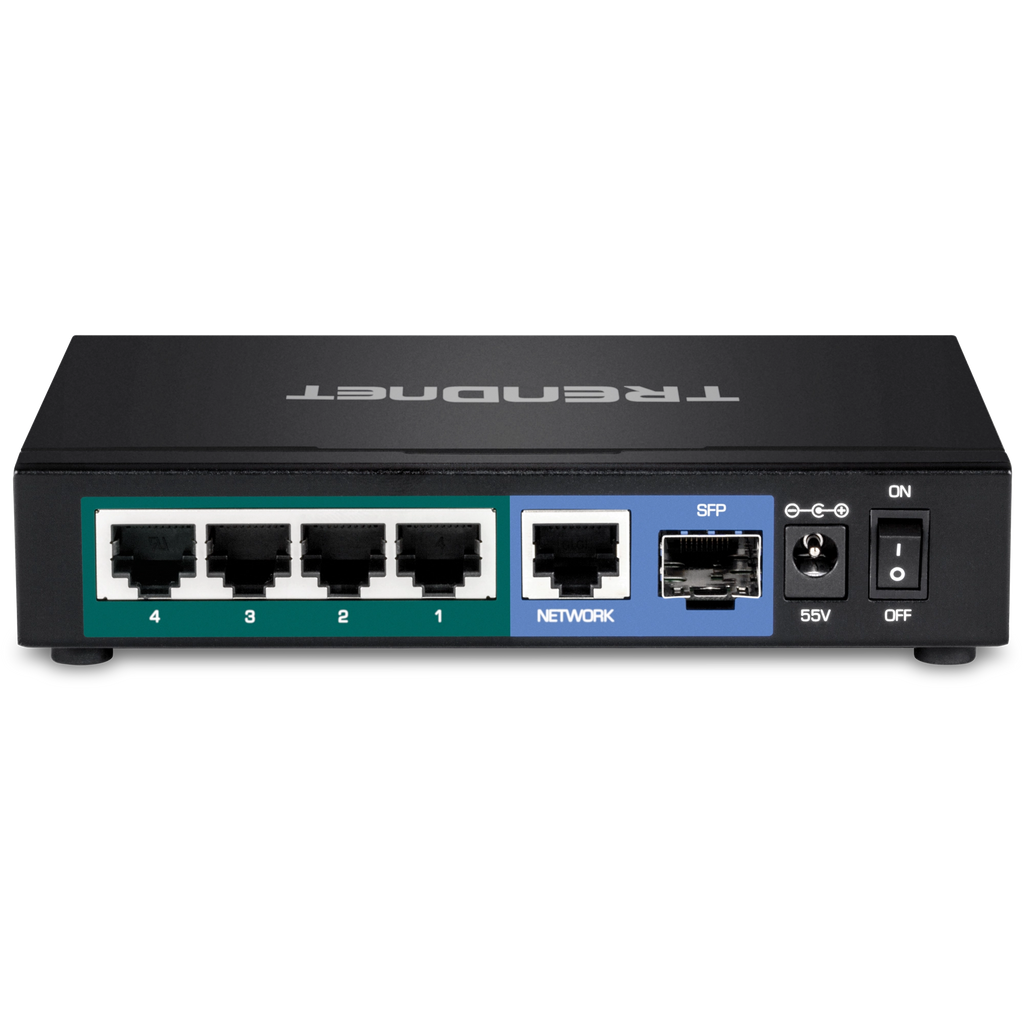

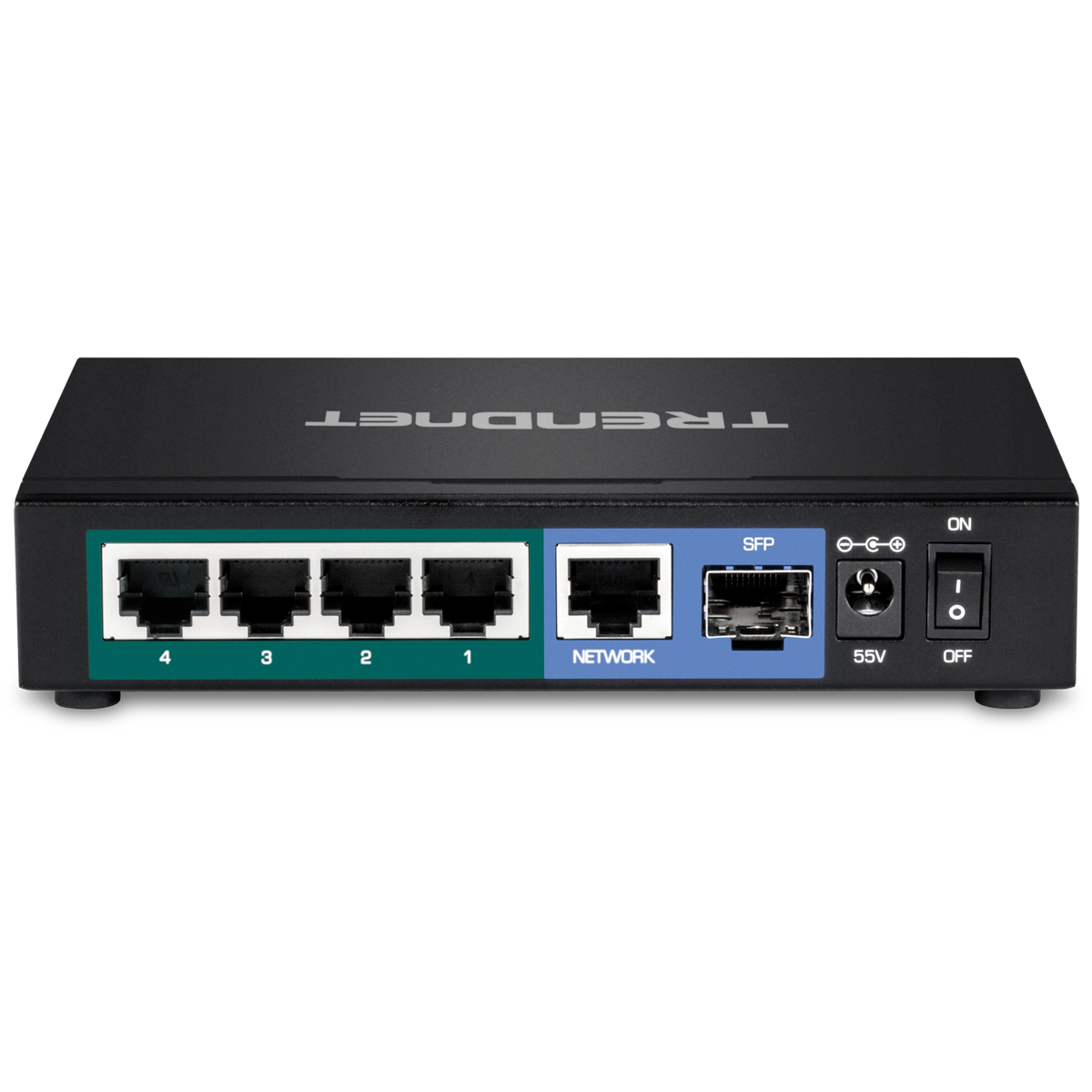

Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit Network port (uplink)
  • 1 x SFP slot
  • Power Switch

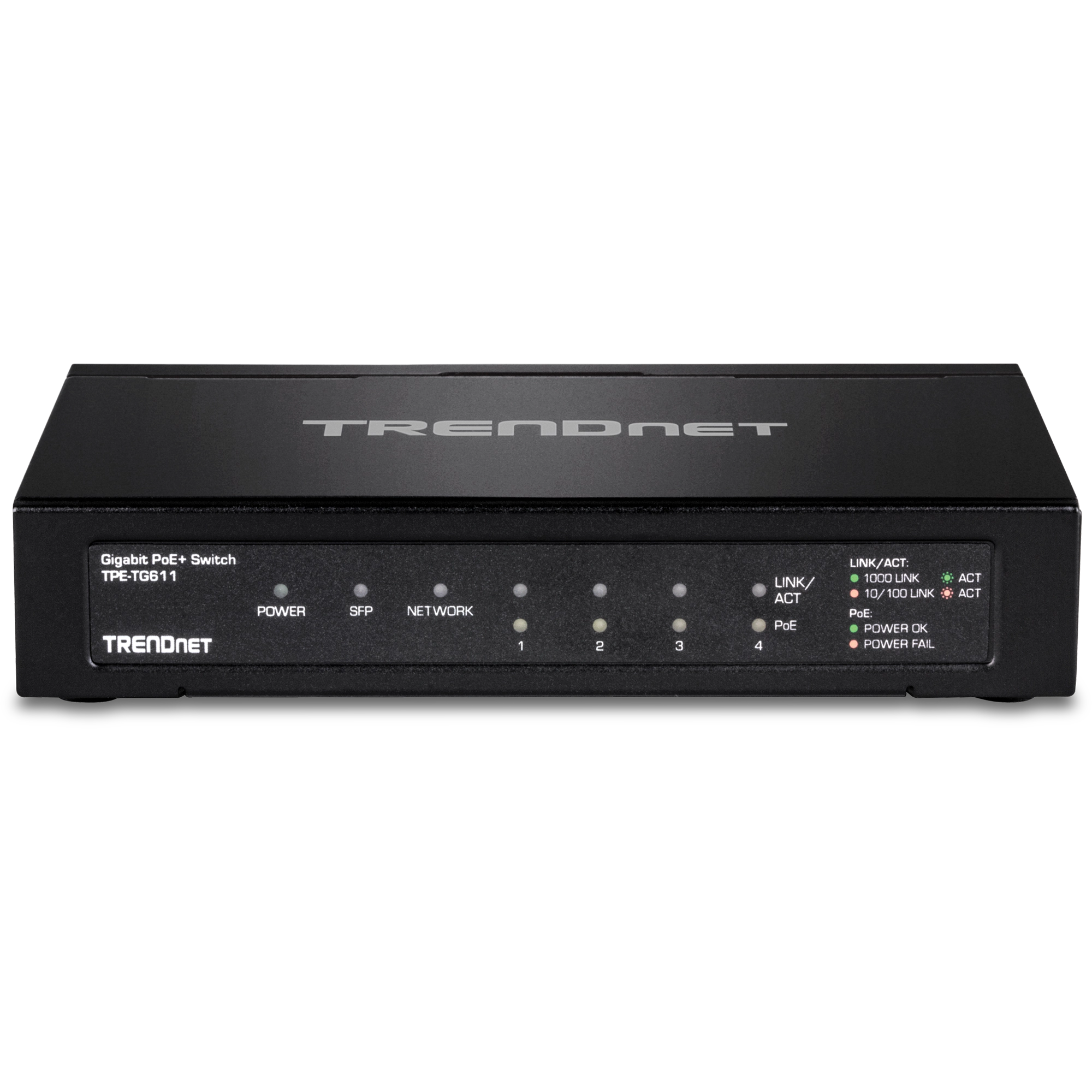

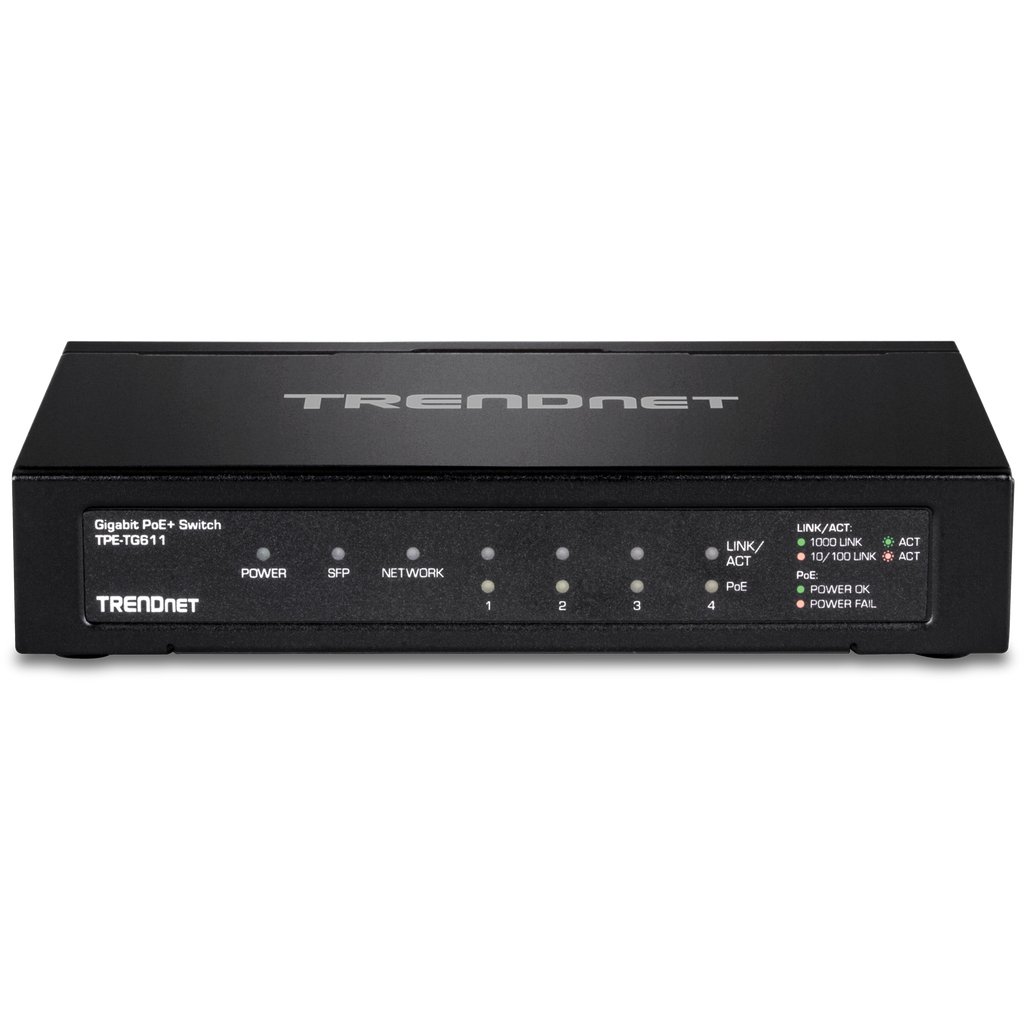

  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Switching Capacity: 12Gbps
  • RAM Buffer: 128KB
  • MAC Address Table: 2K entries
  • Forwarding Rate: 8.298Mpps (64-byte packet size)
  • Jumbo Frames: 9KB
Special Features
  • 802.1p CoS pass-through

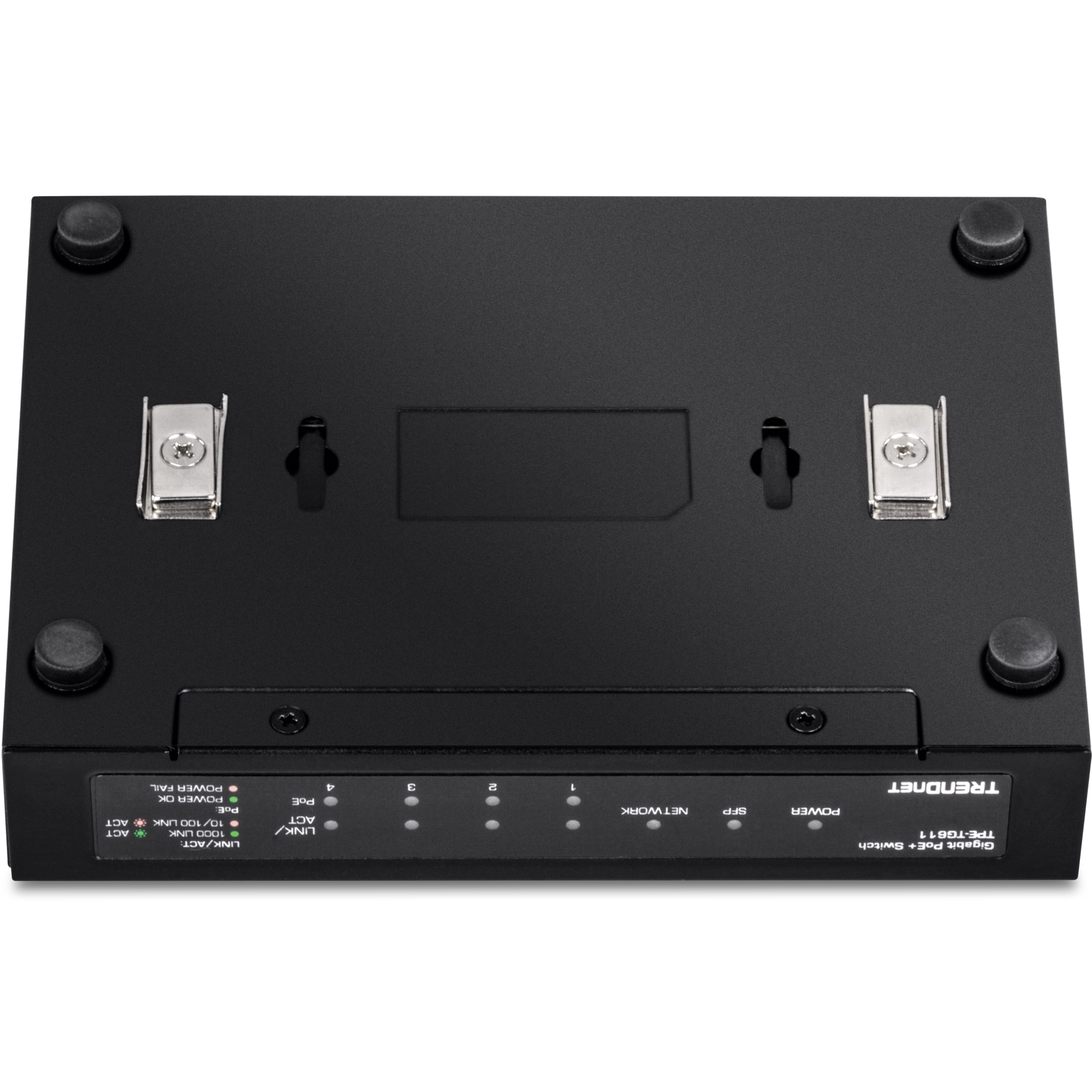

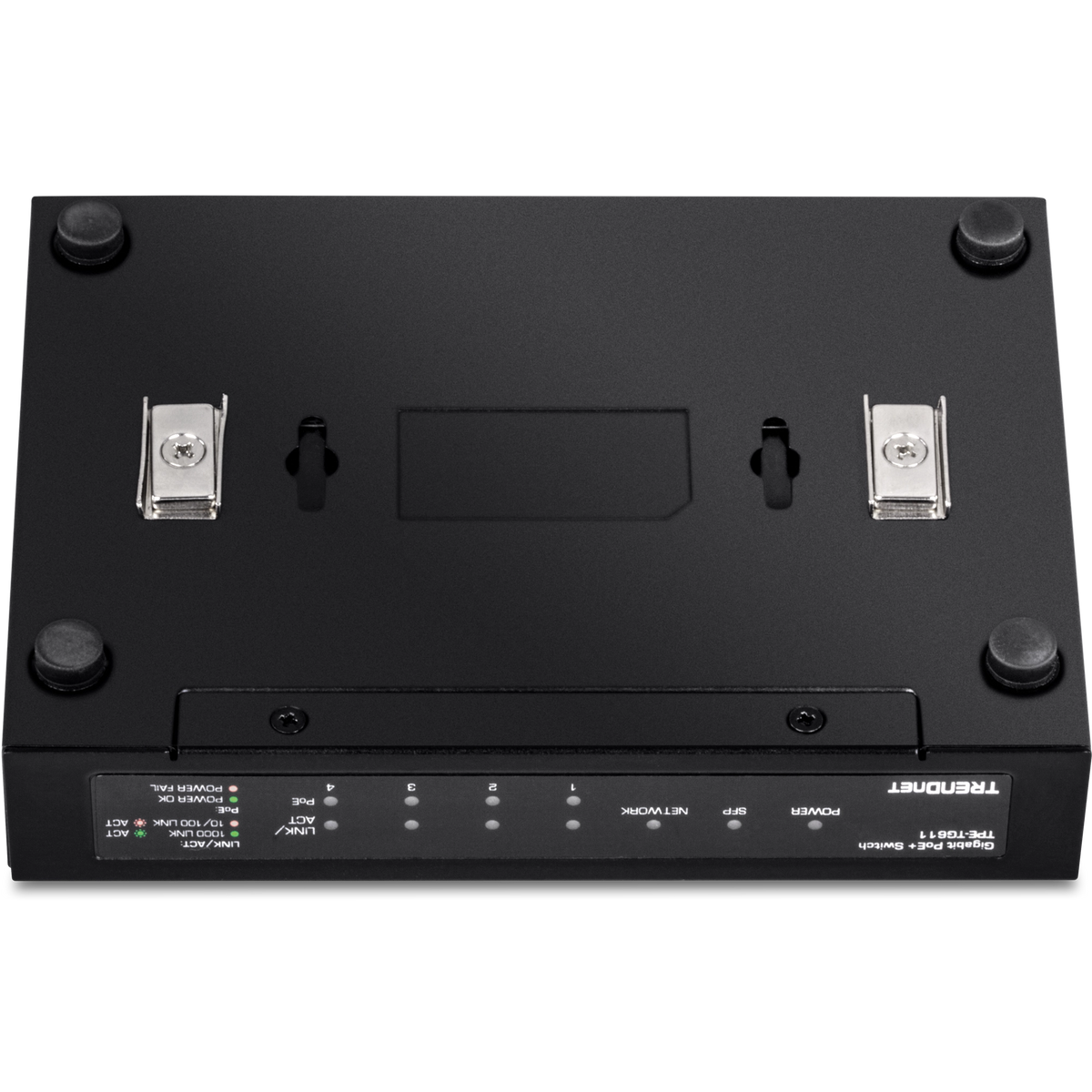

  • Wall-Mountable
  • Magnetic Mount
  • SFP Slot
  • PoE+
Power
  • Input: 100 – 240V AC, 50/60 Hz
  • Output: 55V DC, 1.3A
  • Max. Consumption: 71.5W
PoE
  • PoE budget: 65W
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Fan/Acoustics
  • Fanless design
MTBF
  • 1,401,356 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 193 x 84 x 26mm (7.6 x 3.3 x 1.02 in.)
Weight
  • 456g (16.1 oz.)
Certifications
  • CE
  • FCC
Warranty

Features

  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 1 x SFP slot
  • 12Gbps switching capacity
  • 65W PoE power budget
  • Supports 100/1000Base-FX fiber SFP modules
  • Reduces equipment cost by delivering data and power over existing network cables
  • IEEE 802.1p QoS and DSCP pass-through support
  • Compact wall-mountable metal housing
  • Fanless design
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TPE-TG611
  • Quick Installation Guide
  • Power Brick (55V DC, 1.3A)
  • Power cord
  • Mounting hardware
