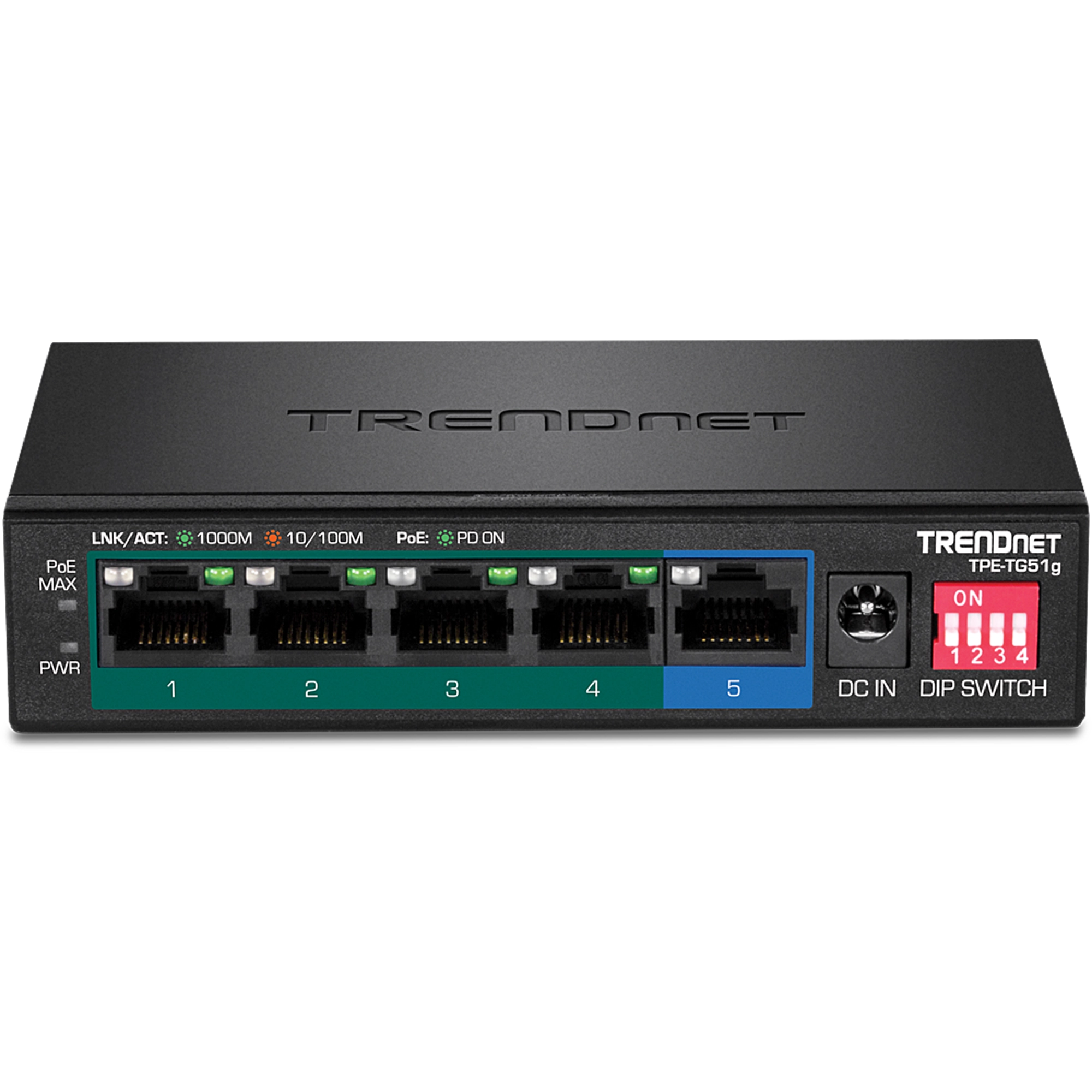

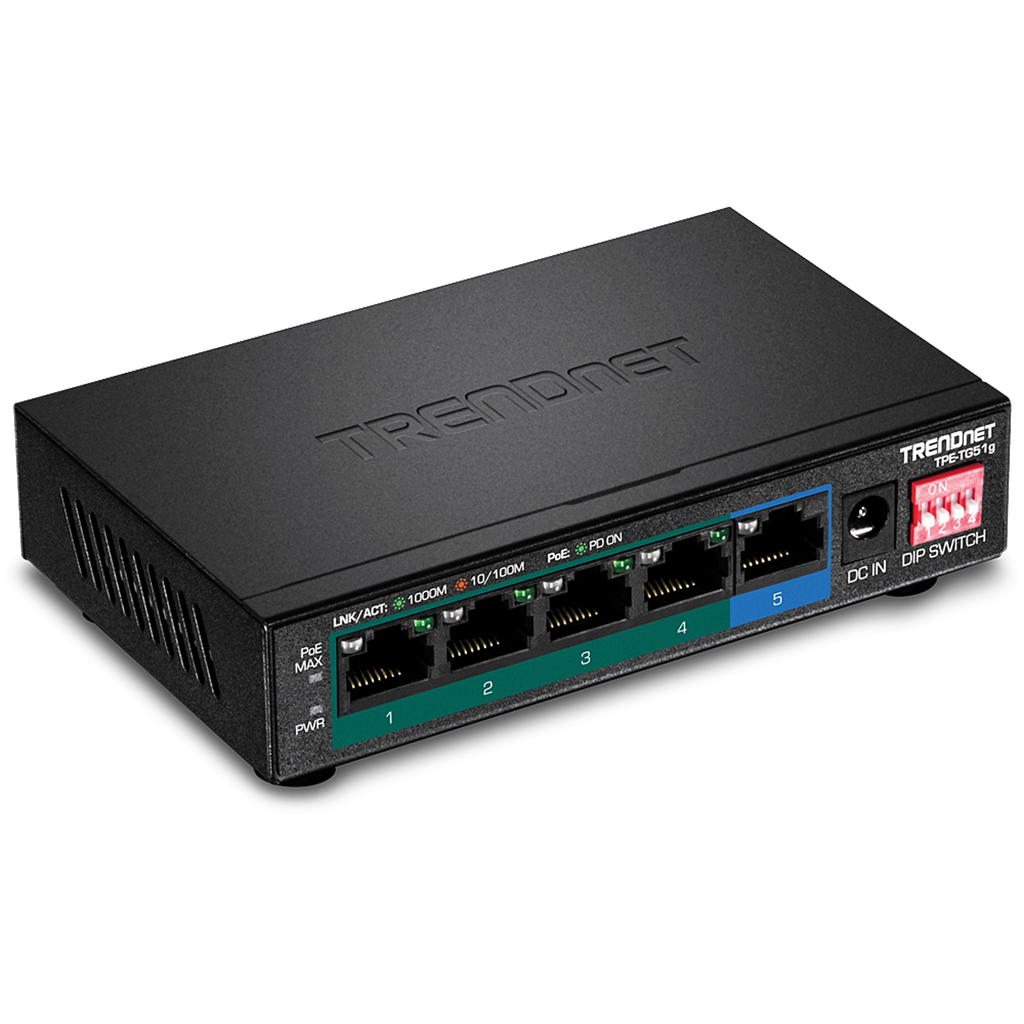

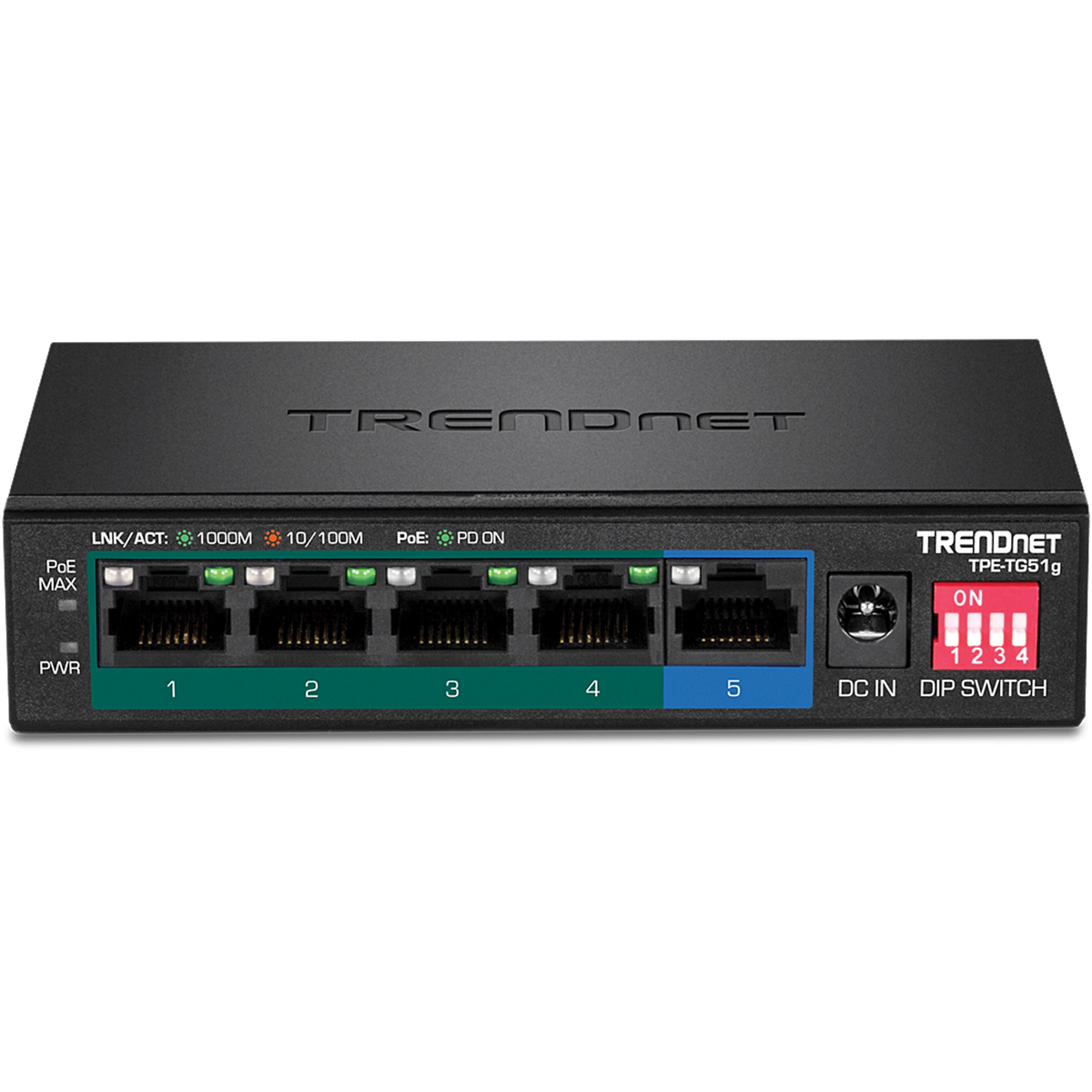

TRENDnet TPE-TG51g 5-Port Gigabit PoE+ Switch (60W)
Product Details
TRENDnet’s 5-Port Gigabit PoE+ Switch, model TPE-TG51g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices, such as access points and IP cameras. This long-range PoE switch supports both PoE and PoE+ devices with a 60W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Easily install this long-range PoE switch for reliable high-speed PoE networking.
Specifications
| Standards |
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3p
- IEEE 802.3af
- IEEE 802.3at
|
| Device Interface |
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- DIP switch
- LED indicators
|
| Data Transfer Rate |
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
|
| Performance |
- Switch Fabric: 10Gbps
- RAM Buffer: 128KB
- MAC Address Table: 2K entries
- Jumbo Frames: 9KB
- Forwarding rate: 7.44Mpps (64-byte packet size)
|
| Special Features |
- Long range PoE+ up to 200m at 10Mbps
- VLAN port isolation
- 802.1p Class of Service (CoS)

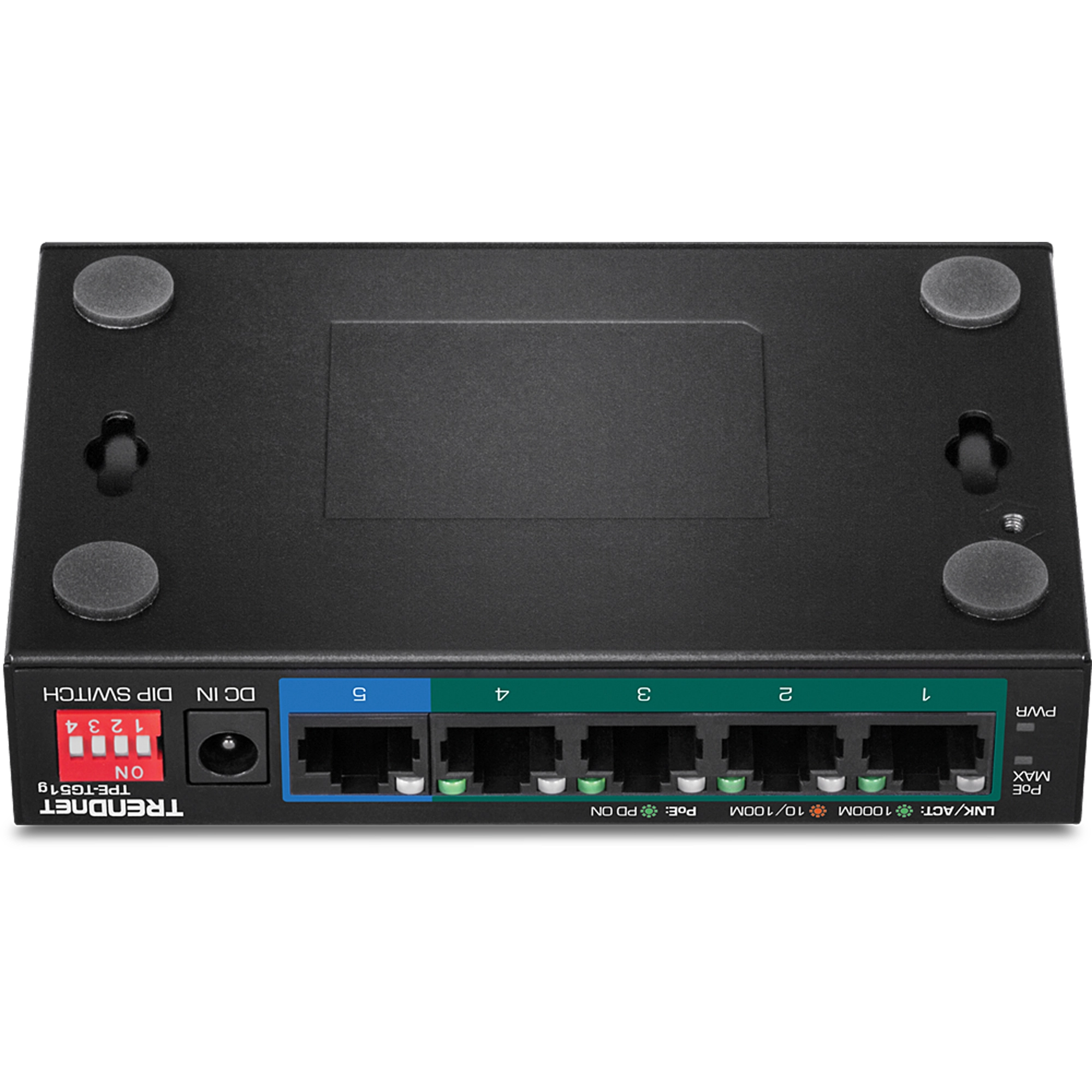

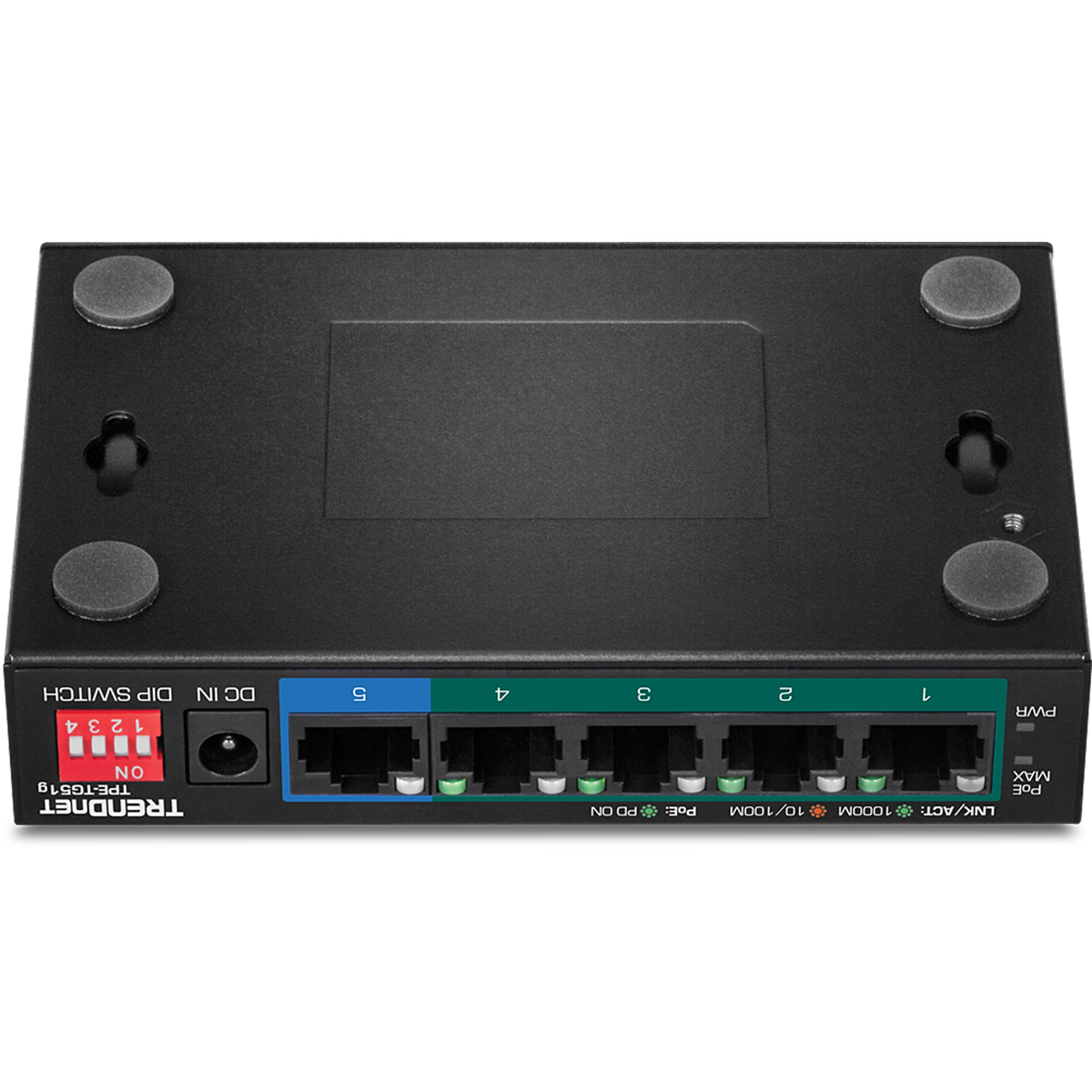

- Wall mountable
|
| DIP Switch |
| Switch |
Status |
Function |
| 1 |
OFF |
Ports 1 & 2: Default gigabit PoE+ |
| ON |
Ports 1 & 2: Long range PoE+ up to 200m at 10Mbps |
| 2 |
OFF |
Ports 3 & 4: Default gigabit PoE+ |
| ON |
Ports 3 & 4: Long range PoE+ up to 200m at 10Mbps |
| 3 |
OFF |
VLAN port isolation disabled |
| ON |
VLAN port isolation on ports 1-4 |
| 4 |
OFF |
QoS disabled |
| ON |
QoS Enabled: Video & Voice – High Priority |
|
| Power |
- Input: 100 – 240 V AC, 50/60Hz, 2.5A
- Output: 54V DC, 1.3A external power adapter
- Max. consumption: 64.3W
|
| PoE |
- PoE budget: 60W
- PoE Mode A: Pins 1,2 for power and pins 3,6 for power
|
| Operating Temperature |
- 0° – 40° C (32° – 104° F)
|
| Operating Humidity |
|
| Dimensions |
- 121 x 75 x 26mm (4.76 x 2.95 x 1 in.)
|
| Weight |
|
| Certifications |
|
| Warranty |
|
Features
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- 60W PoE power budget
- Extend PoE+ signal up to 200m (656 ft.) at 10Mbps
- DIP switch supports VLAN port isolation and QoS
- 10Gbps switching capacity
- Compact metal switch
- Wall mountable design
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
|

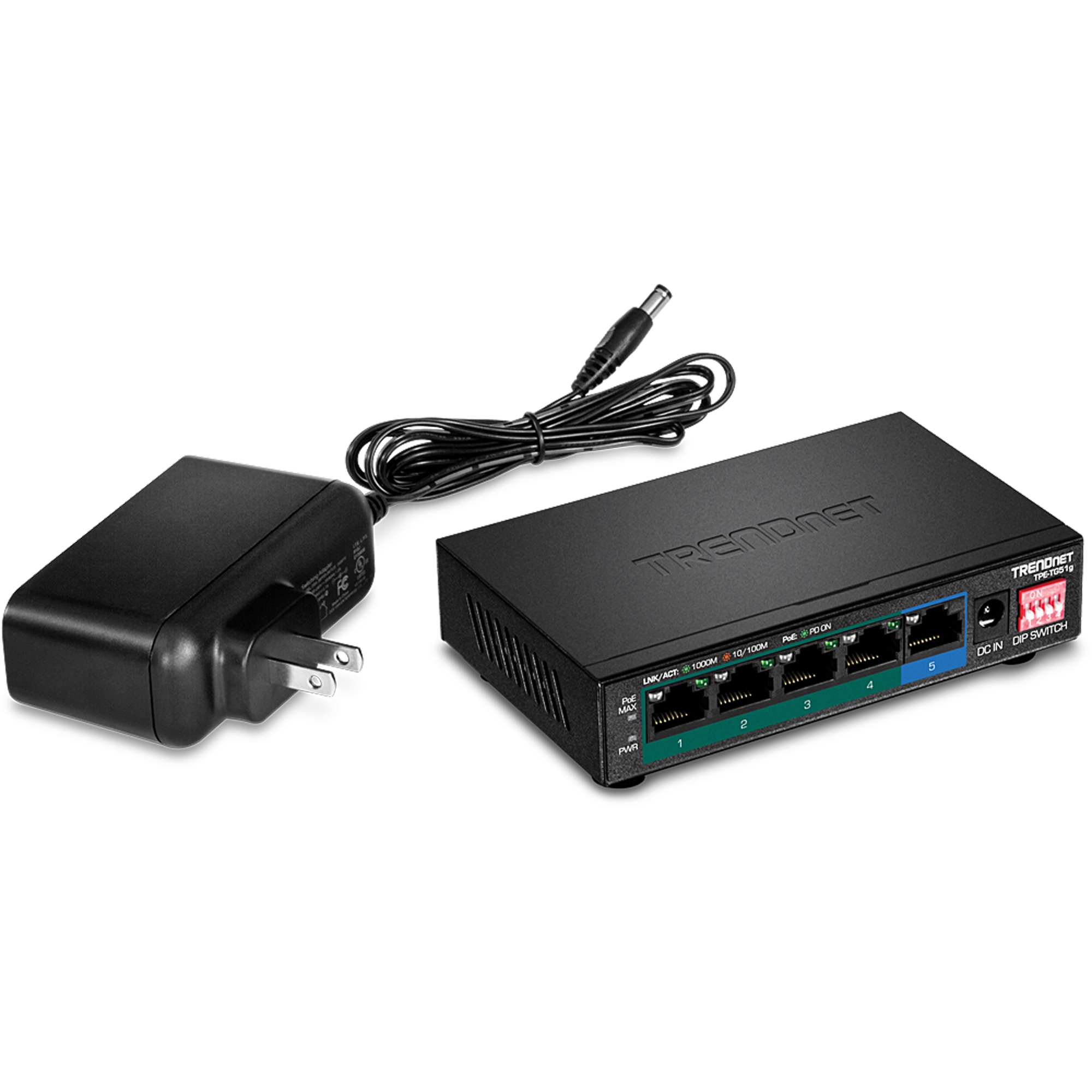

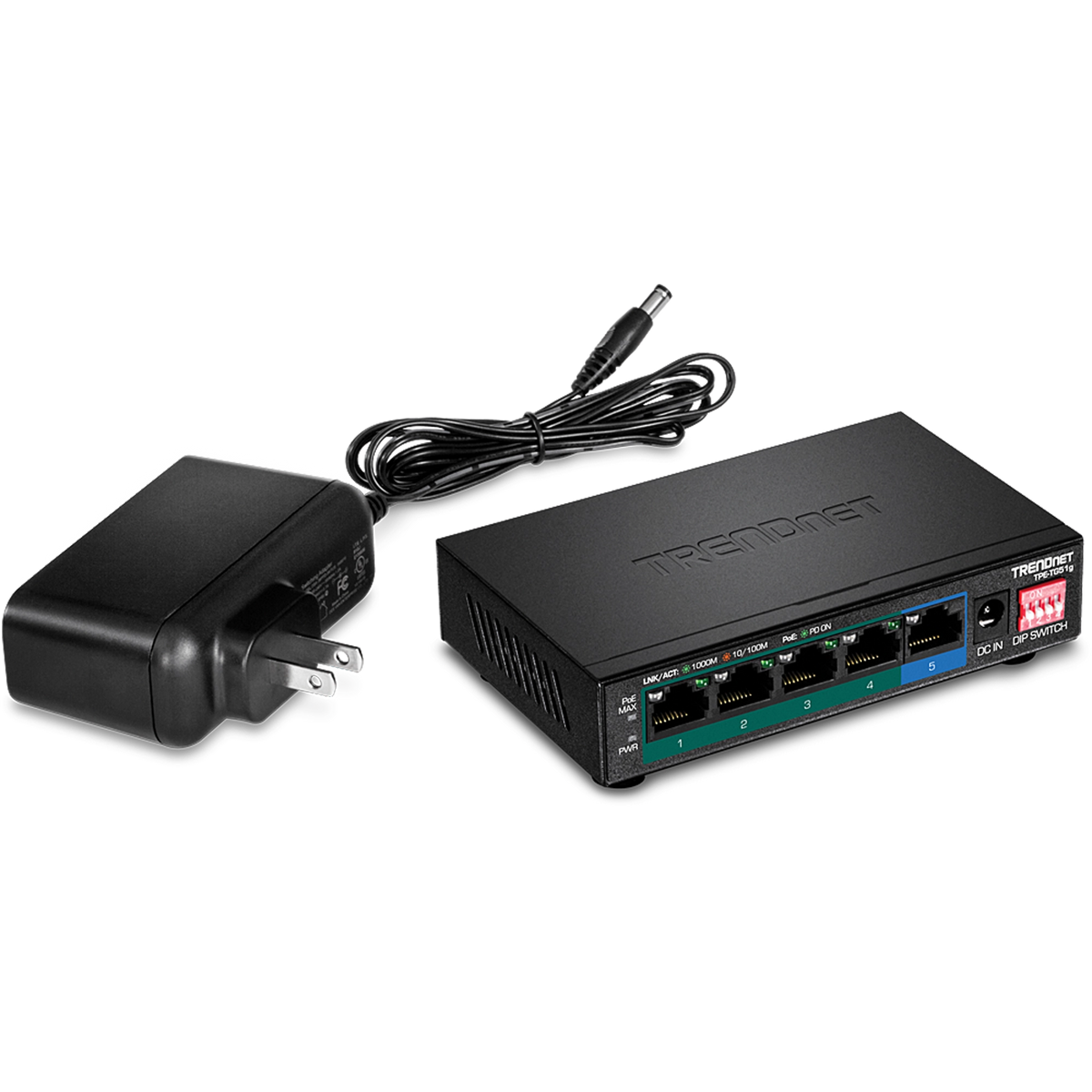

PACKAGE CONTENTS
|
- TPE-TG51g
- Quick Installation Guide
- Power adapter (55V DC, 1.3A)
|
