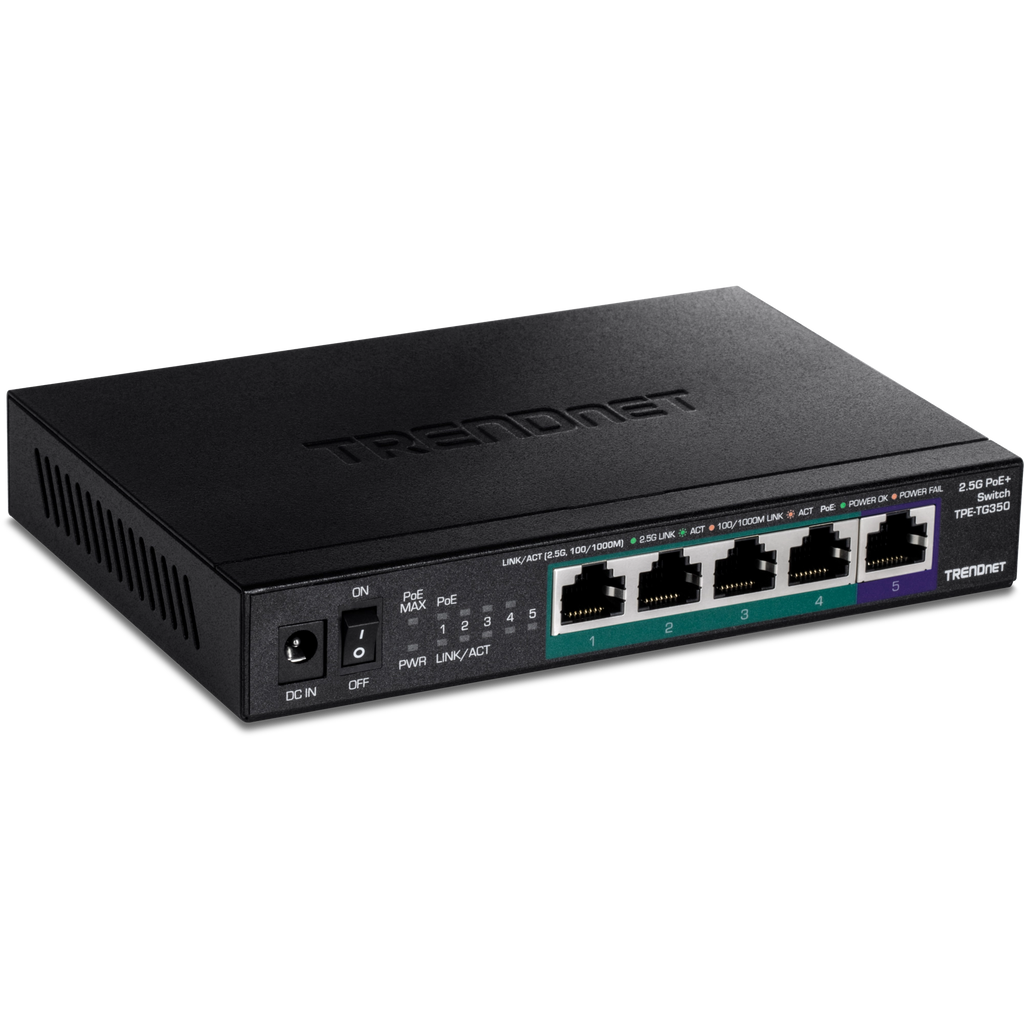

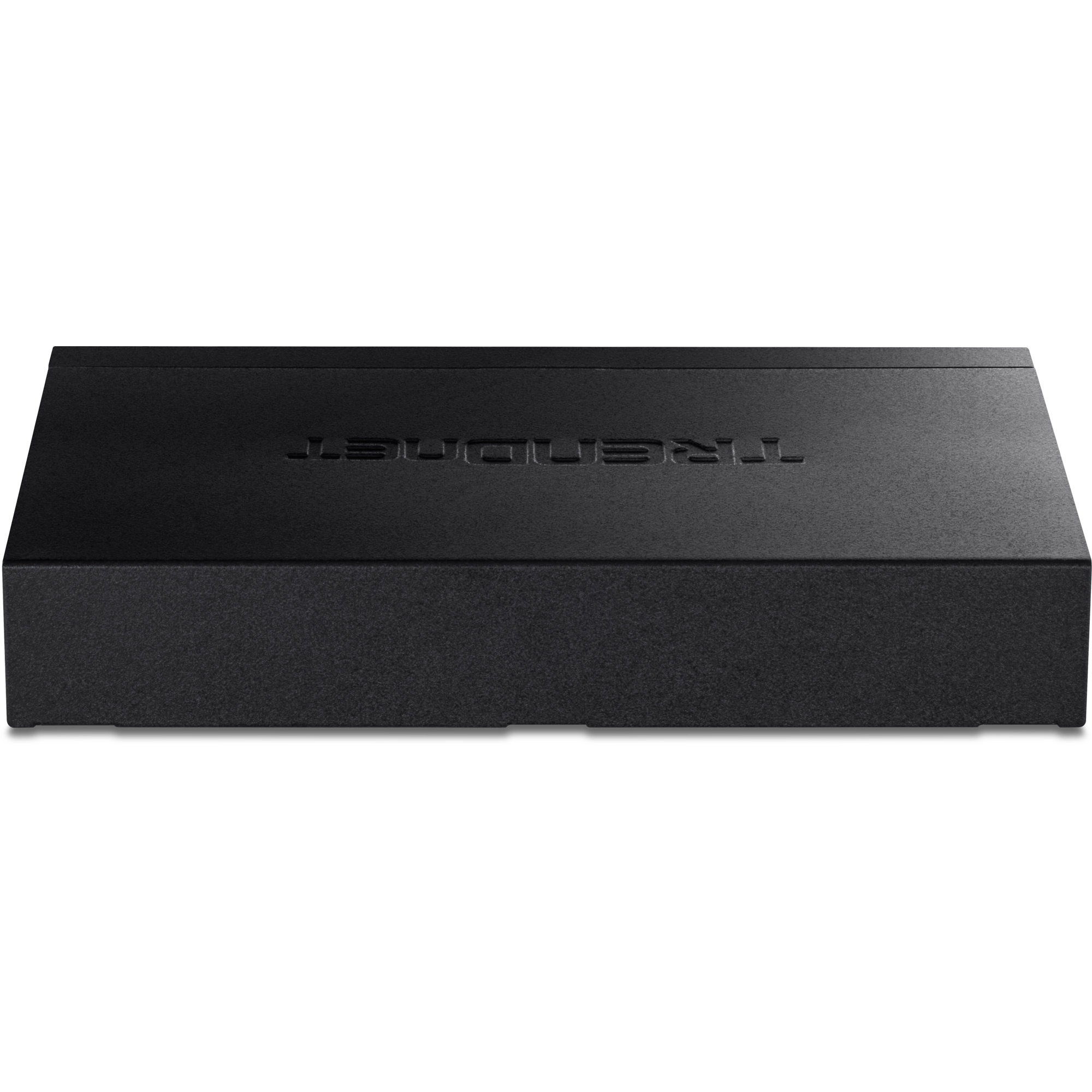

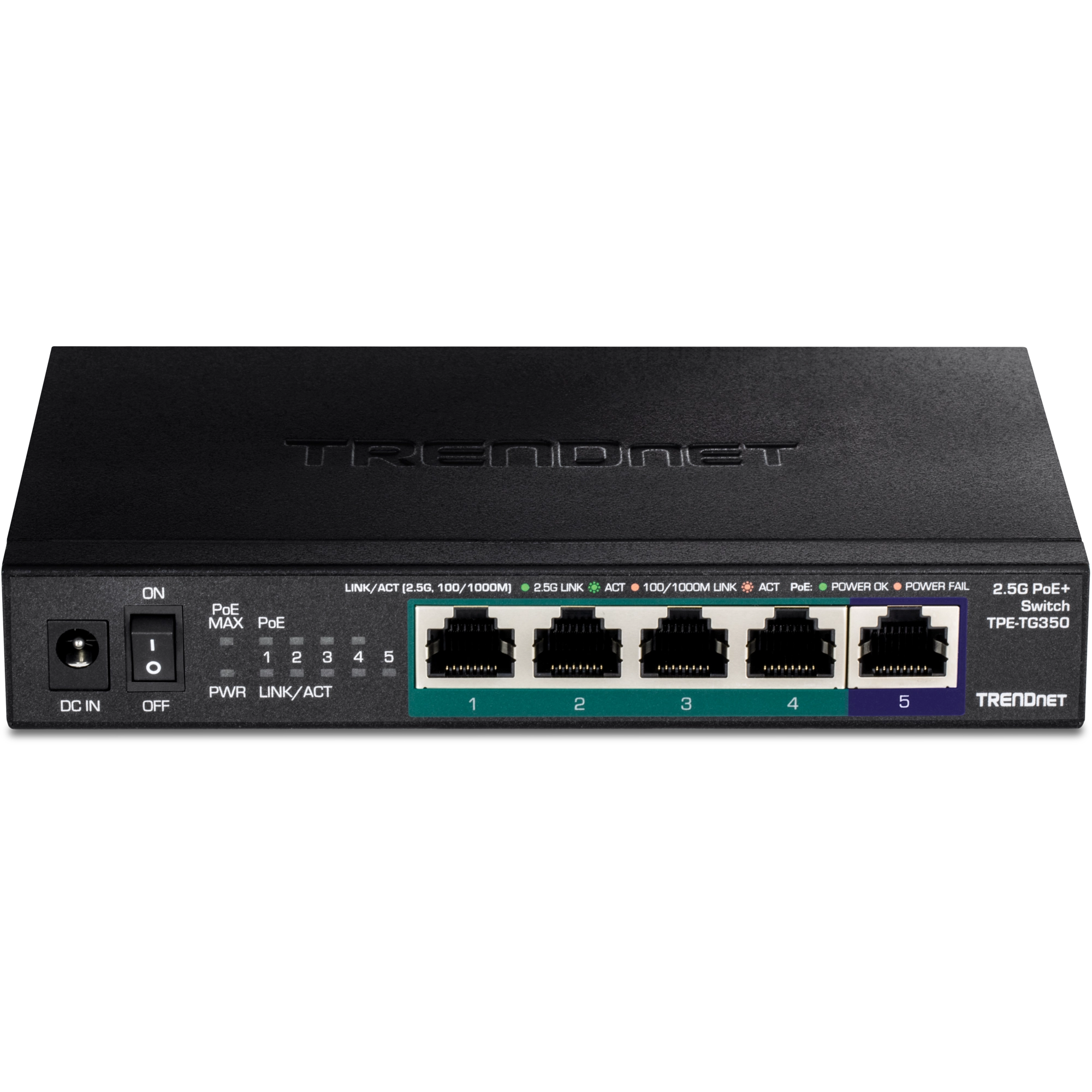

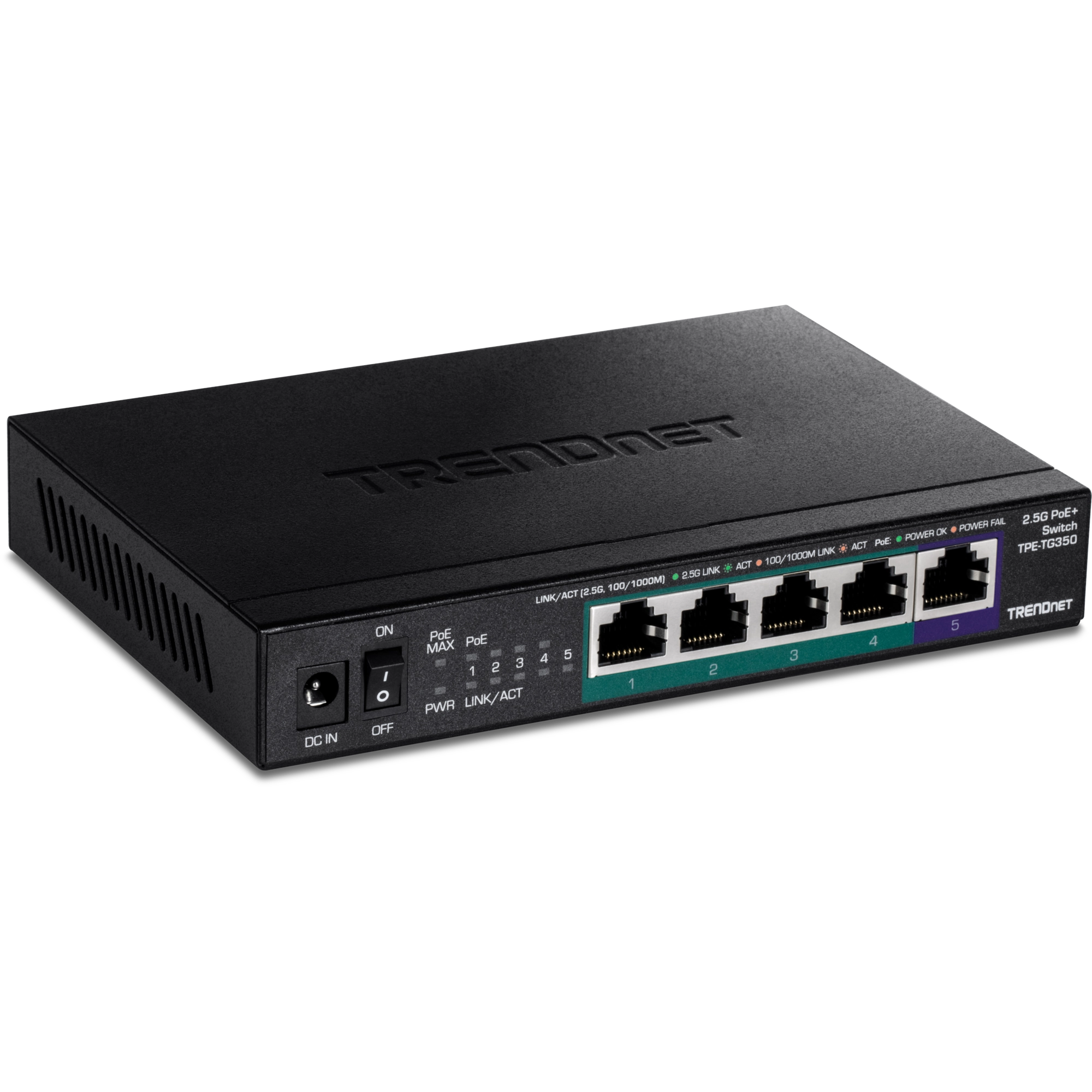

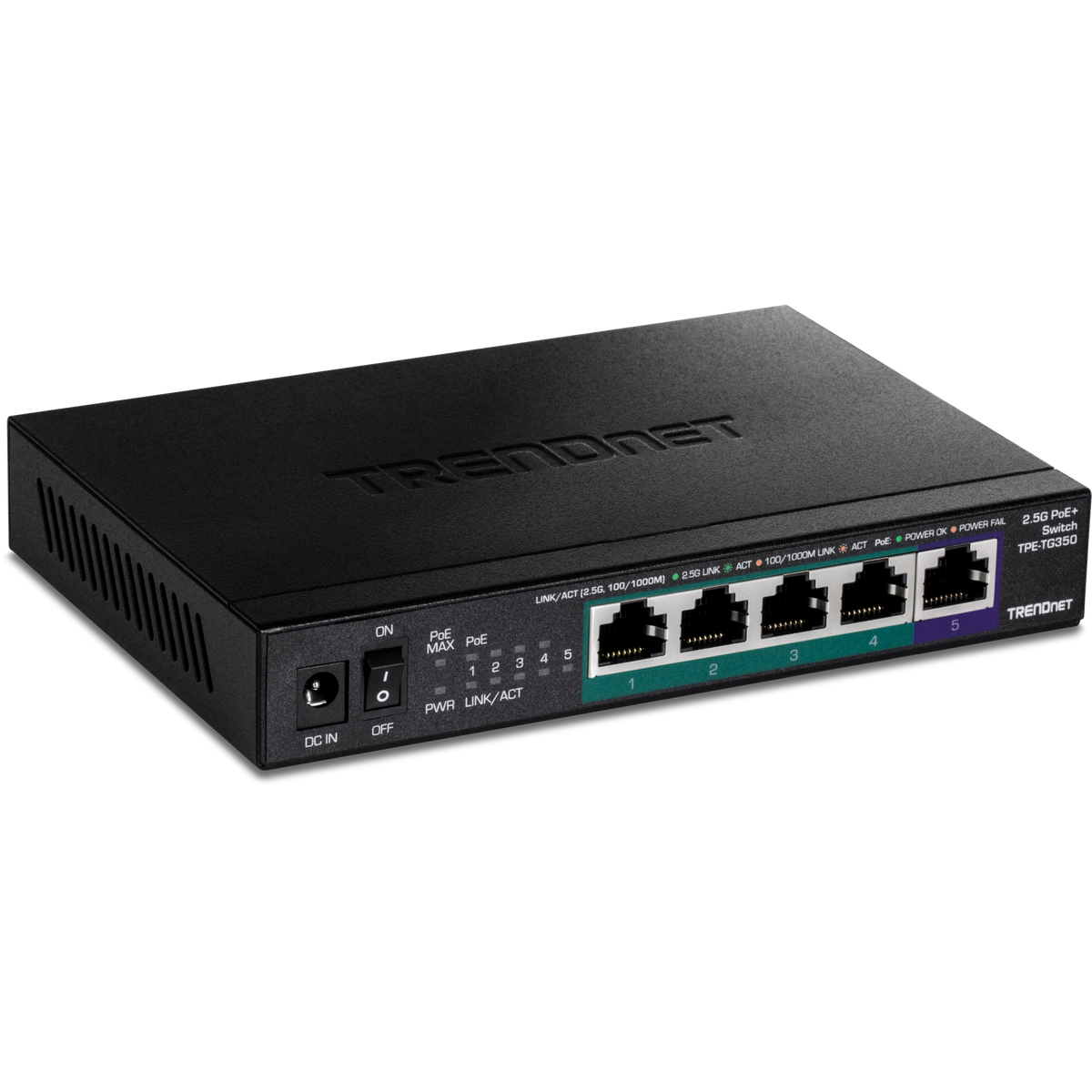

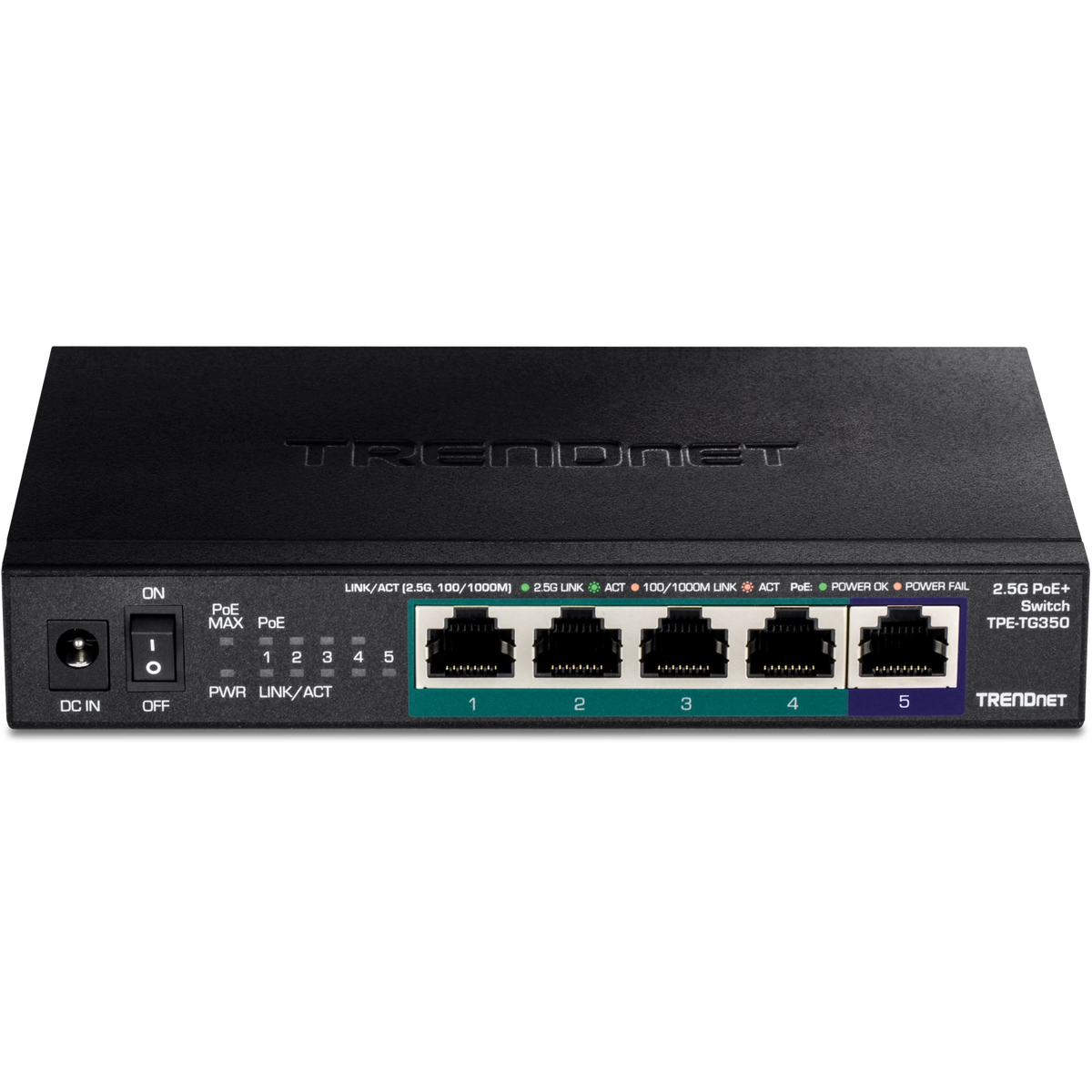

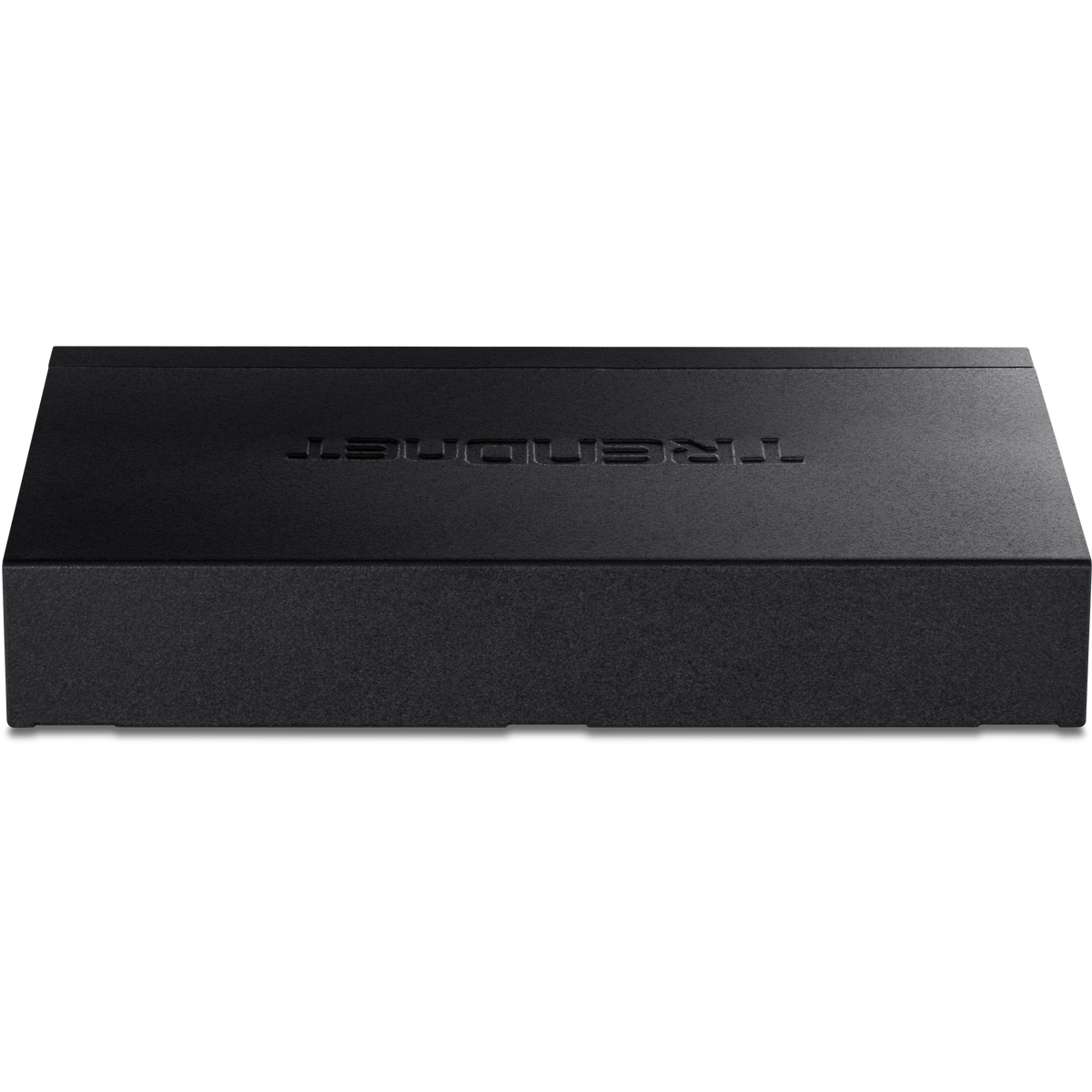

TRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ Switch
TRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ Switch
TRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ Switch
Roll over image to zoom in Click on image to zoom
TRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ SwitchTRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ SwitchTRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ Switch

TRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ Switch

TRENDnetSKU: TPE-TG350
Price:

Login to see pricing

MSRP:
$129.99
Stock:
Call for availability

Description

TRENDnet TPE-TG350 5-Port Unmanaged 2.5G PoE+ Switch

NDAA/TAA Compliant

Product Details

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged 2.5G PoE+ Switches. These 2.5G PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G PoE+ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G PoE+ switches are cost-effective solutions to increase your network’s throughput. A 55W total PoE power budget on this PoE+ switch supplies up to four PoE+ devices with up to 30W per port.

Specifications

Standards
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bz
Device Interface
  • 4 x 2.5GBASE-T PoE+ ports (1Gbps/2.5Gbps)
  • 1 x 2.5GBASE-T ports (1Gbps/2.5Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit: 2000 Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Data RAM Buffer: 1.5MB
  • Switch Capacity: 25Gbps
  • MAC Address Table: 16K entries
  • Forwarding rate: 18.6Mpps (64-byte packet size)
  • Jumbo Frame: 12KB
Special Features
  • Wall-Mountable
  • Fanless
Power
  • Input: 100 – 240V AC, 50/60Hz
  • Output: 55V/1.3A
  • Max. consumption: 7.83W (no PD)
PoE
  • PoE budget: 55W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
MTBF
  • 830,917 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 160 x 110 x 25mm (6.29 x 4.33 x 0.98 in.)
Weight
  • 0.9kg (2 lbs.)
Certifications
  • CE
  • FCC
Warranty



Features

  • 5 x 2.5GBASE-T ports
  • 55W PoE power budget
  • IEEE 802.3bz (2.5G) compliant
  • Supports IEEE 802.3at/af PoE standards
  • Backwards compatible with 10/100/1000Mbps devices
  • 25Gbps switching capacity
  • Fanless design eliminates noise
  • Wall mountable for installation flexibility
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TPE-TG350
  • Quick Installation Guide
  • Power Brick (55V, 1.3A)
  • Power Cord (1.5m /4.9 ft.)
