TRENDnetSKU: TPE-TG327
Price:

Login to see pricing

MSRP:
$89.99
Stock:
Call for availability

Description

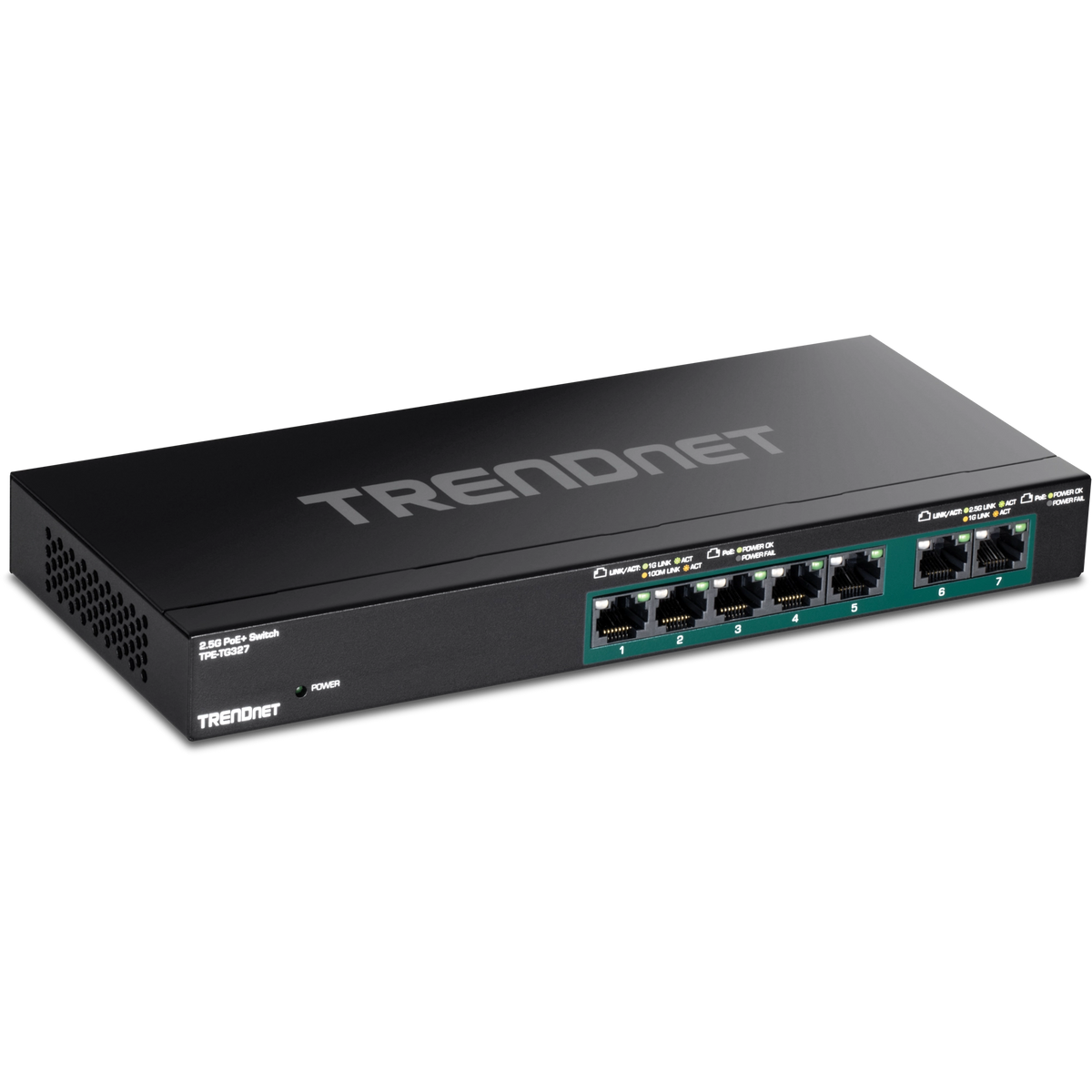

TRENDnet TPE-TG327 7-Port Multi-Gig PoE+ Switch

NDAA/TAA Compliant

Product Details

TRENDnet’s 7-Port Multi-Gig PoE+ Switch, model TPE-TG327, is an affordable 2.5G PoE+ switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TPE-TG327 multi-gig switch offers two dedicated 2.5G PoE+ ports and five dedicated 1G PoE+ ports for high-speed network connections with a 20Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the multi-gig PoE+ switch is a cost-effective solution for high-speed network connections. A 70W total PoE power budget on this affordable multi-gig PoE+ switch supplies up to seven PoE+ devices with up to 30W per port.

Specifications

Standards
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bz

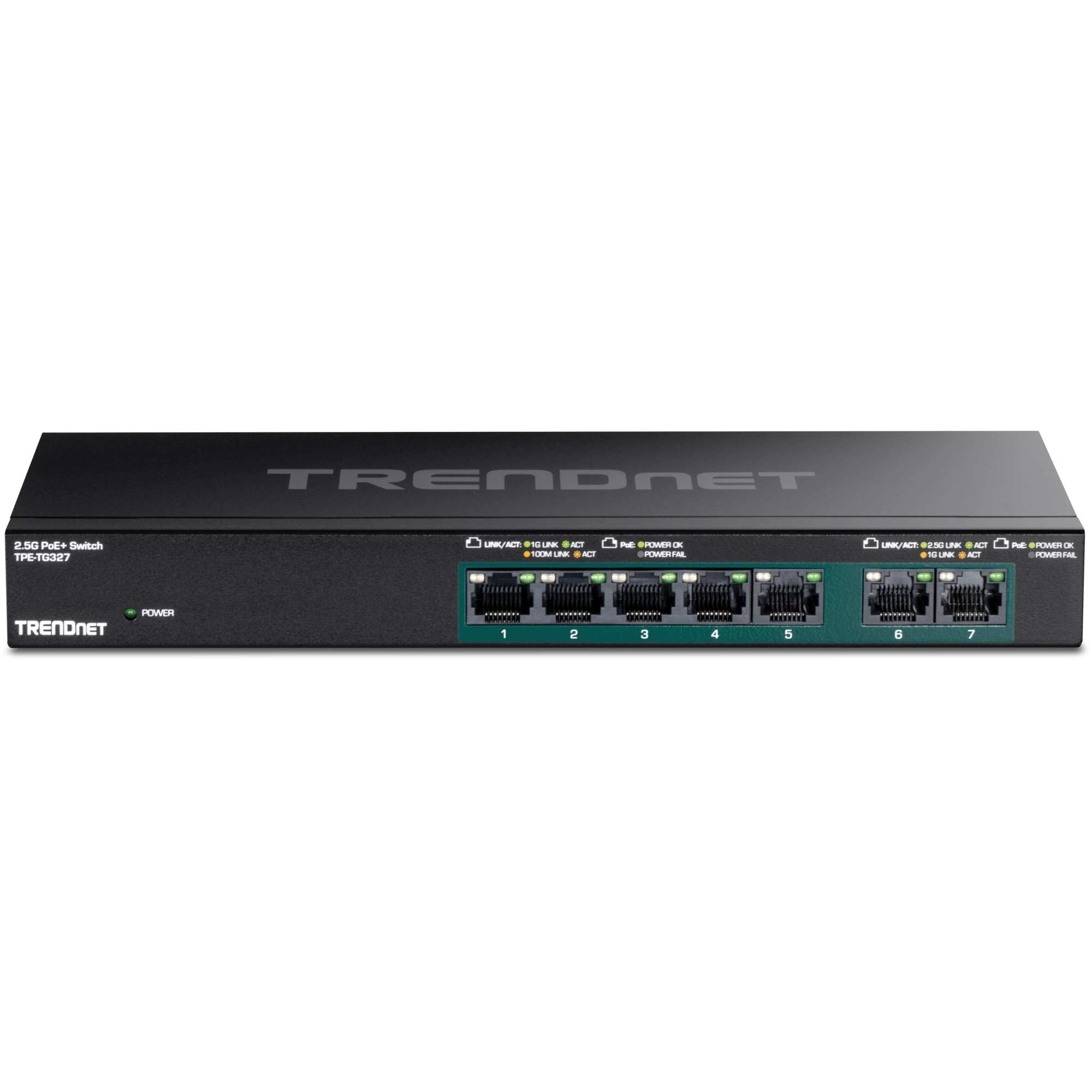

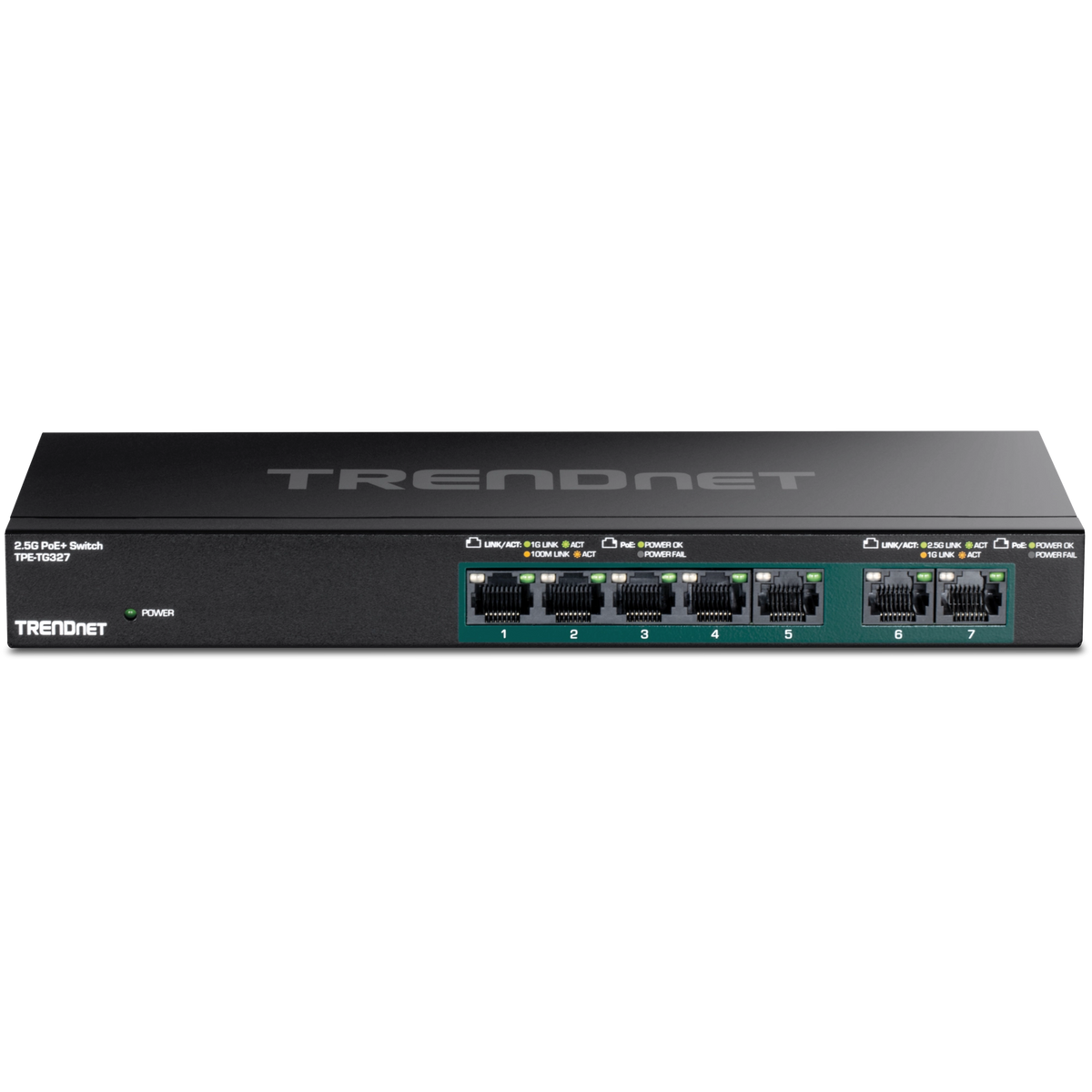

Device Interface
  • 5 x Gigabit PoE+ ports
  • 2 x 2.5GBASE-T PoE+ ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Data RAM Buffer: 384KB
  • Switch Capacity: 20Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 14.88Mpps (64-byte packet size)
  • Jumbo Frame: 15KB
Special Features

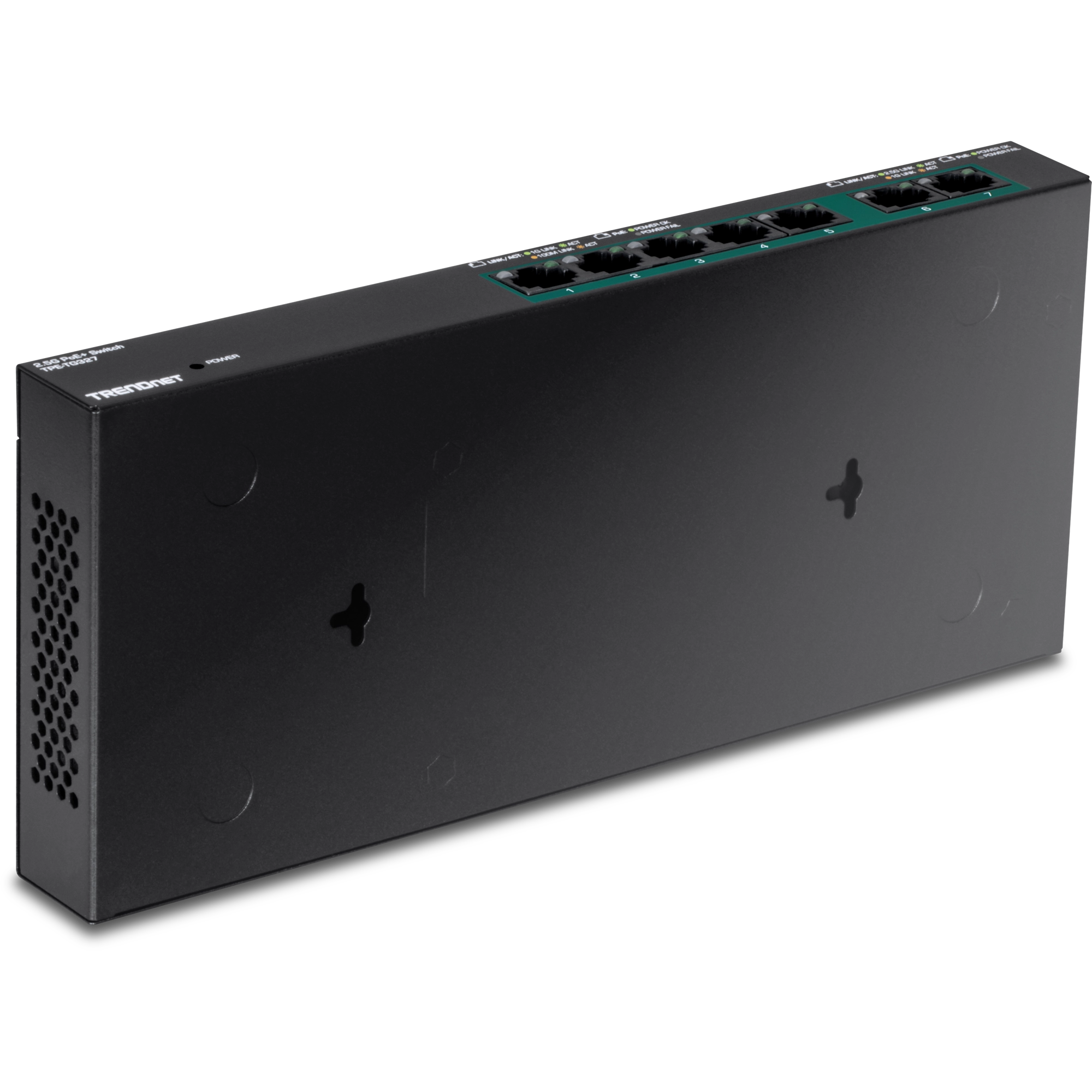

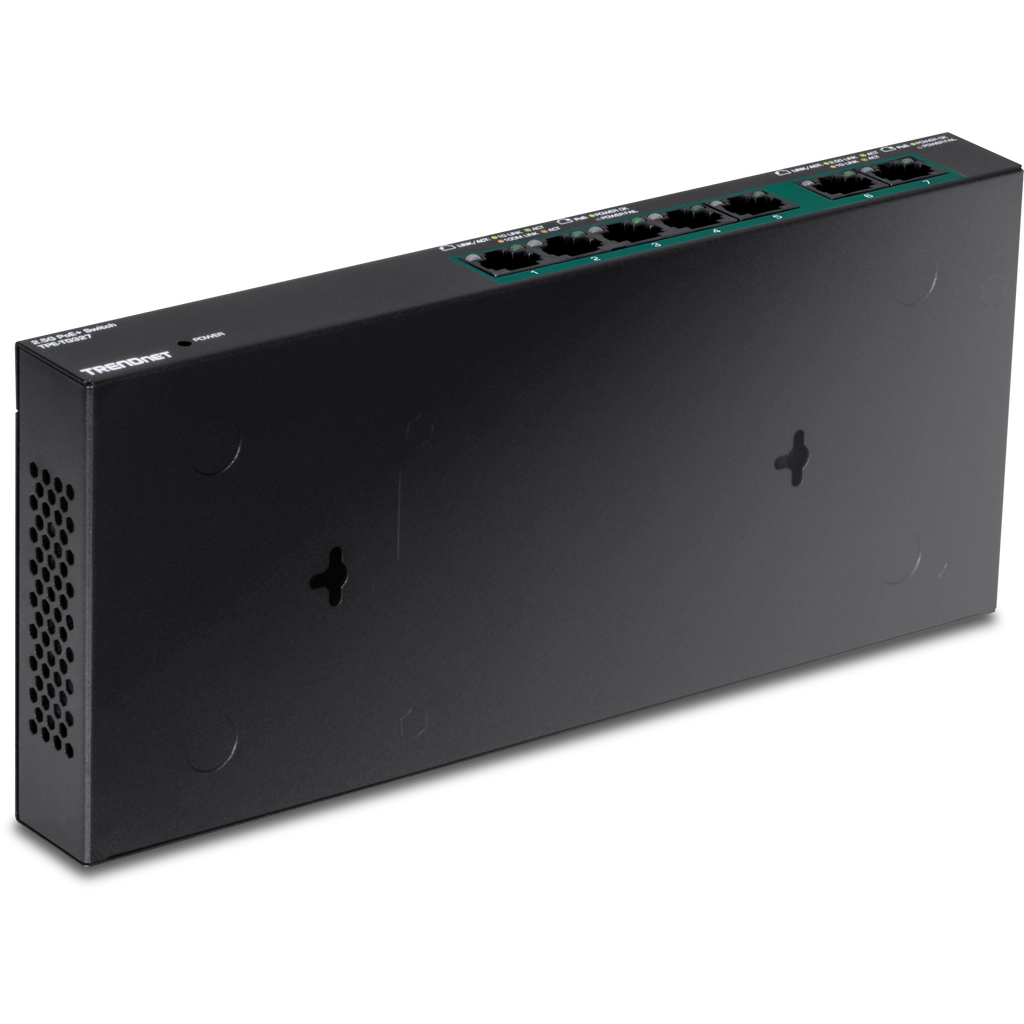

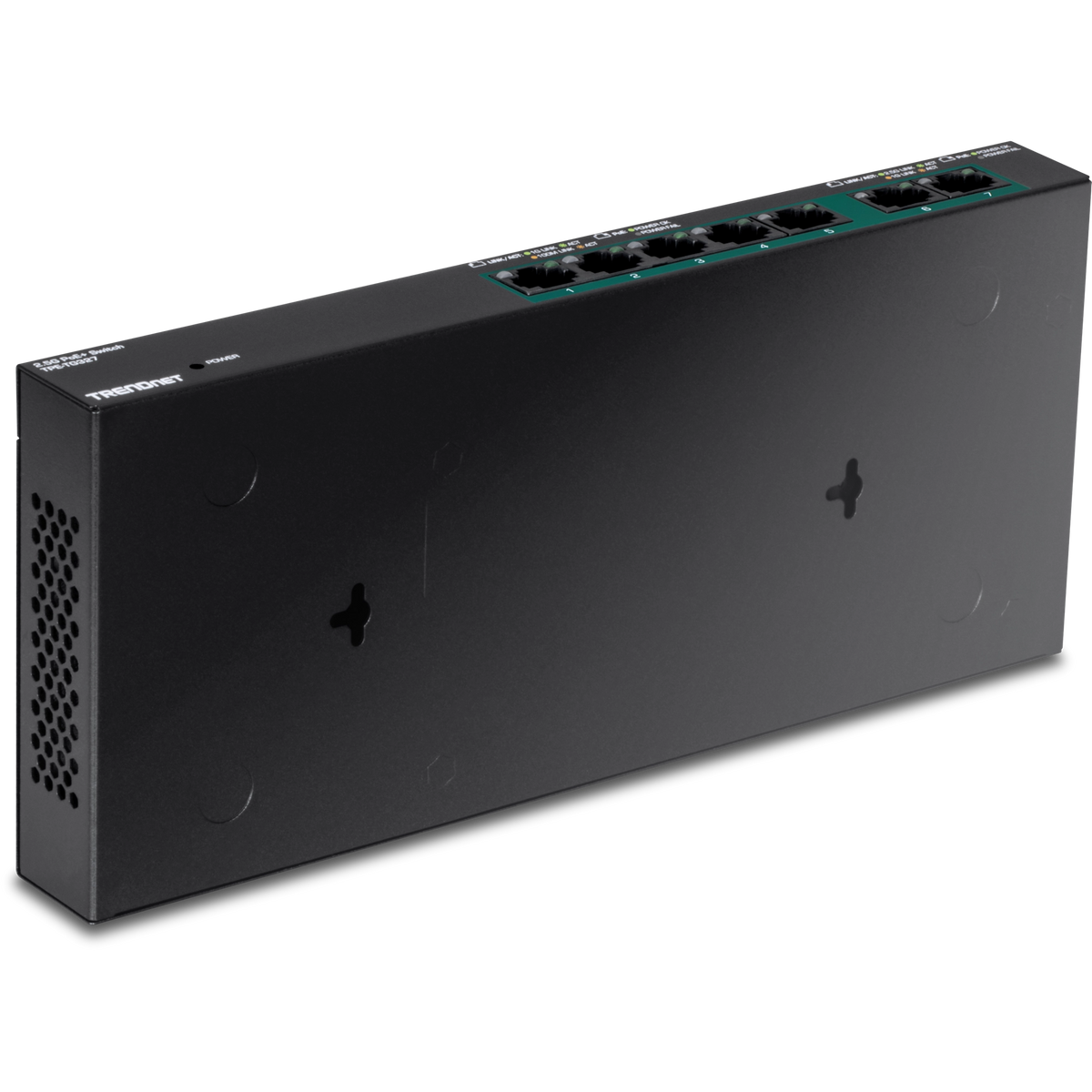

  • Wall mountable
  • Fanless
Power
  • Input: 100 – 240V AC, 50/60Hz
  • Output: 55V/1.67A
  • Max. consumption: 8W (no PD)
PoE
  • PoE budget: 70W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
MTBF
  • 830,917 hours
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 286 x 102 x 27mm (11.3 x 4 x 1 in.)
Weight
  • 0.9kg (2 lbs.)
Certifications
  • CE
  • FCC
Warranty



Features

  • 5 x 1G RJ-45 PoE+ ports
  • 2 x 2.5G RJ-45 PoE+ ports
  • 70W PoE power budget
  • Compatible with existing Cat5e or better cabling
  • 2.5G ports are backwards compatible with 100/1000Mbps devices
  • Fanless design for silent operation
  • Easy installation, no configuration required
  • Supports IEEE 802.3af/at
  • IEEE 802.3bz (2.5G) compliant
  • 20Gbps switching capacity
  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

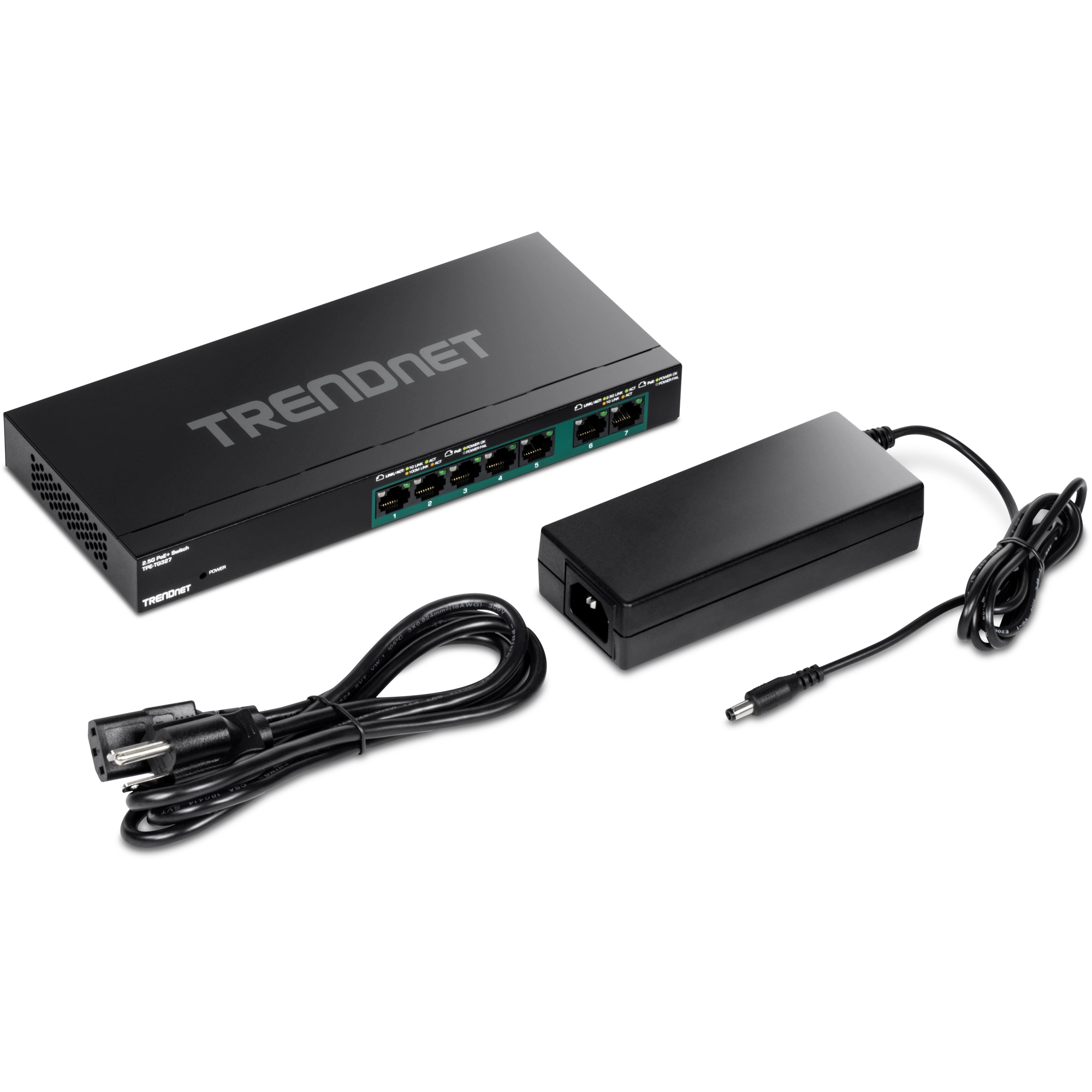

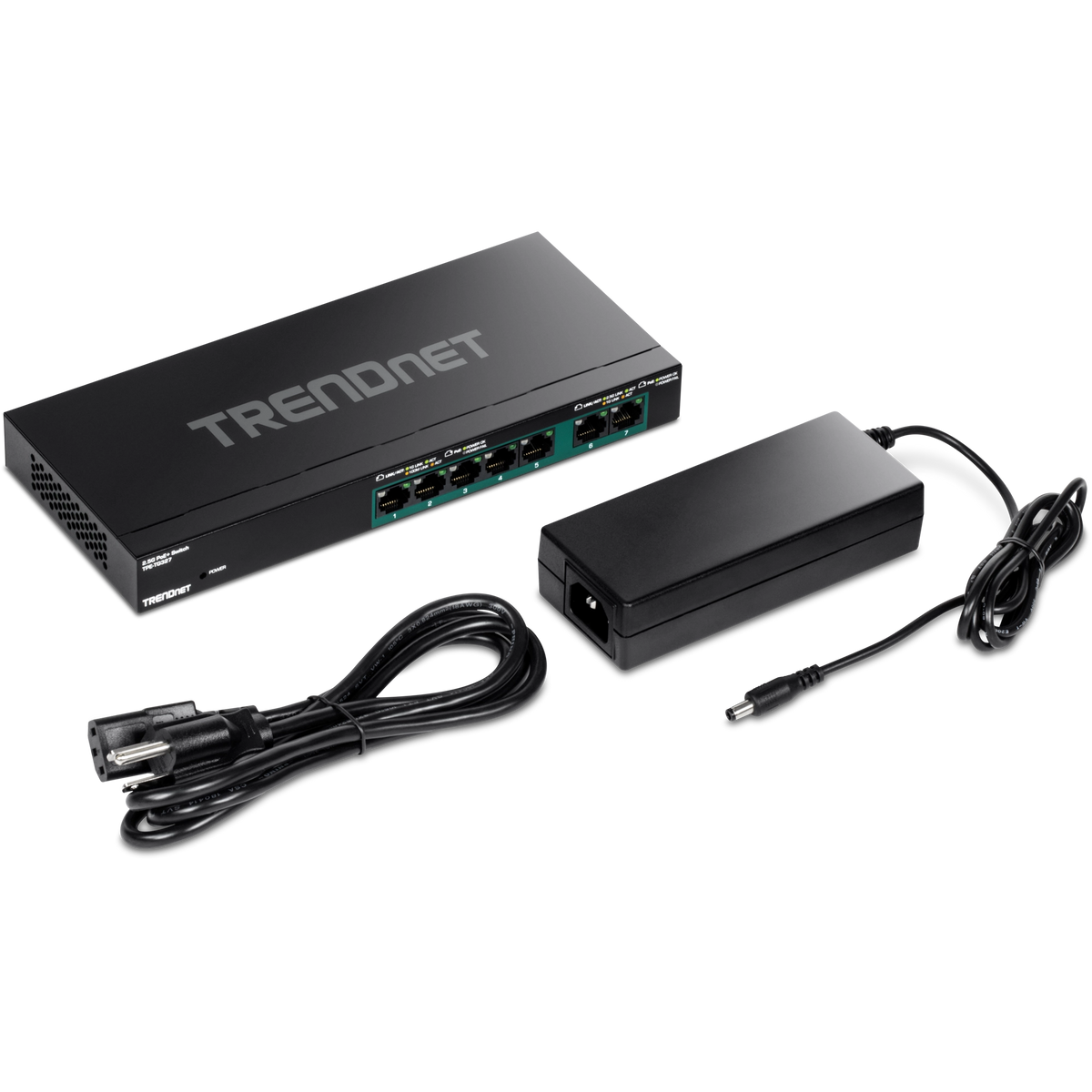

PACKAGE CONTENTS
  • TPE-TG327
  • Quick Installation Guide
  • Power brick (55V, 1.67A)
  • Power cord (1.8m /6 ft.)
