Description

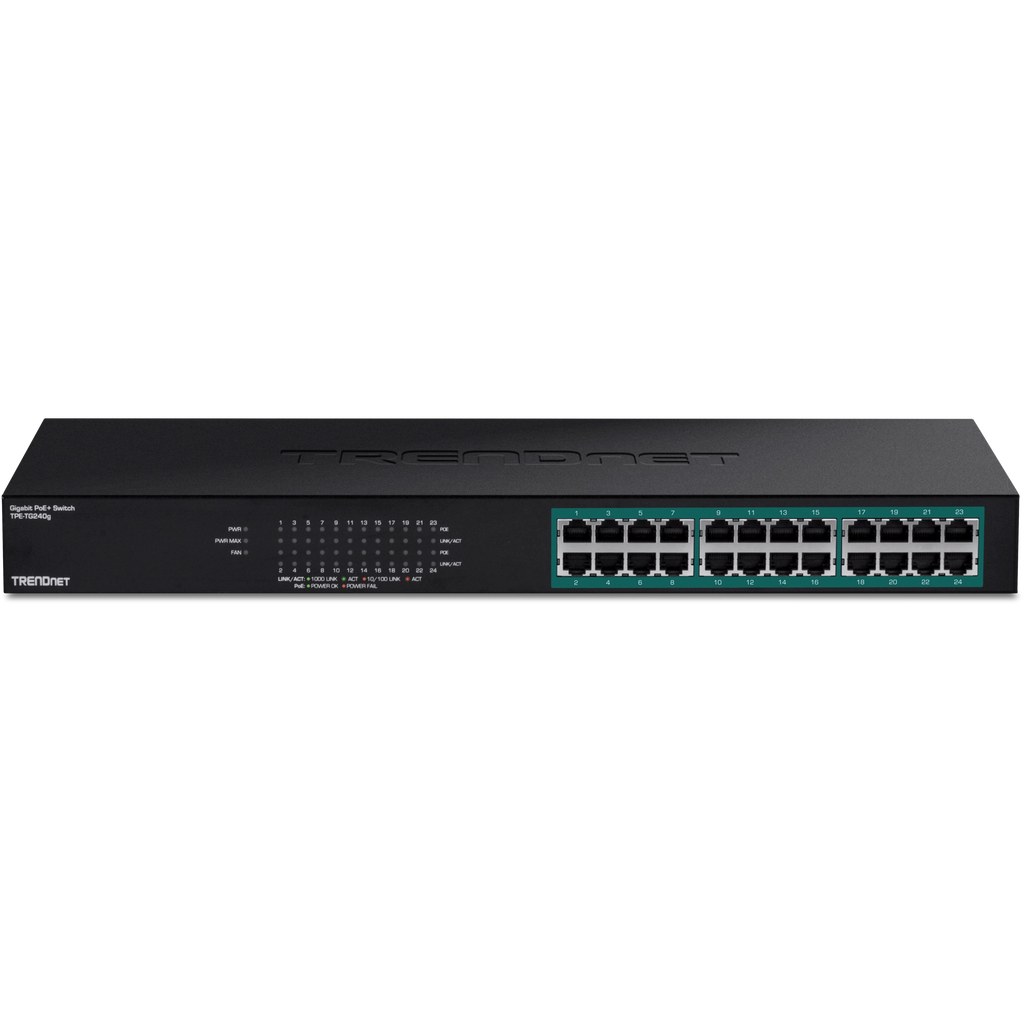

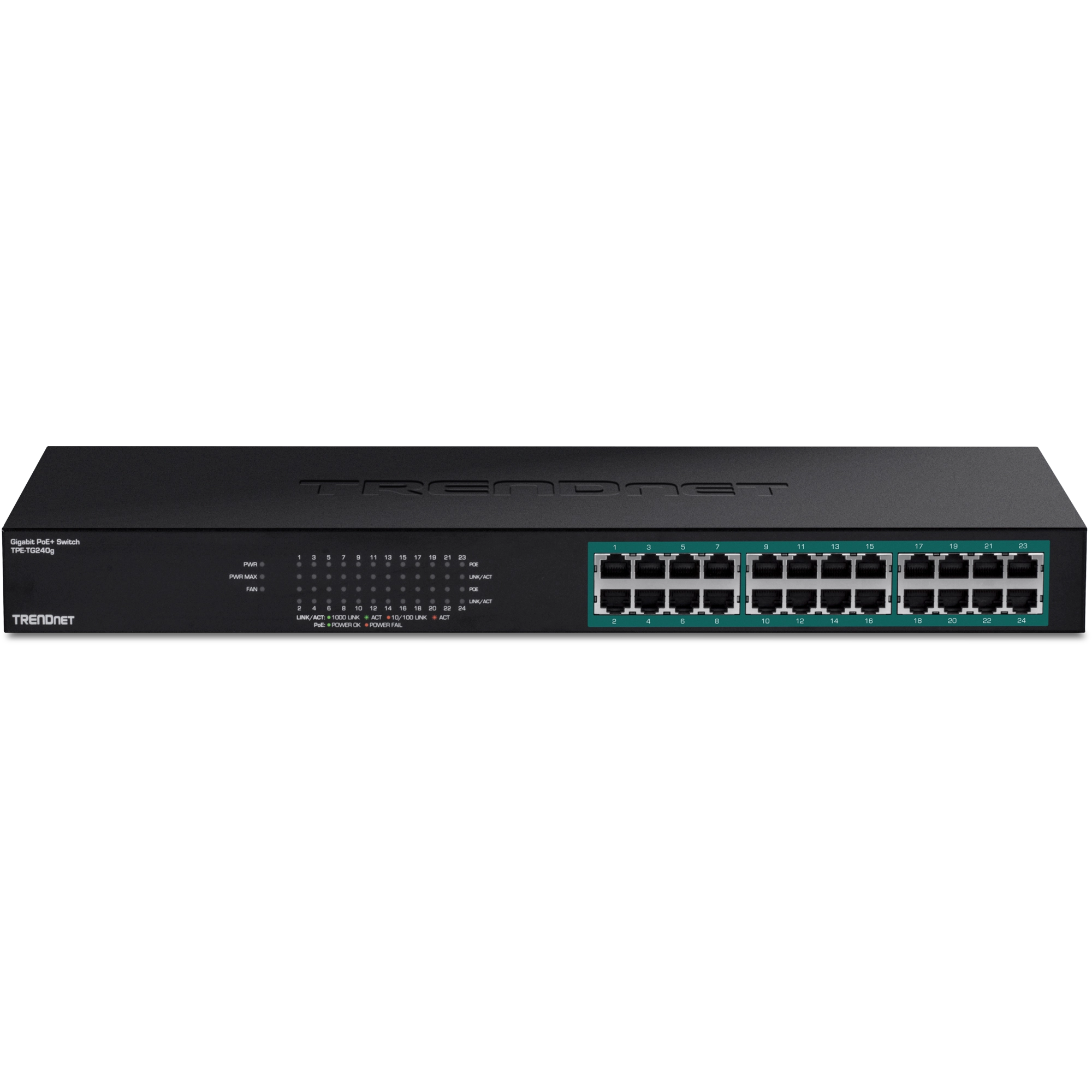

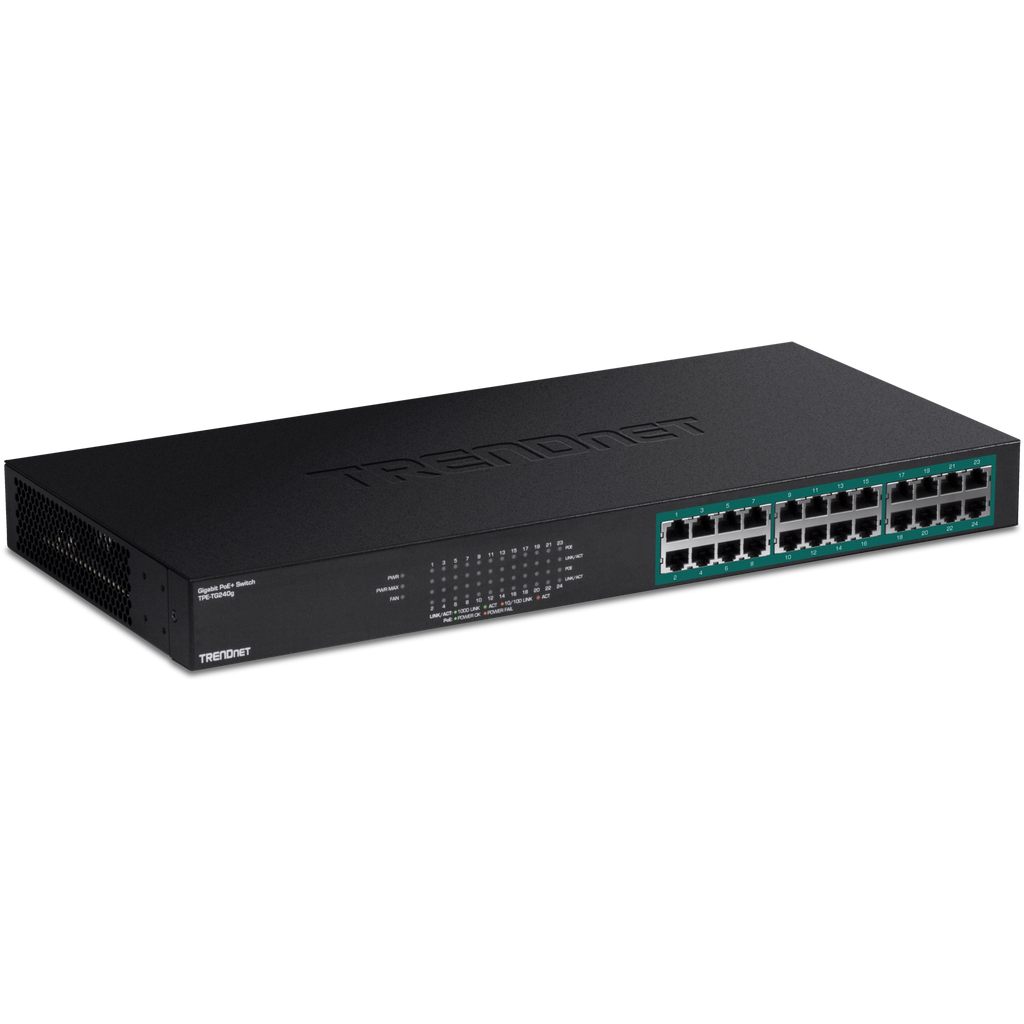

TRENDnet TPE-TG240g 24-Port Gigabit PoE+ Switch

NDAA/TAA Compliant

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

  • 24 x Gigabit PoE+ ports
  • 48Gbps switching capacity
  • 370W PoE power budget
  • IEEE 802.3af/at compliant
  • Smart Fans
  • Reduces equipment cost by delivering data and power over existing network cables
  • 1U 19” rack mountable metal housing with brackets included
  • Internal power supply
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 24 x Gigabit PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 512KB
  • Switch Fabric: 48Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 35.7Mpps (64-byte packet size)
  • Jumbo Frame: 10KB
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. consumption: 36W (no PD)
PoE
  • PoE budget: 370W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
Fan/Acoustics
  • Quantity: 2
  • Max. noise Level: 30dB
MTBF
  • 290, 758 hours
Operating Temperature
  • 0° – 40° C (32° - 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 210 x 44mm (17.3 x 8.3 x 1.8 in.)
Weight
  • 3.45kg (7.6 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty

PACKAGE CONTENTS
  • TPE-TG240g
  • Quick Installation Guide
  • Rack mount kit
  • Power cord (1.8m/6 ft.)
