TRENDnet TPE-TG182F 18-Port Gigabit High-Power PoE+ Switch, 440W PoE Budget

TRENDnetSKU: TPE-TG182F

Price:

Login to see pricing

MSRP:
$459.99
Stock:
Call for availability

Description

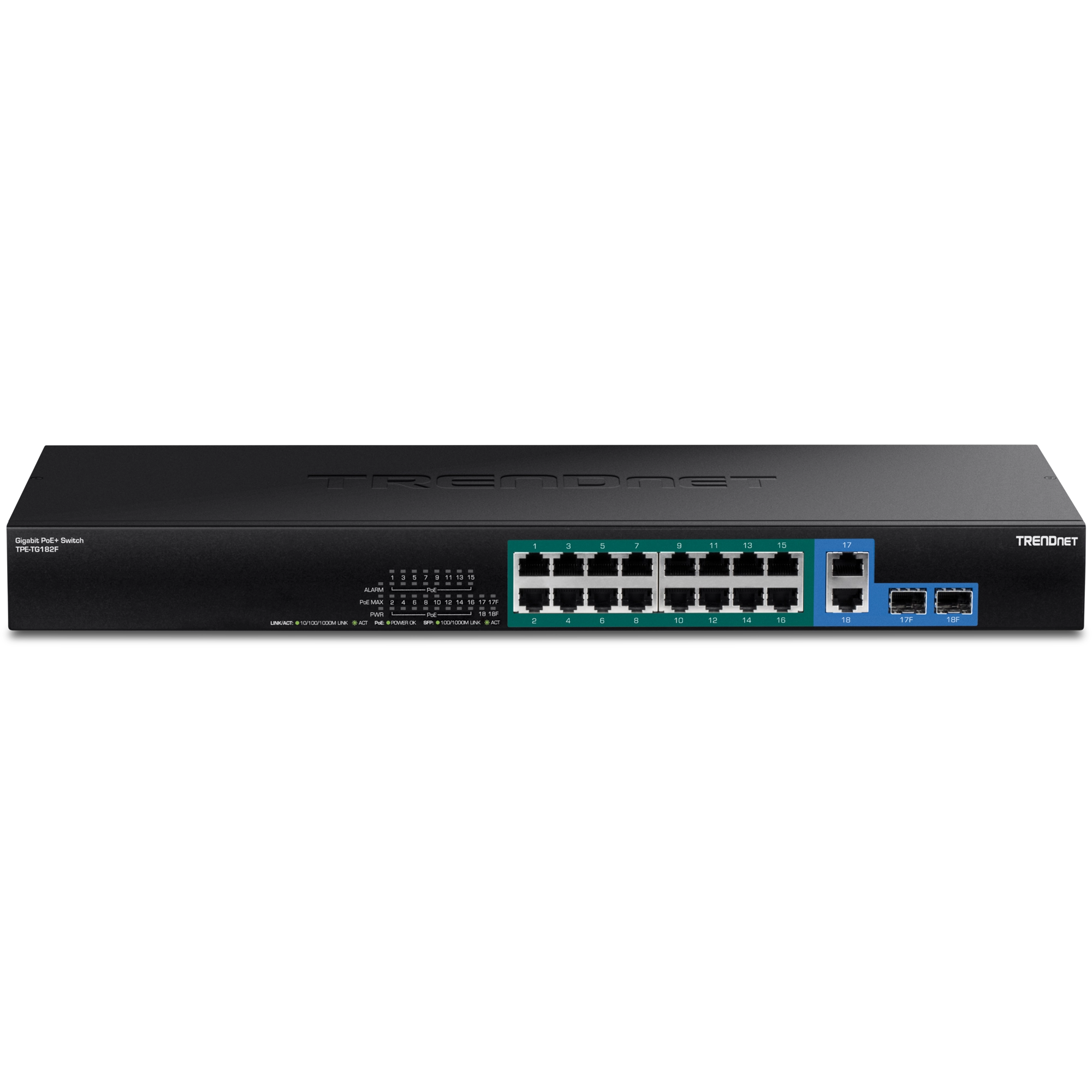

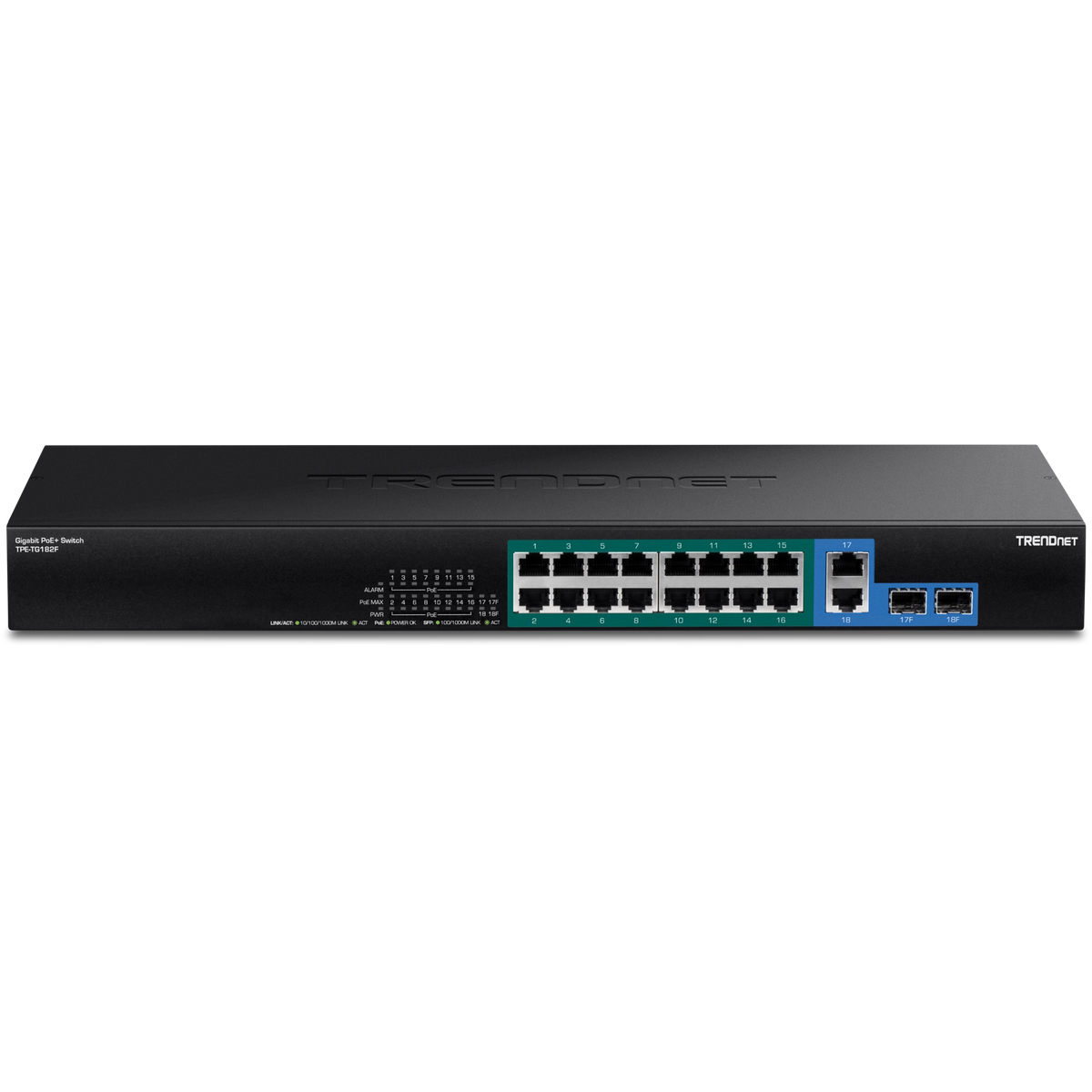

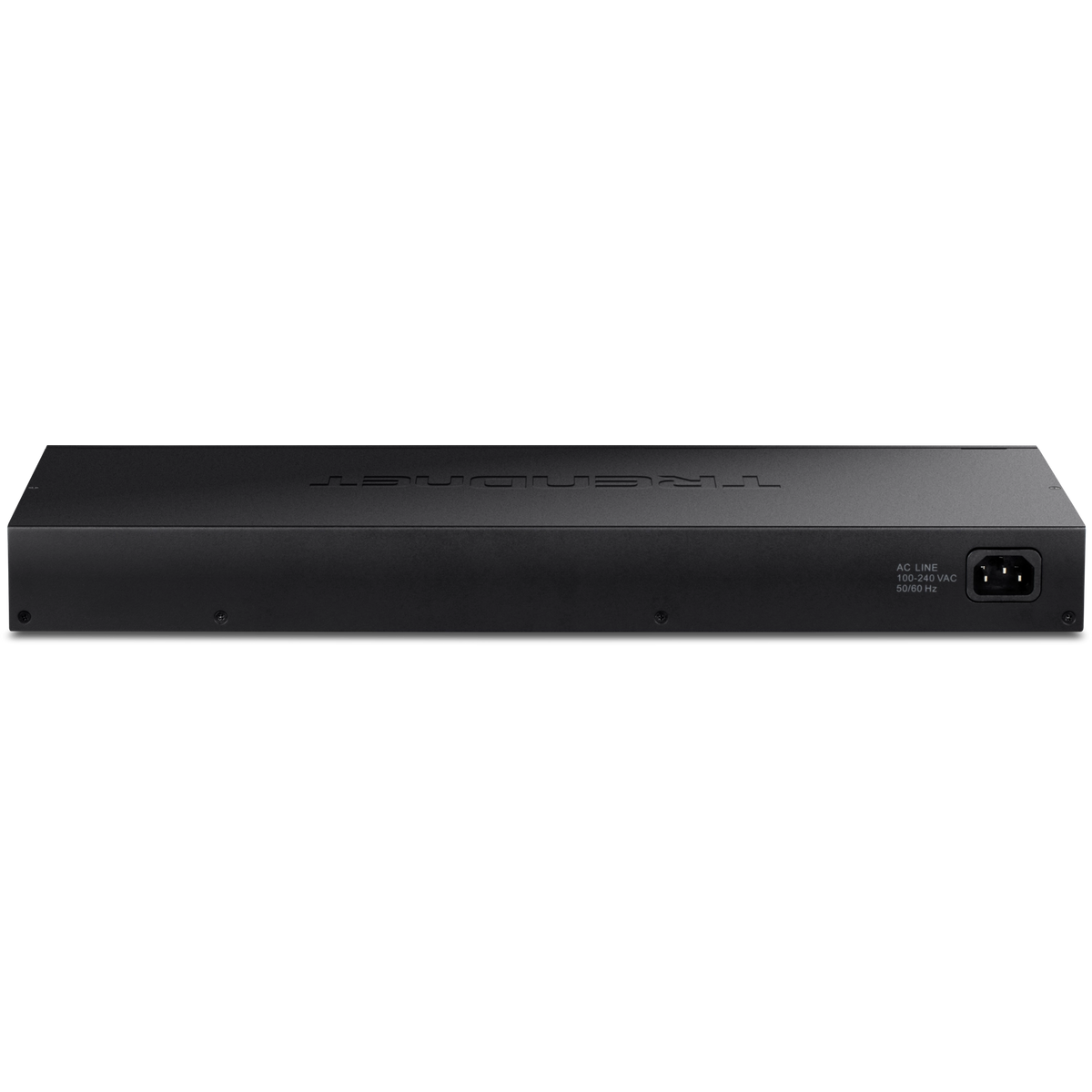

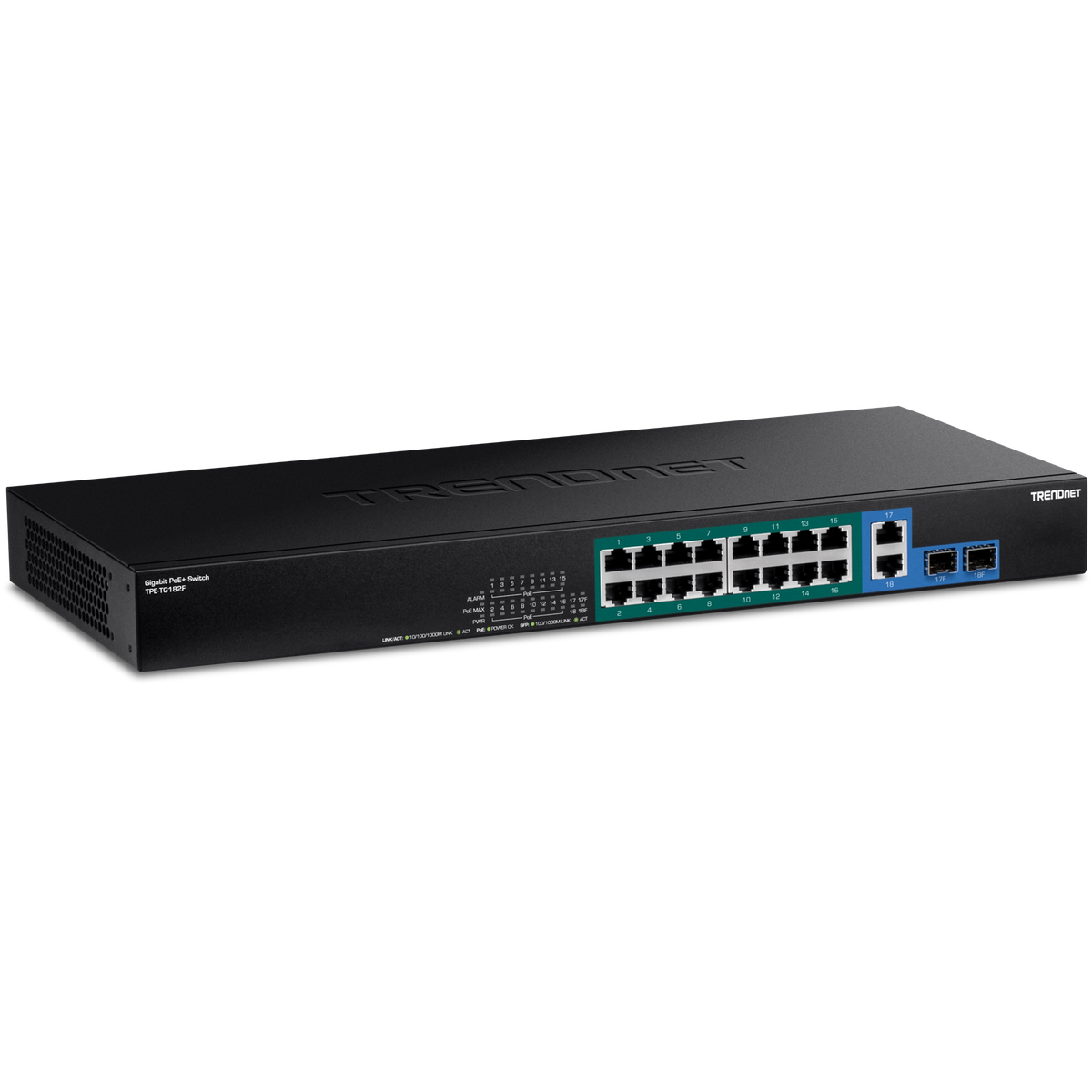

TRENDnet TPE-TG182F 18-Port Gigabit High-Power PoE+ Switch, 440W PoE Budget

NDAA/TAA Compliant

TRENDnet’s 18-Port Gigabit High-Power PoE+ Switch, model TPE-TG182F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This rack mountable, high-power PoE switch provides 16 gigabit PoE+ ports with a total PoE power budget of 440W. It also features two additional shared RJ-45 or SFP gigabit ports. The TPE-TG182F high-power PoE+ switch supplies up to 30W of power per port for devices such as high-power wireless access points, PTZ (Pan/Tilt/Zoom) IP cameras, and other PoE+ systems.

  • 16 x Gigabit PoE+ ports
  • 2 x Shared Gigabit ports (RJ-45 or SFP)
  • 36Gbps switching capacity
  • Internal power supply
  • 440W PoE power budget
  • Reduces equipment cost by delivering data and power over existing network cables
  • Sturdy 19” rack mountable metal housing with included brackets
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 16 x Gigabit PoE+ ports
  • 2 x Shared Gigabit ports (RJ-45 or SFP)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 36Gbps
  • RAM Buffer: 4.1M
  • MAC Address Table: 8K entries
  • Forwarding Rate: 26.78Mpps (64-byte packet size)
  • Jumbo Frames: 9KB
Power
  • Input: 110-240V AC, 50/60Hz, internal power supply
  • Max. consumption: 480W
PoE
  • PoE budget: 440W
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Smart Fan/Acoustics
  • Quantity: 2
  • Noise Level: 61 dBA (max.)
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 196 x 44mm (17.4 x 7.7 x 1.7 in.)
Weight
  • 3kg (6.1 lbs.)
Certifications
  • CE
  • FCC
  • LVD
  • ETL
Warranty

PACKAGE CONTENTS

  • TPE-TG182F
  • Quick Installation Guide
  • Rackmount kit
  • Power cord (1.5m/5 ft.)
