TRENDnetSKU: TPE-BG380
Price:

Login to see pricing

MSRP:
$274.99
Stock:
Call for availability

Description

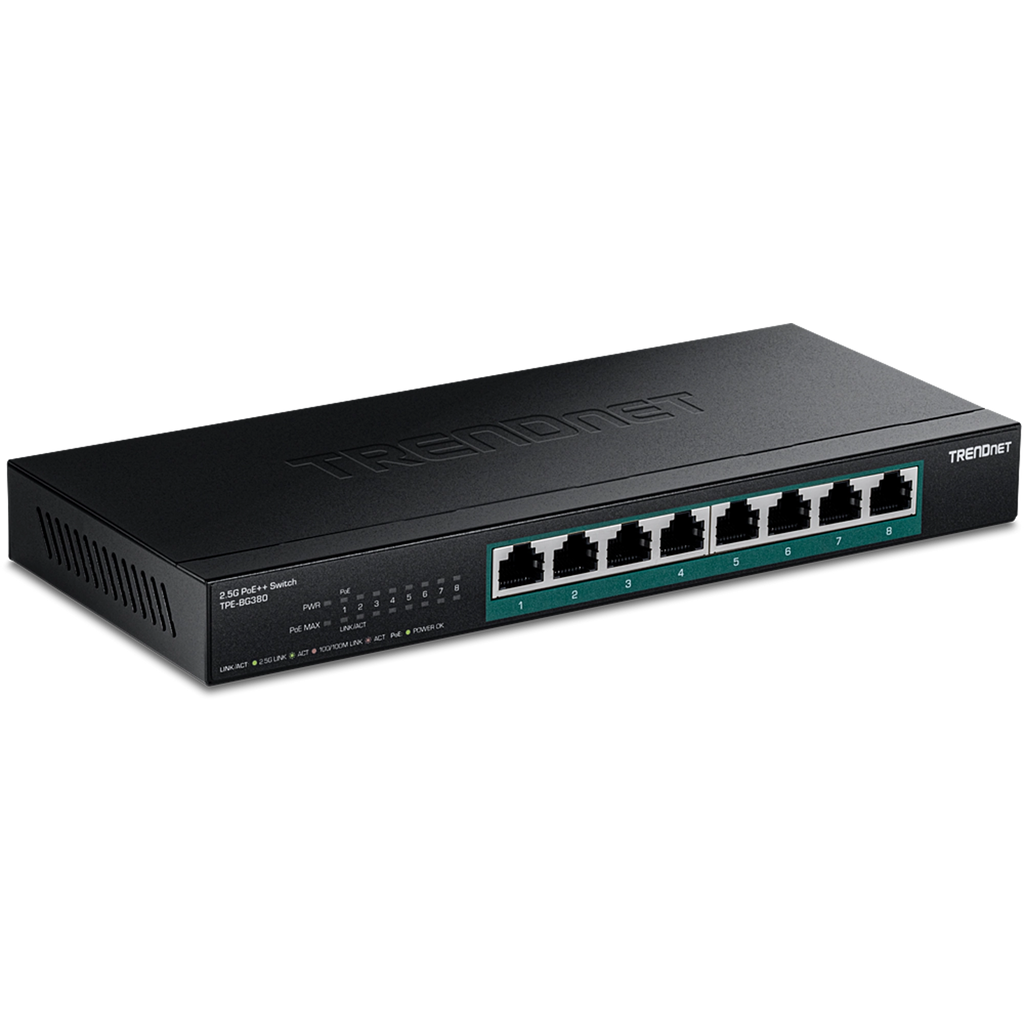

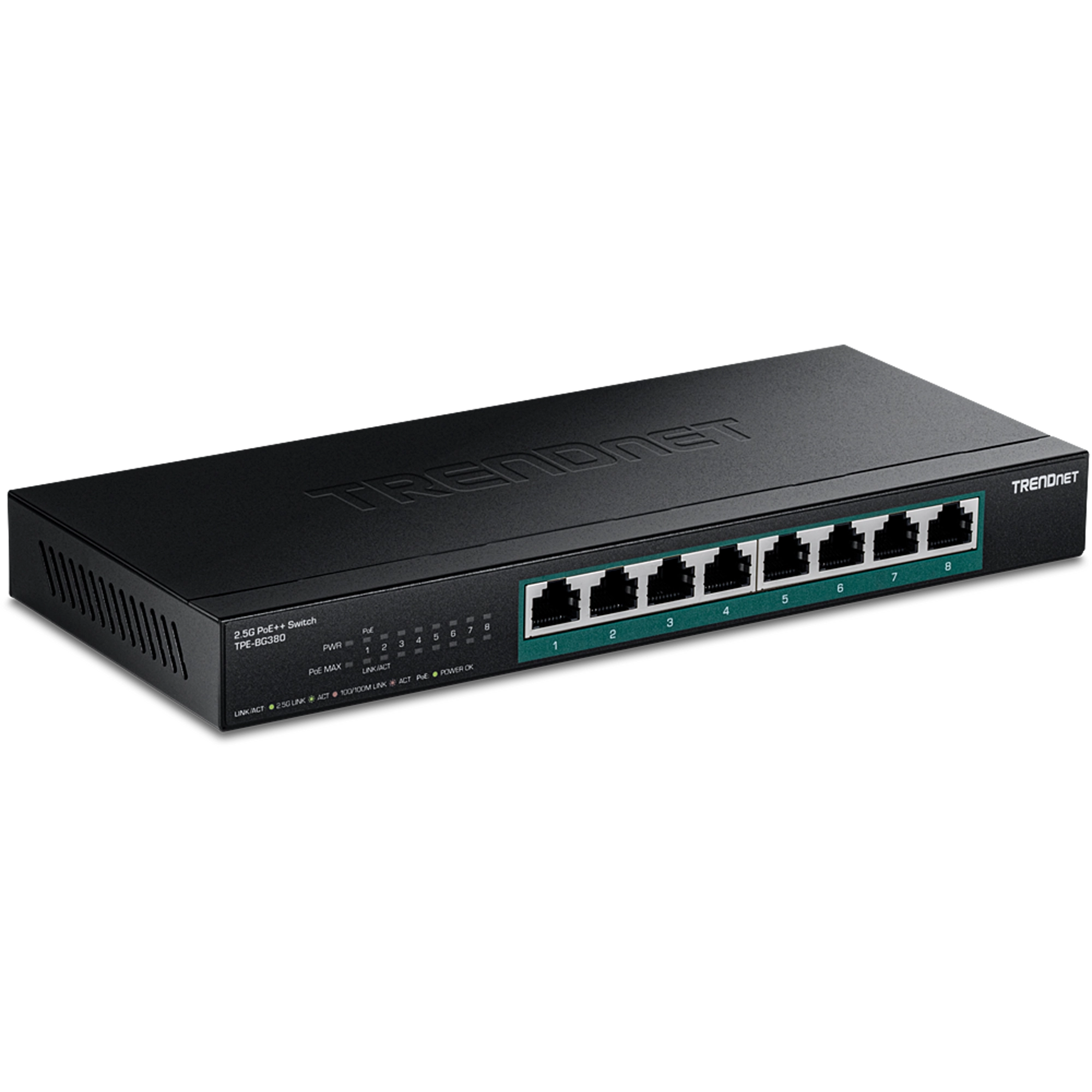

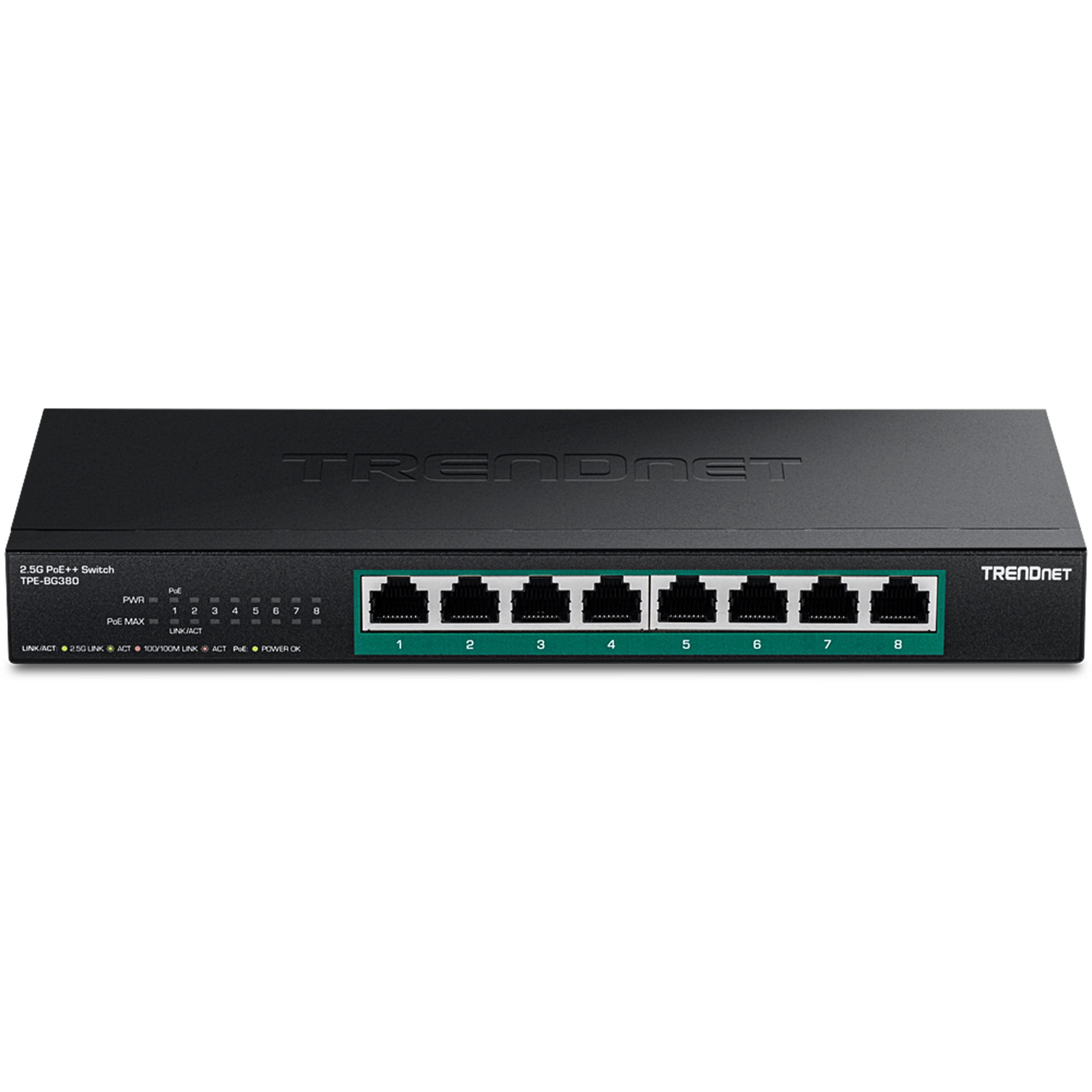

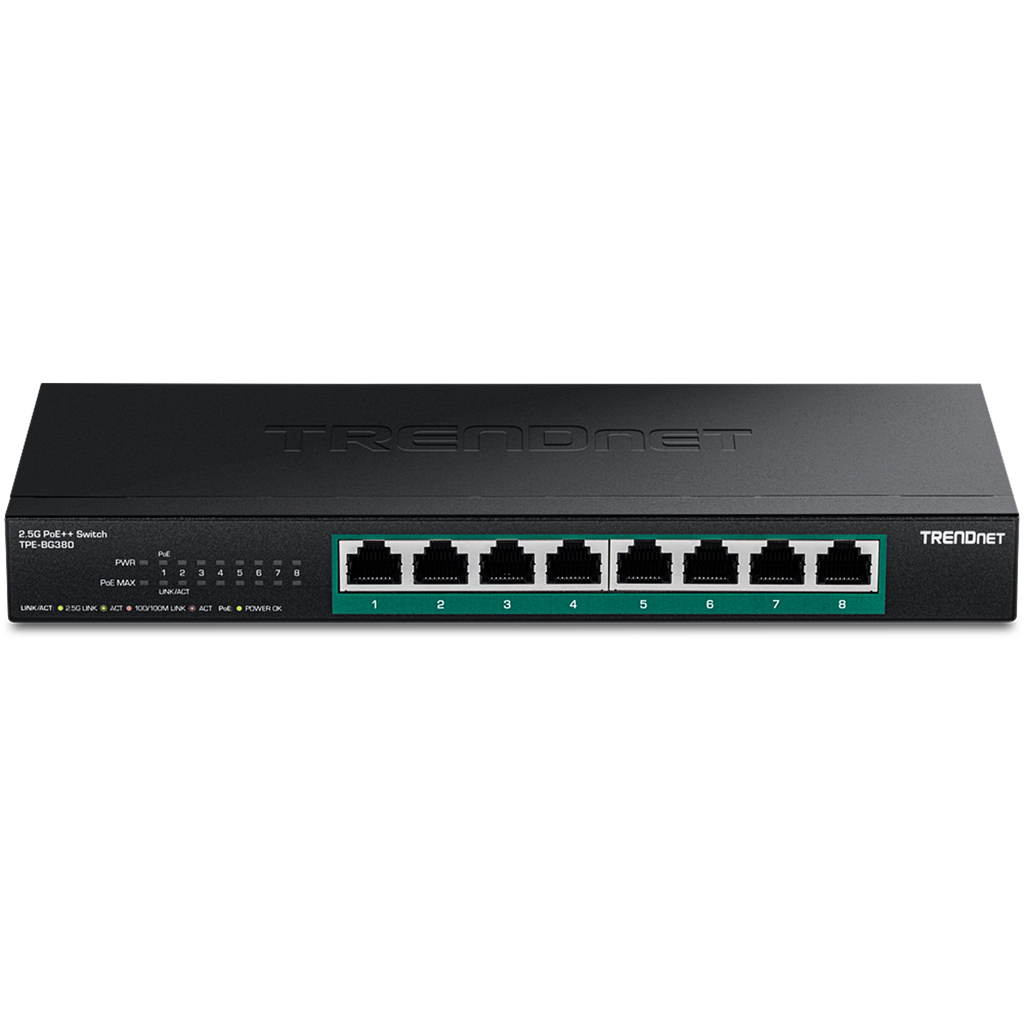

TRENDnet TPE-BG380 8-Port 2.5G PoE++ Switch

Product Details

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s 8-Port 2.5G PoE++ Switch, model TPE-BG380. This 2.5G PoE++ switch is equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gigabit PoE++ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise.

TRENDnet’s reliable 2.5G PoE++ switches are cost-effective solutions to increase your network’s throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power 2.5 gigabit PoE++ switch.

Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz
Device Interface
  • 8 x 2.5GBASE-T PoE++ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Data RAM Buffer: 1 MB
  • Switch Capacity: 40Gbps
  • MAC Address Table: 4K entries
  • Forwarding rate: 29.76Mpps (64-byte packet size)
  • Jumbo Frame: 12KB
Special Features
  • Wall Mountable
  • Fanless
Power
  • Input: 100 – 240V AC, 50/60Hz 3.9A
  • Output: 54V/4.7A
  • Max. consumption: 9.5W (no PD)
PoE
  • PoE budget: 230W
  • PoE++: Up to 95W per port
  • Pins 1, 2, 7, 8 for power - and pins 3, 6, 4, 5 for power +
  • Over current protection
  • Short circuit protection
MTBF
  • 288,800 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 240 x 105 x 27mm (9.45 x 4.13 x 1.06 in.)
Weight
  • 716g (1.57 lbs.)
Certifications
  • CE
  • FCC
Warranty



Features

  • 8 x 2.5G PoE++ ports
  • 230W PoE power budget
  • Backwards compatible with 10/100/1000Mbps devices
  • Compatible with existing Cat5e or better cabling
  • Fanless design eliminates noise

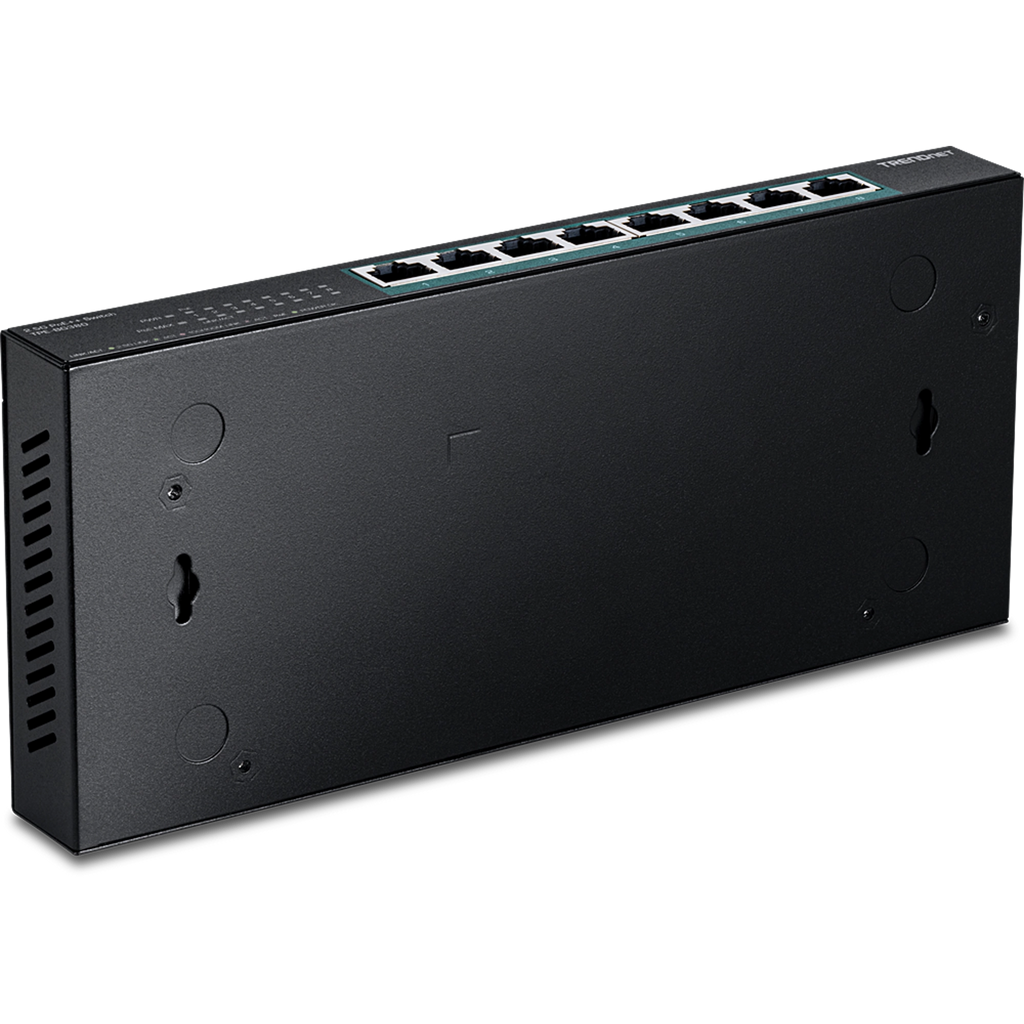

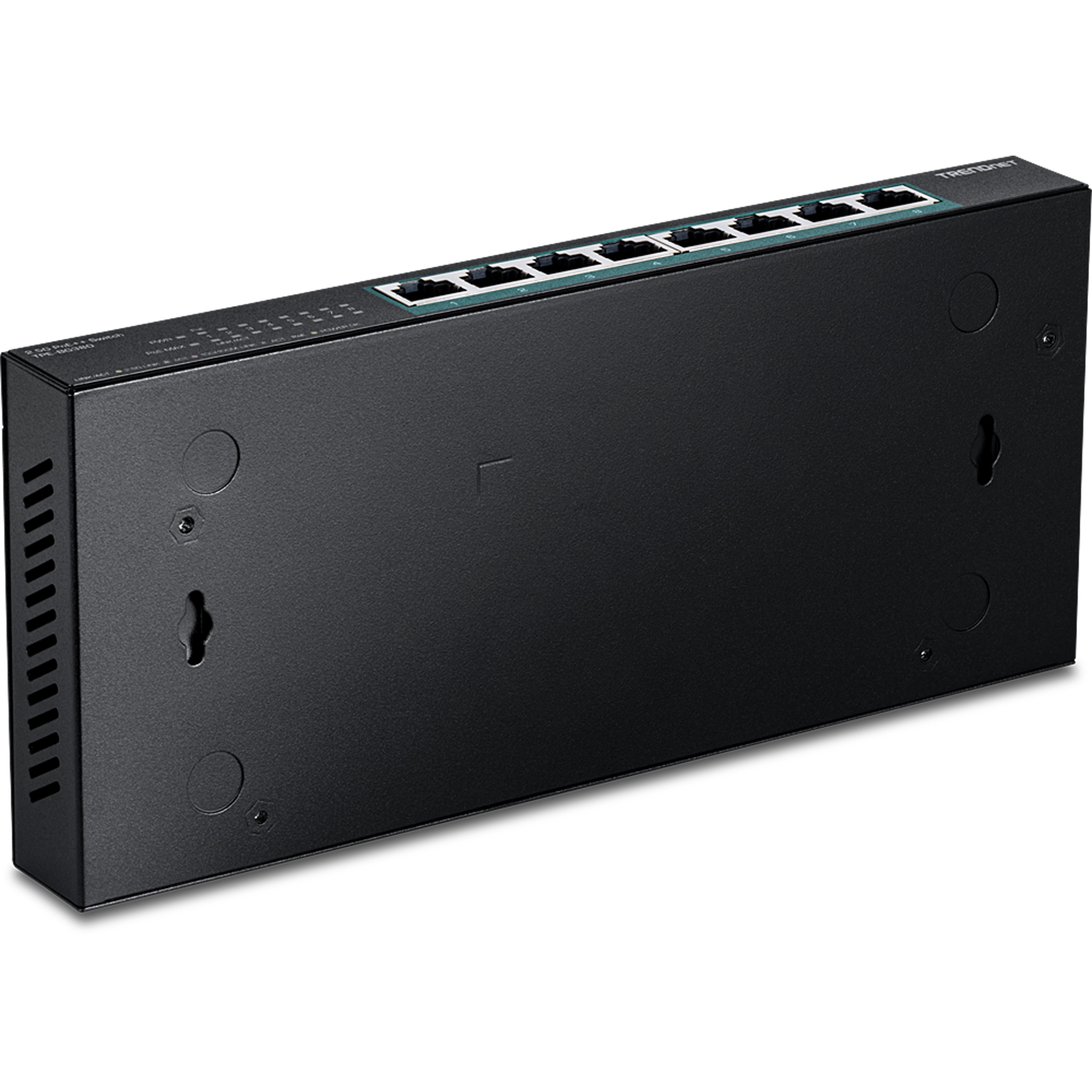

  • Wall mountable for installation flexibility
  • 40Gbps switching capacity
  • IEEE 802.3bz (2.5G) compliant
  • Supports IEEE 802.3af/at/bt
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

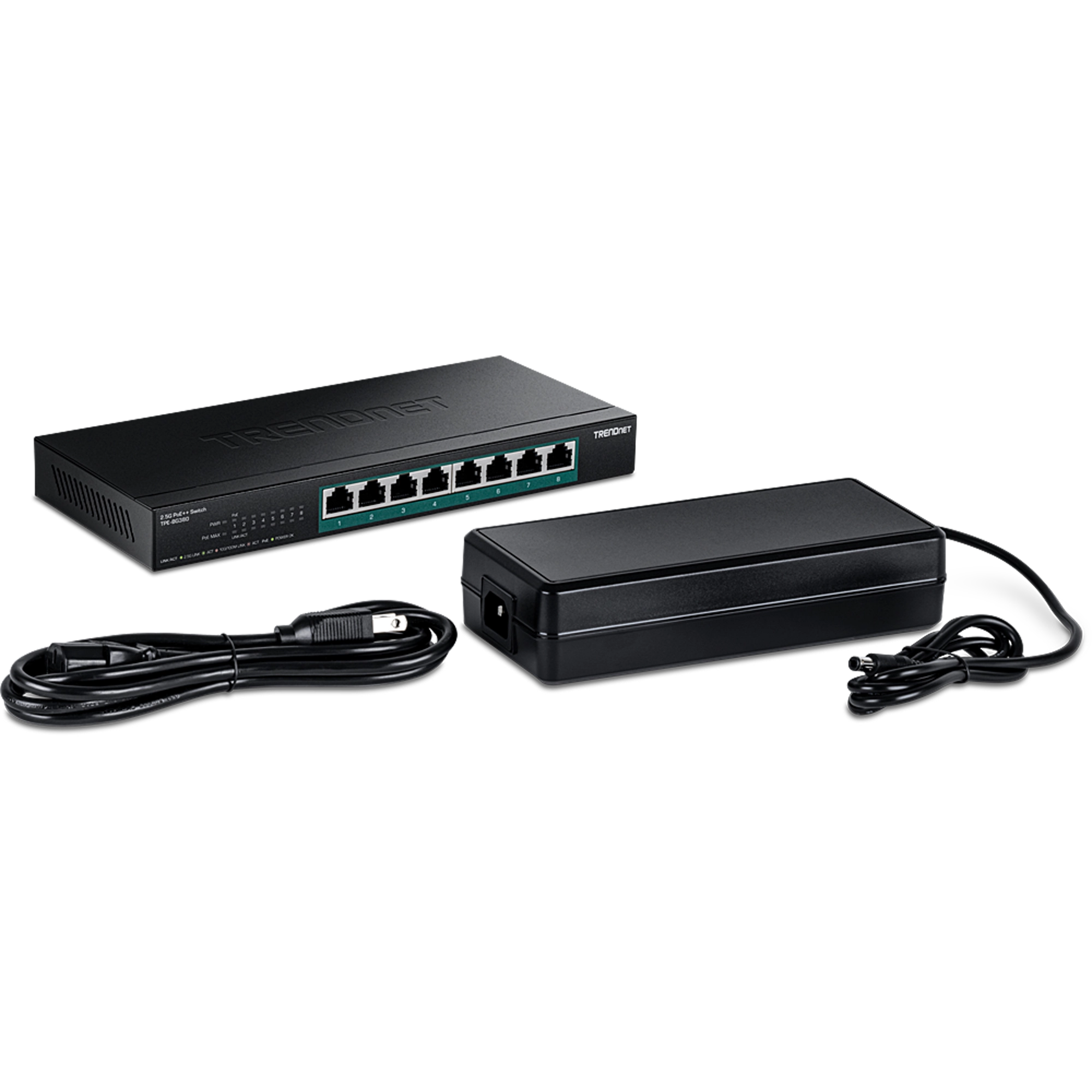

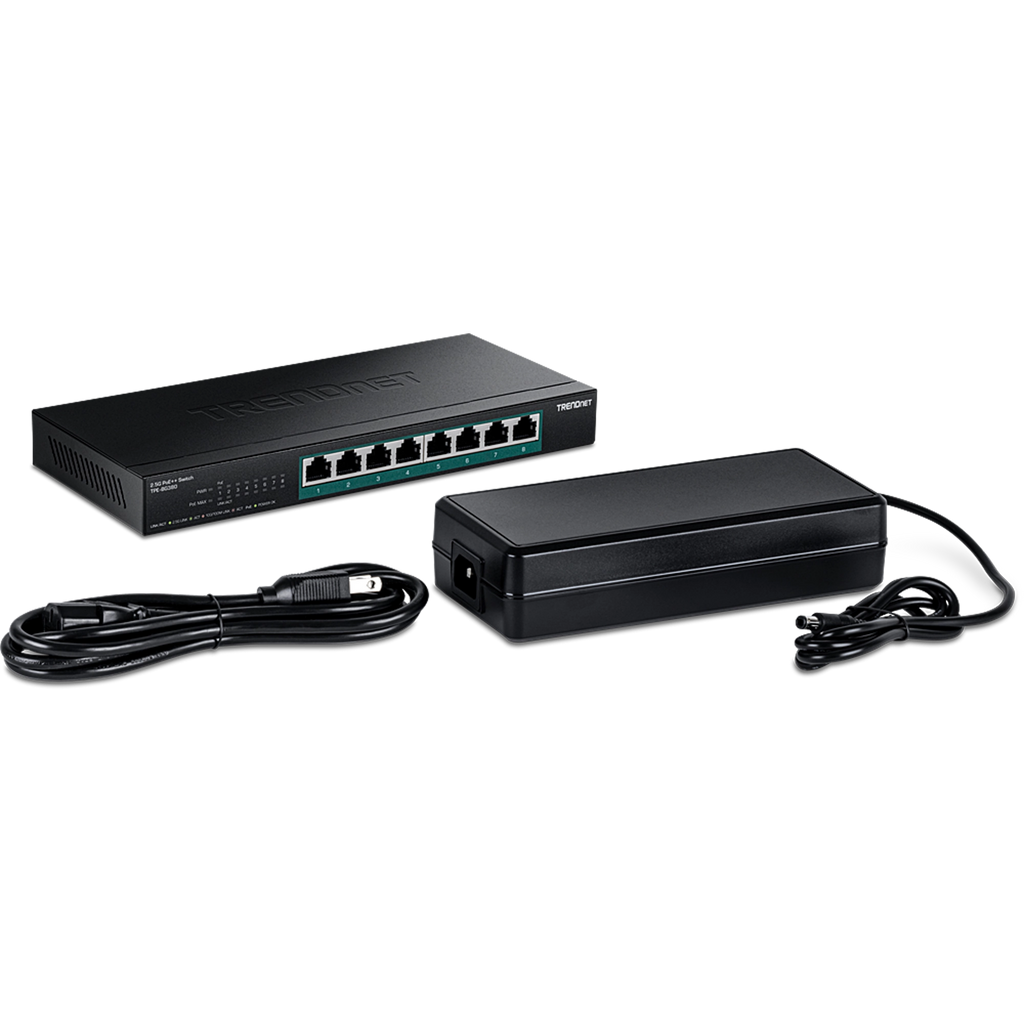

PACKAGE CONTENTS
  • TPE-BG380
  • Quick Installation Guide
  • Power brick (54V, 4.7A)
  • Power cord (1.5m / 4.9 ft.)
