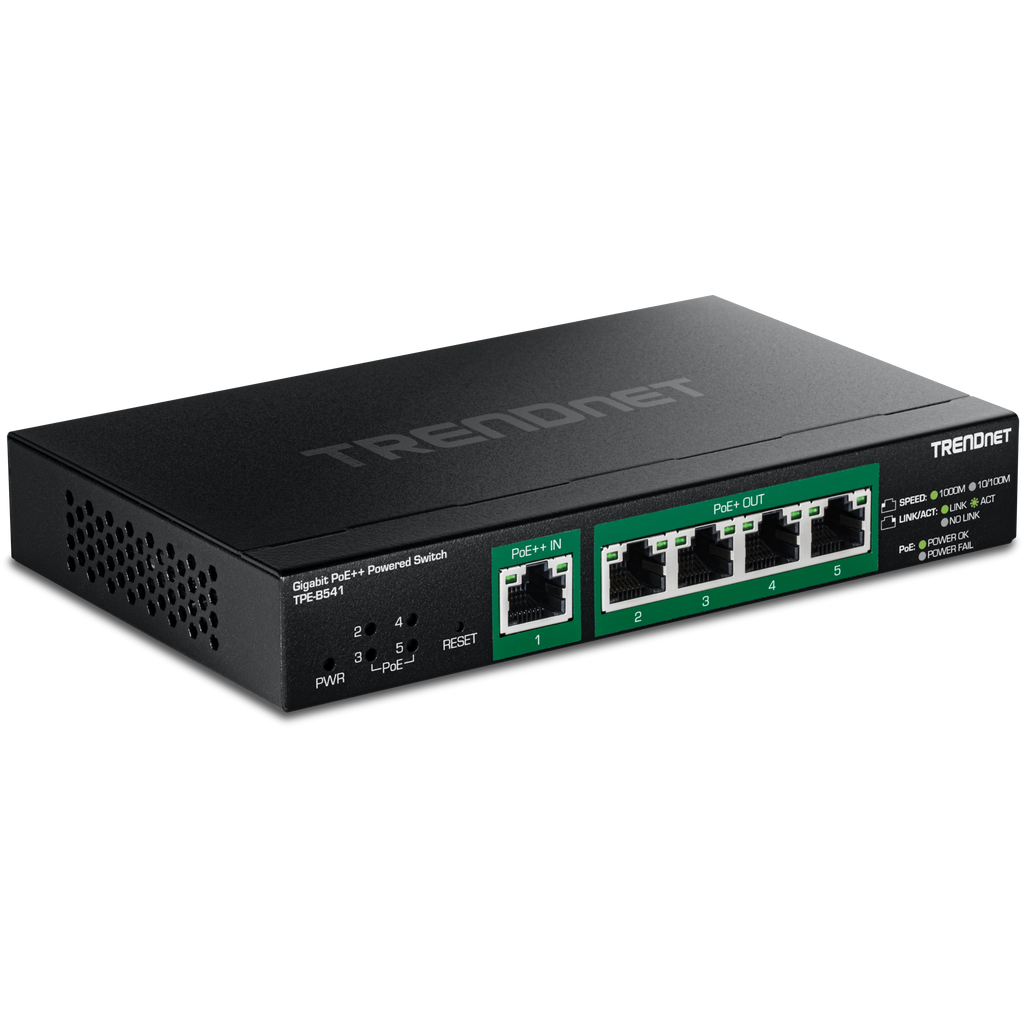

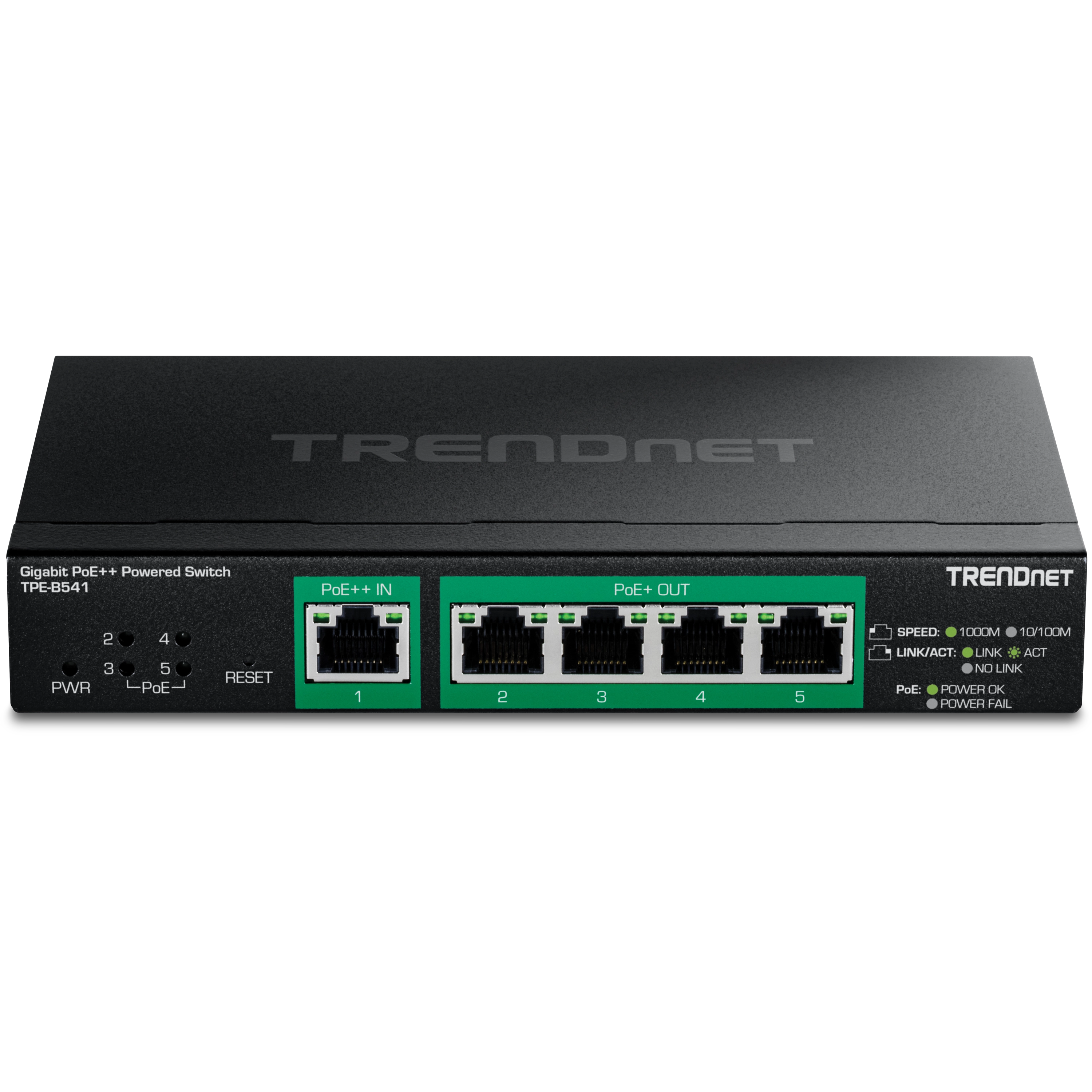

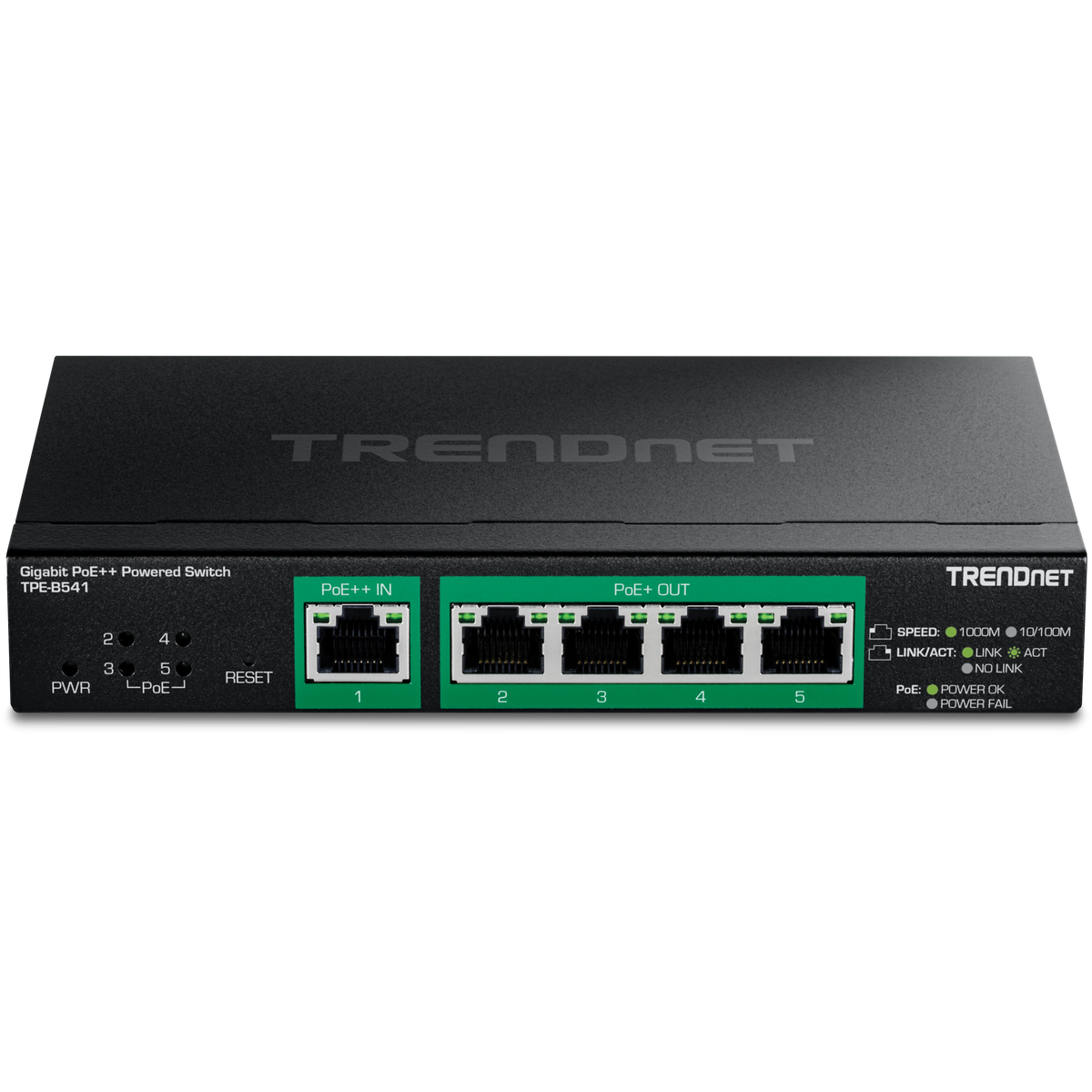

TRENDnet TPE-B541 5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough
Product Details
TRENDnet’s 5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough, model TPE-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The compact PoE++-powered managed switch features four gigabit PoE+ ports to power devices, such as IP cameras, VoIP handsets, and wireless access points, with a 60W total PoE power budget. Reducing unnecessary switch complexity, this PoE++ passthrough managed switch is equipped with management features such as VLANs, QoS, PoE control, and monitoring.
Specifications
| Standards |
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1q
- IEEE 802.1w
|
| Device Interface |
- 1 x Gigabit PoE++ in port
- 4 x Gigabit PoE+ out port
- LED indicators

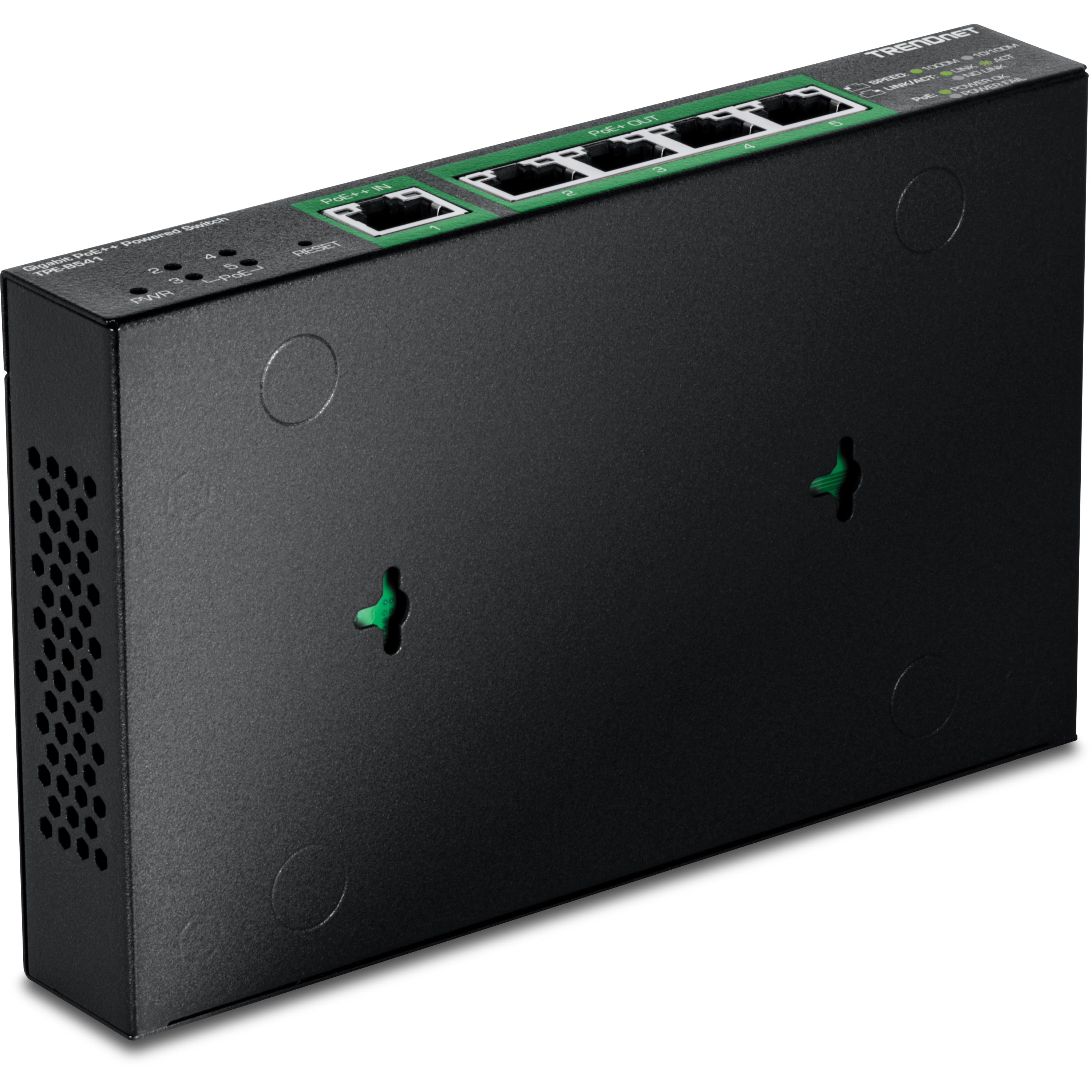

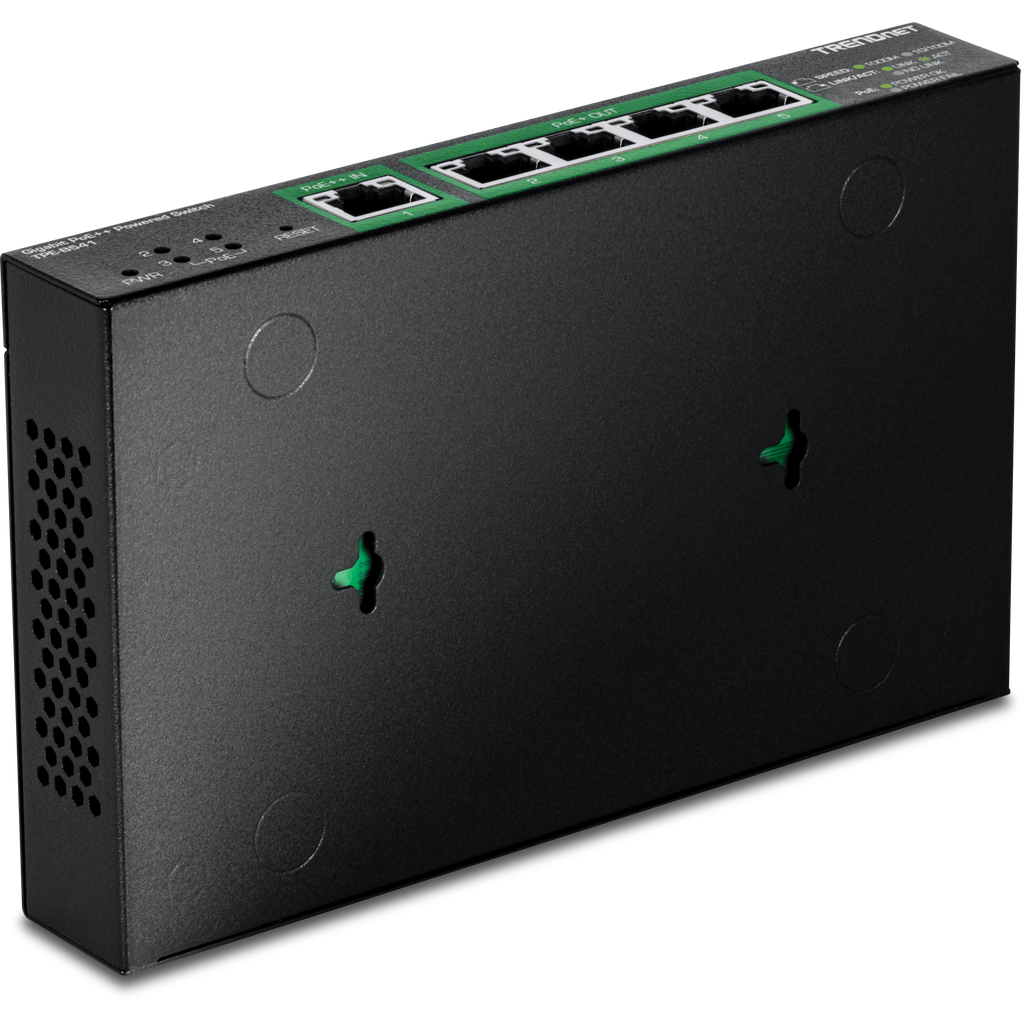

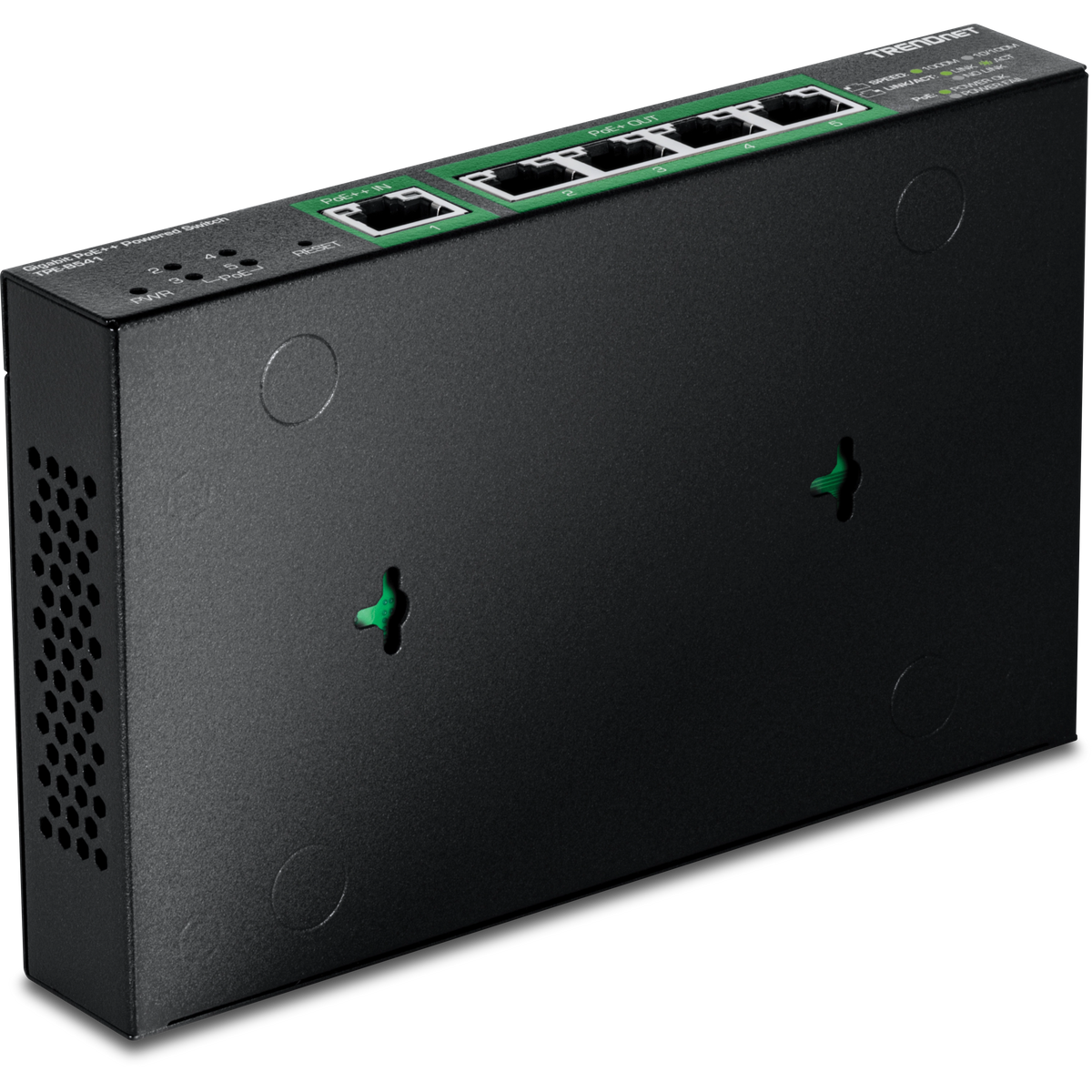

- Wall mount
|
| Data Transfer Rate |
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2Gbps (full duplex)
|
| Performance |
- Data RAM Buffer: 512KB
- Switching Fabric: 10Gbps
- MAC Address Table: 8K entries
- Jumbo Frame: 10KB
- Forwarding rate: 7.44Mpps (64-byte packet size)
|
| Management |
- HTTP Web based GUI
- Backup/Restore Configuration
- Upload Firmware
|
| Spanning Tree |
- IEEE 802.1D STP (Spanning Tree protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
|
| Quality of Service (QoS) |
- Port-based QoS
- 802.1p Class of Service (CoS)
- Bandwidth Control/Rate Limiting per port (Min. Limit: 16Kbps)
- Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
|
| VLAN |
- Port-based VLAN
- 802.1Q Tagged VLAN
- Up to 32 VLAN groups, ID Range 1-4094
- VLAN port isolation
- Voice VLAN (8 user defined OUIs)
|
| Multicast |
- IGMP Snooping v1/2
- Block unknown multicast source
|
| Port Mirror |
- RX, TX, or Both
- One to one
- Many to one
|
| Storm Control |
- Broadcast (Min. Limit: 16Kbps)
- Multicast (Min. Limit: 16Kbps)
- Loopback Detection
|
| Special Features |
- PoE++ Powered
- Auto-Negotiation
|
| Power |
- IEEE 802.3bt Type 4 (95W), IEEE 802.3bt Type 3 (60W), or IEEE 802.3at (30W), PoE input only (no external power supply)
- IEEE 802.3bt Type 4 PoE PD Class 8
- IEEE 802.3bt Type 3 PoE PD Class 5
- IEEE 802.3at Type 2 PoE PD Class 4
- IEEE 802.3af Type 1 PoE PD Class 0
- Max. consumption: 7.31W (no PoE)
|
| PoE |
- 60W PoE budget with IEEE 802.3bt Type 4 (95W) input power
- 40W PoE budget with IEEE 802.3bt Type 3 (60W) input power
- 15W PoE budget with IEEE 802.3at (30W) input power
|
| MTBF |
|
| Operating Temperature |
- 0° – 40° C (32° – 104° F)
|
| Operating Humidity |
|
| Dimensions |
- 170 x 105 x 28mm (4.21 x 4.13 x 1.10 in.)
|
| Weight |
|
| Certifications |
|
| Warranty |
|
Features
- 1 x Gigabit PoE++ input port
- 4 x Gigabit PoE+ output ports
- 60W PoE power budget with PoE++ Type 4 (95W) input power
- Easy-to-use web-based management interface
- Supports RSTP, VLAN, QoS, and IGMP Snooping
- Voice VLAN for VoIP applications
- Bandwidth control per port
- 10Gbps switching capacity
- Compact fanless design
- Wall-mountable metal housing
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
|
PACKAGE CONTENTS
|
- TPE-B541
- Quick Installation Guide
|
