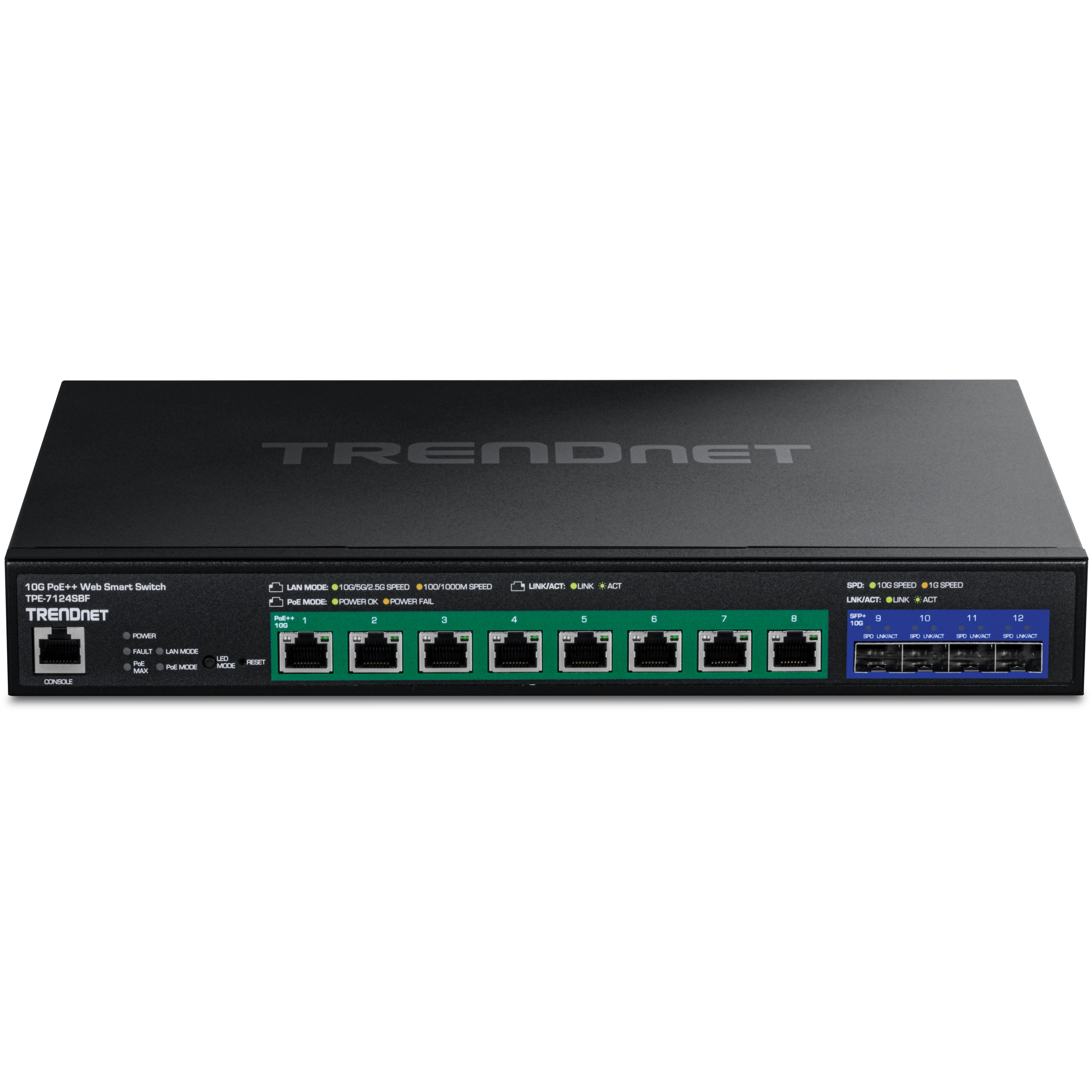

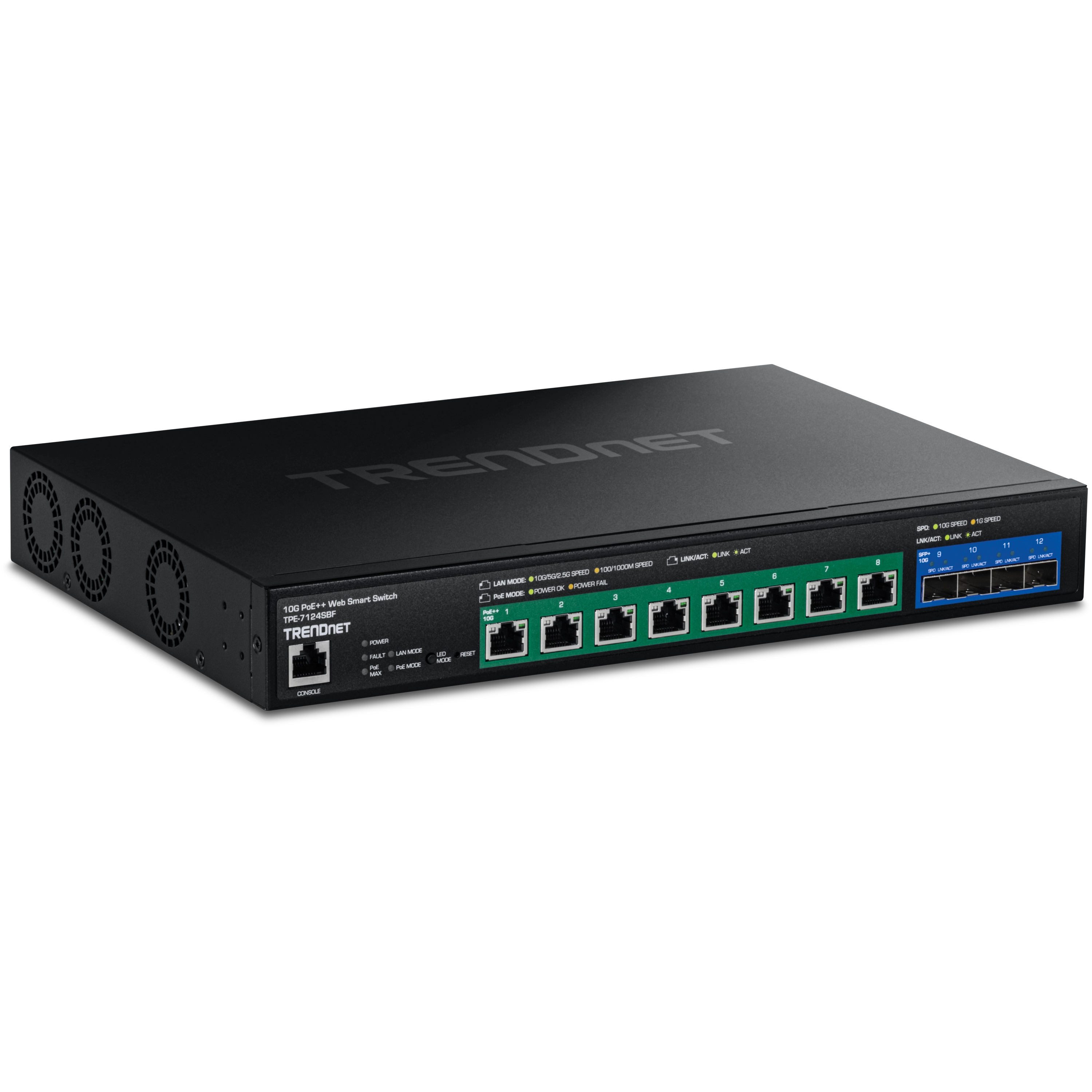

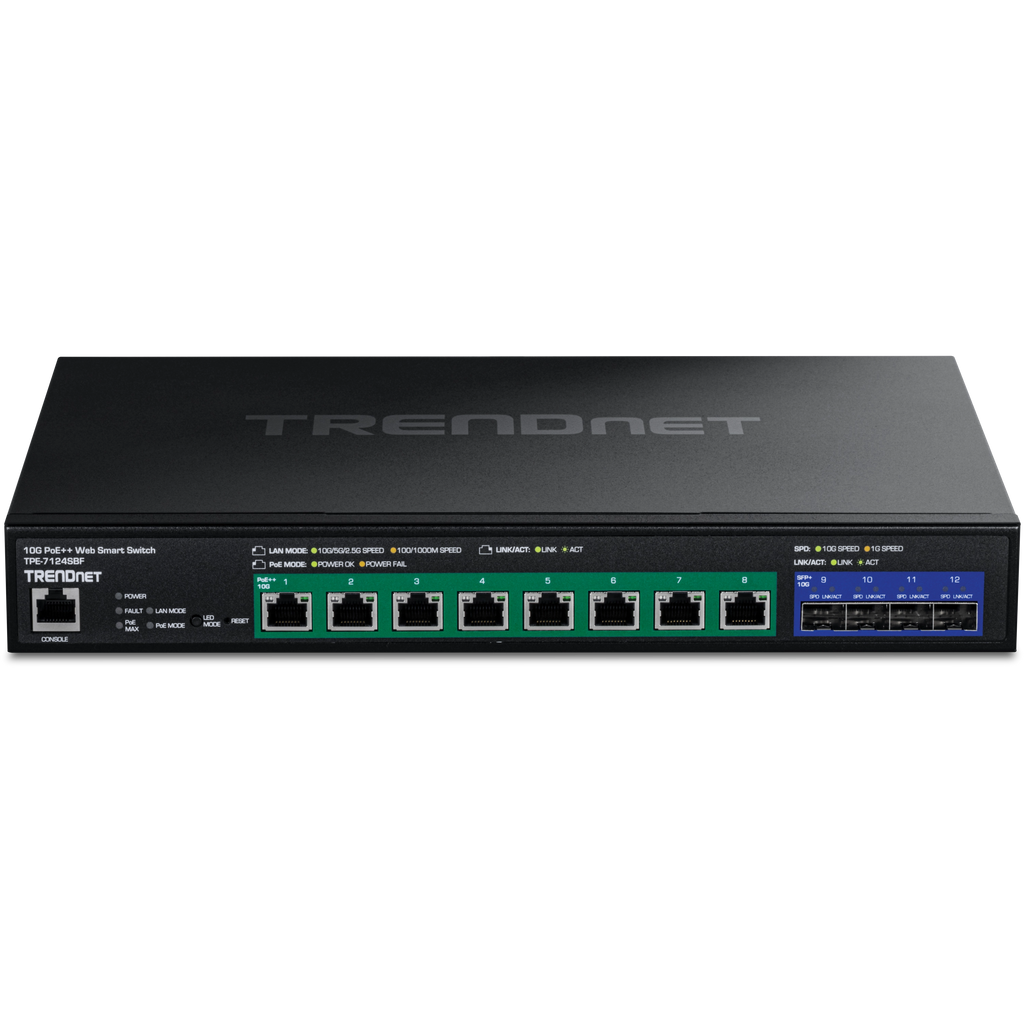

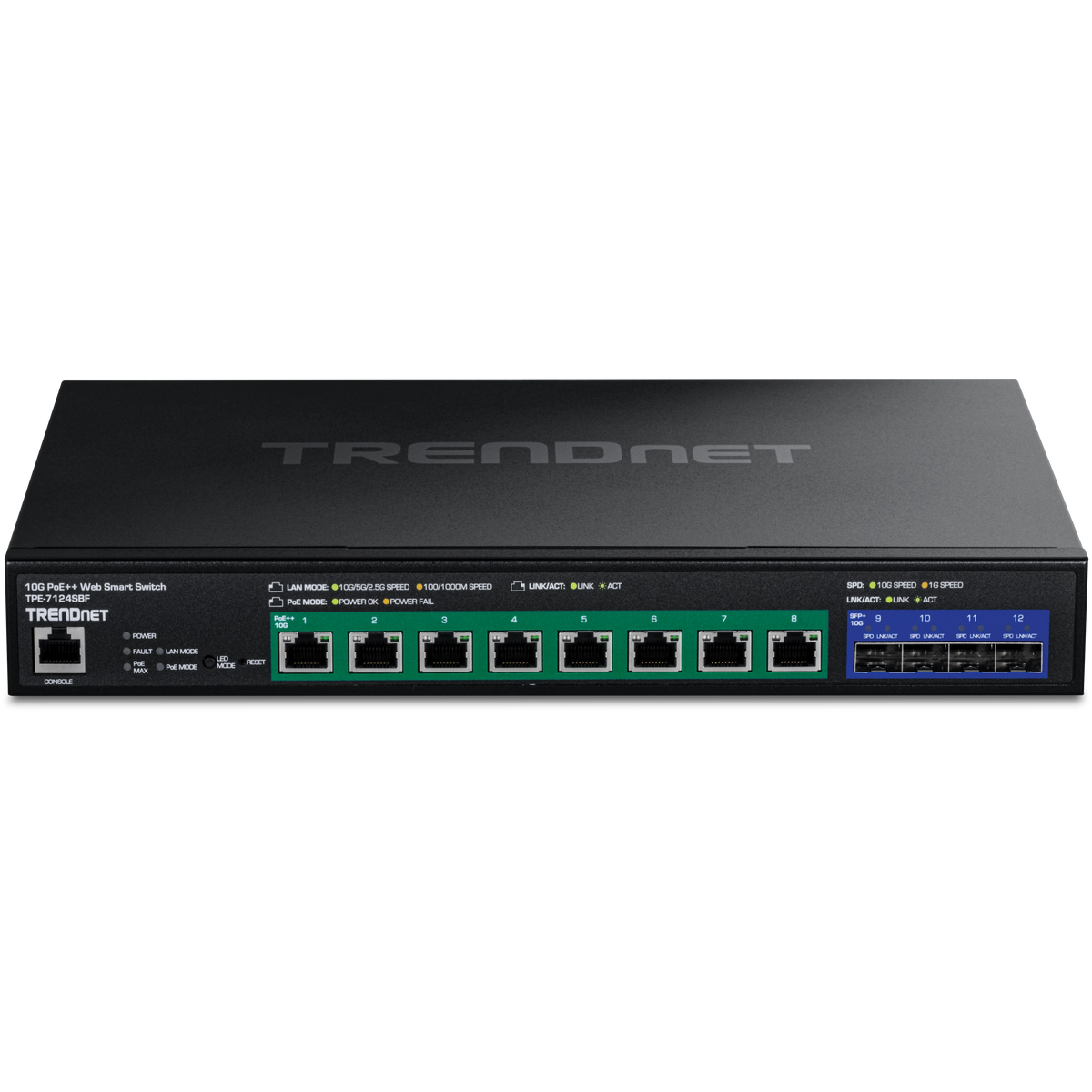

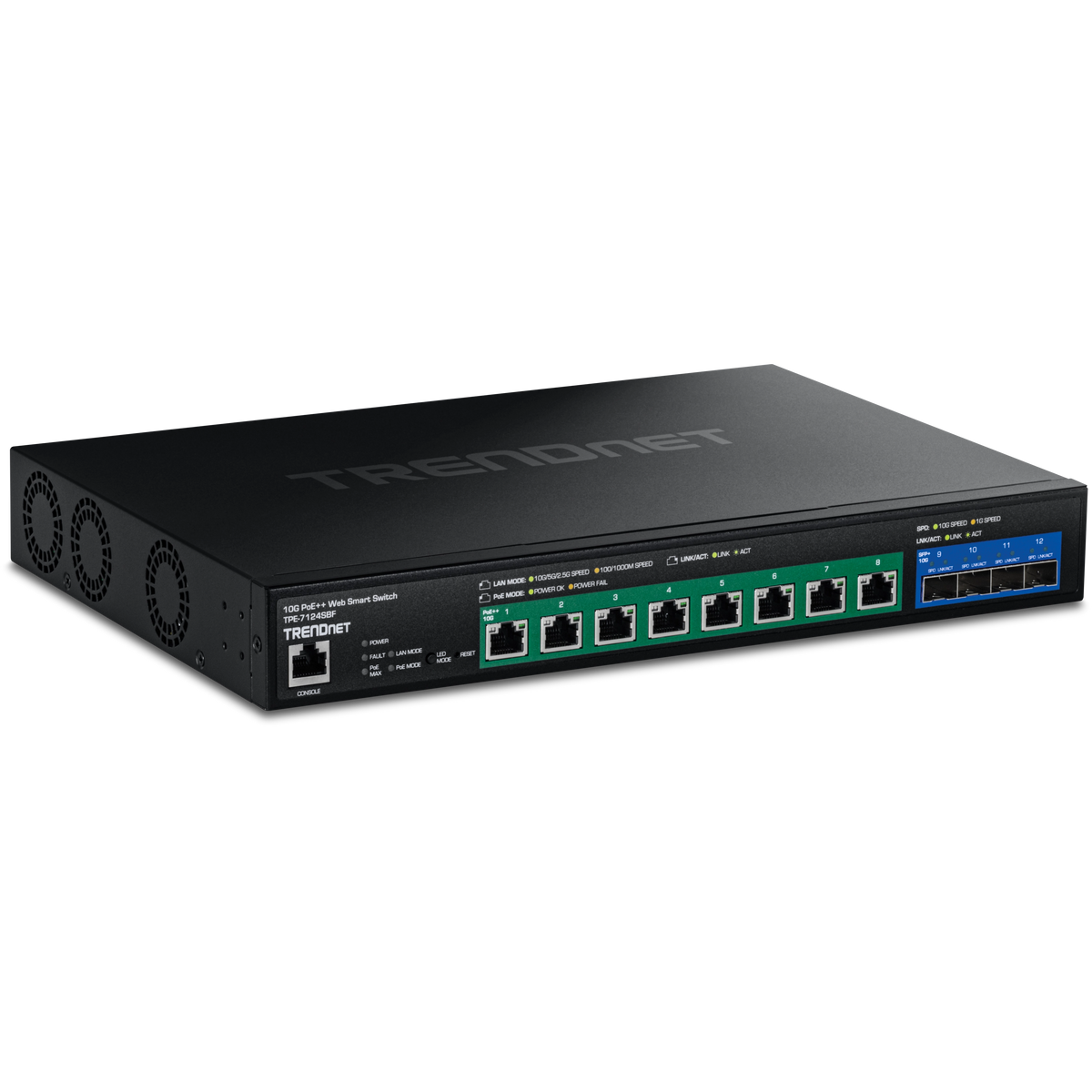

TRENDnet TPE-7124SBF 12-Port 10G PoE++ Web Smart Switch (720W)

NDAA/TAA Compliant

Product Details

TRENDnet’s 12-Port 10G PoE++ Web Smart Switch (720W), model TPE-7124SBF, offers advanced traffic management controls to meet the evolving demands of SMB networks. This 10G managed PoE++ switch comes with an intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this 10G managed PoE++ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

This 12-Port 10G managed PoE++ switch also features eight 10GBASE-T PoE++ ports, and four 10G fiber SFP+ ports for long-distance, high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s 10G PoE++ switch by delivering up to 90W per port of PoE power and data over existing Ethernet cables. Easily network PoE devices with a 720W PoE budget to devices, such as high-power wireless access points, LED lighting, digital signage, IPTV decoders, access controls, cameras, and more with this high-power 10G managed PoE++ switch.

Specifications

Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3ae
  • IEEE 802.3an
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.3bz
  • IEEE 802.3bt
Device Interface
  • 8 x 10G PoE++ ports (100Mbps/1Gbps/2.5Gbps/10Gbps)
  • 4 x 10G SFP+ ports (1Gbps/10Gbps)
  • LED indicators
  • Reset button
Data Transfer Rate
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2Gbps (full duplex)
  • 2.5G Ethernet: 5Gbps (full duplex)
  • 10G Ethernet: 20Gbps (full duplex)
  • SFP: 2Gbps (full duplex)
  • SFP+: 20Gbps (full duplex)
Performance
  • Switch fabric: 240Gbps
  • RAM buffer: 2MB
  • MAC Address Table: 32K entries
  • Jumbo Frames: 10KB
  • HOL Blocking Prevention
  • Forwarding rate: 178.56Mpps (64-byte packet size)
Management
  • CLI (Telnet / SSHv2) limited administration only
  • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
  • SNMP v1, v2c, v3
  • RMON v1
  • Static Unicast MAC Address
  • Enable/disable 802.3az Power Saving
  • LLDP and LLDP-MED
  • Virtual Cable Diagnostics Test
  • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
  • Dual image and configuration
MIB
  • RMON MIB RFC 1271
  • LLDP MIB IEEE 802.1ab
  • RFC 1213 MIB II
  • RFC 1643 Ethernet-like interface MIB
  • RFC 1493 bridge MIB
Spanning Tree
  • IEEE 802.1d STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
  • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
  • Static Link Aggregation
  • 802.3ad Dynamic LACP
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth control per port
  • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
  • 802.1Q Tagged VLAN
  • Dynamic GVRP
  • Up to 256 VLAN groups, ID Range 1-4094
  • Voice VLAN (10 user defined OUIs)
Multicast
  • IGMP Snooping v1, v2, v3
  • MLD Snooping v1, v2
  • IGMP fast leave
  • Up to 256 multicast entries
Port Mirror
  • RX, TX, or Both
  • Many to one
Access Control
  • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
  • Local Dial-In User Authentication
  • DHCP Snooping
  • Loopback Detection
  • Trusted Host
  • Denial of Service (DoS)
  • IP MAC port binding
  • Block unknown multicast
ACL IPv4 L2-L4 & IPv6
  • MAC Address
  • VLAN ID
  • Ether Type (IPv4 only)
  • IP Protocol 0-255
  • TCP/UDP Port 1-65535
  • 802.1p
  • TOS (IPv4 only)
  • IPv4 Address and Mask (IPv4 only)
  • IPv6 Address and Prefix Length (IPv6 only)
Layer 3 Features
  • IPv4 / IPv6 static routing
  • IP interfaces: Up to 6
  • Routing table entries: Up to 32 (IPv4 / IPv6)
  • ARP table (up to 128 entries)
  • Inter-VLAN routing
Power

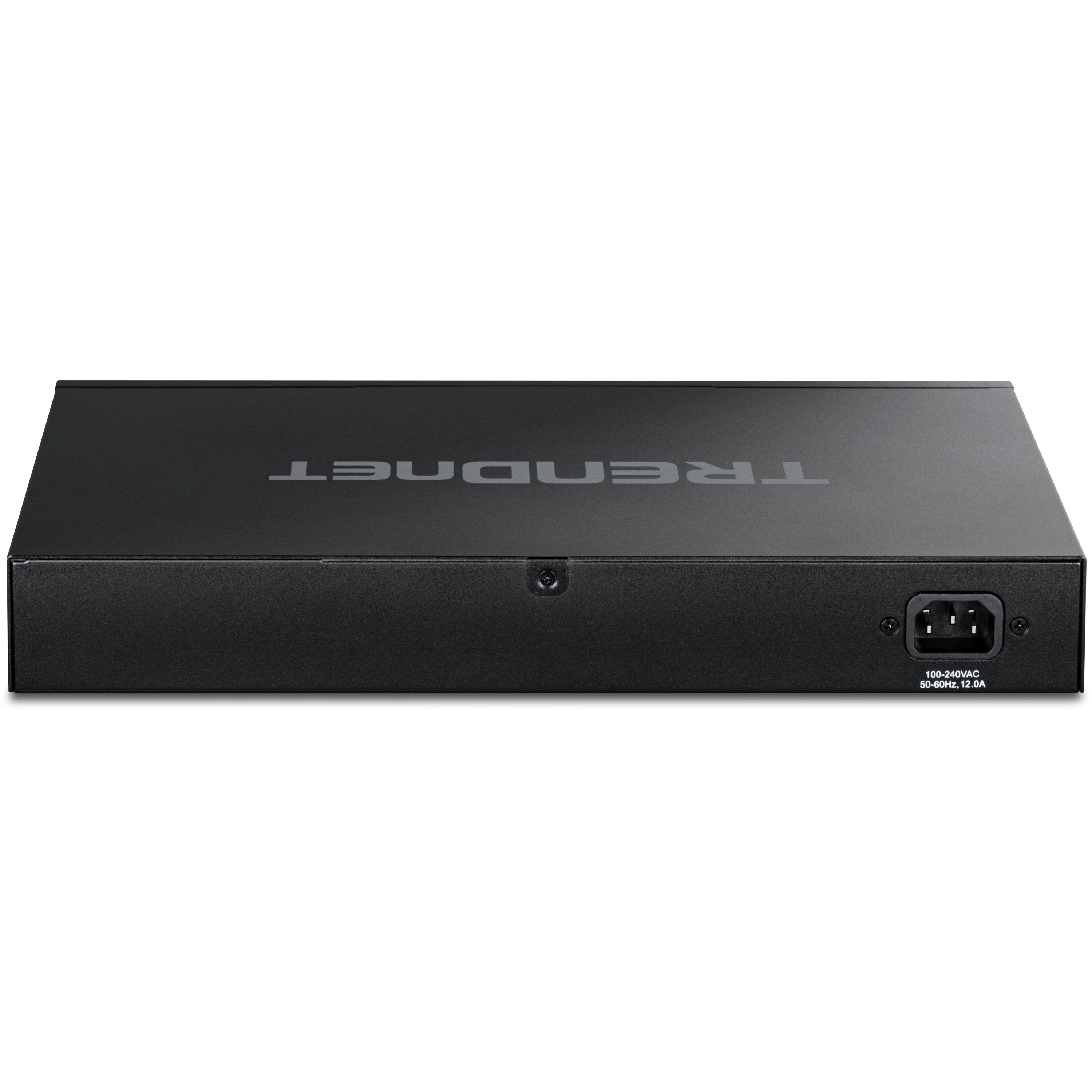

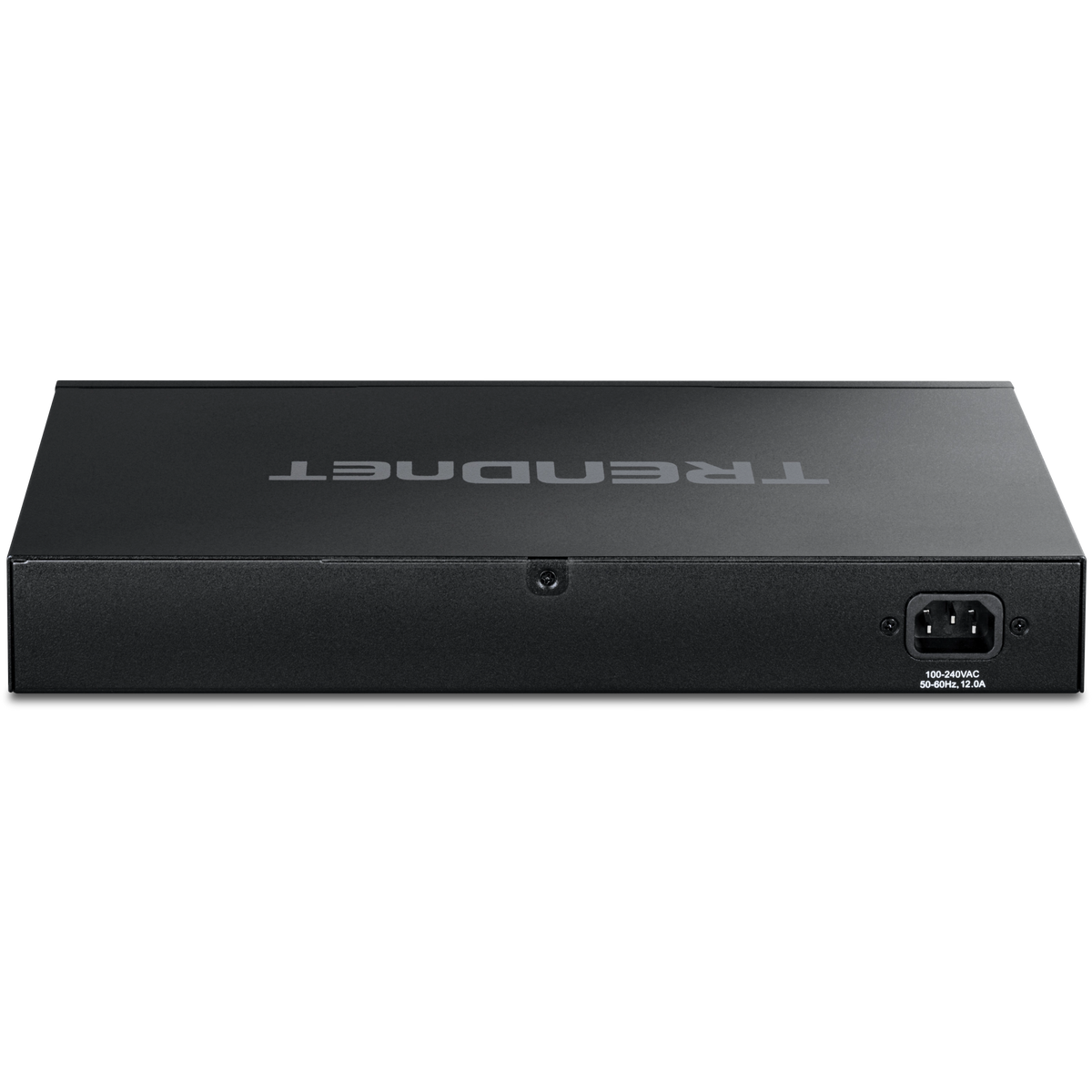

  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. consumption: 57.4W (No PD connected)
PoE
  • PoE budget: 720W
  • 802.3bt: Up to 90W per port
  • PoE++ Pins 3, 4, 5, 6 for power+ and pins 1, 2, 7, 8 for power-
  • PoE/PoE+ pins 3, 6 for power + and pins 1, 2 for power- (mode A)
  • PD auto classification
  • Over current/short circuit protection
  • PD alive check
  • Fast PoE
  • Perpetual PoE
Fan/Acoustics
  • Quantity: 3
  • Smart fans
  • Max. noise level 51.1 dBA
MTBF
  • 161,000 hours @ 25° C
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 330 x 228 x 44mm (12.99 x 8.98 x 1.73 in.)
Weight
  • 2.875kg (6.33 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty



Features

  • 8 x 10G PoE++ ports
  • 4 x 10G SFP+ ports
  • 720W PoE power budget
  • Fast PoE minimizes wait time for powering up PoE devices
  • Perpetual PoE eliminates PoE down time during switch reboot
  • PoE alive check automatically attempts to recover an unresponsive, connected PoE device
  • Supports 100M/1G/2.5G/10GBASE-T link speeds
  • Easy-to-use web-based management interface
  • Supports IPv6, LACP, VLAN, QoS, IGMP/MLD Snooping
  • IPv4/IPv6 Static Routing support
  • Bandwidth control per port
  • Voice VLAN support
  • 1U 19” rack mountable metal housing
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TPE-7124SBF
  • Power cord (1.5m / 5 ft.)
  • Console cable (1m / 3.28 ft.)
  • Rackmount brackets
