TRENDnetSKU: TEG-S762
Price:

Login to see pricing

MSRP:
$139.99
Stock:
Call for availability

Description

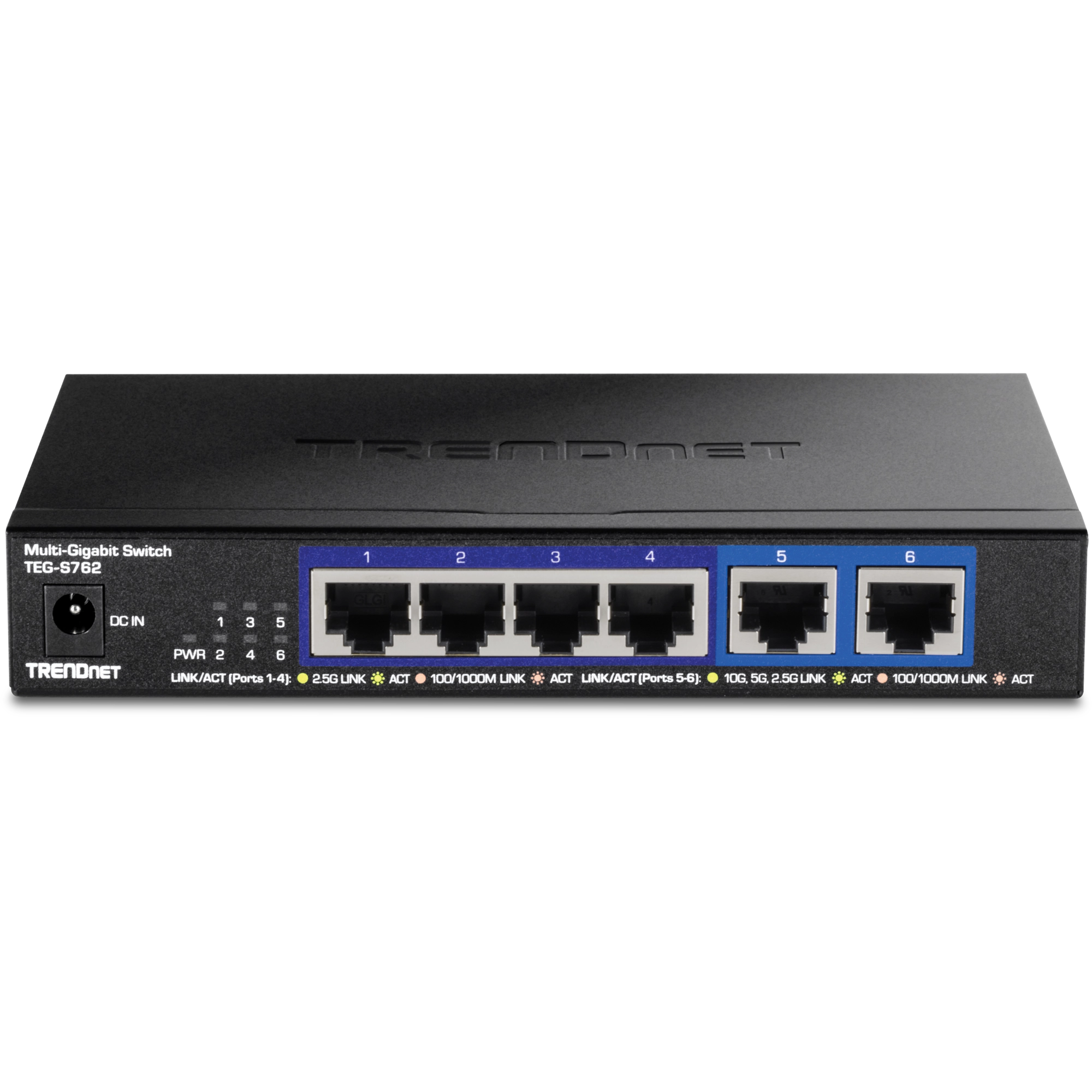

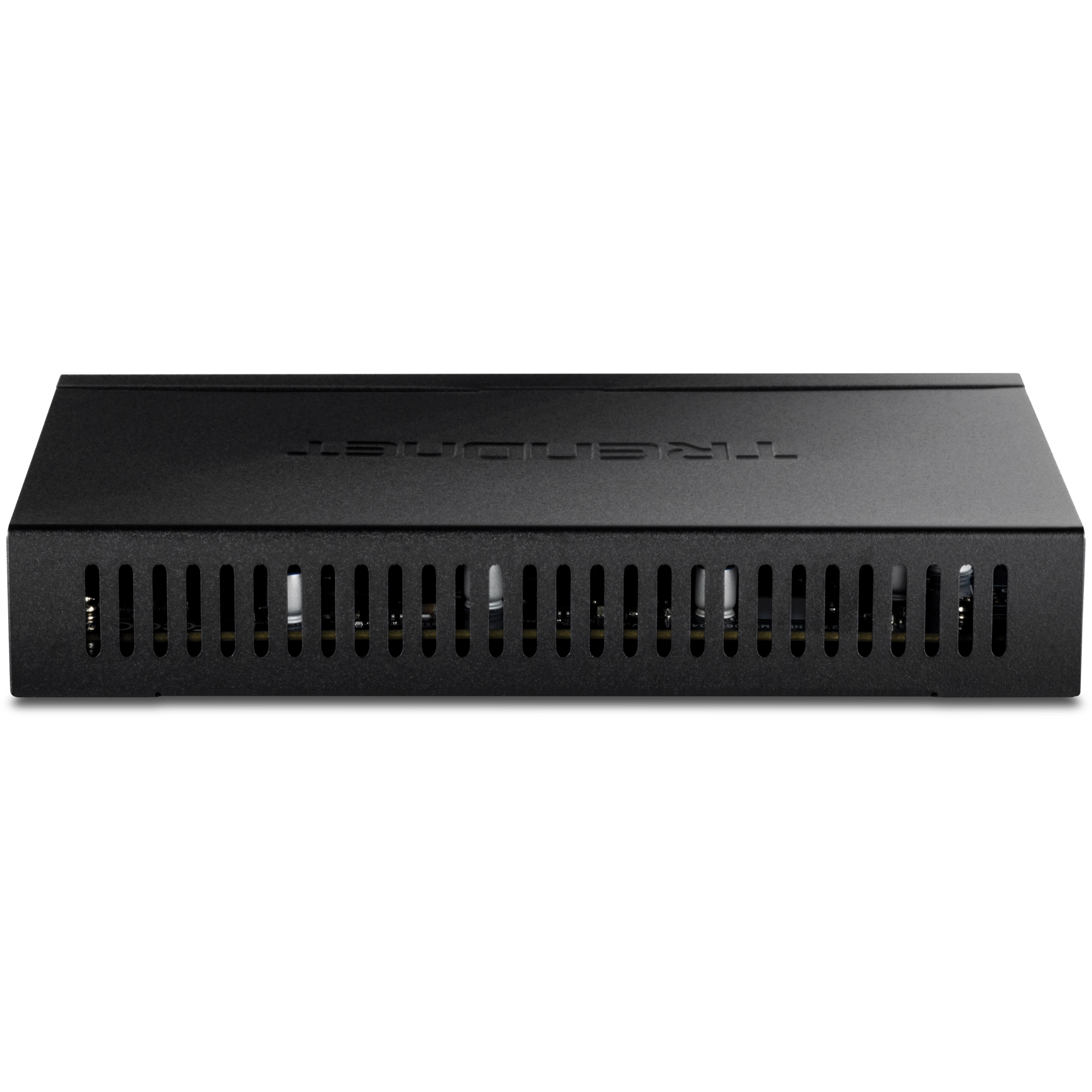

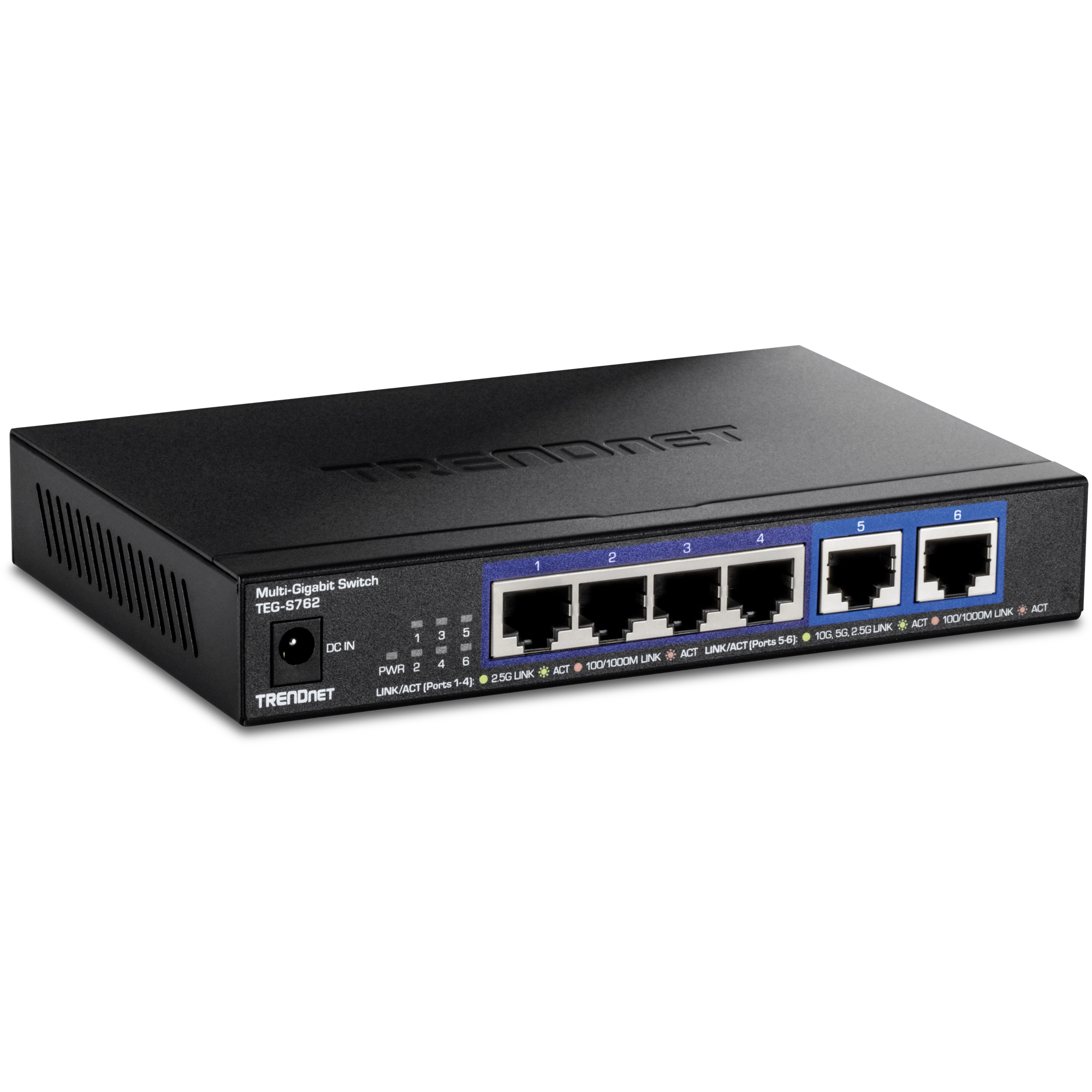

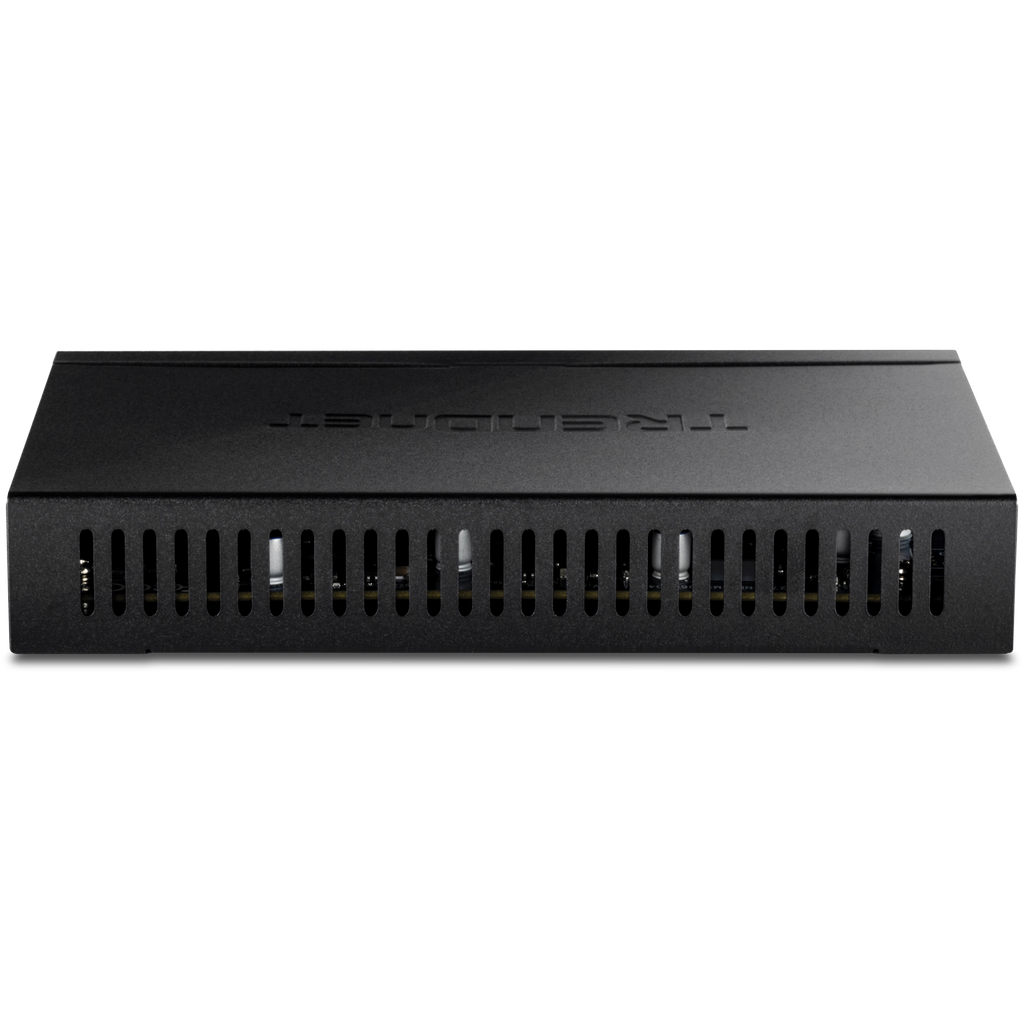

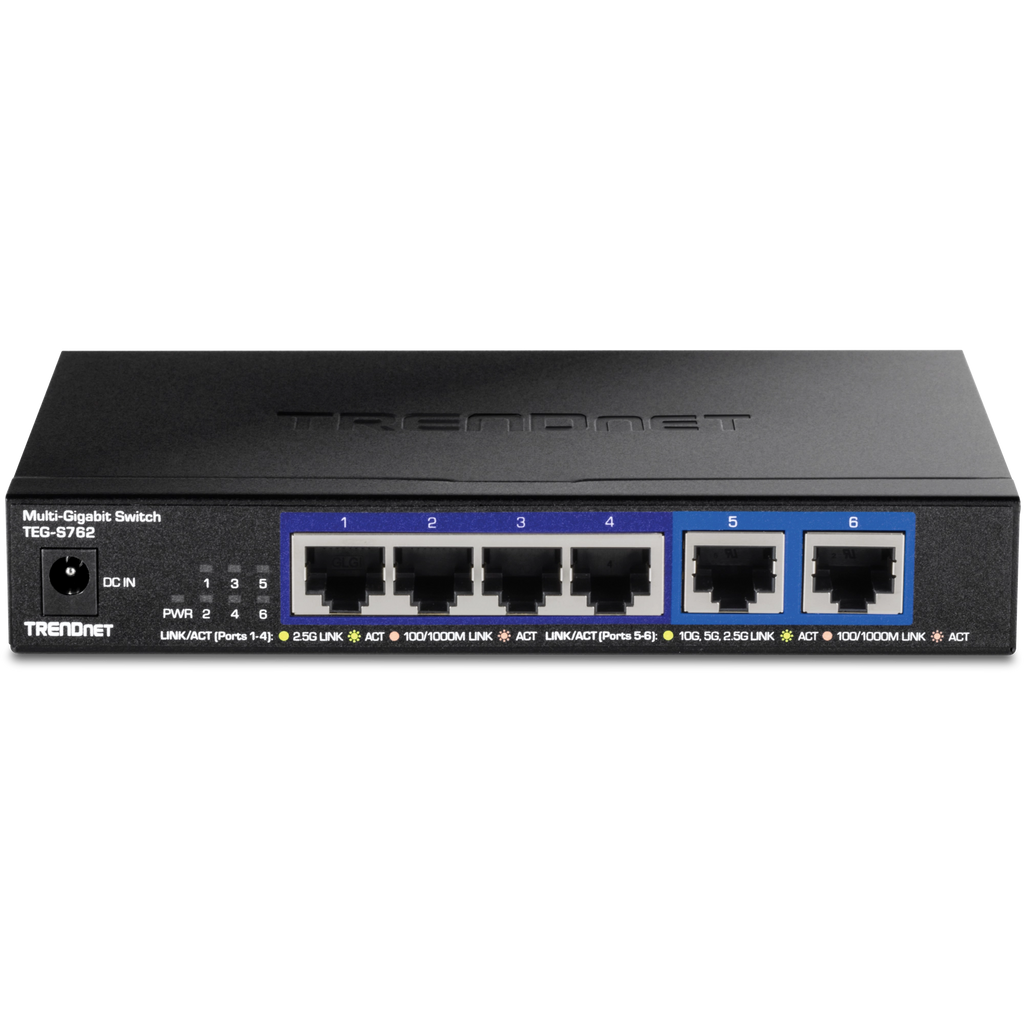

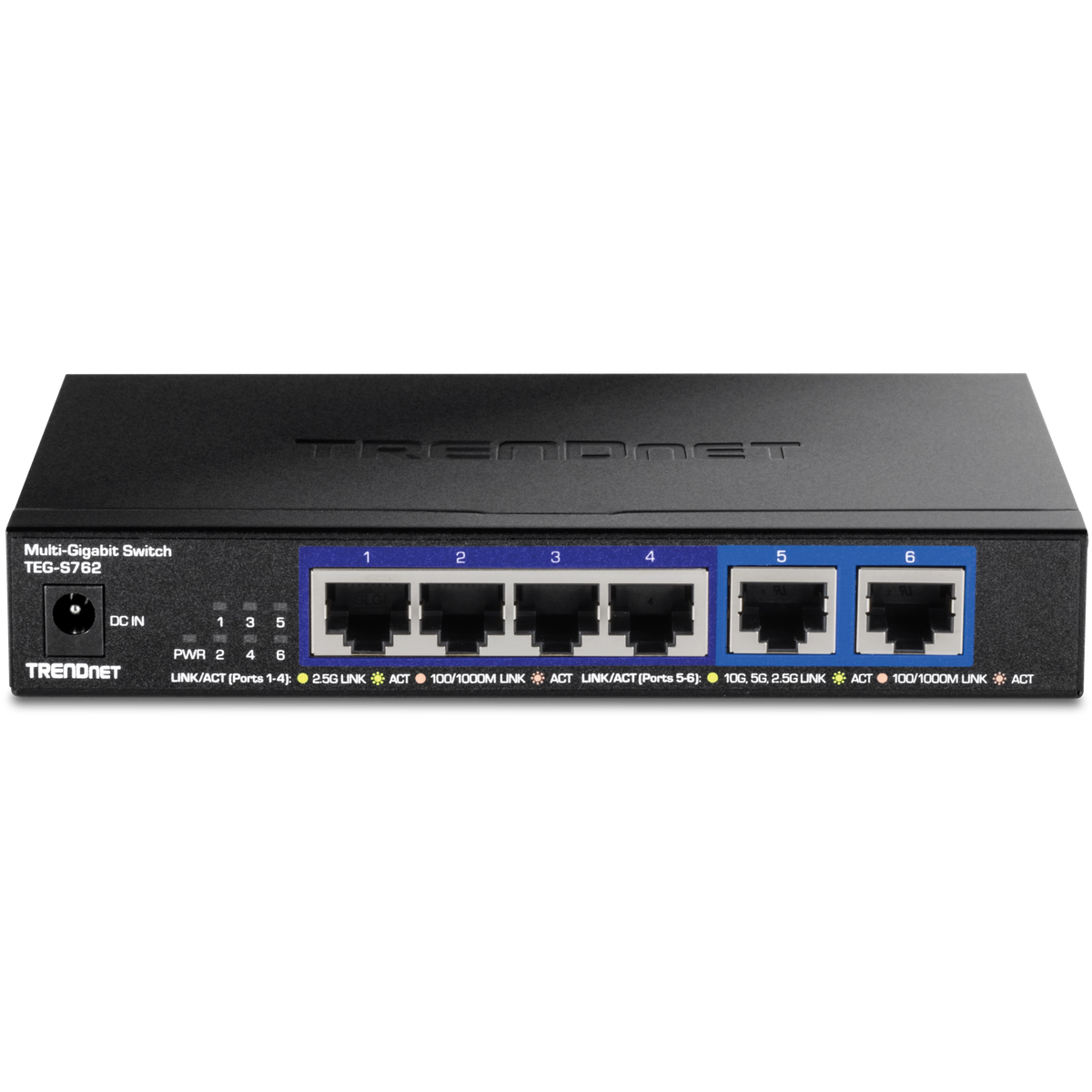

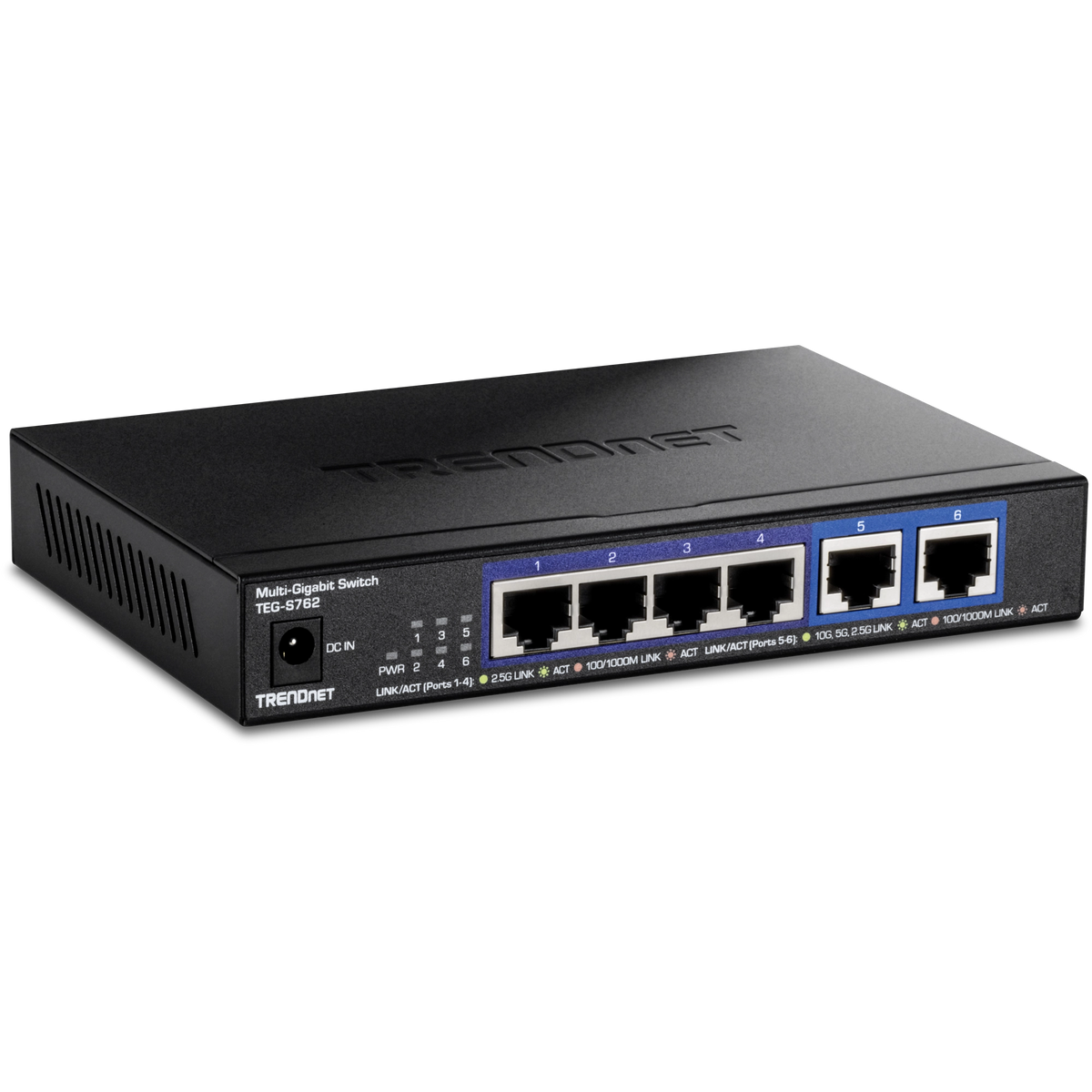

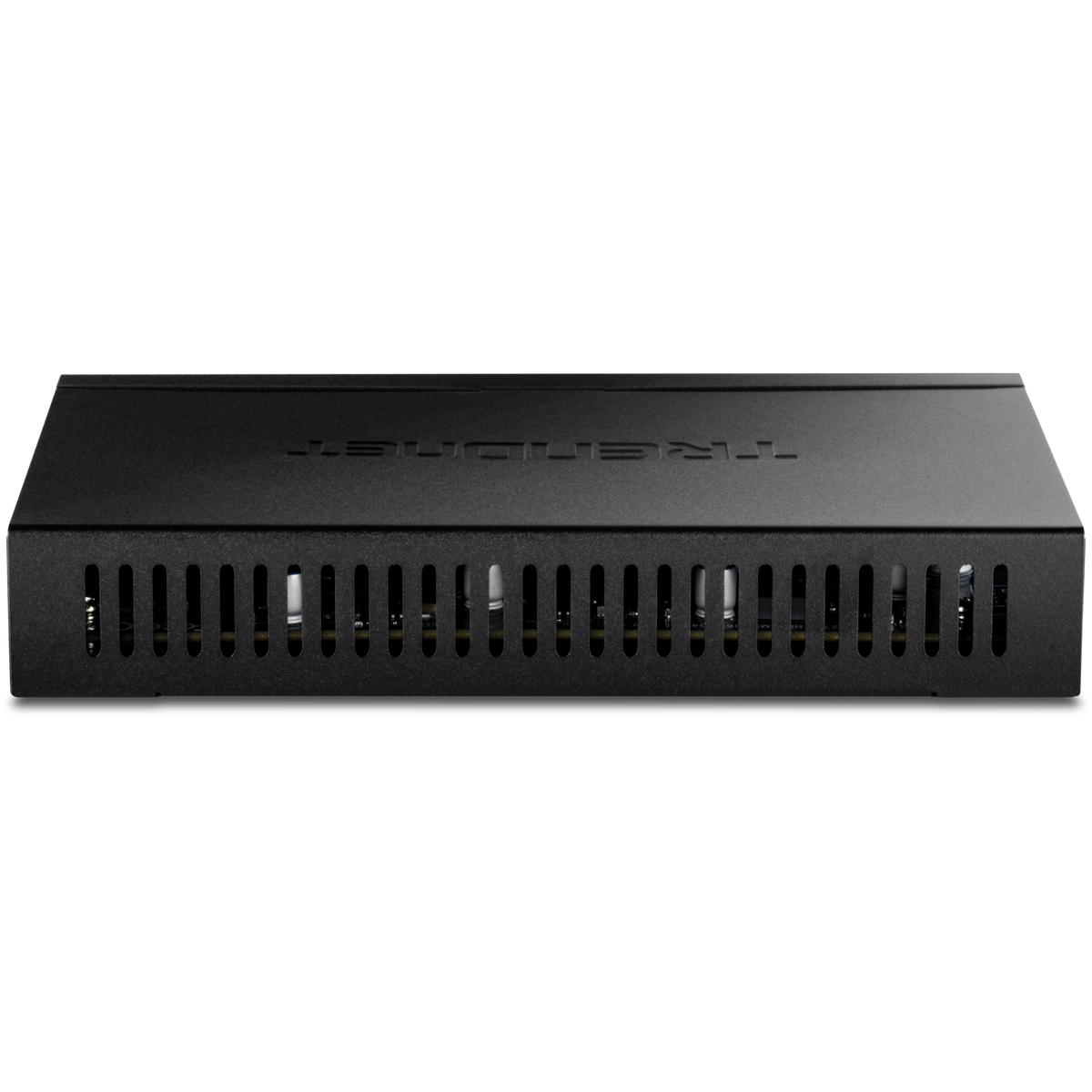

TRENDnet TEG-S762 6-Port Multi-Gig Switch

NDAA/TAA Compliant

Product Details

TRENDnet’s 6-Port Multi-Gig Switch, model TEG-S762, is a multi-gig switch that provides advanced, high-bandwidth performance, ease of use, and reliability. The TEG-S762 multi-gig switch offers two dedicated 10G ports and four dedicated 2.5G ports for high-speed network connections with a 60Gbps switching capacity. It features a sturdy compact metal housing and fanless design. This multi-gig switch is a cost-effective switch solution for high-speed 10 gigabit network connections.

Specifications

Standards
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3az
  • IEEE 802.3bz
  • IEEE 802.1x
Device Interface
  • 4 x 2.5G ports (1Gbps/2.5Gbps)
  • 2 x 10G ports (1Gbps/2.5Gbps/10Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5 Gigabit Ethernet: 5Gbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
  • Switch fabric: 60Gbps
  • RAM buffer: 1MB
  • MAC address table: 4K entries
  • Jumbo frames: 12KB
  • Forwarding mode: store and forward
  • Forwarding rate: 44.64Mpps (64-byte packet size)
Power
  • Input: 90 – 264 VAC, 47/63 Hz
  • Output: 12V, 1A
  • Max. Consumption: 13.37W
MTBF
  • 524,503 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 160 x 110 x 26mm (6.3 x 4.3 x 1 in.)
Weight
  • 0.5kg (1.12 lbs.)
Certifications
  • CE
  • FCC
  • LVD
Warranty



Features

  • 4 x 2.5G RJ-45 ports
  • 2 x 10G RJ-45 ports
  • Compatible with existing Cat5e or better cabling
  • 60Gbps switching capacity
  • Fanless design for silent operation

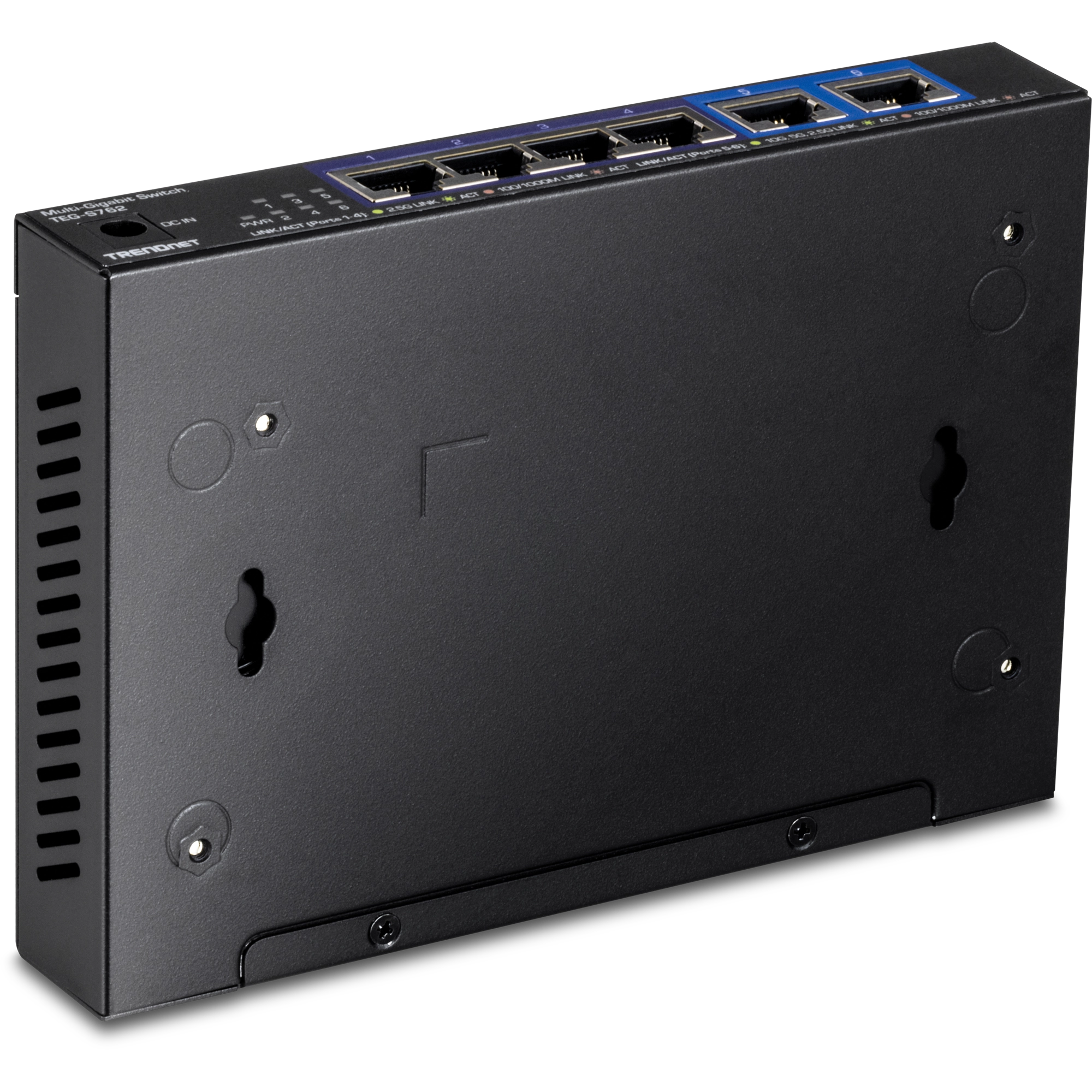

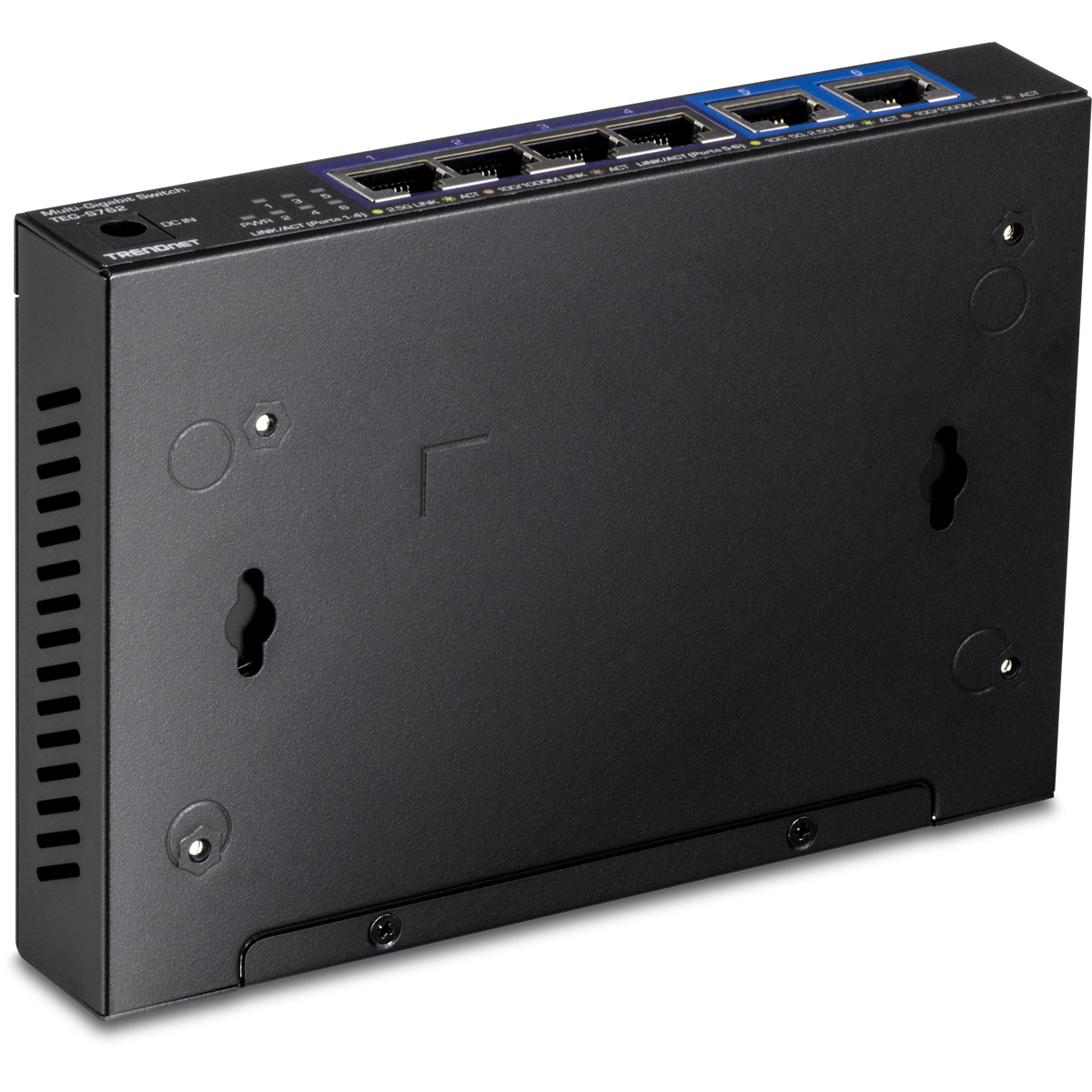

  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TEG-S762
  • Quick Installation Guide
  • Power adapter (12V, 1A)
