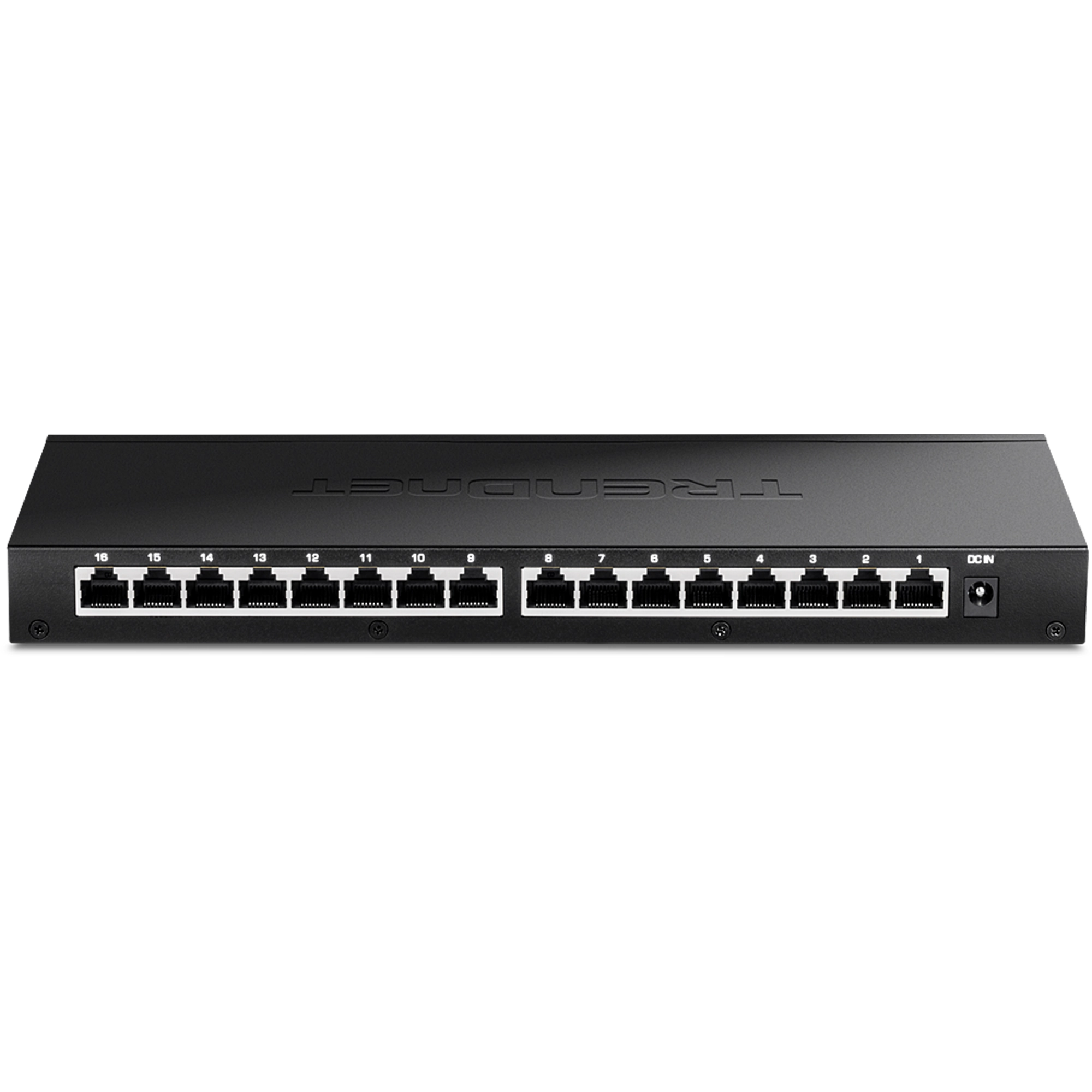

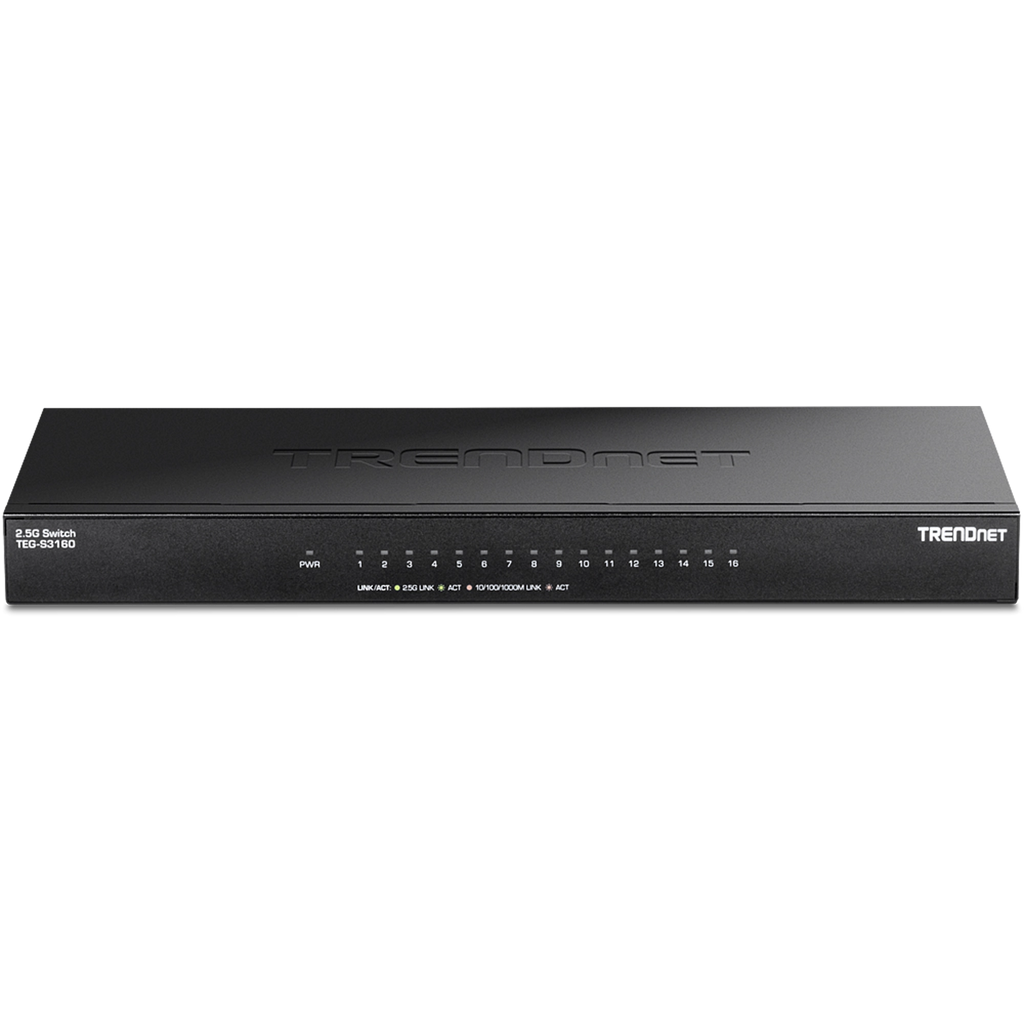

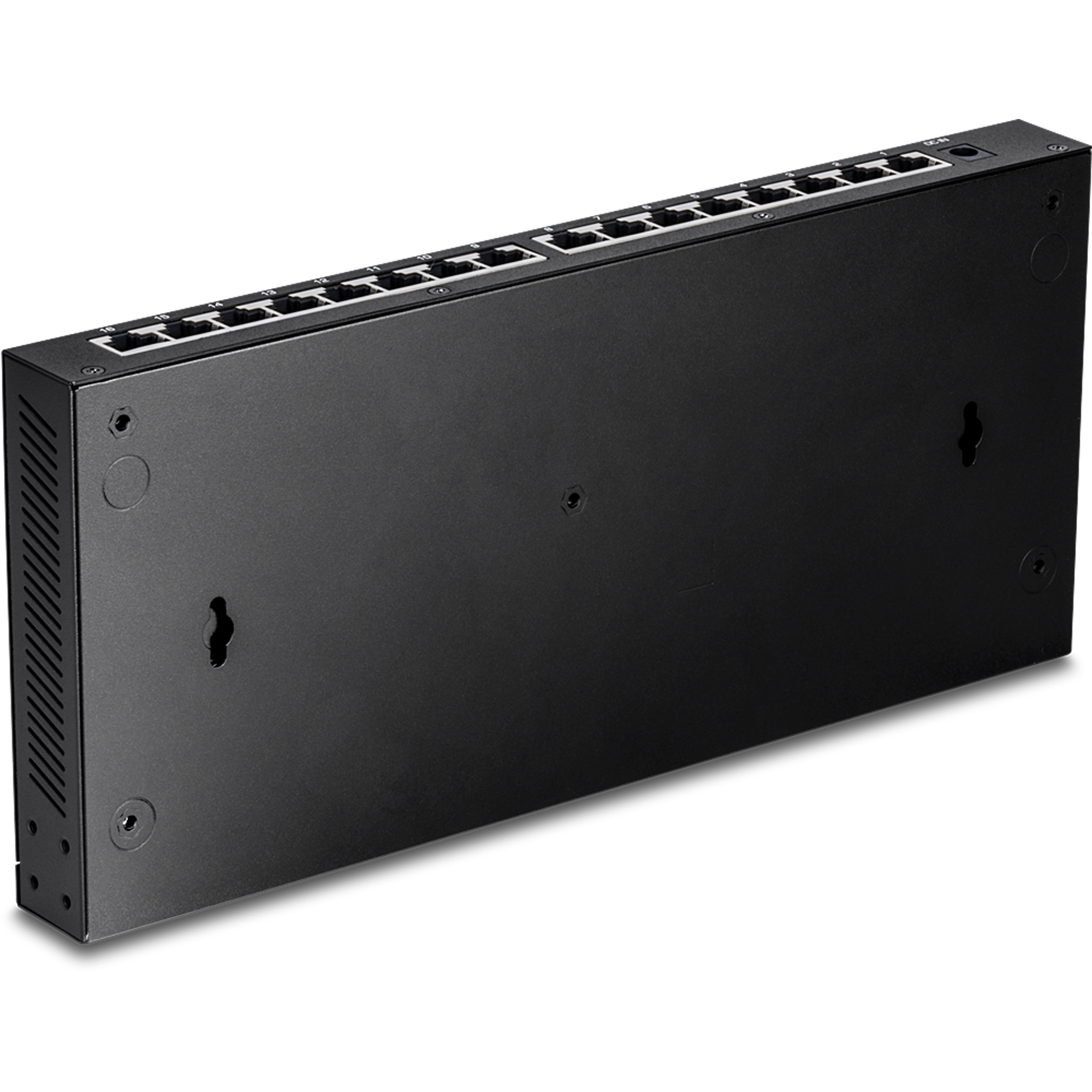

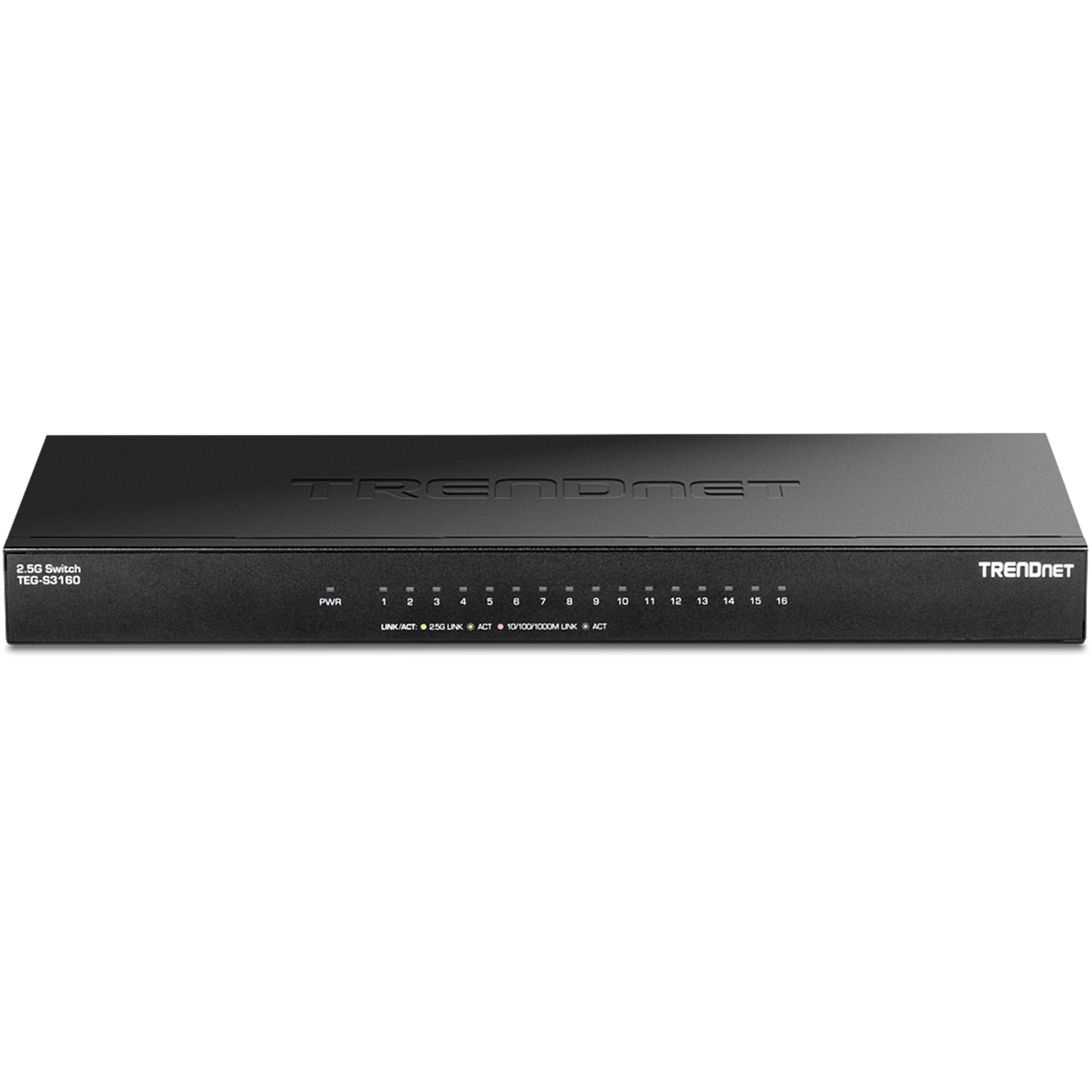

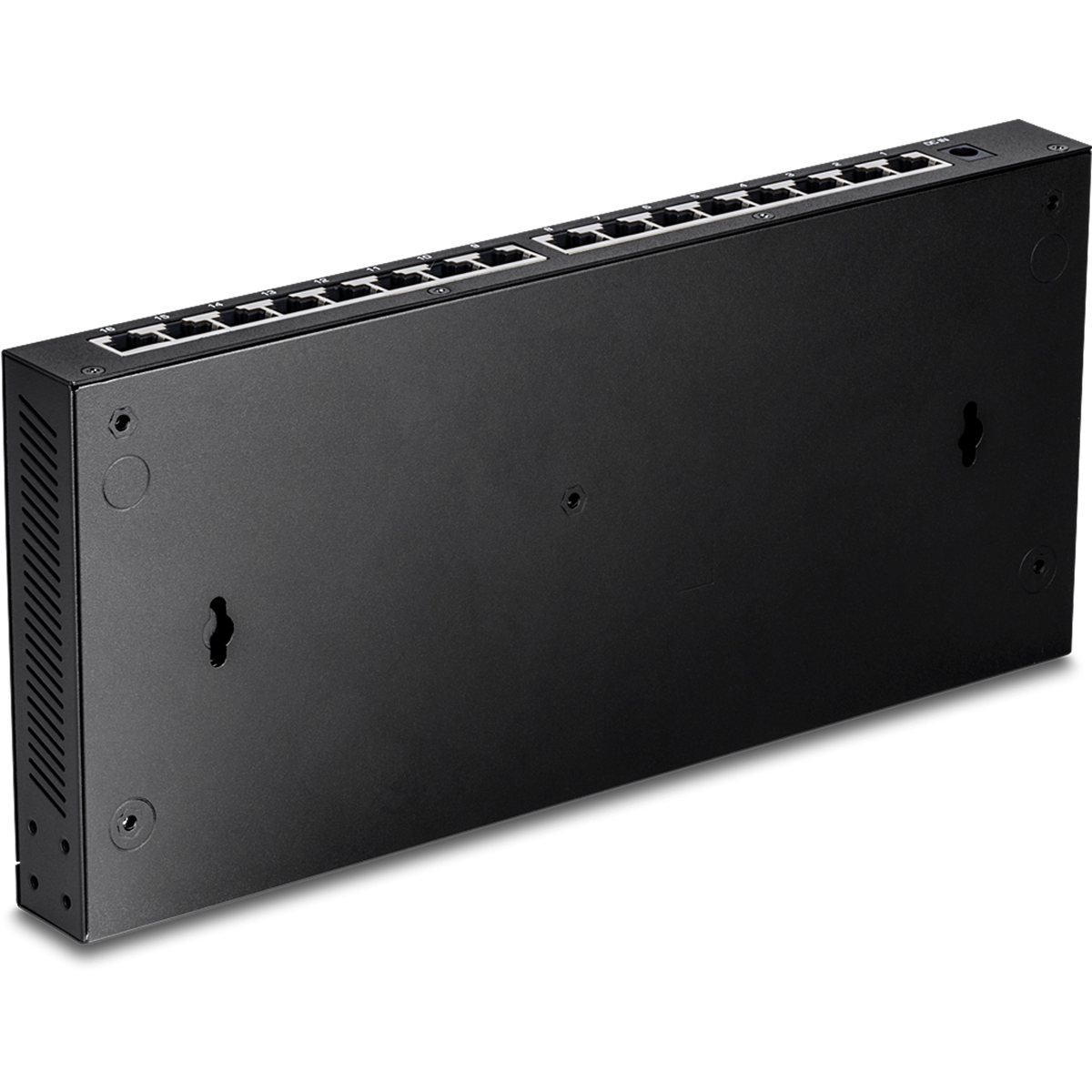

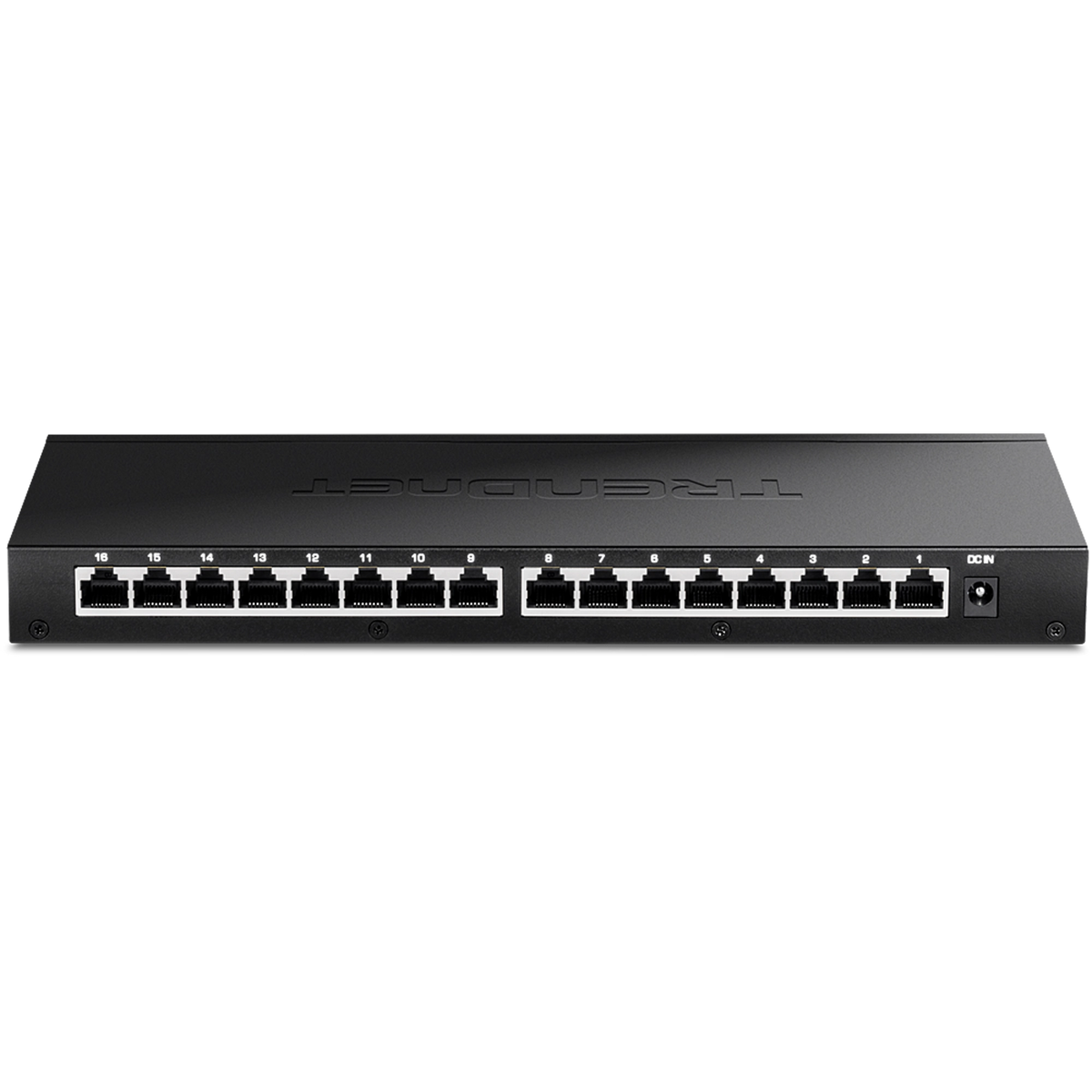

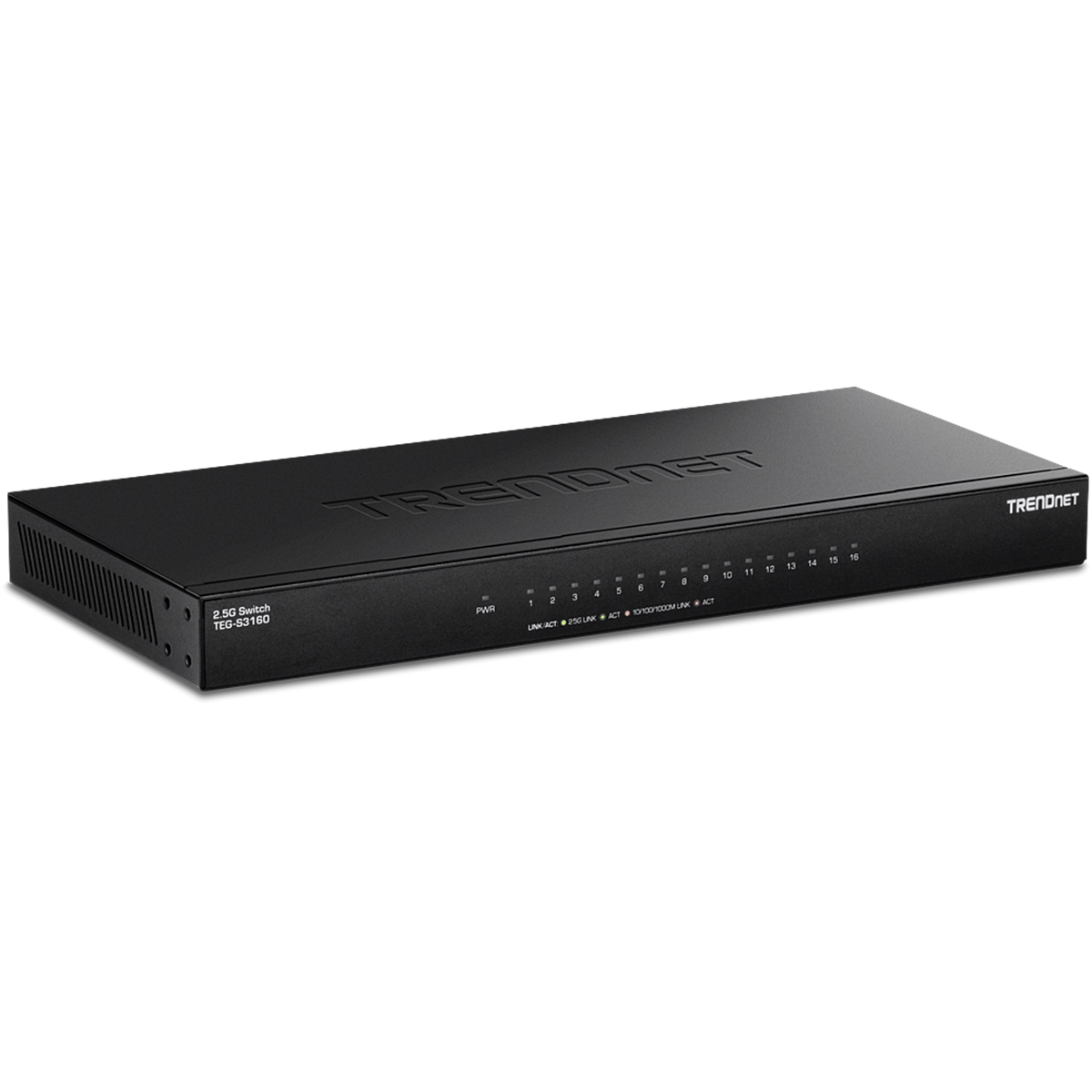

TRENDnet TEG-S3160 16-Port Unmanaged 2.5G Desktop Switch

TRENDnetSKU: TEG-S3160

Price:

Login to see pricing

MSRP:
$329.99
Stock:
Call for availability

Description

TRENDnet TEG-S3160 16-Port Unmanaged 2.5G Desktop Switch

NDAA/TAA Compliant

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. The sturdy metal housing and included rackmount brackets are well-suited for wall mount or 19” 1U rack installations. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

  • 16 x 2.5G RJ-45 ports
  • Compatible with existing Cat5e or better cabling
  • Fanless design eliminates noise
  • Rack mountable or wall mountable for installation flexibility
  • 80Gbps switching capacity
  • IEEE 802.3bz (2.5G) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 16 x 2.5G RJ-45 ports (100Mbps/1Gbps/2.5Gbps)
  • LED indicators
Data Transfer Rate
  • Fast Ethernet: 100Mbps (half duplex) 200 Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Switching Capacity: 80Gbps
  • RAM Buffer: 1.5MB
  • Jumbo Frames: 12KB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 59.52Mpps (64-byte packet size)
Special Features
  • Wall mountable
  • Rack mountable
Power
  • Input: 90 – 264V AC, 47/63 Hz
  • Output: 12V DC, 3A
  • Max. Consumption: 7.26W
Fan/Acoustics
  • Fanless design
MTBF
  • 223,000 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 286 x 128 x 27mm (11.25 x 5.02 x 1.06 in.)
Weight
  • 982g (2.16lbs)
Certifications
  • FCC
  • CE
Warranty

PACKAGE CONTENTS

  • TEG-S3160
  • Quick Installation Guide
  • Rackmount kit
  • Power adapter (12V DC, 3A)
