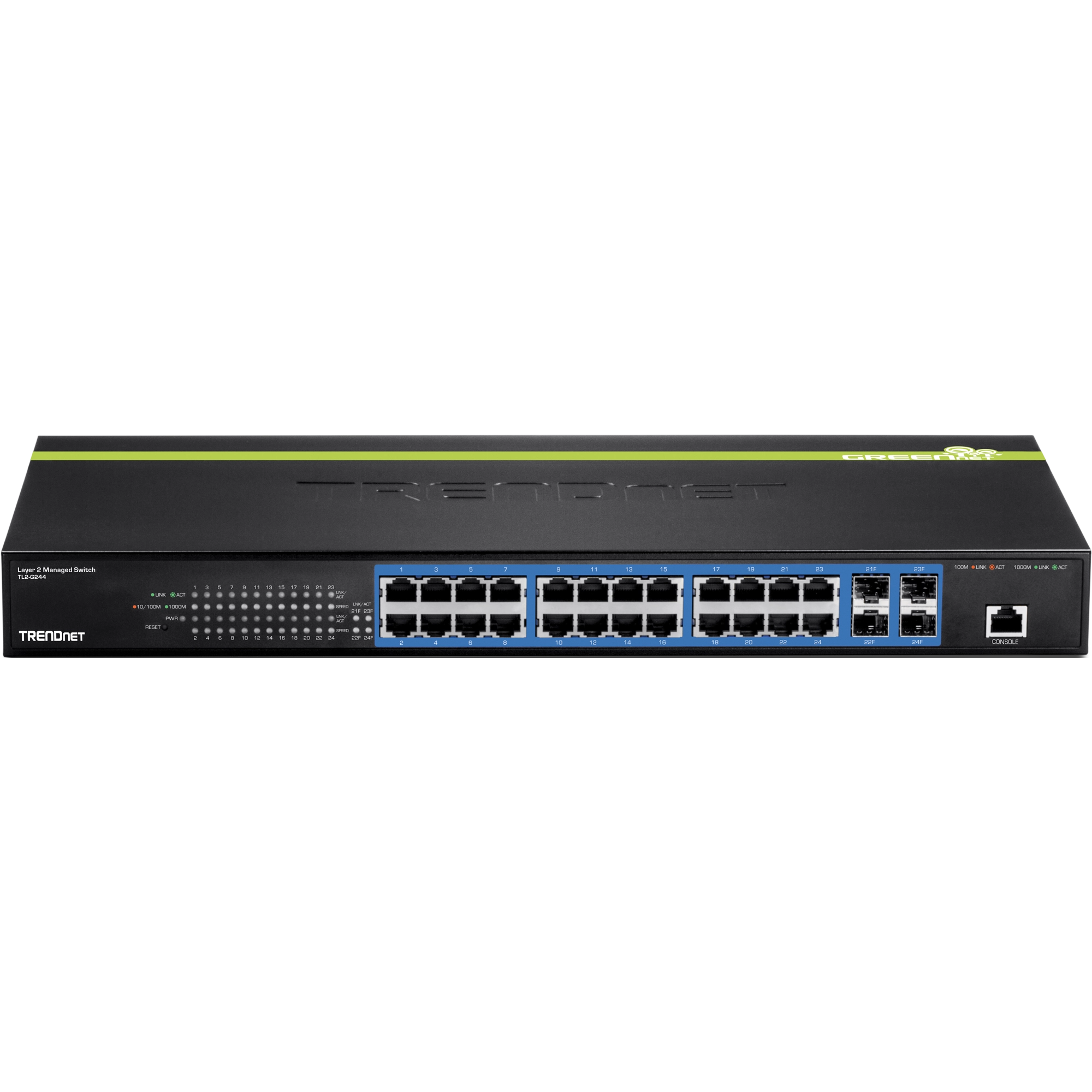

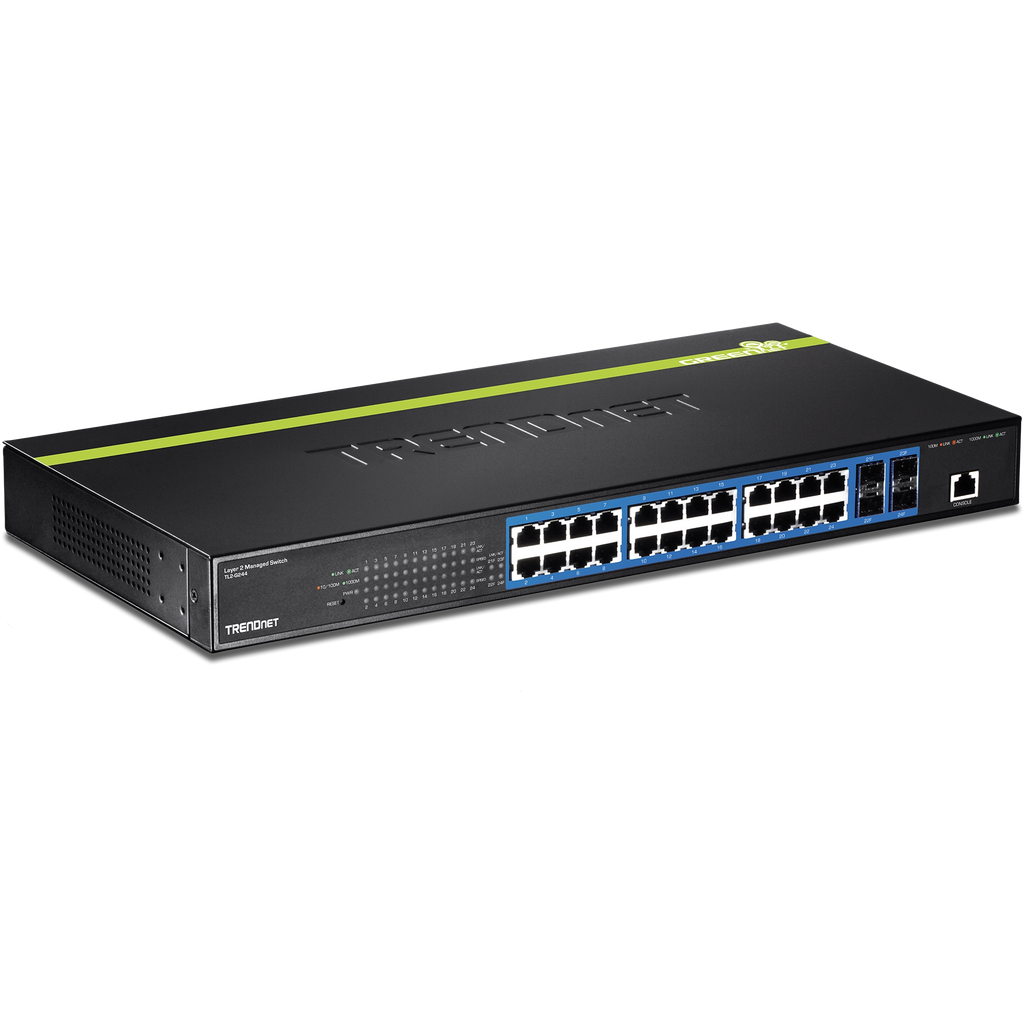

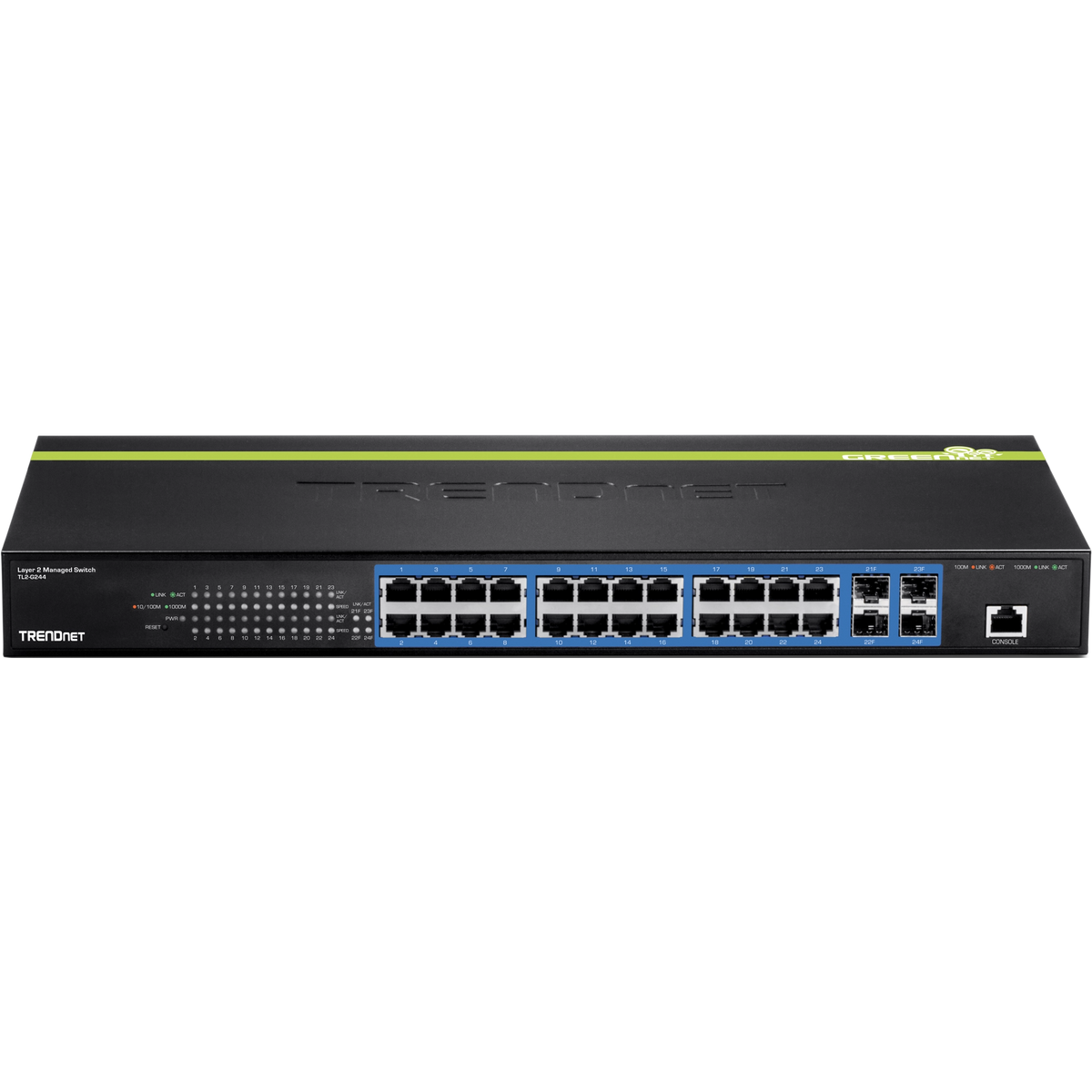

TRENDnet TL2-G244 24-Port Gigabit Managed Layer 2 Switch
TRENDnet's 24-Port Gigabit Managed Layer 2 Switch, model TL2-G244, has 24 x Gigabit ports, 4 x shared SFP slots, a console port, and an advanced Layer 2 management feature set. This IPv6 ready switch offers traffic management, troubleshooting, access control, and monitoring features needed to build a SMB network.
- Command Line and console inputs supported
- SNMP (v1, v2c, v3), 802.1X, RSTP, and MSTP support
- Supports Port Trunking, Mirroring, IGMP, Static and Dynamic VLAN, RMON, and more
- Private/Voice VLAN, QoS, and bandwidth controls
- 24 x Gigabit ports
- 4 x shared SFP slots and a console port
- 48 Gbps switching capacity
- Fanless design
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
| Standards |
- IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3az
|
| Device Interface |
- 24 x Gigabit ports (ports 1-24)
- 4 x Shared SFP slots (shared with ports 21-24)
- 1 x Console Port
- LED indicators
|
| Data Transfer Rate |
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)
|
| Performance |
- Switch fabric: 48 Gbps
- RAM buffer: 1 MB
- MAC Address Table: 16K entries
- Jumbo Frames: 10 KB
- HOL Blocking Prevention
- Forwarding rate: 35.7 Mpps (64-byte packet size)
|
| Management |
- CLI (Console)
- HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP
- Virtual Cable Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
|
| MIB |
- MIB II RFC 1213
- Bridge MIB RFC 1493
- Bridge MIB Extension RFC 2674
- SNMPv2 MIB RFC 1907
- Ethernet Interface MIB RFC 1643
- Ethernet –like MIB RFC 2863
- Interface Group MIB RFC 2233
- MIB Traps Convention RFC 1215
- RMON MIB RFC 1757, RFC 2819
- 802.1p MIB RFC 2674
- RADIUS Client Authentication MIB RFC 2618
- LLDP-MIB IEEE 802.1ab
- Ping MIB RFC 2925, RFC 4560
|
| Spanning Tree |
- IEEE 802.1D STP (Spanning Tree protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
|
| Link Aggregation |
- Static Link Aggregation
- 802.3ad Dynamic LACP
|
| Quality of Service (QoS) |
- 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth Control per port
- Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
|
| VLAN |
- Multiple management VLAN assignment
- Asymmetric VLAN
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
|
| Multicast |
- IGMP Snooping v1, v2, v3 (per VLAN)
- Static Multicast Address
- Up to 256 multicast entries
|
| Port Mirror |
- RX, TX, or Both
- One to one
|
| Access Control |
- 802.1X Port-Based Network Access Control, RADIUS, TACACS+
- Local Dial In User Authentication
- DHCP Snooping (per VLAN)
- Loopback Detection
- Duplicated Address Detection
- Trusted Host
- Denial of Service (DoS)
|
| ACL IPv4 L2-L4 & IPv6 |
- MAC Address
- VLAN ID
- Ether Type (IPv4 only)
- IP Protocol 0-255
- TCP/UDP Port 1-65535
- 802.1p
- DSCP (IPv4 only)
- IPv6 Address (IPv6 only)
|
| Compatibility |
- Optional Software Utility: Windows® 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
|
| Special Features |
- Fanless Design
- IPv6
- 802.3az power saving
- Rack mountable
|
| Power |

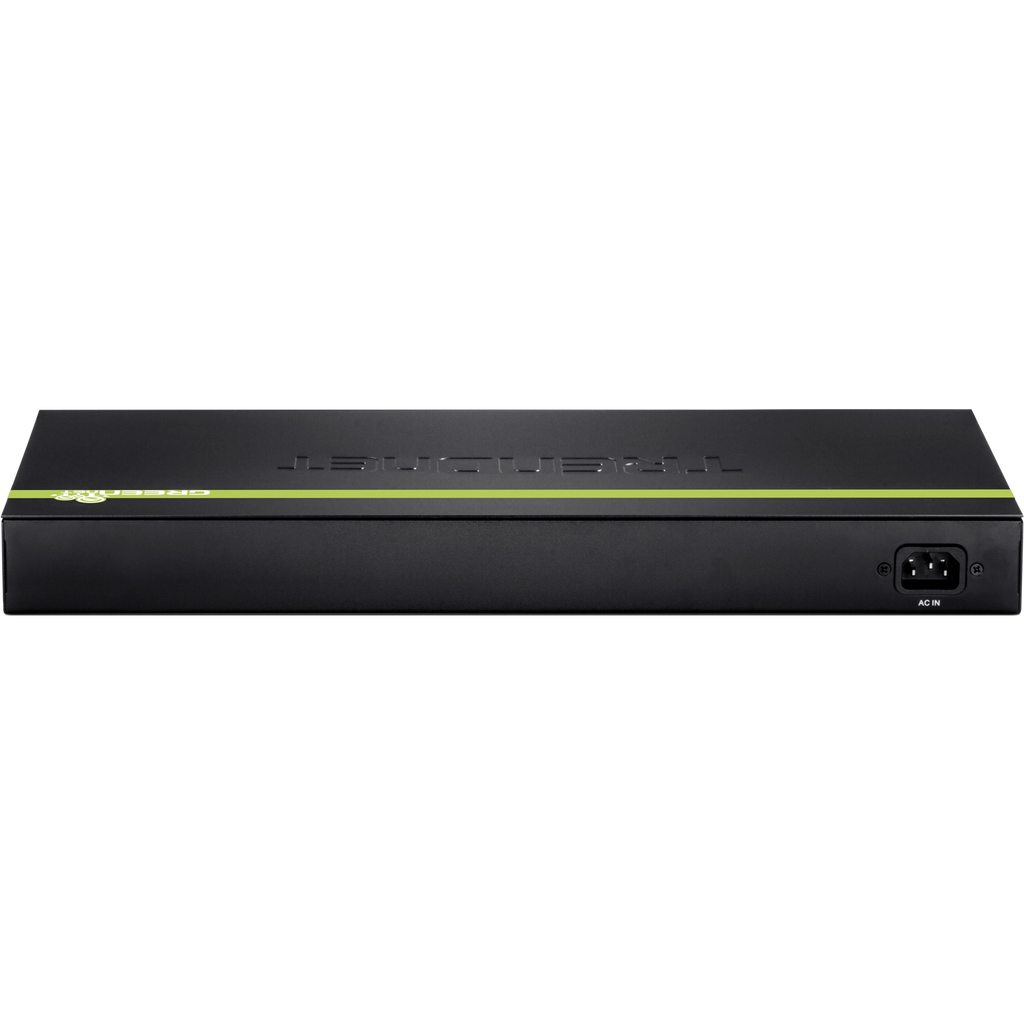

- Input: 100 - 240 V AC, 50/60 Hz, internal power supply
- Consumption: 15 Watts (max.)
|
| Fan / Acoustics |
- Quantity: 0
- Noise Level: 0 dB(A) (max.)
|
| MTBF |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Dimensions |
- 440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.)
- Rack mountable 1U height
|
| Weight |
|
| Certifications |
|
| Warranty |
|
PACKAGE CONTENTS
|
- TL2-G244
- Quick Installation Guide
- CD-ROM (Utility & User's Guide)
- Power cord (1.8 m / 6 ft.)
- Console cable (1.8 m / 6 ft.)
- Rack mount kit
|
