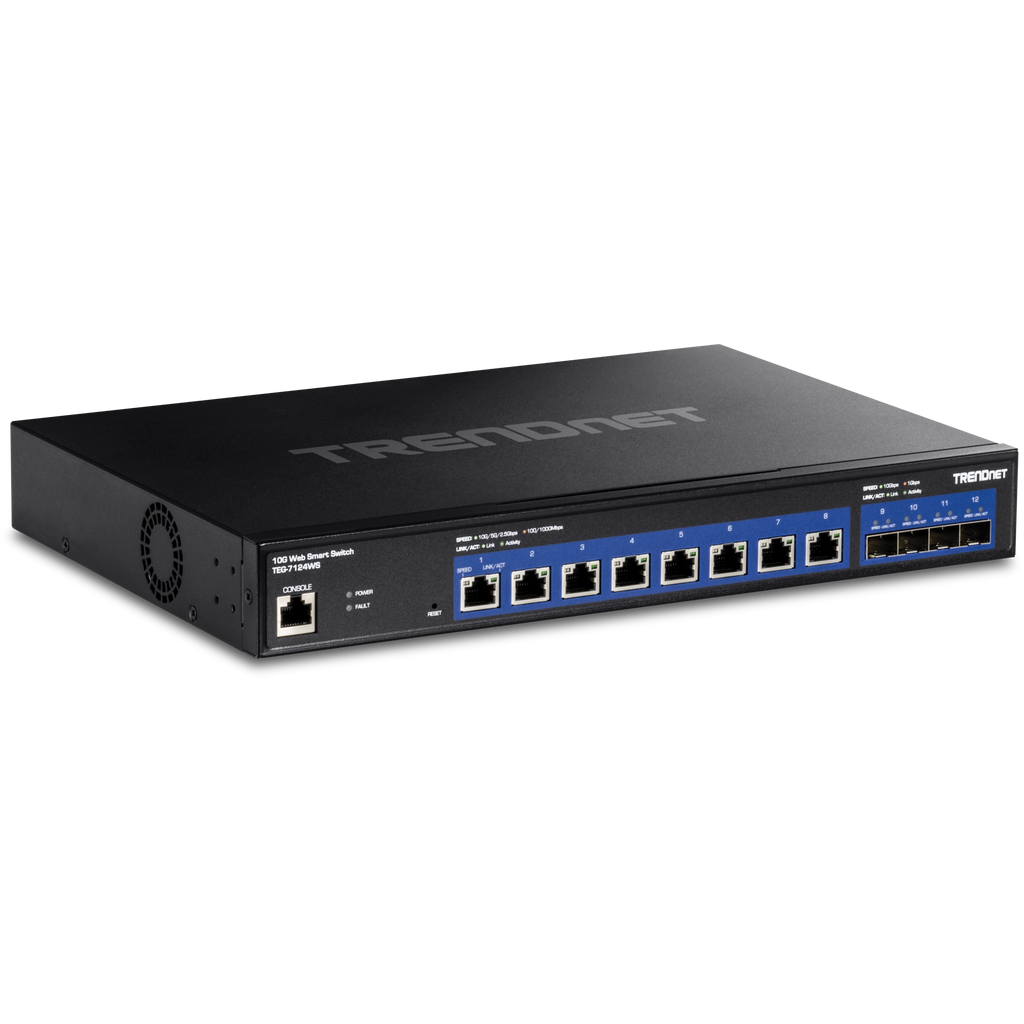

TrendNet TEG-7124WS 12-Port 10G Web Smart Switch
Product Details
TRENDnet’s 12-Port 10G Web Smart Switch, model TEG-7124WS, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready 10Gb managed switch comes with an easy-to-use, intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to this 10Gb managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
This 12-Port 10G managed switch also features eight 10GBASE-T Ethernet ports, and four 10G SFP+ ports for long-distance, high-speed fiber network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
Specifications
| Standards |
- IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3an
- IEEE 802.3az
- IEEE 802.3bz
|
| Device Interface |
- 8 x 10G ports
- 4 x 10G SFP+ ports
- LED indicators
- Reset button
- Console port
|
| Data Transfer Rate |
- Gigabit Ethernet: 2000Mbps (full duplex)
- 2.5G Ethernet: 5000Mbps (full duplex)
- 10G Ethernet: 20Gbps (full duplex)
- SFP: 2000Mbps (full duplex)
- SFP+: 20Gbps (full duplex)
|
| Performance |
- Switch fabric: 240Gbps
- RAM buffer: 2MB
- MAC Address Table: 32K entries
- Jumbo Frames: 10KB
- HOL Blocking Prevention
- Forwarding rate: 178.56Mpps (64-byte packet size)
|
| Management |
- CLI (Telnet / SSHv2) for basic administration
- HTTP/HTTPS (SSL v2/3 TLS version#) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP and LLDP-MED
- Virtual Cable Diagnostics Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- Dual image and configuration
|
| MIB |
- RMON MIB RFC 1271
- LLDP MIB IEEE 802.1ab
- RFC 1213 MIB II
- RFC 1643 Ethernet intf MIB
- RFC 1493 bridge MIB
|
| Spanning Tree |
- IEEE 802.1d STP (Spanning Tree protocol)
- IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
- IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
|
| Link Aggregation |
- Static Link Aggregation
- 802.3ad Dynamic LACP
|
| Quality of Service (QoS) |
- 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth Control per port
- Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
|
| VLAN |
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
|
| Multicast |
- IGMP Snooping v1, v2, v3
- MLD Snooping v1, v2
- IGMP fast leave
- Up to 256 multicast entries
|
| Port Mirror |
- RX, TX, or Both
- Many to one
|
| Access Control |
- 802.1X Port-Based Network Access Control, RADIUS, TACACS+
- Local Dial-In User Authentication
- DHCP Snooping
- Loopback Detection
- Trusted Host
- Denial of Service (DoS)
- IP MAC port binding
- Block unknown multicast
|
| ACL IPv4 L2-L4 & IPv6 |
- MAC Address
- VLAN ID
- Ether Type (IPv4 only)
- IP Protocol 0-255
- TCP/UDP Port 1-65535
- 802.1p
- TOS (IPv4 only)
- IPv4 Address and Mask (IPv4 only)
- IPv6 Address and Prefix Length (IPv6 only)
|
| Layer 3 Features |
- IPv4 / IPv6 static routing
- IP interfaces: Up to 6
- Routing table entries: Up to 32 (IPv4 / IPv6)
- ARP table (up to 128 entries)
- Inter-VLAN routing
|
| Power |

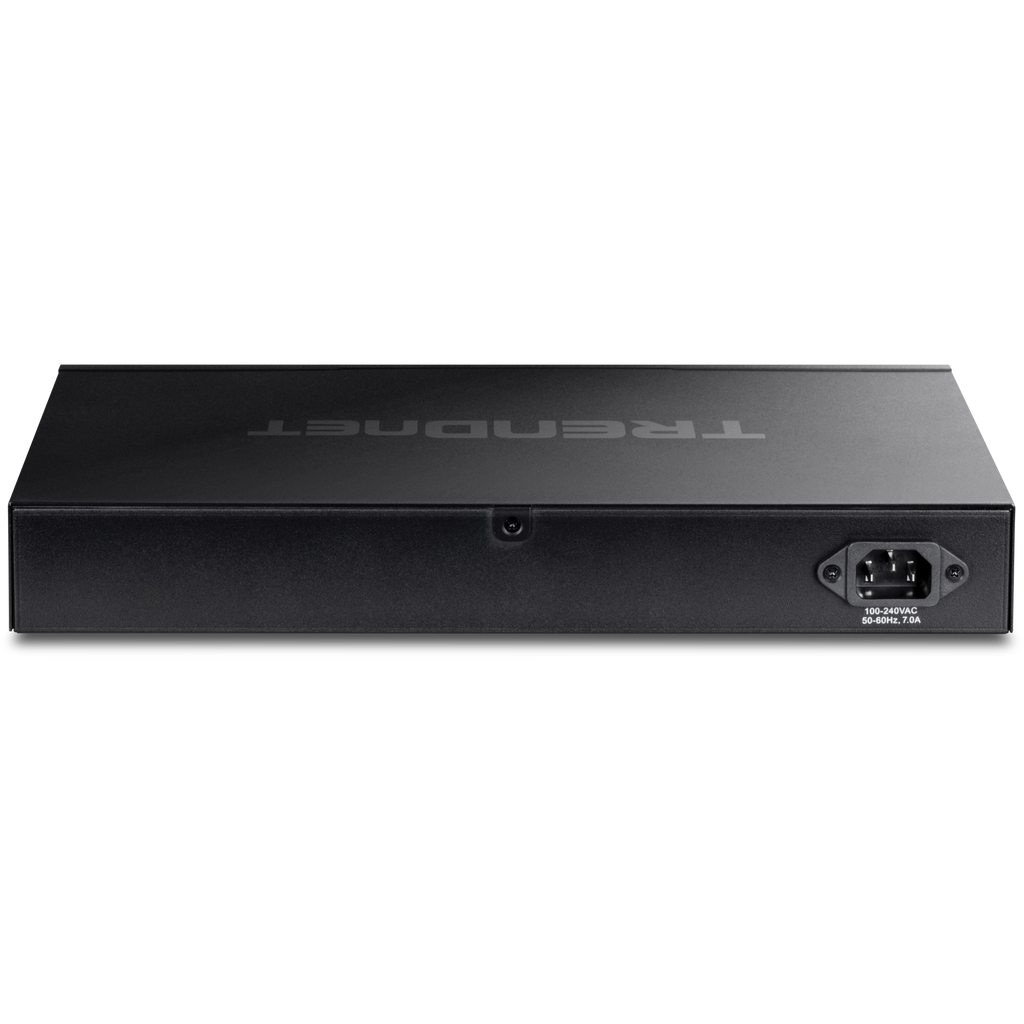

- Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. consumption: 48W
|
| Fan/Acoustics |
- Quantity: 3
- Smart Fans
- Noise Level: 39 dBa (max.)
|
| MTBF |
|
| Operating Temperature |
- 0° – 50° C (32° – 122° F)
|
| Operating Humidity |
|
| Dimensions |
- 325 x 230 x 44mm (12.80 x 9.06 x 1.74 in.)
- Rack mountable 1U height
|
| Weight |
|
| Certifications |
|
| Warranty |
|
Features
- 8 x 10G ports
- 4 x SFP+ ports
- Supports 1G/2.5G/10G link speeds
- Easy-to-use web-based management interface
- Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
- Bandwidth control per port
- Private and Voice VLAN support
- 240Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
- 1U 19” rack mountable metal housing
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
|
PACKAGE CONTENTS
|
- TEG-7124WS
- Quick Installation Guide
- Power cord (1.8m/6 ft.)
- Rackmount kit
- Console cable (1m / 3.28 ft.)
|
