TRENDnet TEG-3102WS 10-Port 2.5G Web Smart Switch

TRENDnetSKU: TEG-3102WS
Price:

Login to see pricing

MSRP:
$229.99
Stock:
Call for availability

Description

TRENDnet TEG-3102WS 10-Port 2.5G Web Smart Switch

Product Details

TRENDnet’s Multi-Gigabit Web Smart Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of today’s SMB networks. These rack-mountable IPv6-ready managed switches each come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these 2.5G managed switches with 10G SFP+ slots powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

These multi-gigabit managed switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The multi-gig managed switches also each offer two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The design of the switches lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G managed switches with 10G SFP+ slots offer cost-effective solutions to increase your network’s throughput.

Specifications

Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3ae
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 8 x 2.5G Ports
  • 2 x 10G SFP+ slots
  • LED indicators
Data Transfer Rate
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5G Ethernet: 5000Mbps (full duplex)
  • SFP: 2000Mbps (full duplex)
  • SFP+: 20Gbps (full duplex)
Performance
  • Switch fabric: 80Gbps
  • RAM buffer: 1.5MB
  • MAC Address Table: 16K entries
  • Jumbo Frames: 10KB
  • HOL Blocking Prevention
  • Forwarding rate: 59.52Mpps (64-byte packet size)
Management
  • CLI (Telnet / SSHv2) for basic administration
  • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
  • SNMP v1, v2c, v3
  • RMON v1
  • Static Unicast MAC Address
  • Enable/disable 802.3az Power Saving
  • LLDP and LLDP-MED
  • Virtual Cable Diagnostics Test
  • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
  • Dual image and configuration
MIB
  • RMON MIB RFC 1271
  • LLDP MIB IEEE 802.1ab
  • RFC 1213 MIB II
  • RFC 1643 Ethernet intf MIB
  • RFC 1493 bridge MIB
Spanning Tree
  • IEEE 802.1d STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
  • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
  • Static Link Aggregation
  • 802.3ad Dynamic LACP
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth Control per port
  • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
  • 802.1Q Tagged VLAN
  • Dynamic GVRP
  • Up to 256 VLAN groups, ID Range 1-4094
  • Private VLAN (Protected Ports)
  • Voice VLAN (10 user defined OUIs)
Multicast
  • IGMP Snooping v1, v2, v3
  • MLD Snooping v1, v2
  • IGMP fast leave
  • Up to 256 multicast entries
Port Mirror
  • RX, TX, or Both
  • Many to one
Access Control
  • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
  • Local Dial-In User Authentication
  • DHCP Snooping
  • Loopback Detection
  • Trusted Host
  • Denial of Service (DoS)
  • IP MAC port binding
  • Block unknown multicast
ACL IPv4 L2-L4 & IPv6
  • MAC Address
  • VLAN ID
  • Ether Type (IPv4 only)
  • IP Protocol 0-255
  • TCP/UDP Port 1-65535
  • 802.1p
  • TOS (IPv4 only)
  • IPv4 Address and Mask (IPv4 only)
  • IPv6 Address and Prefix Length (IPv6 only)
Layer 3 Features
  • IPv4 / IPv6 static routing
  • IP interfaces: Up to 6
  • Routing table entries: Up to 32 (IPv4 / IPv6)
  • ARP table (up to 128 entries)
  • Inter-VLAN routing
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. consumption: 152.3W
Fan/Acoustics
  • Fanless
MTBF
  • 893,944 hours
Operating Temperature
  • -0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 240 x 104 x 27mm (9.45 x 4.09 x 1.06 in.)
Weight
  • 664g (1.46 lbs.)
Certifications
  • CE
  • FCC
Warranty



Features

  • 8 x 2.5GBASE-T ports
  • 2 x 10G SFP+ slots
  • Backwards compatible with 100/1000BASE-T devices
  • Easy-to-use web-based management interface
  • Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
  • Bandwidth control per port
  • Private, Multicast, and Voice VLAN support
  • 80Gbps switching capacity
  • IEEE 802.3bz (2.5G) compliant
  • IEEE 802.3ae (SFP+) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TEG-3102WS
  • Quick Installation Guide
  • Power adapter (12V 1.5A)

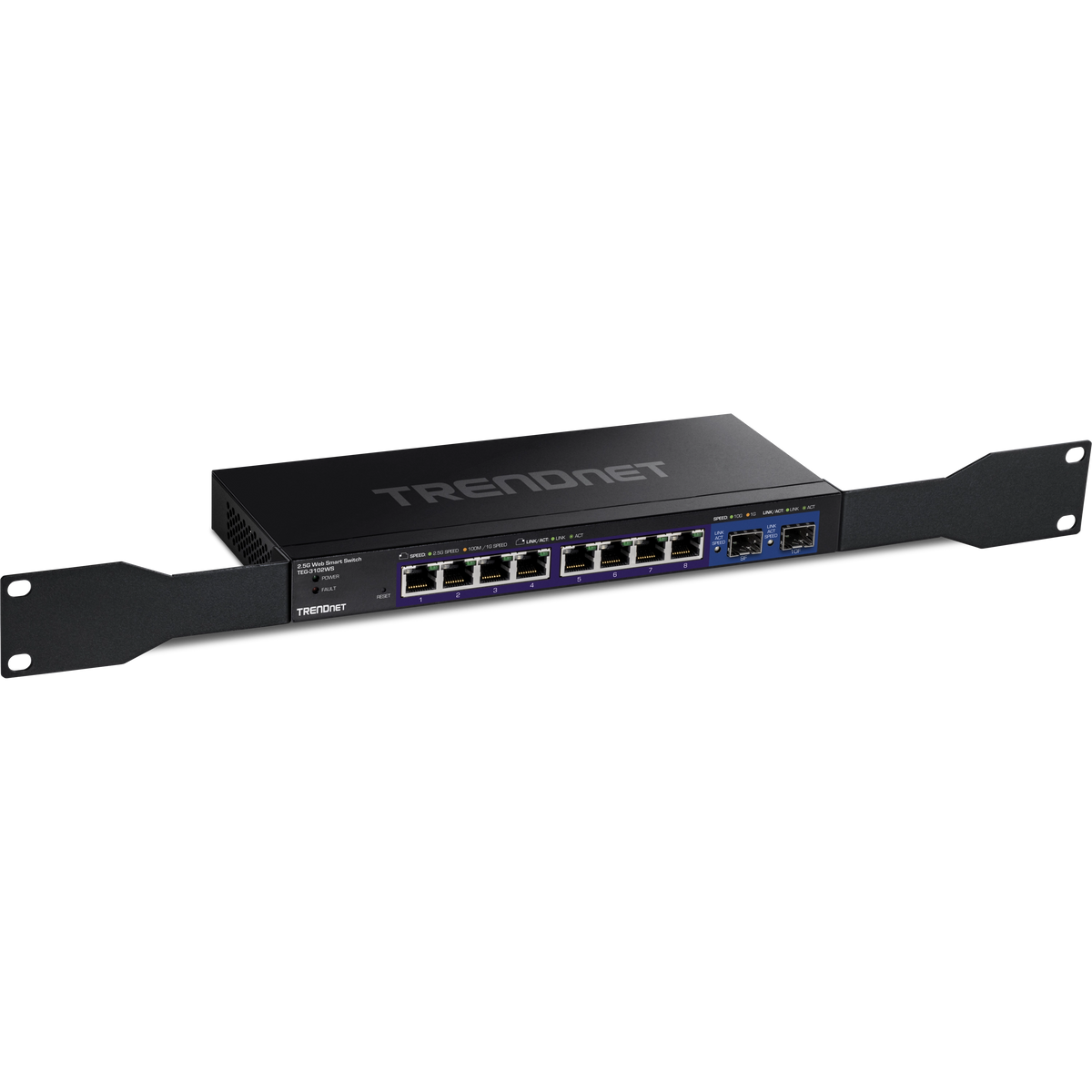

  • Rackmount kit
