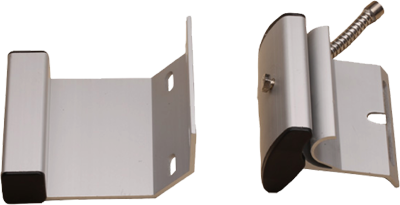

Track Mount Overhead Door Commercial Type
- Contact Size: 2.76″L×3.15″W×1.57″H
(70mm×80mm×40mm) - Standard Magnet Size: 3.54″L×3.1″W×1.57″H
(90mm×78.8mm×40mm) - Standard Gap: 2.5″(64mm)
- Colors: Aluminum
- 18″(458mm) Armor Leads Standard
- 36″(915mm) Armor Leads Available
Specifications
Part Number: TANE-66 WG
Gap Inch (mm): 2.5″(64)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
