Product Details

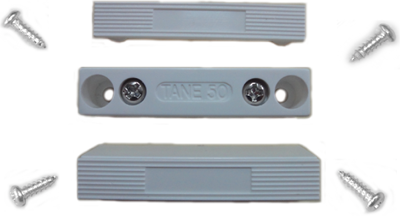

1.91″L×.43″W×.63″H Surface Mount Quick Connect Type
- Contact Size: 1.91″L×.43″W×.63″H
(48.5mm×11mm×16mm) - Standard Magnet Size: 2″L×.37″W×.63″H
(48.5mm×9.5mm×16mm) - Standard Gap: .75″(19mm)
- Colors: White, Brown
Specifications
Part Number: TANE-50
Gap Inch (mm): .75″(19)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
