Description
Product Details

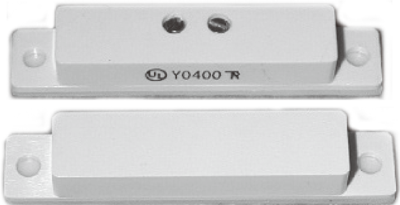

2″L×.37″W×.28″H Surface Mount Quick Connect Type (with Super Stick adhesive tape)
- Contact Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
- Standard Magnet Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
- Standard Gap: .71″(18mm)
- Colors: White, Brown, Gray, Tan, Black
Specifications
Part Number: TANE-60 QC
Gap Inch (mm): .71″(18)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
