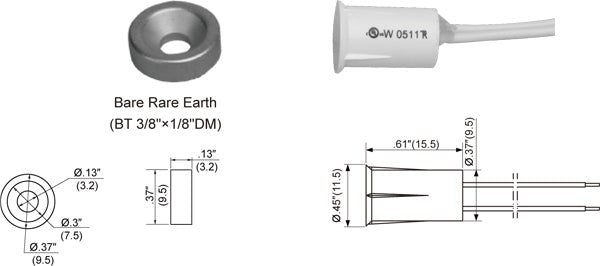

Tane Rare Earth Donut Magnet w convex hole MINI - 10 DM

Specifications

Part Number: MINI-10 DM

Gap Inch (mm): .5″(12.5)

Loop: Closed

Reed Form: Normally Open

Max. Contact Rating (W): 10

Max. Initial Contact Resistance (mΩ): 100

Max. Switching Voltage (V): AC24/DC24

Max. Switching Current (A): 0.1

Downloads

Spec Sheet
