Tane Push Button Reed Contact PB - 52

Product Details

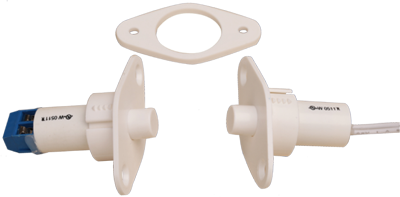

.75″(19mm) Reed Push-Button Jamb-Switch

• Contact Size:
  PB-52: .75″×1.7″(19mm×43.3mm)
  PB-52 TC: .75″×1.73″(19mm×44mm)
• Standard Magnet Size: NA
• Standard Gap: NA
• Colors: White, Brown
• 12″(305mm) 22 AWG Leads Standard PB-52
• Longer leads available.
• PB-52 TC: Terminal Connect, No Leads.

Specifications

Part Number: PB-52

Gap Inch (mm): NA

Loop: Closed

Reed Form: Normally Open

Max. Contact Rating (W): 10

Max. Initial Contact Resistance (mΩ): 100

Max. Switching Voltage (V): AC110/DC100

Max. Switching Current (A): 0.5
