Tane Overhead with 10 way adjustable L-Bracket & 18" armored cable pinned and glued into contact MET - 44WG - 18

Product Details

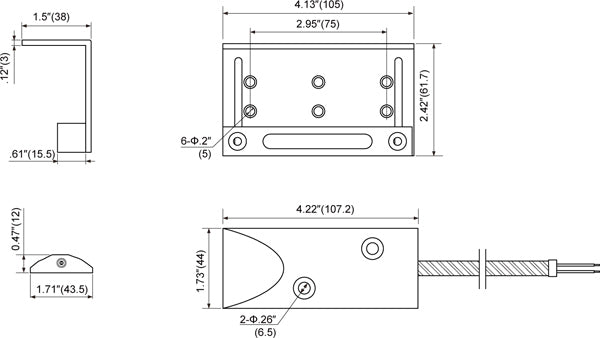

4.22″L×1.73″W×.47″H Surface Mount Armored Commercial Type

• Contact Size: 4.22″L×1.73″W×.47″H
  (107.2mm×44mm×12mm)
• Standard Magnet Size: 4.13″L×2.42″W×1.5″H
  (105mm×61.7mm×38mm)
• Standard Gap: 2″(50mm)
• Colors: Aluminum Case
• 18″(458mm) Armored Leads



Specifications

Part Number: MET-44 WG - 18

Gap Inch (mm): 2″(50)

Loop: Closed

Reed Form: Normally Open

Max. Contact Rating (W): 10

Max. Initial Contact Resistance (mΩ): 100

Max. Switching Voltage (V): AC110/DC100

Max. Switching Current (A): 0.5
