Description
Product Details
MET-202C AR-WP18 (Water Resistant – SPDT)

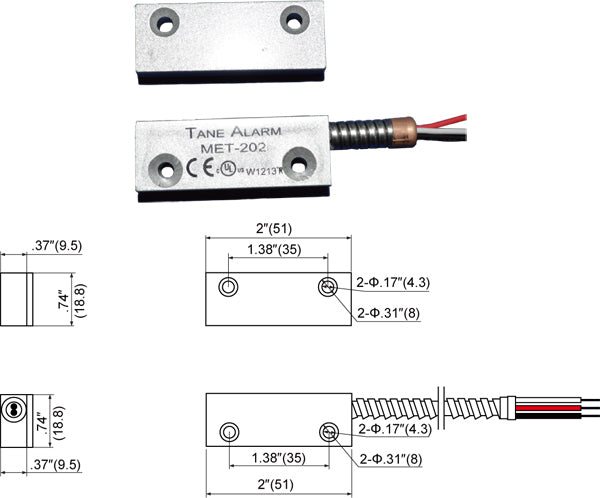

2″L×.74″W×.37″H Surface Mount Armored Commercial Type W/Wire Leads or Armored Cable
- Contact Size: 2″L×.74″W×.37″H
(51mm×18.8mm×9.5mm) - Standard Magnet Size: 2″L×.74″W×.37″H
(51mm×18.8mm×9.5mm) - Standard Gap: 1.25″(32mm)
- Colors: Aluminum Case
Specifications
Part Number: MET-202C AR-WP18
Gap Inch (mm): 1.18″ (30)
Loop: SPDT
Reed Form: SPDT
Max. Contact Rating (W): 3
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC30/DC30
Max. Switching Current (A): 0.2
