Product Details

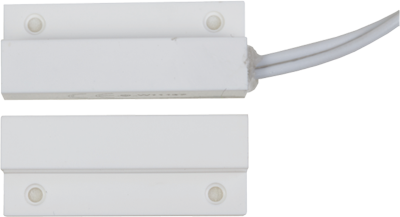

1.32″L×.53″W×.3″H Side Lead Surface Mount Type
- Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
- Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
- Standard Gap: .83″(21mm)
- Colors: White, Brown, Gray, Tan, Black
- 12″(305mm) 22 AWG Leads Standard
- Longer leads available.
Specifications
Part Number: FM-102
Gap Inch (mm): .83″(21)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
