Description
Product Details

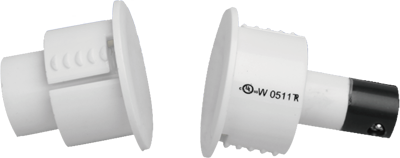

.76″(19.3mm) Recessed Type W/Terminal Quick-Connect
- Contact Size: .76″×1.18″(19.3mm×30mm)
- Standard Magnet Size: .76″×.85″(19.3mm×21.5mm)
- Standard Gap: 1.1″(28mm)
- Colors: White, Brown, Black
Specifications
Part Number: TANE-3/4 TC
Gap Inch (mm): 1.1″(28)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
