Description
Product Details

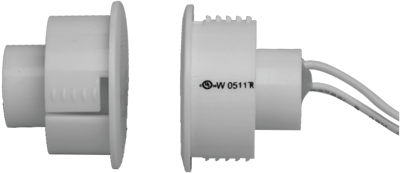

1″(25mm) Steel Door Recessed Type
- Contact Size: 1″×.84″(25mm×21.3mm)
- Standard Magnet Size: 1″×.84″(25mm×21.3mm)
- Standard Gap: 1.1″(28mm)
- Colors: White, Brown, Black
- 12″(305mm) 22 AWG Leads Standard
- Longer leads available.
Specifications
Part Number: SD-80 BK
Gap Inch (mm): 1.1″(28)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
