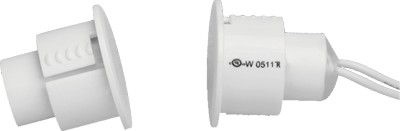

Tane 3/4" X 1 1/8" Steel Door Recess 1.25” Gap SD - 70

TaneSKU: SD - 70

Price:

Login to see pricing

MSRP:
$5.82
Stock:
Sold out

Description

Product Details

.76″(19.3mm) Steel Door Recessed Type

  • Contact Size: .76″×.84″(19.3mm×21.3mm)
  • Standard Magnet Size: .76″×.84″(19.3mm×21.3mm)
  • Standard Gap: 1.1″(28mm)
  • Colors: White, Brown, Black
  • 12″(305mm) 22 AWG Leads Standard
  • Longer leads available.

Specifications

Part Number: SD-70

Gap Inch (mm): 1.1″(28)

Loop: Closed

Reed Form: Normally Open

Max. Contact Rating (W): 10

Max. Initial Contact Resistance (mΩ): 100

Max. Switching Voltage (V): AC110/DC100

Max. Switching Current (A): 0.5

Downloads

Spec Sheet
