Description
Product Details

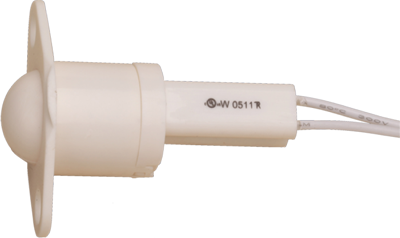

.72″(18.2mm) True “Roller Ball” Reed Contact
- Contact Size: .72″×1.89″(18.2mm×48mm)
- Standard Magnet Size: NA
- Standard Gap: NA
- Colors: White, Brown
- 12″(305mm) 22 AWG Leads Standard
- Longer leads available.
Specifications
Part Number: RB-32
Gap Inch (mm): NA
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
