Description
Product Details
Track Mount Overhead Door Commercial Type

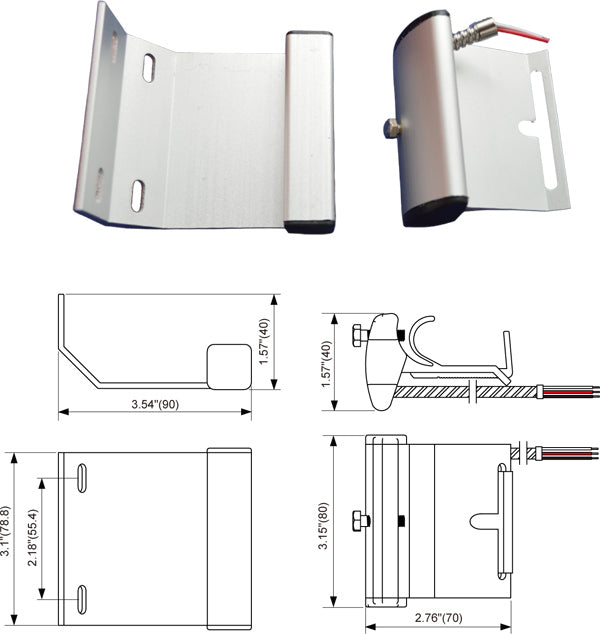

- Contact Size: 2.76″L×3.15″W×1.57″H
(70mm×80mm×40mm) - Standard Magnet Size: 3.54″L×3.1″W×1.57″H
(90mm×78.8mm×40mm) - Standard Gap: 2.5″(64mm)
- Colors: Aluminum
- 18″(458mm) Armor Leads Standard
Specifications
Part Number: TANE-68 WG-WP18
Gap Inch: 2.2″(55)
Loop: SPDT
Reed Form: SPDT
Max. Contact Rating (W): 3
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC30/DC30
Max. Switching Current (A): 0.2
