Description
Product Details

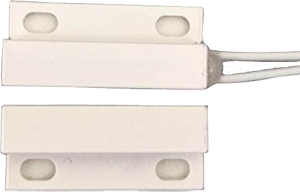

1.10″L×.49″W×.3″H Side Lead Surface Mount Type (with Super Stick adhesive tape)
- Contact Size: 1.10″L×.49″W×.26″H (28mm×12.5mm×6.5mm)
- Standard Magnet Size: 1.10″L×.49″W×.26″H (28mm×12.5mm×6.5mm)
- Standard Gap: 1″(25.4mm)
- Colors: White, Black, Brown, Gray
- 18″(457mm) 26 AWG Leads Standard
- Longer leads available.
Specifications
Part Number: FM-45
Gap Inch (mm): 1″(25.4)
Loop: Closed
Reed Form: Normally Open
Max. Contact Rating (W): 10
Max. Initial Contact Resistance (mΩ): 100
Max. Switching Voltage (V): AC110/DC100
Max. Switching Current (A): 0.5
