Description

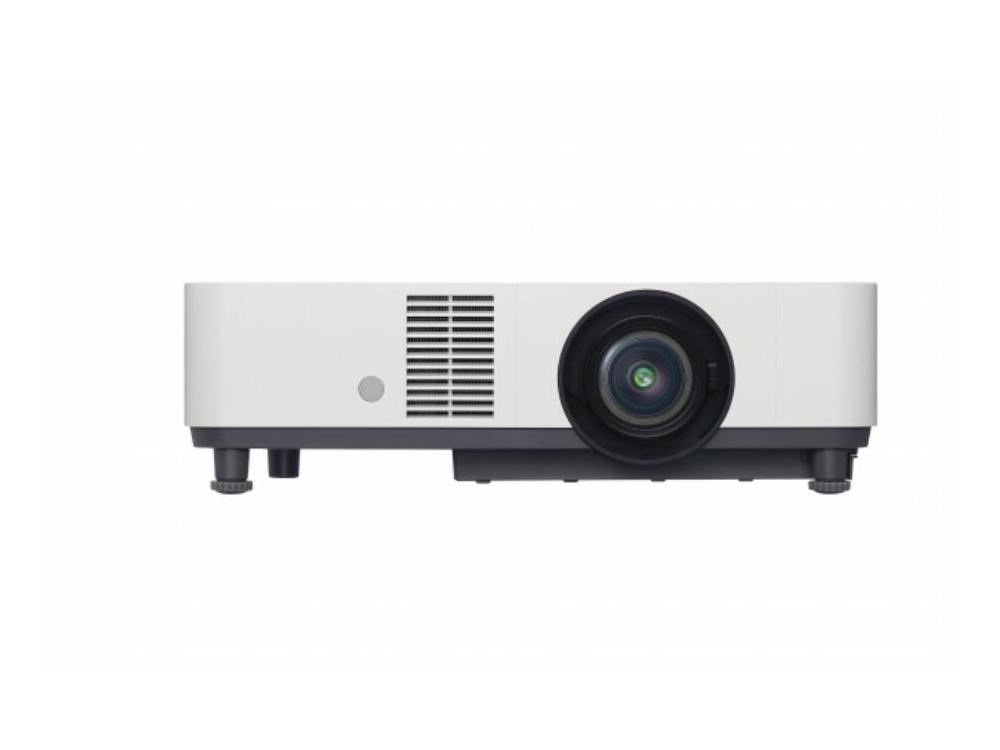

Sony VPL-PHZ61 WUXGA 6 400LM LASER PROJ
Product Details
Beautifully slim and light with the smallest body in its class, the VPL-PHZ61/51 laser projector combines outstanding picture performance with up to 7,000lm center brightness and impressive reliability. A discreet blend-in design, minimal maintenance needs and flexible installation options make it the natural partner for todays integrated AV environments.
Specifications
| Model: | VPL-PHZ61 |
| Display Type: | Laser Projector |
| Image Brightness: | 6400 ANSI lumen |
| Native Resolution: | 1920 x 1200 |
| Display Format: | WUXGA |
| Image Aspect Ratio: | 16:10 |
| Throw Ratio: | 1.23:1-1.97:1 |
| Min Image Size: | 40 Inch |
| Max Image Size: | 300 Inch |
| OSD Languages: | 27-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian, Greek, Czech, Slovak, Romanian) |
| Focus Adjustment: | Manual |
| Zoom Type: | Manual |
| Optical Zoom: | 1.6 x |
| Keystone Correction Direction: | Horizontal, vertical |
| Vertical Keystone Correction: | +/-30 degrees |
| Horizontal Keystone Correction: | +/-30 degrees |
| Lens Shift Type: | Manual |
| Lens Shift Direction: | Vertical, Horizontal |
| Vertical Lens Shift: | -35% to +55% |
| Horizontal Lens Shift: | +/15% |
| Video Input: | Video input connector: Phono jack (Composite) |
| Video Interface: | HDMI |
| Network Connectivity: | LAN |
| Connectivity Technology: | Wired |
| Sound Emission: | 37 dB |
| Speakers: | 1 x 16W |
| Lamp Type: | Laser diode |
| Controls & Adjustments: | RM-PJ8 Remote Commander |
| Input Device Support Type: | Remote Control |

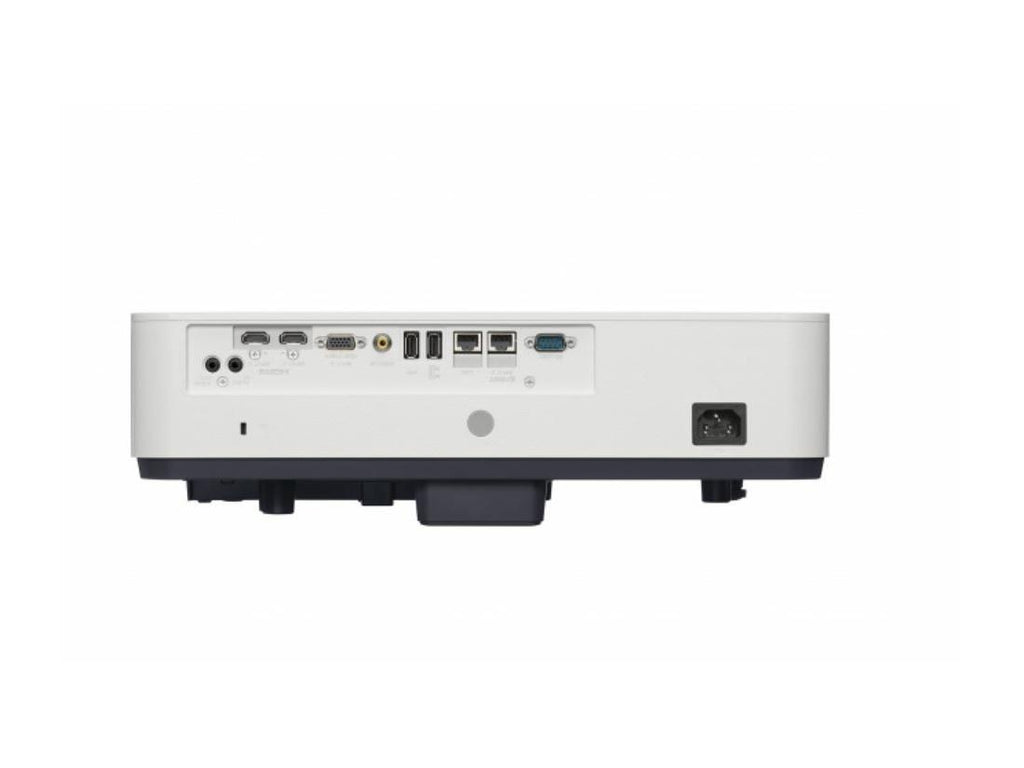

| Interfaces: | INPUT ARGB / Y PB PR input connector: Mini D-sub 15 pin (female), Audio input connector: Stereo mini jack, INPUT BHDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support, Audio input connector: HDMI audio support, INPUT CHDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support, Audio input connector: HDMI audio support, INPUT DHDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control), VIDEO INVideo input connector: Phono jack (Composite), Audio input connector: Shared with INPUT A, OUTPUTAudio output connector: Stereo mini jack, REMOTED-sub 9-pin (male) / RS232C, LANRJ45, 10BASE-T / 100BASE-TX, USBTYPE-A x 1 (for F/W update), TYPEA for Power supply |
| Power / Device Type: | Power Supply |
| Power Consumption Operational: | AC 100 V to 120 V: 463 W AC 220 V to 240 V: 434 W Watt |
| Power Consumption Standby: | 0.5 Watt |
| Power / Voltage Required: | AC 100 V to 240 V |
| Width: | 422 Mm |
| Depth: | 338 Mm |
| Height: | 129 Mm |
| Weight: | 7 Kg |
| Features: | Bright View is Sonys unique processing technology that brightens images while maintaining rich color even in brightly lit business and educational environments. |
-
Audio&Video
Audio Output: Stereo mini Jack Sound Output Mode: Stereo -
Lens
Lens Shift Direction: Vertical, Horizontal Focus Adjustment: Manual Zoom Type: Manual Optical Zoom: 1.6 x Keystone Correction Direction: Horizontal, vertical Vertical Keystone Correction: +/-30 degrees Horizontal Keystone Correction: +/-30 degrees Lens Shift Type: Manual Vertical Lens Shift: -35% to +55% Horizontal Lens Shift: +/15% -
Special Feature
Min Operating Temperature: 0 Celsius Max Operating Temperature: 40 Celsius Humidity Range Operating: 20% to 80% (no condensation) Sound Emission: 37 dB COO: Inquire TAA compliance: Inquire -
Image Brightness: 6400 ANSI lumen Native Resolution: 1920 x 1200 Display Format: WUXGA Image Aspect Ratio: 16:10 Throw Ratio: 1.23:1-1.97:1 Min Image Size: 40 Inch Max Image Size: 300 Inch -
Video Input
Video Input: Video input connector: Phono jack (Composite) Video Interface: HDMI Network Connectivity: LAN -
Power
Power / Device Type: Power Supply Power Consumption Operational: AC 100 V to 120 V: 463 W AC 220 V to 240 V: 434 W Watt Power Consumption Standby: 0.5 Watt Power / Voltage Required: AC 100 V to 240 V -
Dimensions&Miscellaneous
Width: 422 Mm Depth: 338 Mm Height: 129 Mm Weight: 7 Kg
