Description

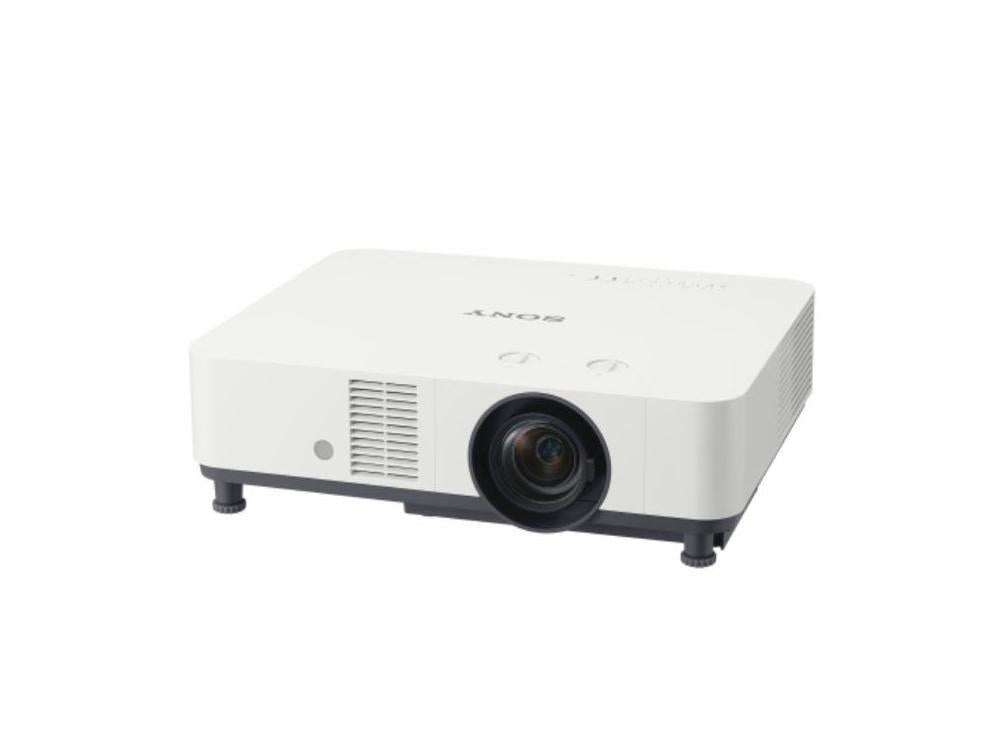

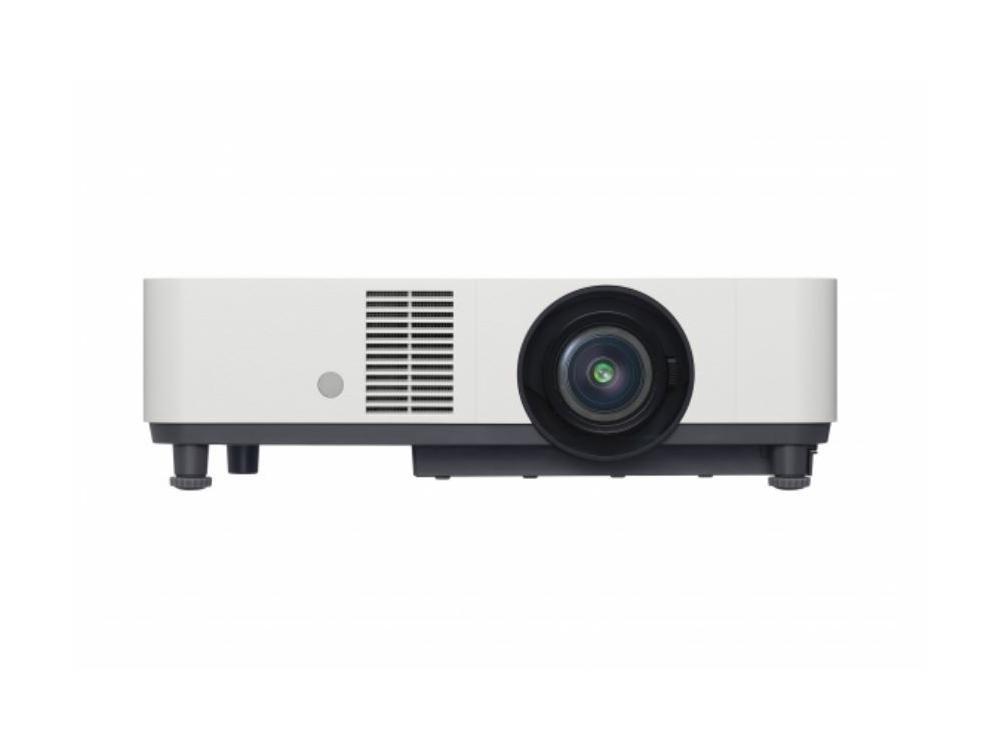

Sony VPL-PHZ51 WUXGA 5 300LM LASER PROJ
Beautifully slim and light with the smallest body in its class, the VPL-PHZ61/51 laser projector combines outstanding picture performance with up to 7,000lm center brightness and impressive reliability. A discreet blend-in design, minimal maintenance needs and flexible installation options make it the natural partner for todays integrated AV environments.
-
Primary Information
Model: VPL-PHZ51 Display Type: Laser Projector Image Brightness: 5300 ANSI lumen Native Resolution: 1920 x 1200 Display Format: WUXGA Image Aspect Ratio: 16:10 Throw Ratio: 1.23:1-1.97:1 Min Image Size: 40 Inch Max Image Size: 300 Inch OSD Languages: 27-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian, Greek, Czech, Slovak, Romanian) Focus Adjustment: Manual Zoom Type: Manual Optical Zoom: 1.6 x Keystone Correction Direction: Horizontal, vertical Vertical Keystone Correction: +/-30 degrees Horizontal Keystone Correction: +/-30 degrees Lens Shift Type: Manual Lens Shift Direction: Vertical, Horizontal Vertical Lens Shift: -35% to +55% Horizontal Lens Shift: +/15% Video Input: Video input connector: Phono jack (Composite) Video Interface: HDMI Network Connectivity: LAN Connectivity Technology: Wired Sound Emission: 35 dB Speakers: 1 x 16W Lamp Type: Laser diode Controls & Adjustments: RM-PJ8 Remote Commander Input Device Support Type: Remote Control Interfaces: INPUT ARGB / Y PB PR input connector: Mini D-sub 15-pin (female) Audio input connector: Stereo mini jack, INPUT BHDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support, Audio input connector: HDMI audio support, INPUT CHDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support, Audio input connector: HDMI audio support, INPUT DHDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN (100BASE-TX), RS-232C), VIDEO INVideo input connector: Phono jack (Composite), OUTPUTAudio output connector: Stereo mini jack, REMOTED-sub 9-pin (male) / RS232C, LANRJ45, 10BASE-T / 100BASE-TX, USBTYPE-A x 1 (for F/W update), TYPEA for Power supply Power / Device Type: Power Supply Power Consumption Operational: AC 100 V to 120 V: 463 W AC 220 V to 240 V: 434 W Watt Power Consumption Standby: 0.5 Watt Power / Voltage Required: AC 100 V to 240 V Width: 422 Mm Depth: 338 Mm Height: 129 Mm Weight: 6.8 Kg Features: Bright View is Sonys unique processing technology that brightens images while maintaining rich color even in brightly lit business and educational environments. -
Audio&Video
Audio Output: Stereo mini jack Sound Output Mode: Stereo -
Lens
Lens Shift Direction: Vertical, Horizontal Focus Adjustment: Manual Zoom Type: Manual Optical Zoom: 1.6 x Keystone Correction Direction: Horizontal, vertical Vertical Keystone Correction: +/-30 degrees Horizontal Keystone Correction: +/-30 degrees Lens Shift Type: Manual Vertical Lens Shift: -35% to +55% Horizontal Lens Shift: +/15% -
Special Feature
Min Operating Temperature: 0 Celsius Max Operating Temperature: 40 Celsius Humidity Range Operating: 20% to 80% (no condensation) Sound Emission: 35 dB COO: Inquire TAA compliance: Inquire -
Image Brightness: 5300 ANSI lumen Native Resolution: 1920 x 1200 Display Format: WUXGA Image Aspect Ratio: 16:10 Throw Ratio: 1.23:1-1.97:1 Min Image Size: 40 Inch Max Image Size: 300 Inch -
Video Input
Video Input: Video input connector: Phono jack (Composite) Video Interface: HDMI Network Connectivity: LAN -
Power
Power / Device Type: Power Supply Power Consumption Operational: AC 100 V to 120 V: 463 W AC 220 V to 240 V: 434 W Watt Power Consumption Standby: 0.5 Watt Power / Voltage Required: AC 100 V to 240 V -
Dimensions&Miscellaneous
Width: 422 Mm Depth: 338 Mm Height: 129 Mm Weight: 6.8 Kg
