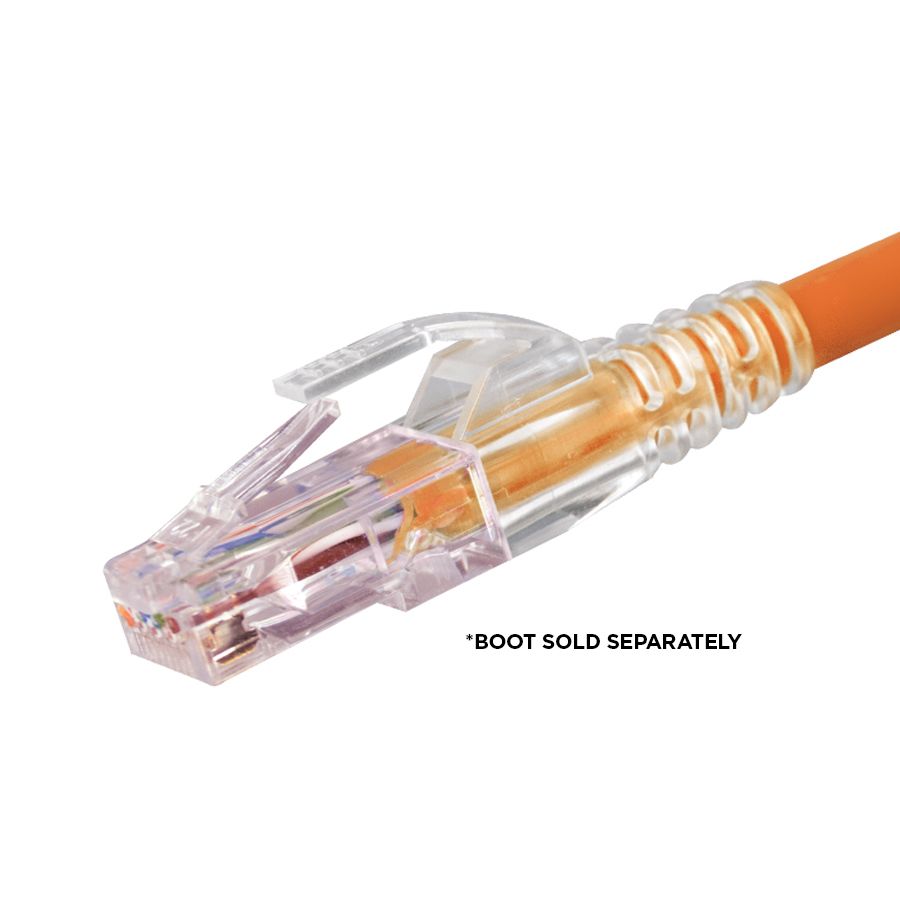

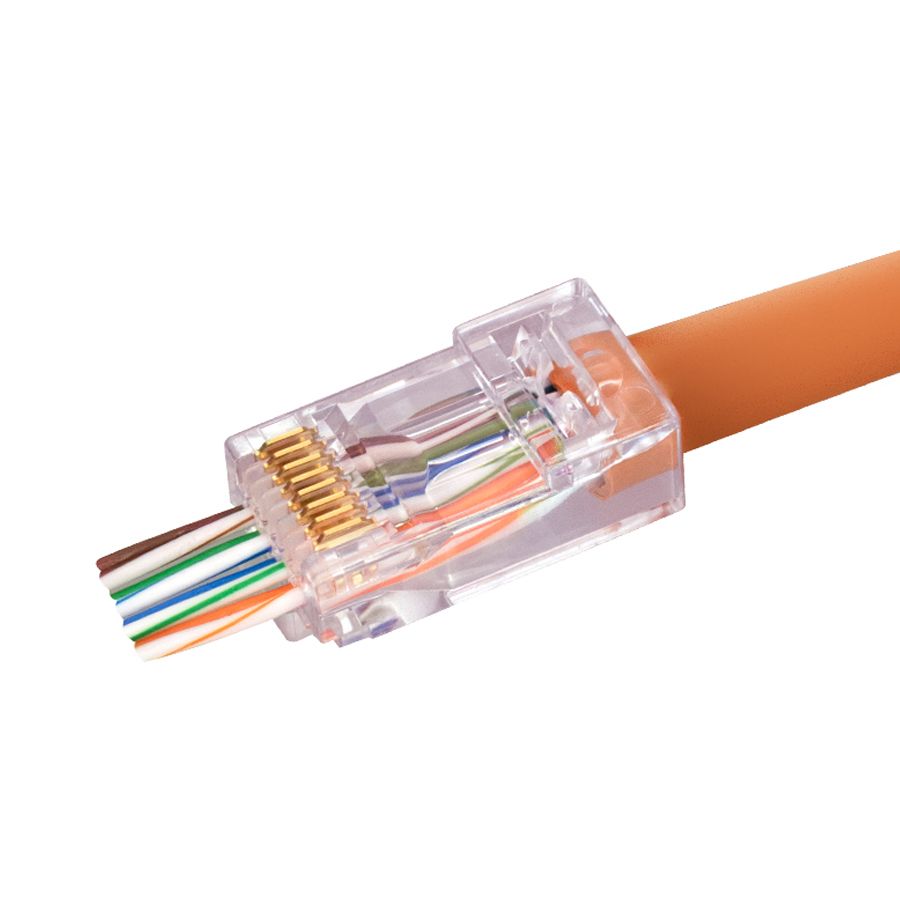

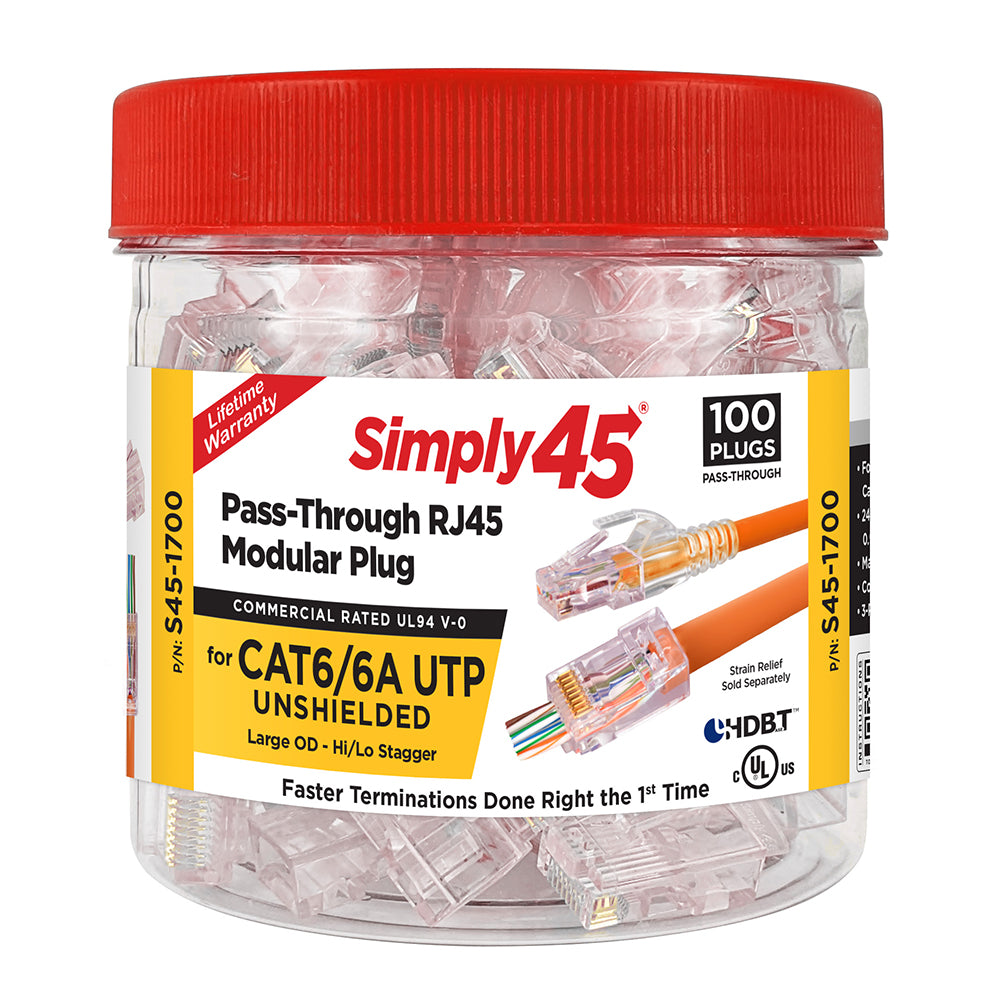

Simply45 S45-1700 RJ45 Pass-Through Plugs, 100 Jar
Product Details
Simply45 Pass Through connectors feature our reengineered connectors designed for the technology used today. Simply45 only uses the highest quality materials to ensure reliable results that will greatly reduce truck roll backs. Our connectors are commercial rated and feature a 3 prong style contact designed for all PoE application making Simply45 the most reliable Pass Through termination on the market today.
Specifications
| Category Type | Cat6/6a |
| Connector Style | Pass Through |
| Wire Alignment | Hi/Lo Stagger |
| Cable Type | UTP |
| AWG | 23AWG Solid |
| Conductor Range | 1.00-1.10mm (0.039″-0.043″) |
| Max Cable OD | 7.4mm (0.291″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Red Tint |
| Patent Number | 9,543,729; 10,116,082; 10,573,990; 11,146,014 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Jar |
| Connector Quantity | 100 pieces |
