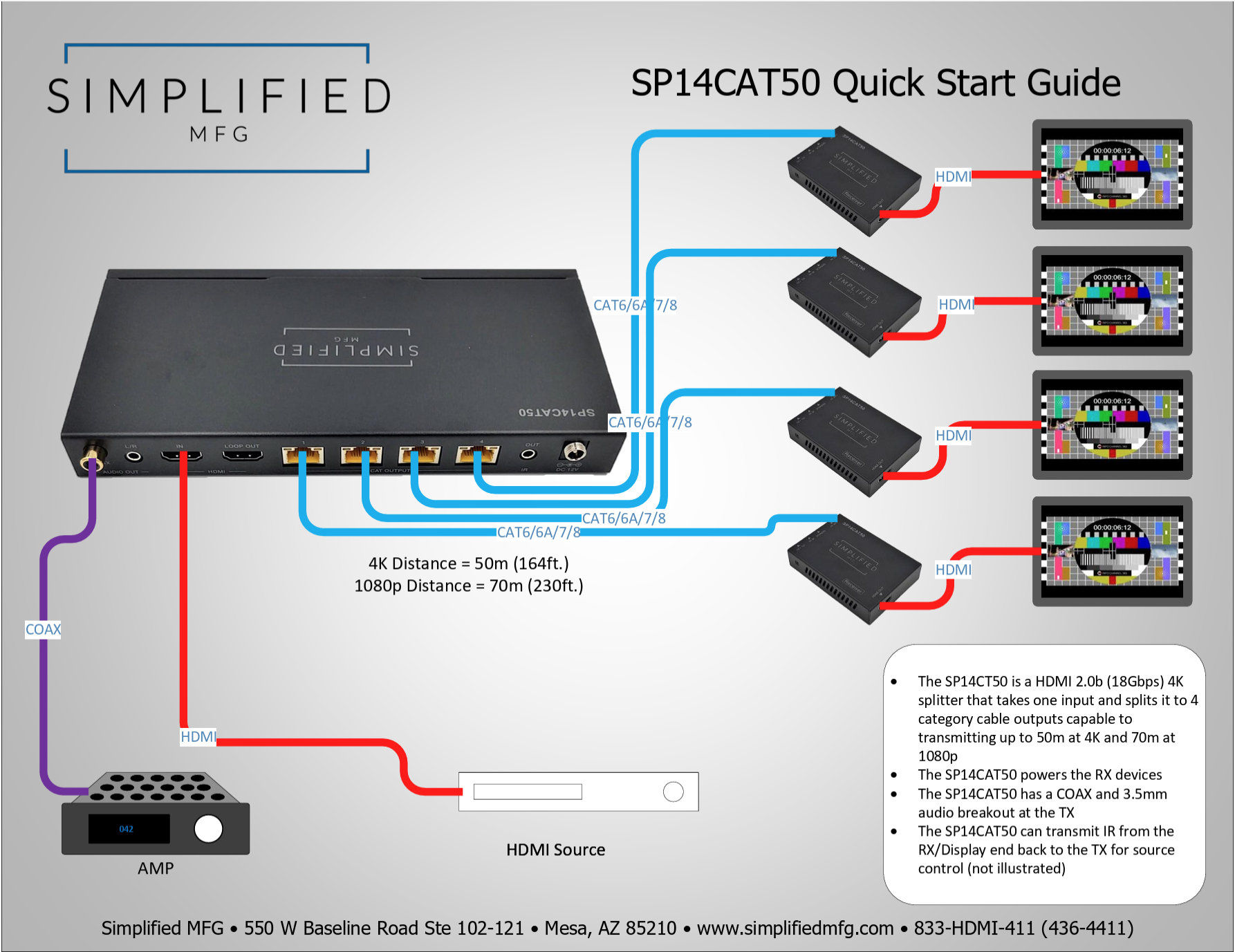

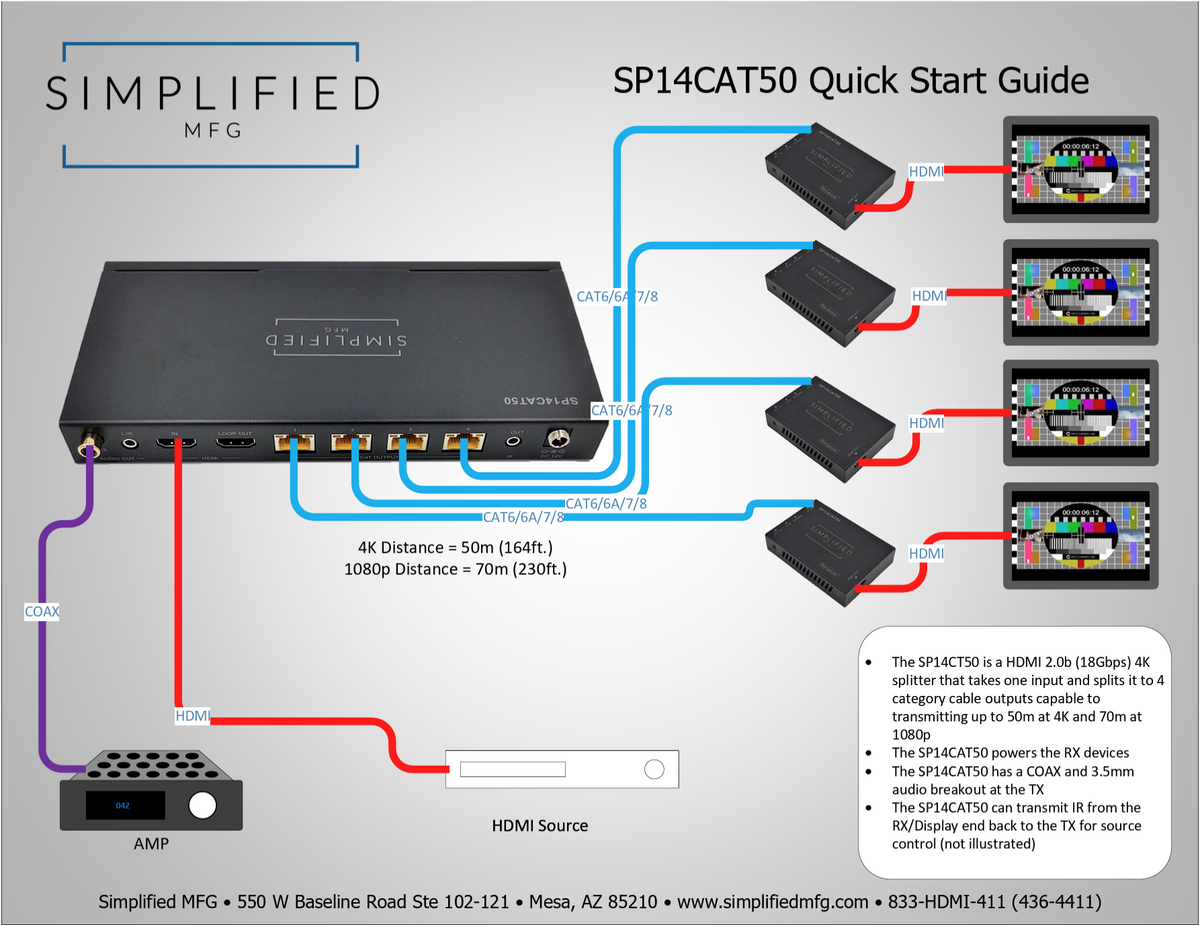

The SP14CAT50 is an18gbps 4K/UHD Splitter 1 to 4 HDMI splitter over category cable. The SP14CAT50 supports HDCP 2.2/1.4 and is a solution for splitting a single HDMI input to four HDMI outputs where you need to send the output over distance. The receivers are powered by the TX, compact (about the footprint of a credit card). EDID can be managed from the TX with the ability to copy or use EDID from the integrated EDID library. The SP14CAT50 is rated at 50m/165ft. at 4K and 70m/230ft. at 1080p while supporting the all latest features of the most advanced HDMI 2.0b signals including HDR10+. IR from the RX devices are returned to the TX for source control. The technology used is also very efficient, this device only draws 14W. Also, there is a loop out to cascade more devices to make a larger splitter. Also see the SP18CAT120 for more outputs and a longer distance.
*Cat5e may be used, but some loss of distance may occur.
Features
• HDMI 2.0b (18Gbps)
• HDCP 2.2, HDCP 1.4 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• HDR10+ Support
• 50m (165ft.) @4K/UHD and 70m (230ft.) @1080p

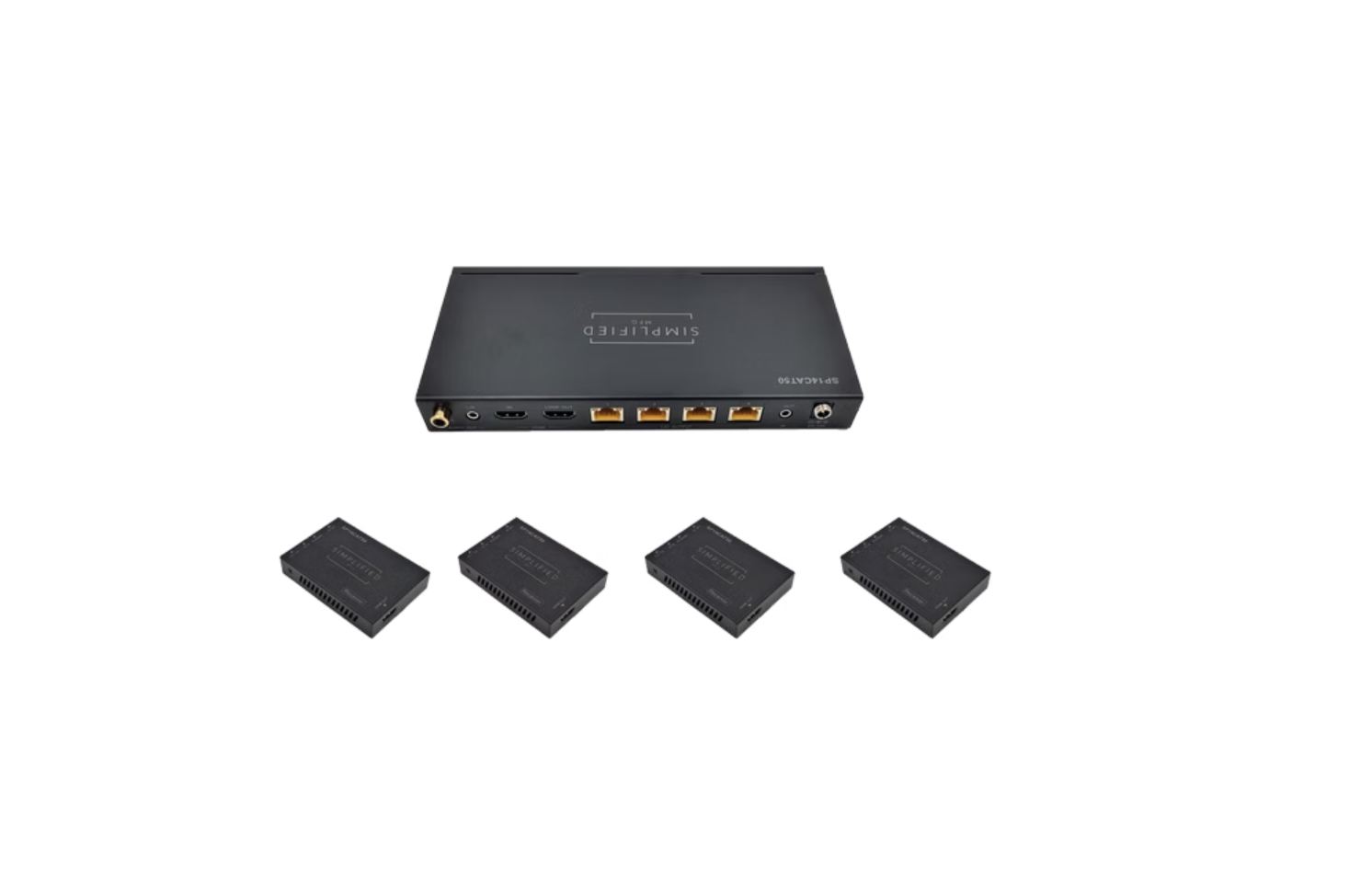

• Kit, comes with 4 RX devices
• EDID management
• Cuts CEC Pass-thru No CEC communication
• HDMI loop out at TX
• Audio breakout, Coax S/PDIF and 3.5mm mini-jack at TX
• One IR receive port on TX receives IR signals from all RX devices
• Supports all high-definition audio formats including Dolby+/Atmos.
• 3-Year warranty
