Description
Product Details

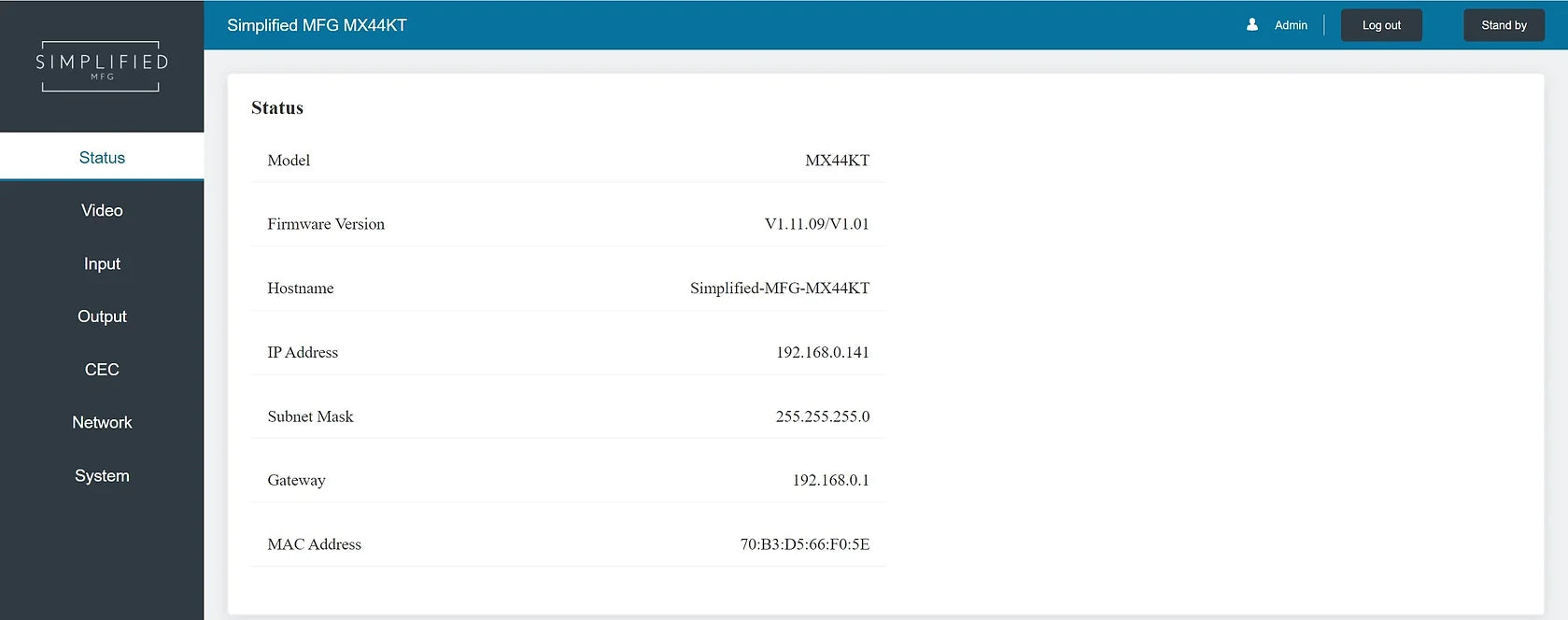

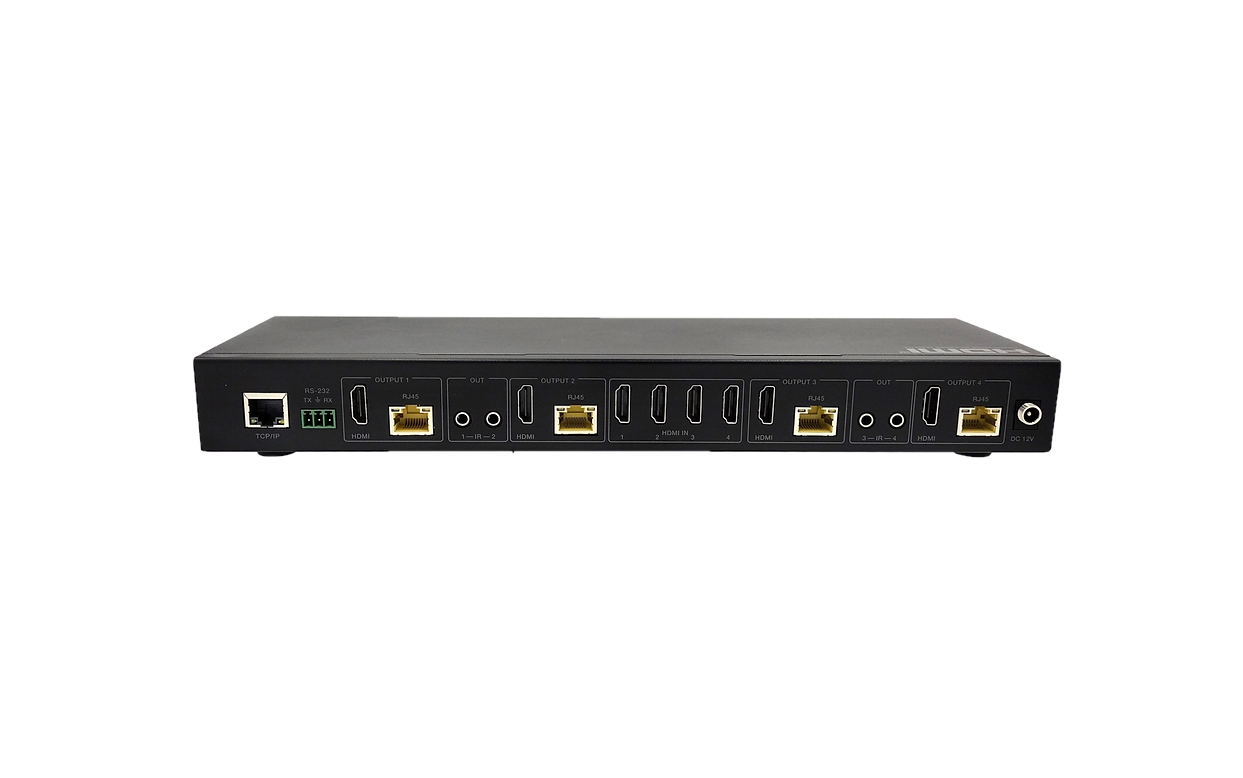

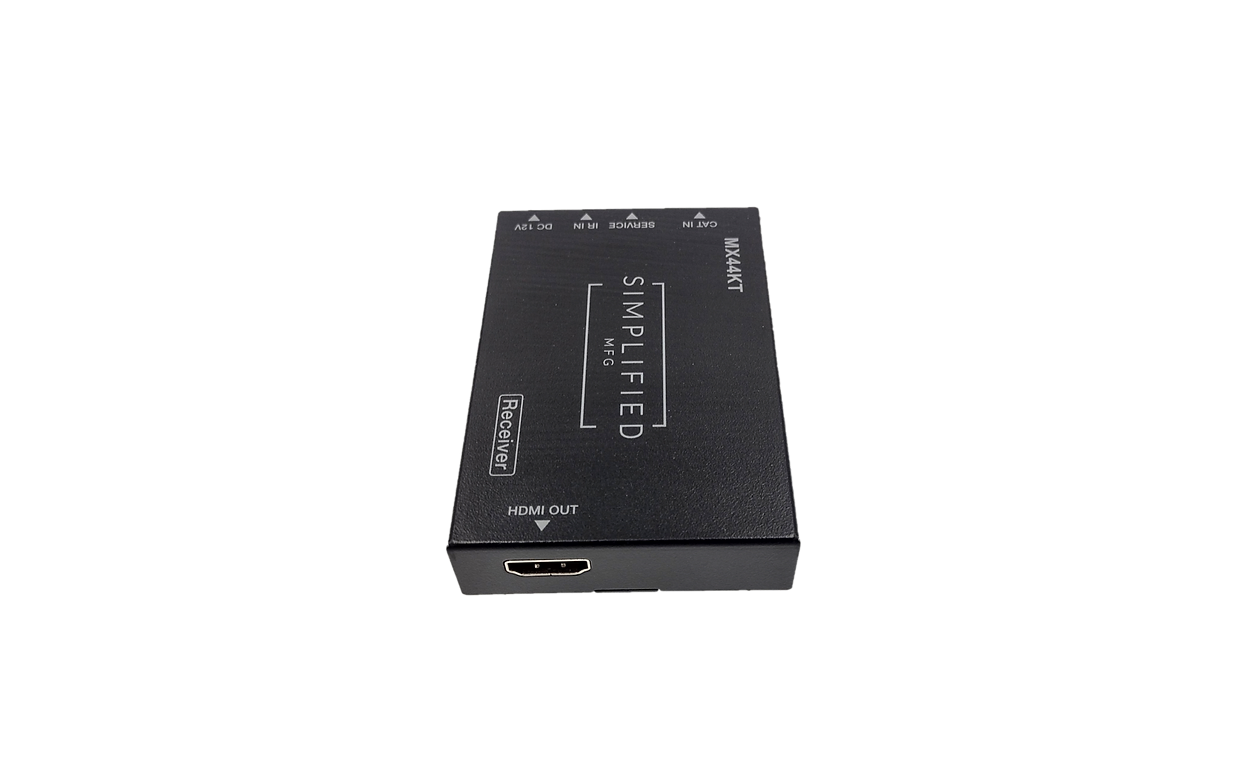

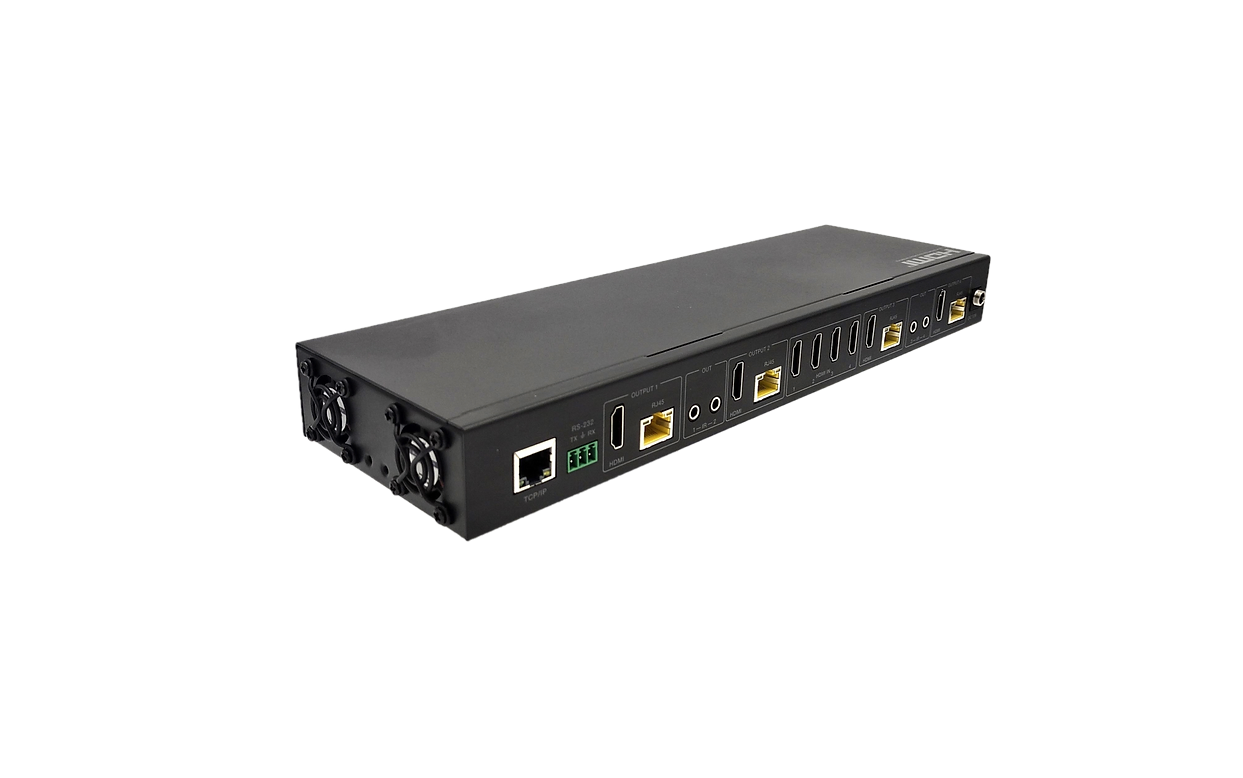

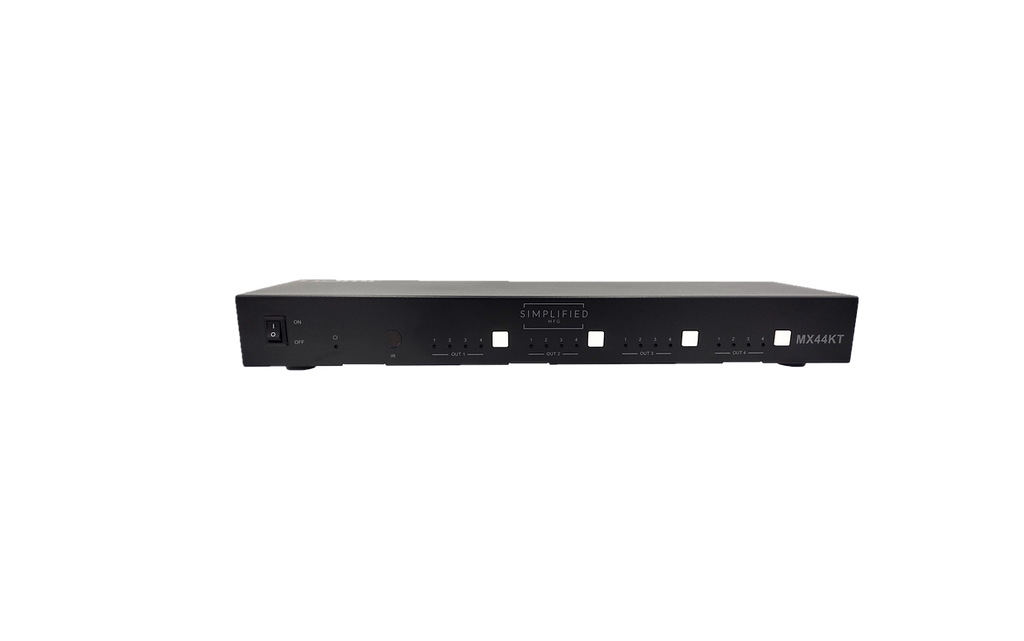

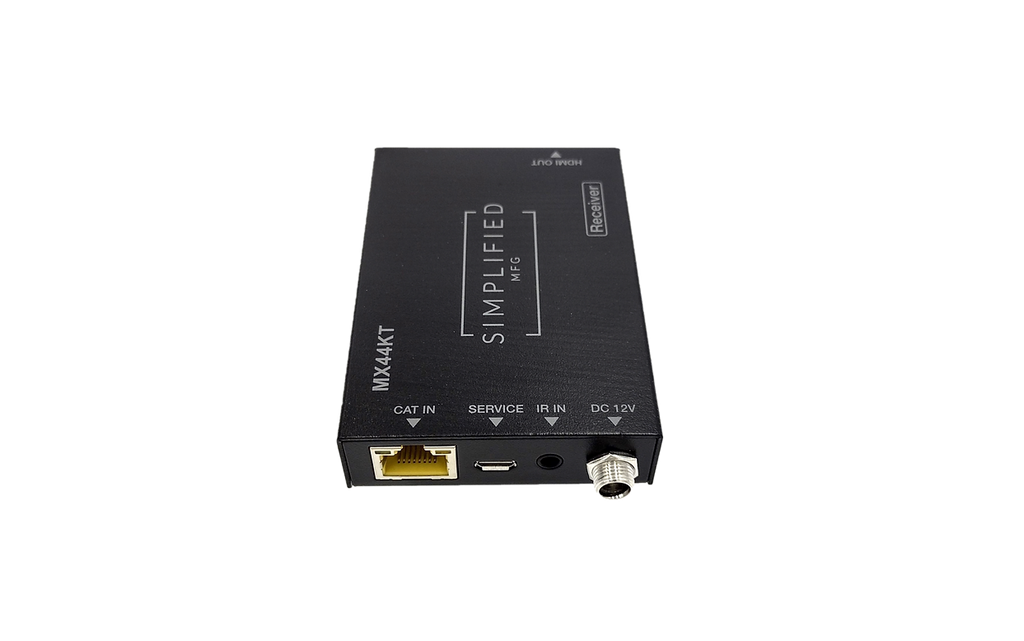

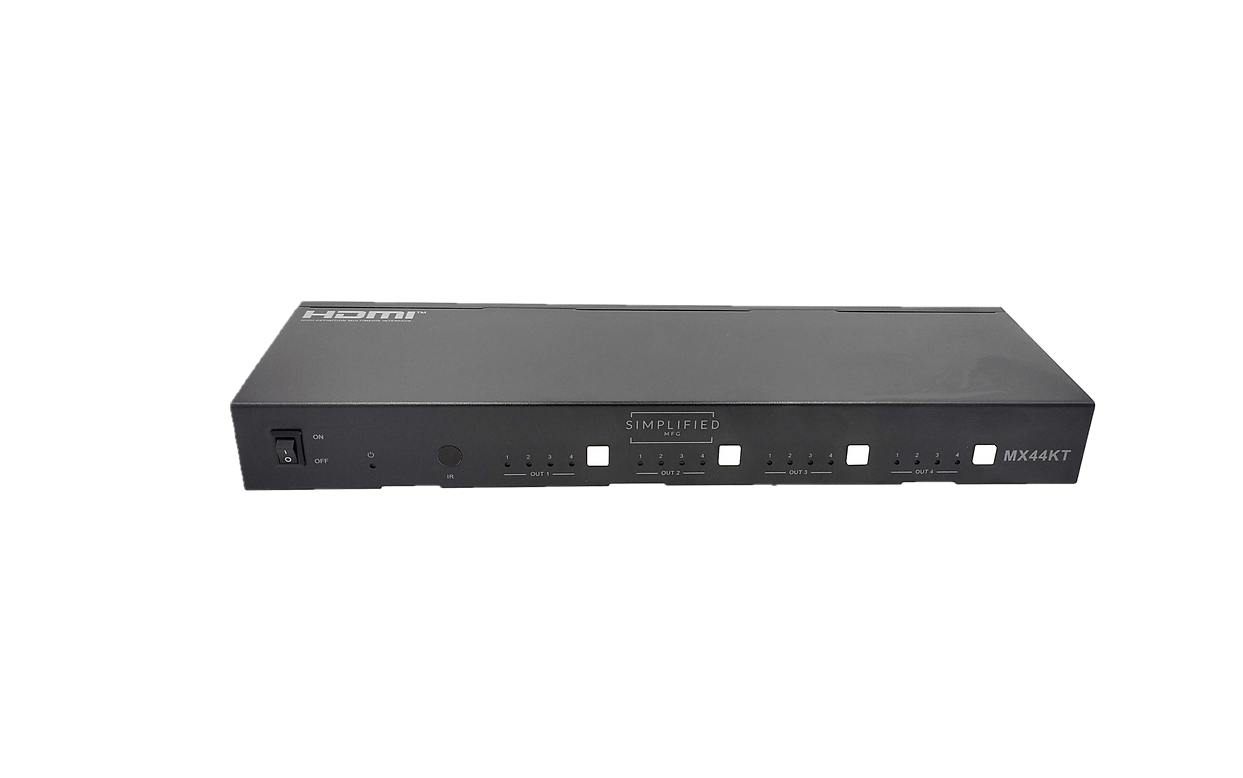

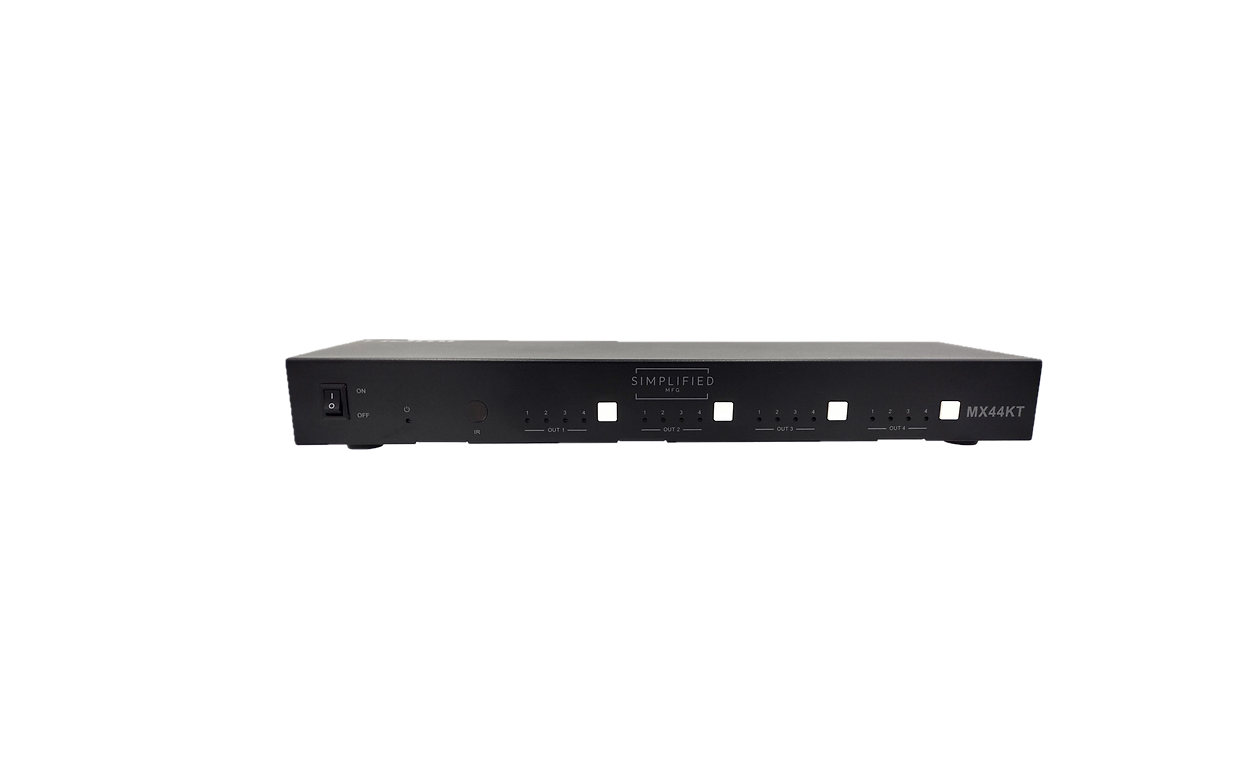

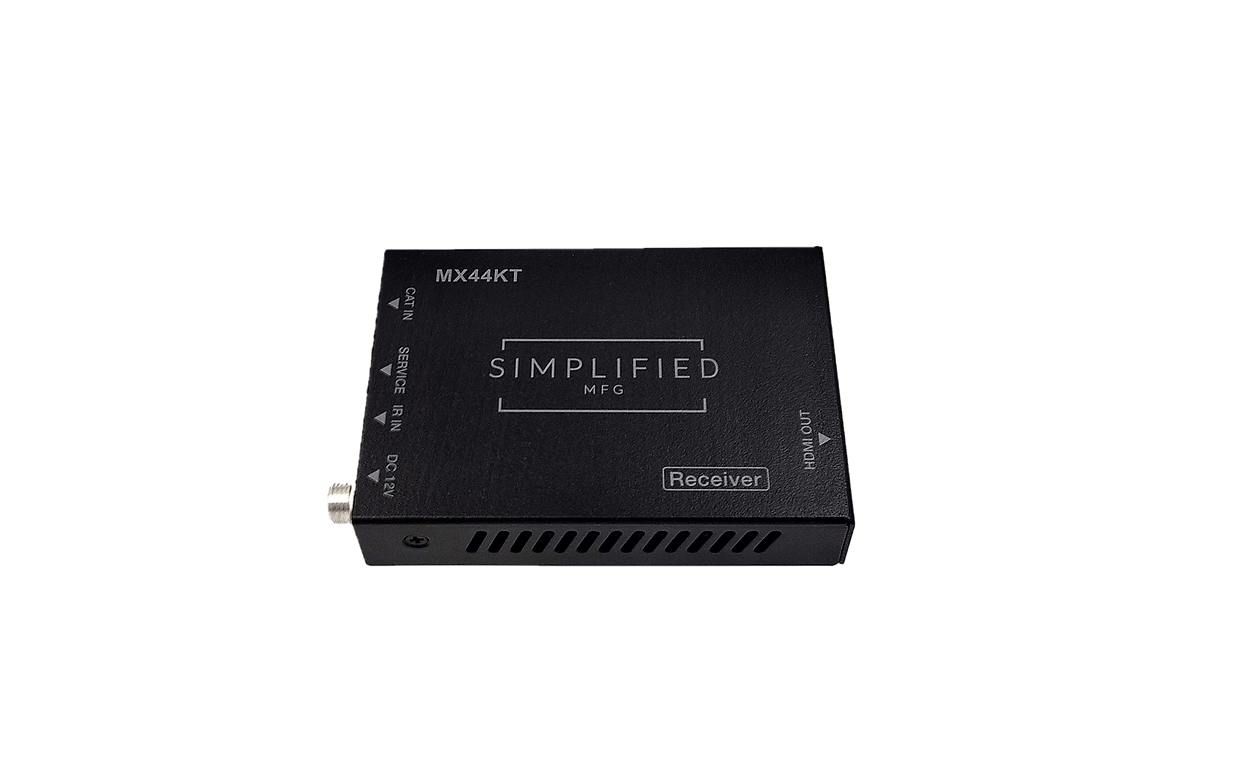

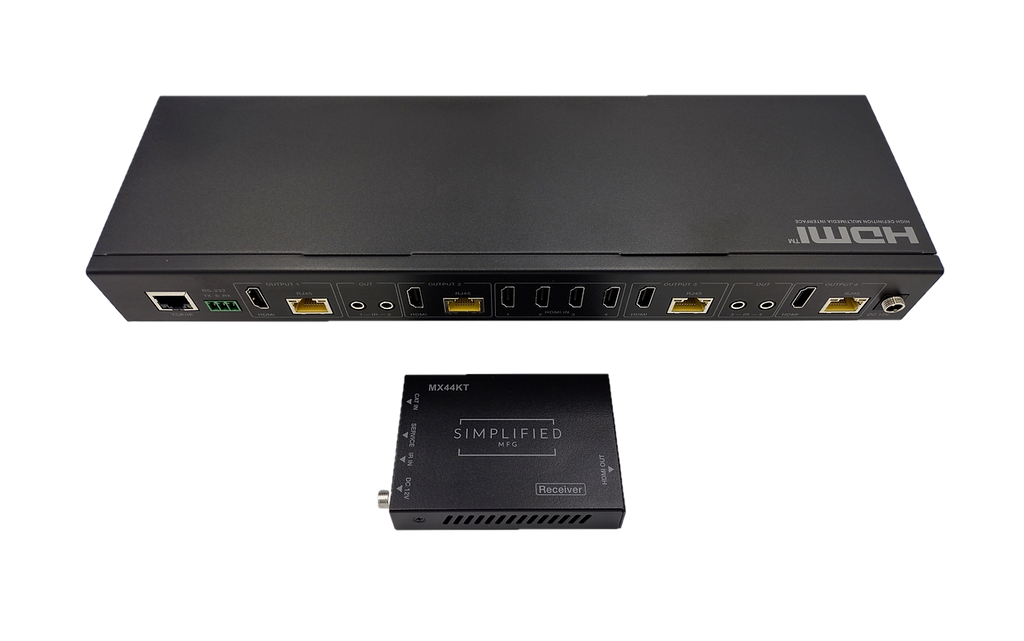

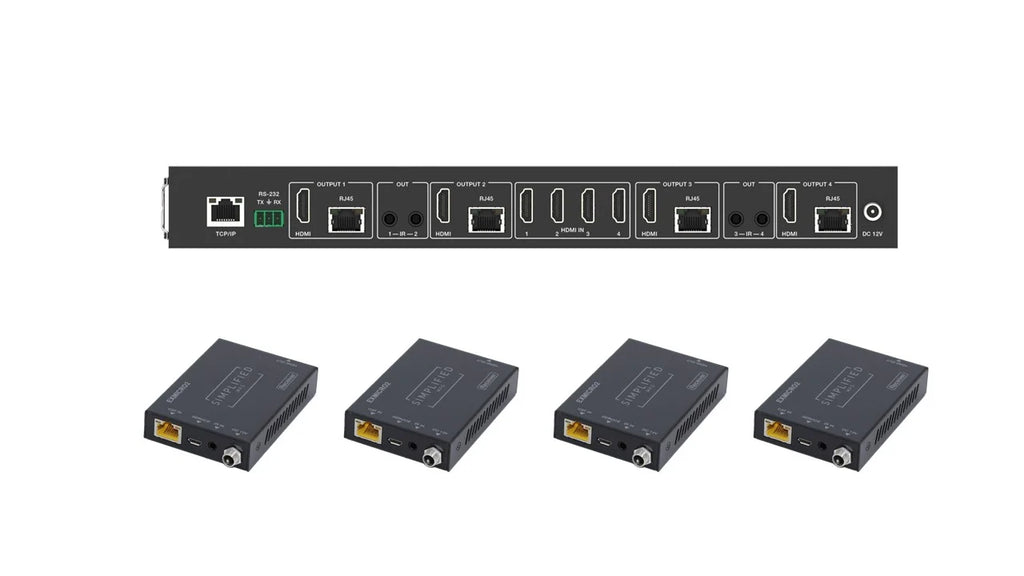

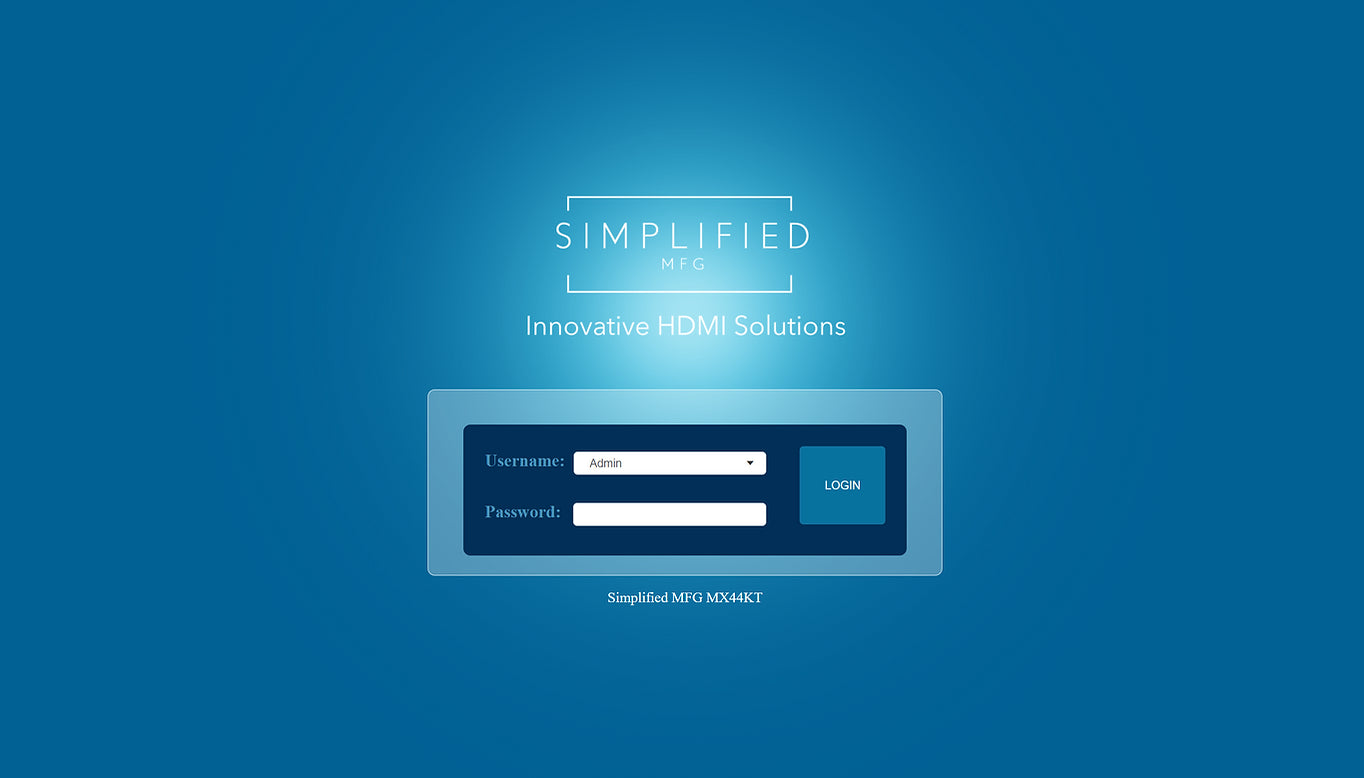

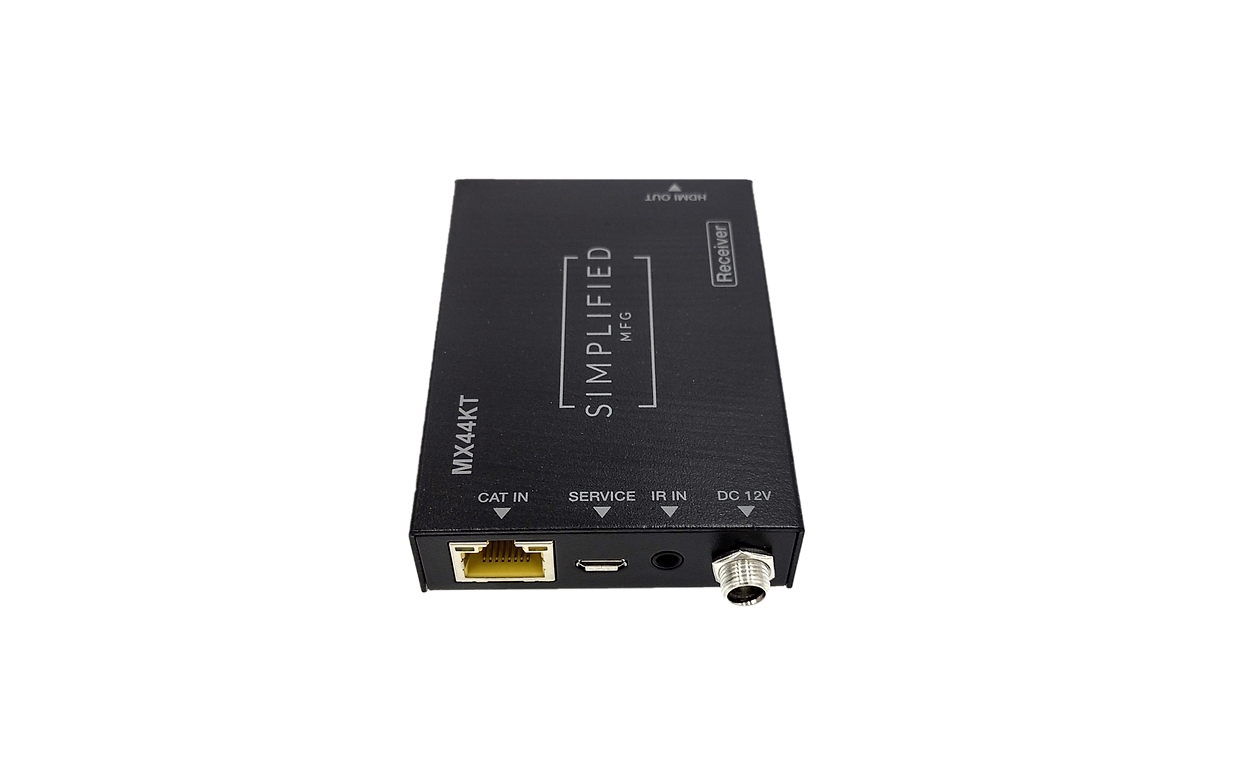

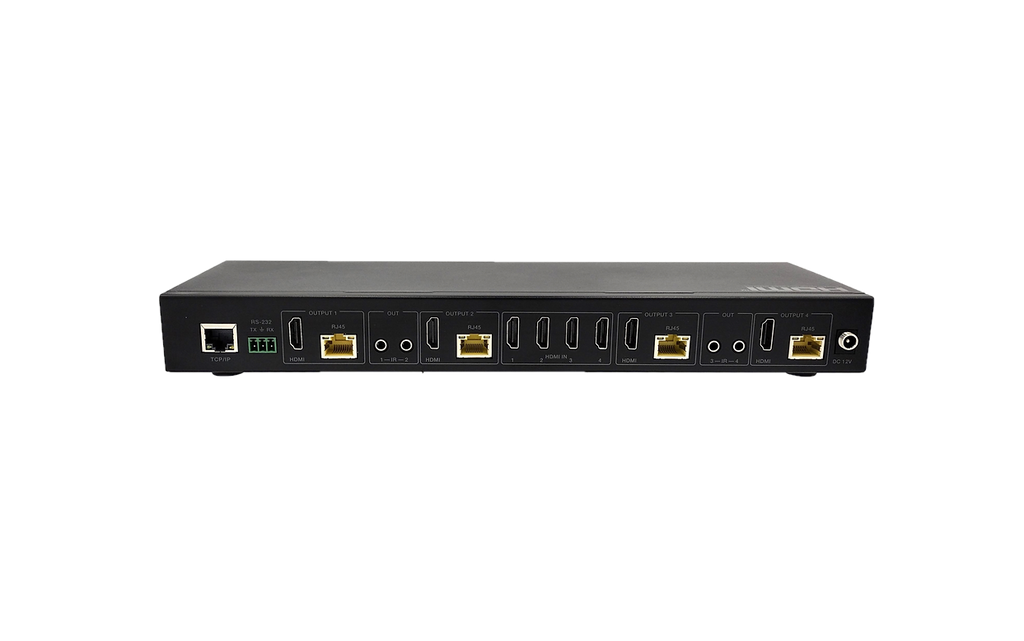

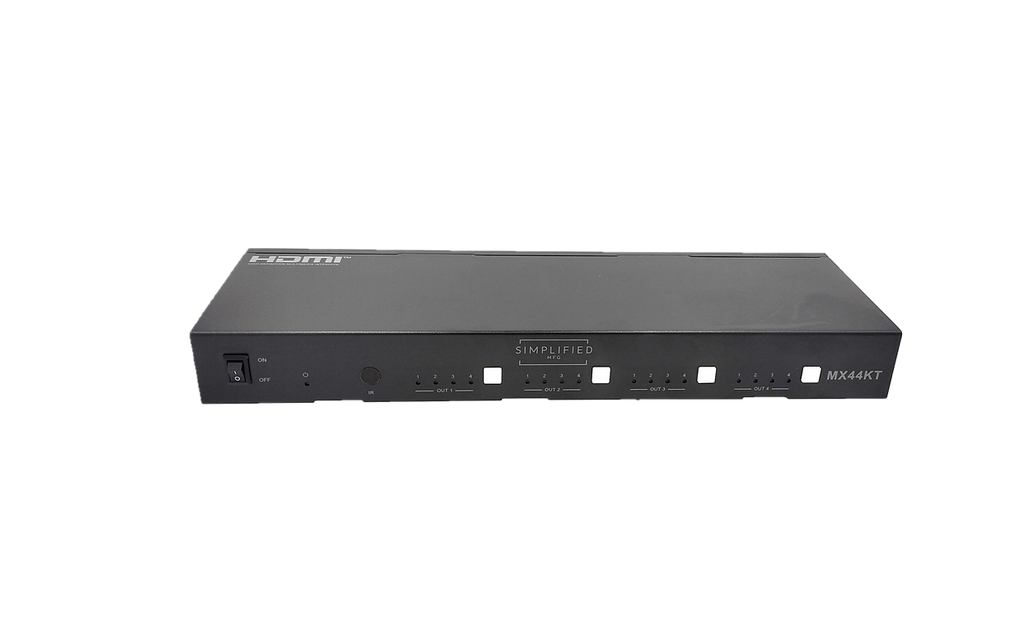

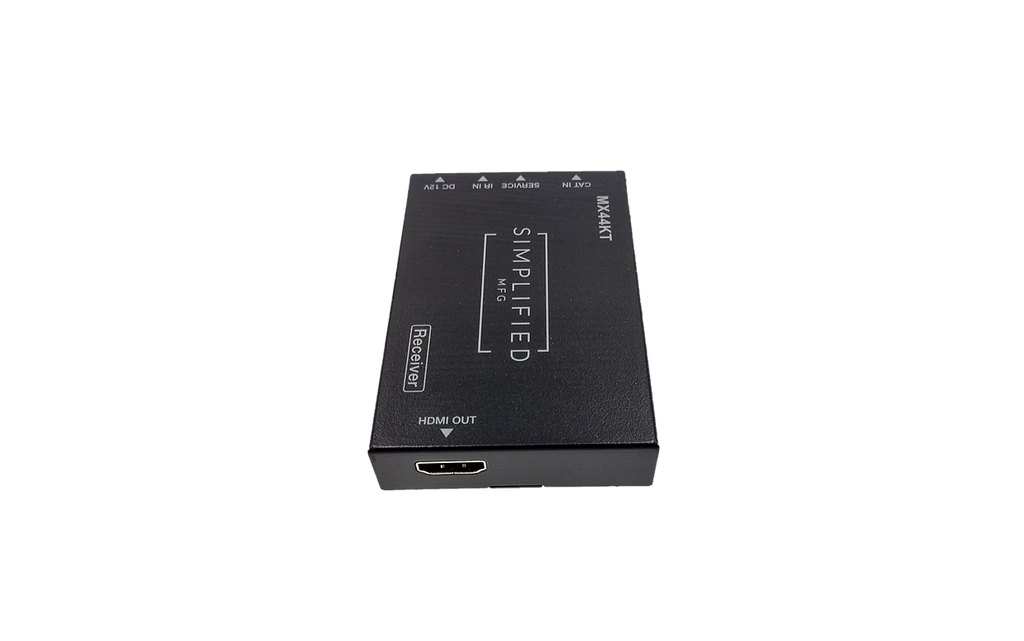

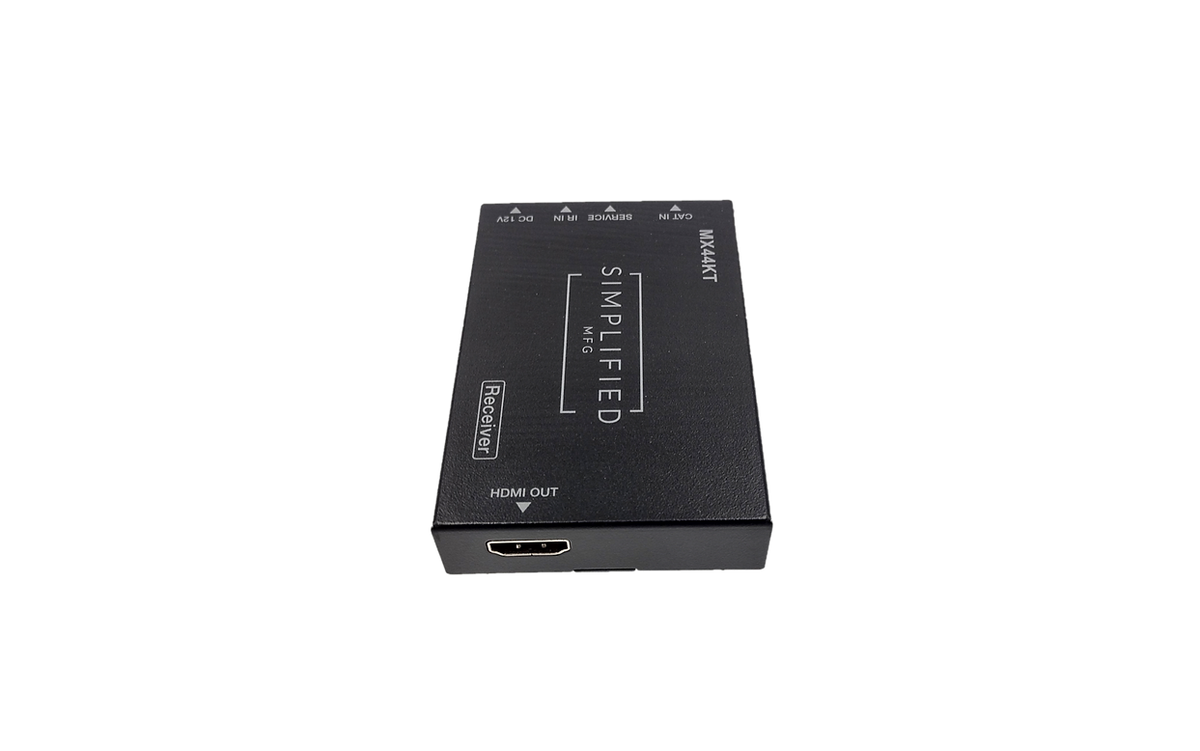

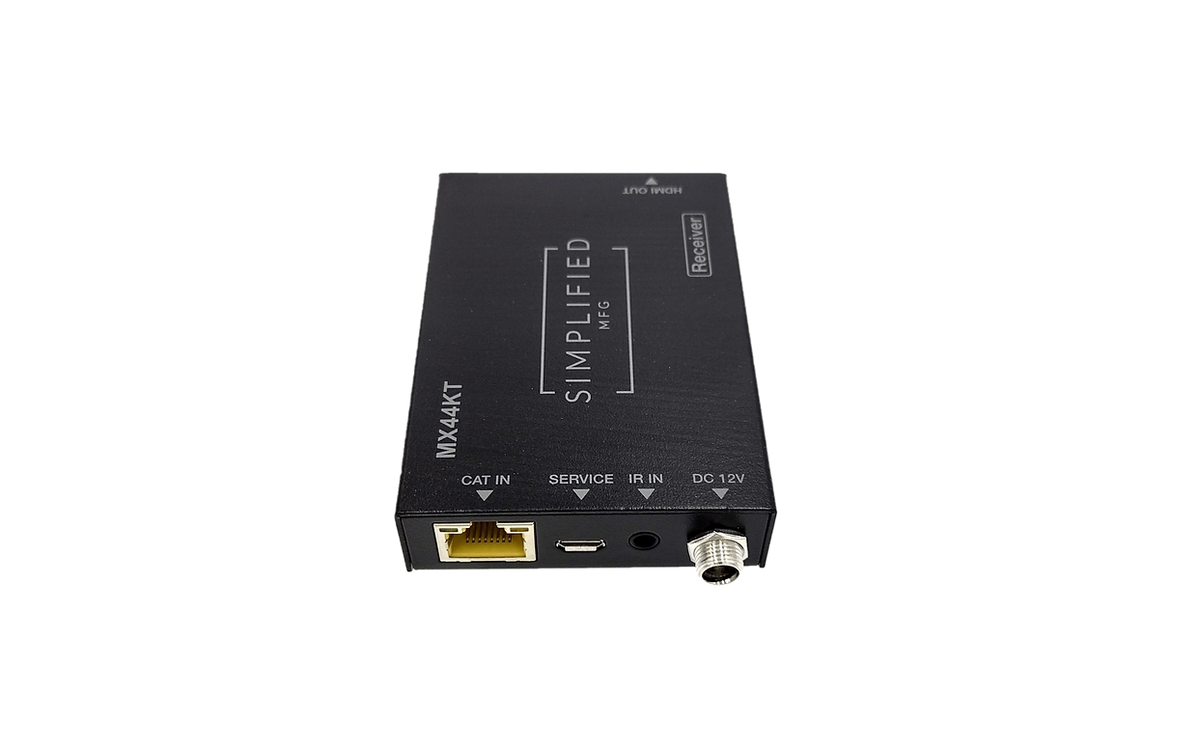

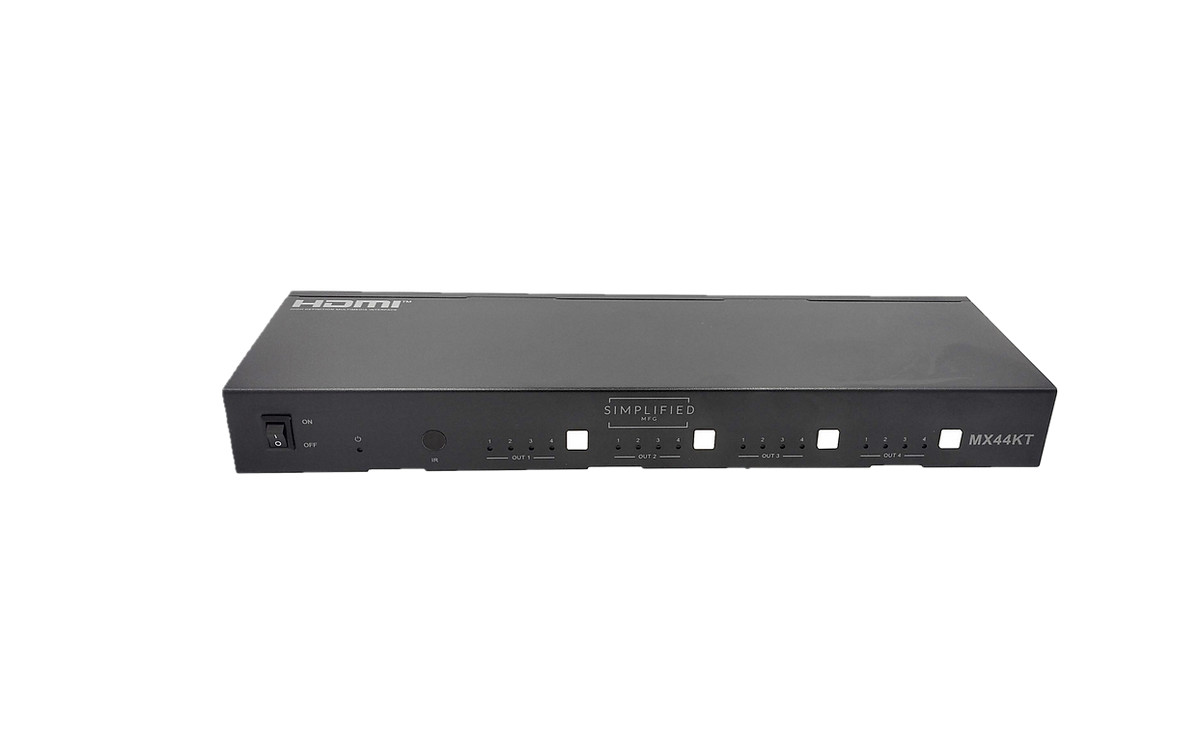

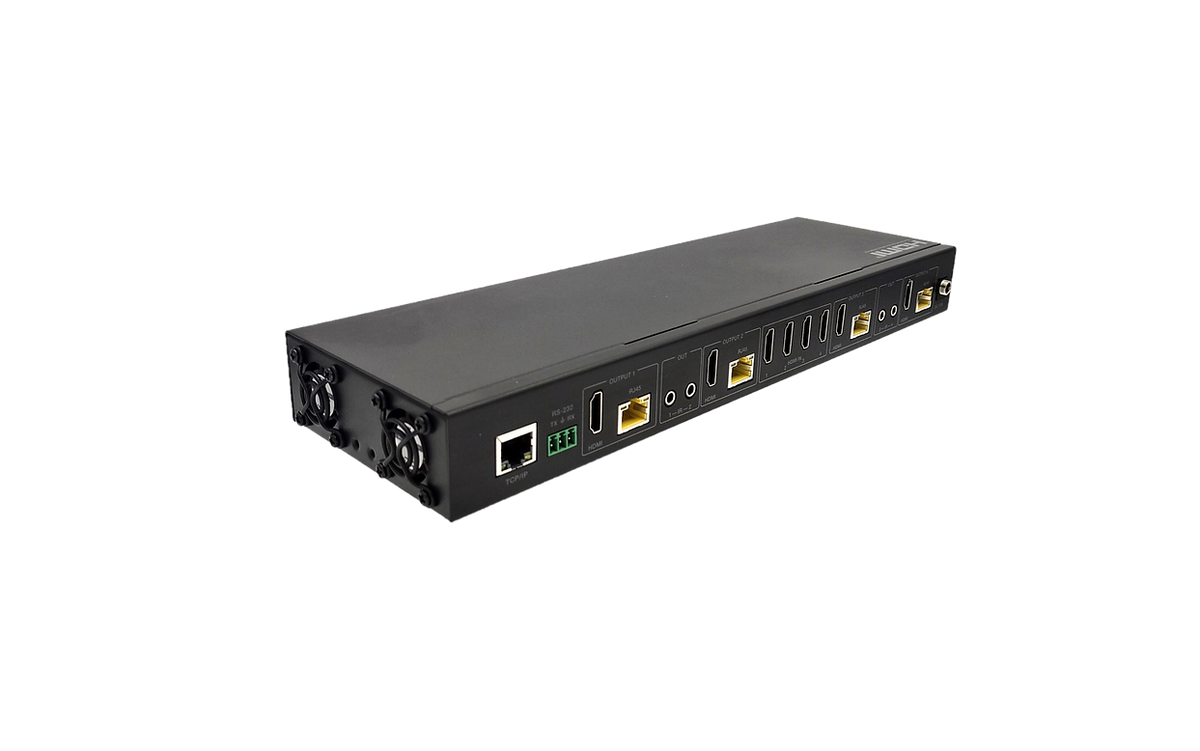

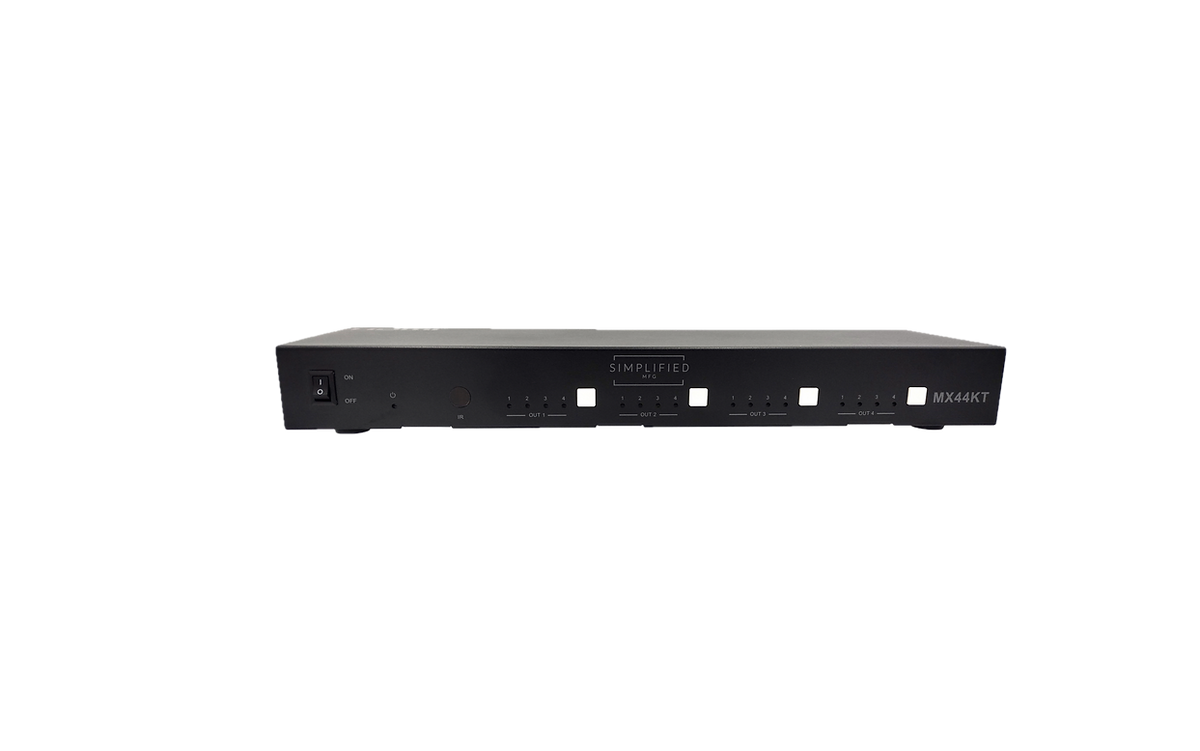

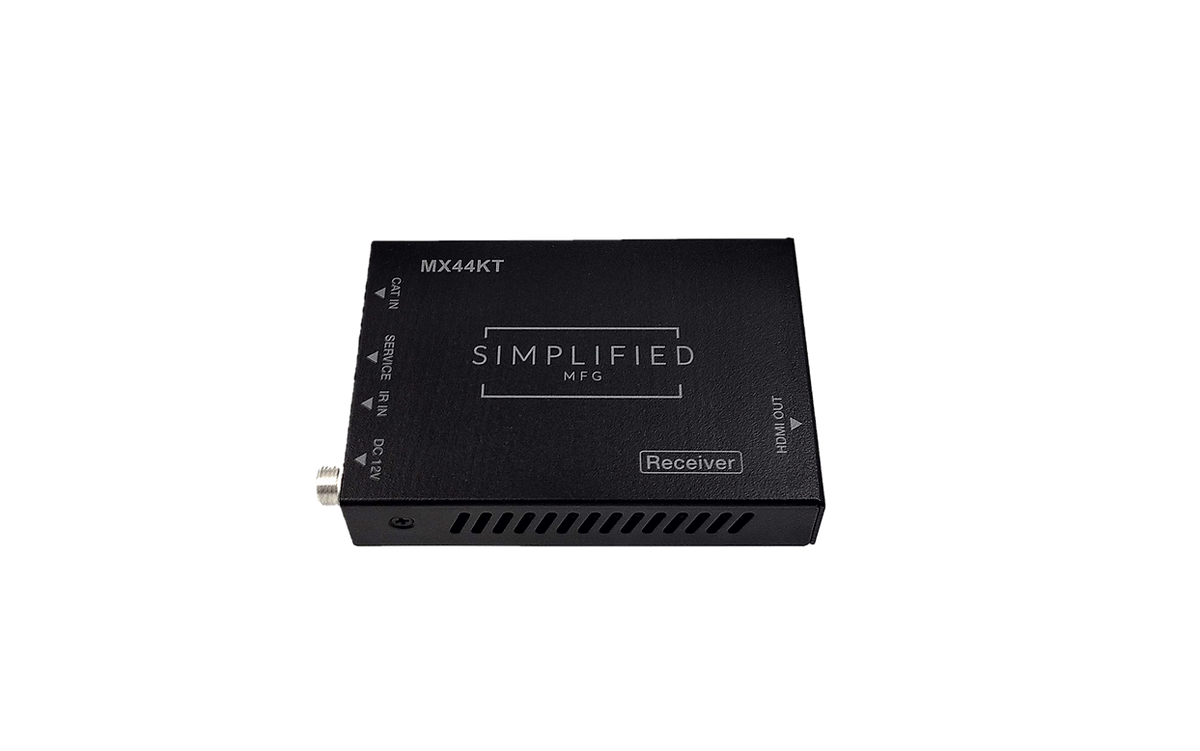

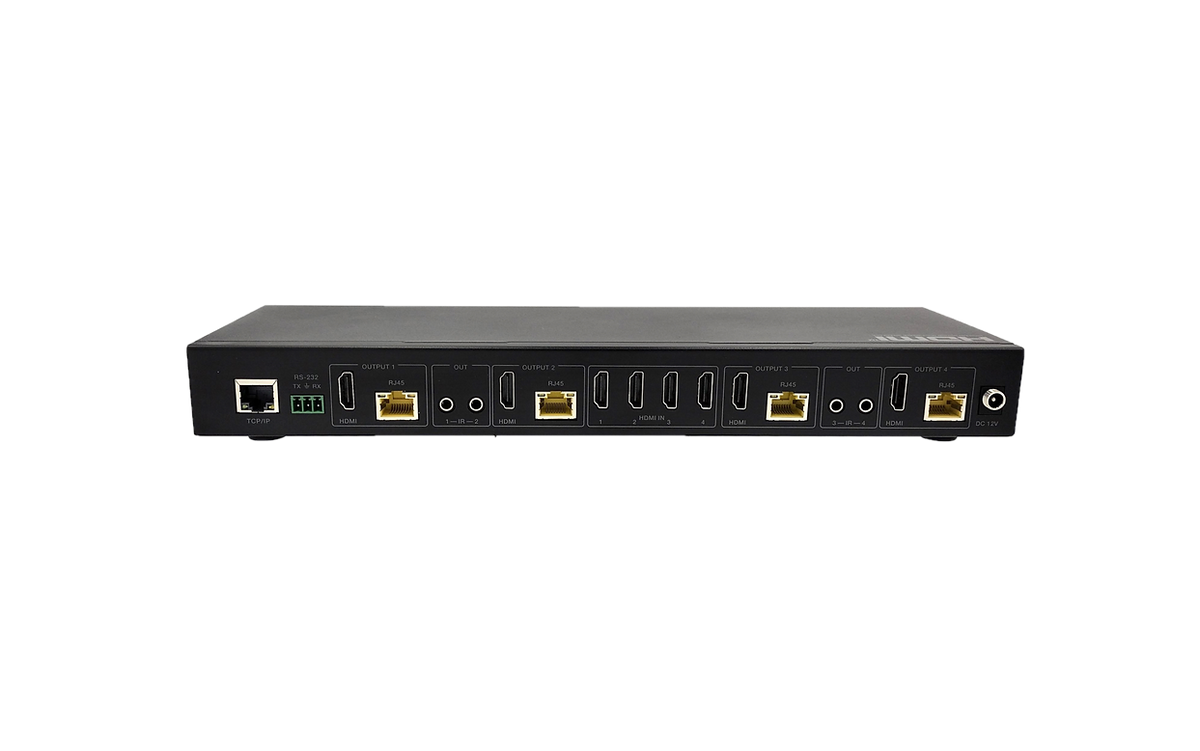

The MX44KT is a Scaling HDMI 2.0b HDBaseT 18Gbpsgbps 4x4 HDMI Matrix with included 70m HDMI 1080p (50m 4K) over category cable receivers. This matrix switch features simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources up to eight displays (two mirrored per output channel). Each output can scale independently. Output 1 can be one resolution without affecting the resolution of the other outputs. The MX44KT supports the transmission 4Kx2K@60Hz (4:4:4), and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Atmos and DTS-HD Master Audio. The compact receivers included in this kit will extend the HDMI signal up to 230ft/70m (1080p) or 165ft/50m(4K) for multi-room connectivity. This matrix also supports HDR8/10/10+/DolbyVisiontm (HDMI output only, category output supports up to HDR10+). Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. The innovative web GUI can be used to set scaling, and EDID settings for easy setup.
Features & Benefits:
-
Supports RGB, YCbCr 4:4:4, YCBCr 4:2:2 and xvYCC video formats with deep color
-
Supports video format up to 4k2k@30Hz with 24bit RGB/YCBCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0
-
Supports HDR8/10/10+/DolbyVision pass through (DolbyVision is only on HDMI output, not the UTP)
-
-

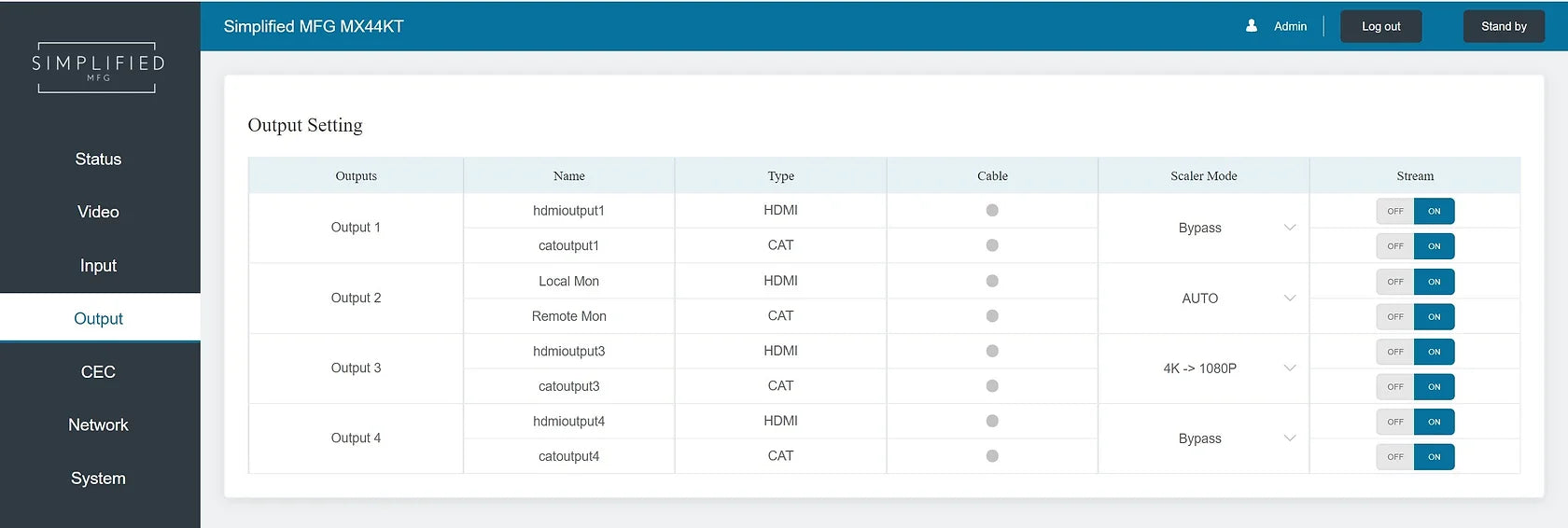

Auto Scaling on each channel to eliminate unlike resolutions from affecting the resolutions of superior displays
-
Supports high resolution VESA mode video format up to QSXGA@60Hz
-
Supports reception of any audio data conforming to the HDMI specification such PCM at up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby+, Atmos, & DTS-X
-
Supports transmission distances up to 230ft/70m @1080p and 165ft/50m @ 4K through CAT5e/6/7 cable
-
LED's at Matrix and RX indicate connection quality of HDMI and category cable connections.
-
RX Devices are powered by the matrix.
-
Supports wideband IR (30-60Khz), IR transport from RX to matrix can control both the matrix and the sources.
-
Support simultaneous category and HDMI outputs that scale together by channel
-
Support RS-232, remote control, on-panel control and TCP/IP Control
-

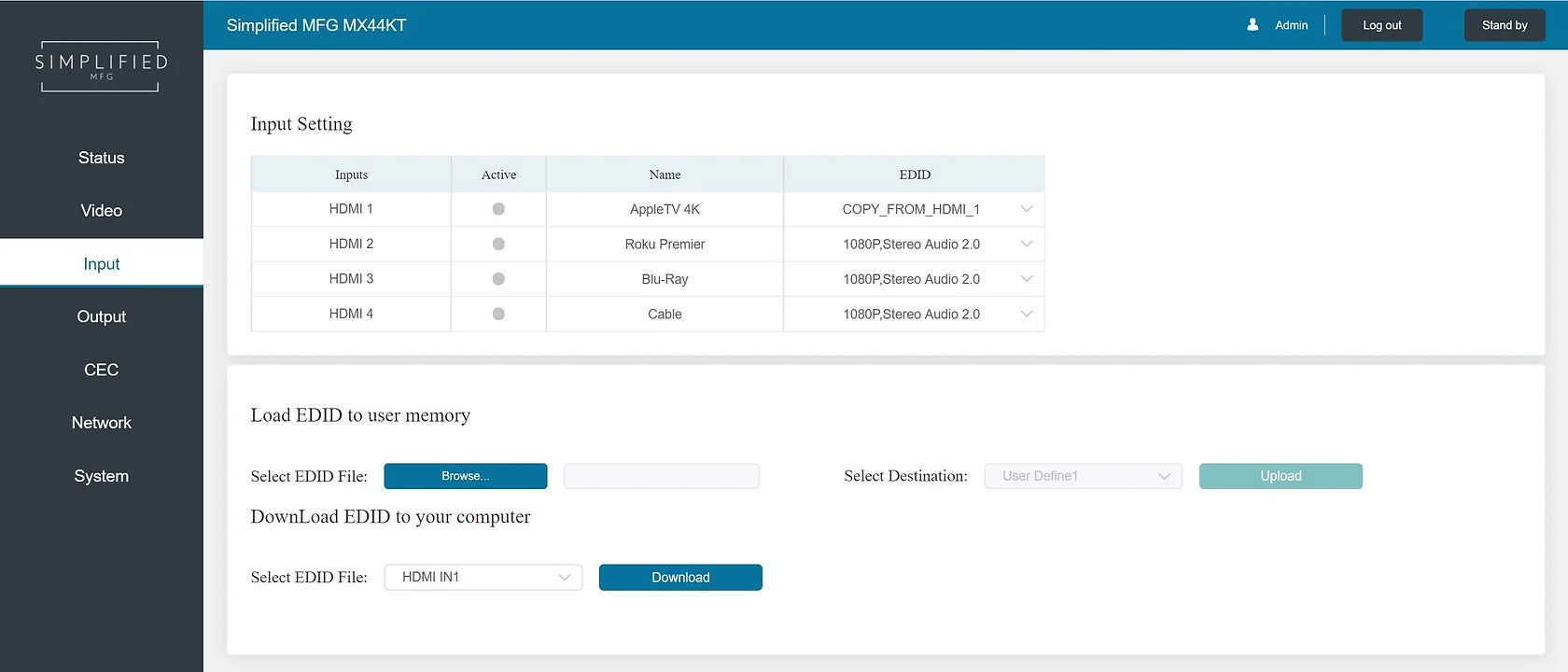

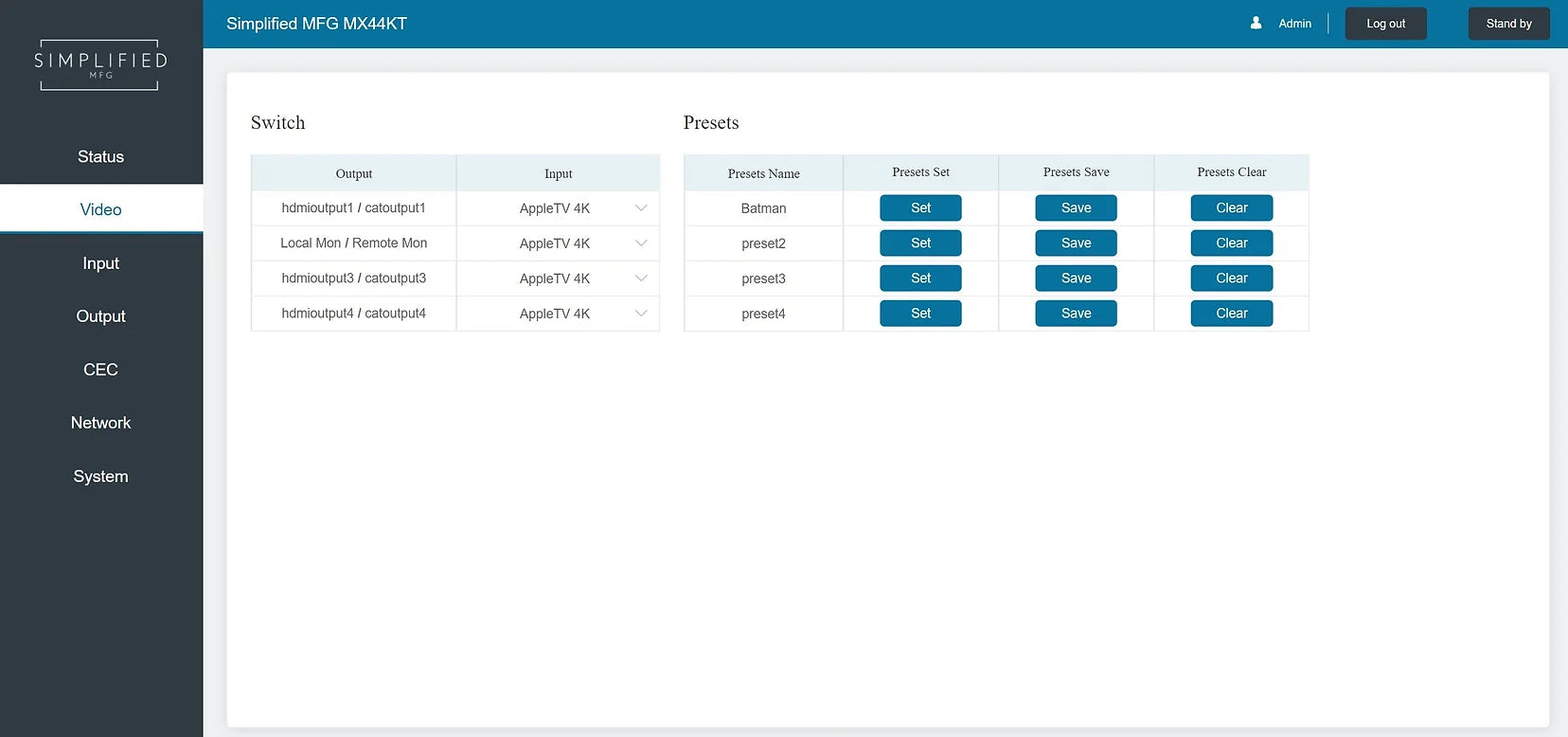

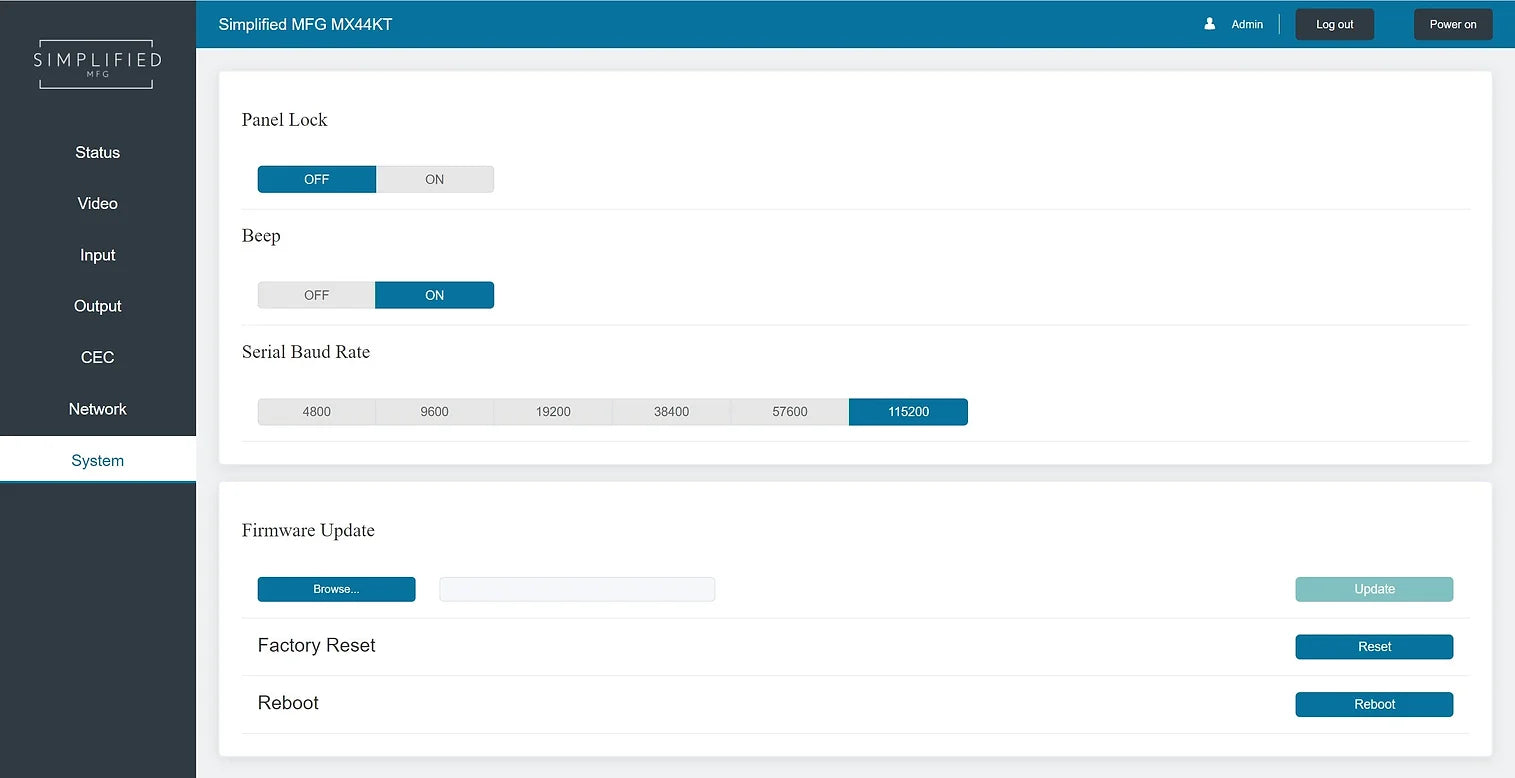

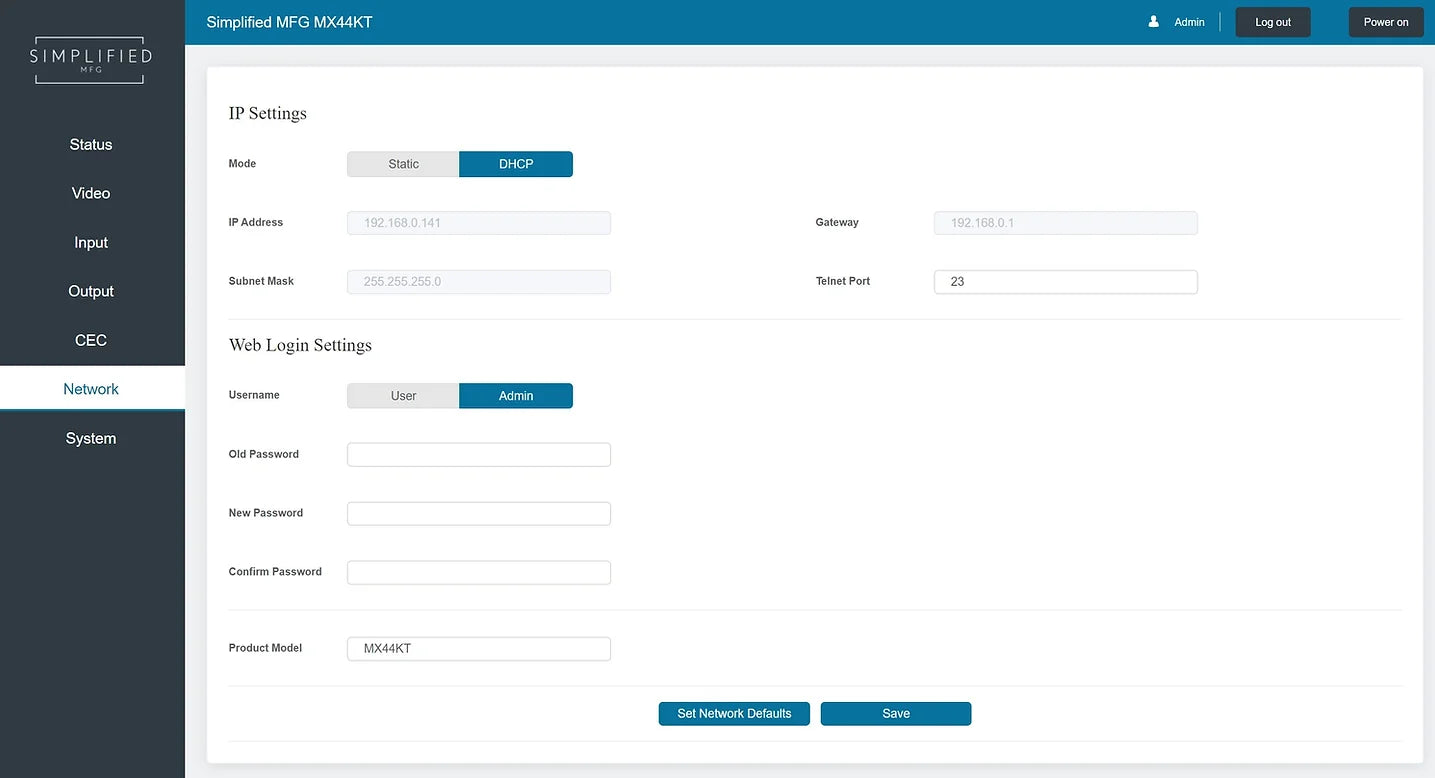

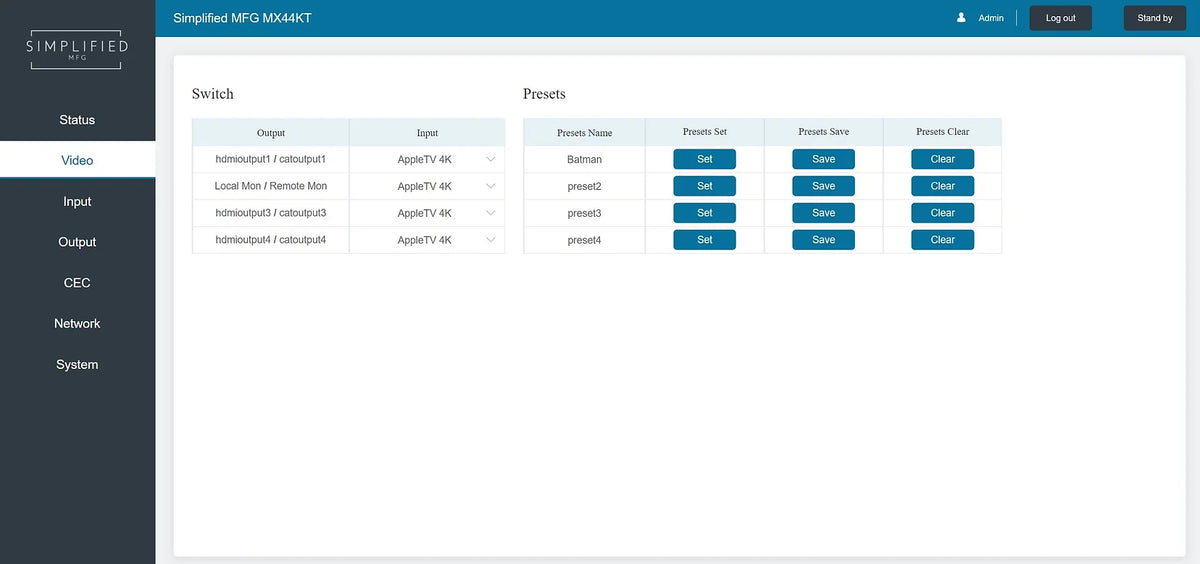

Support smart EDID management with live function via innovative web GUI
Specifications
| HDMI Compliance | HDMI 2.0b (18Gbps) |
| HDCP Compliance | HDCP2.2 |
| Video Resolution | Up to 4Kx2K 50/60Hz 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth | 8/10/12 Bit |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/Atmos, Dolby True HD, DTS, DTS-X, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDR Formats | HDR/HDR10/HDR10+/DolbyVision/HLG (DolbyVision on HDMI output only |
| Transmission distance | 232ft/70m @1080p / 165ft/50m @4K |
| IR | 12V |
| IR Frequency | Wideband 20KHz ~ 60KHz |
| Weight | Matrix 915g (2lbs ) / RX 155g (5.5oz) |
| Chassis Material | Metal |
| Matrix Dimensions | 320mm [12.6”] (W) × 100mm [3.9”] (D) × 36mm 1.42”] (H) |
| RX Dimensions | 61mm [2.4”] (W) x 88mm [3.5”] (D) x 18mm [0.7”] (H) |
| Power Consumption | 19.68W Max |
| Operating Temperature | 0 ºC~40 ºC/32 ºF~104 ºF |
| Storage Temperature | −20 ºC~60 ºC/−4 ºF~140 ºF |
| Relative Humidity | 20~90 % RH (non-condensing) |
