Description
Product Details
The REX2.1 is a compact 4K (24/25/30Hz.)/1080p (60Hz.) HDMI Extender kit over single Cat6A/6* cable (50m/164ft. @4k and 70m/230ft. @1080p)
The REX2.1 is a HDMI/ HDCP 1.4 Extender over Single Cat5e/6* with IR extends high definition Audio/Video signals and IR, at a distance of up to 70m/230ft @1080p and 50m/164ft @4K (24/25/30Hz., HDCP 1.4 Only) over a single Cat5e/6* cable. The REX2.1 is small, and robust. The 10.2Gbps capability makes it a very reliable and powerful 1080p extender with the added benefit of supporting some 4K signals. In addition, the extender is also equipped with IR pass-through which allows for source control.

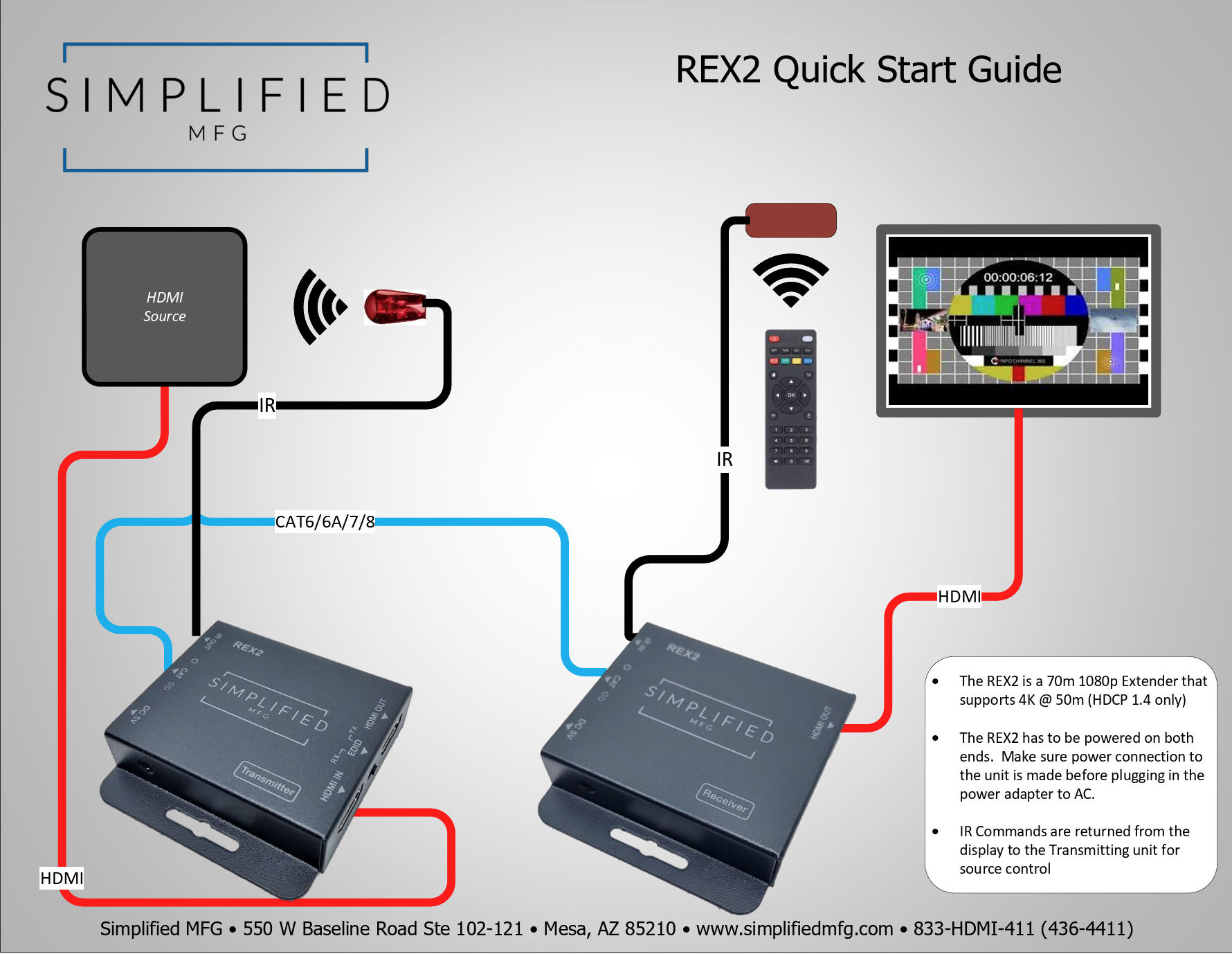

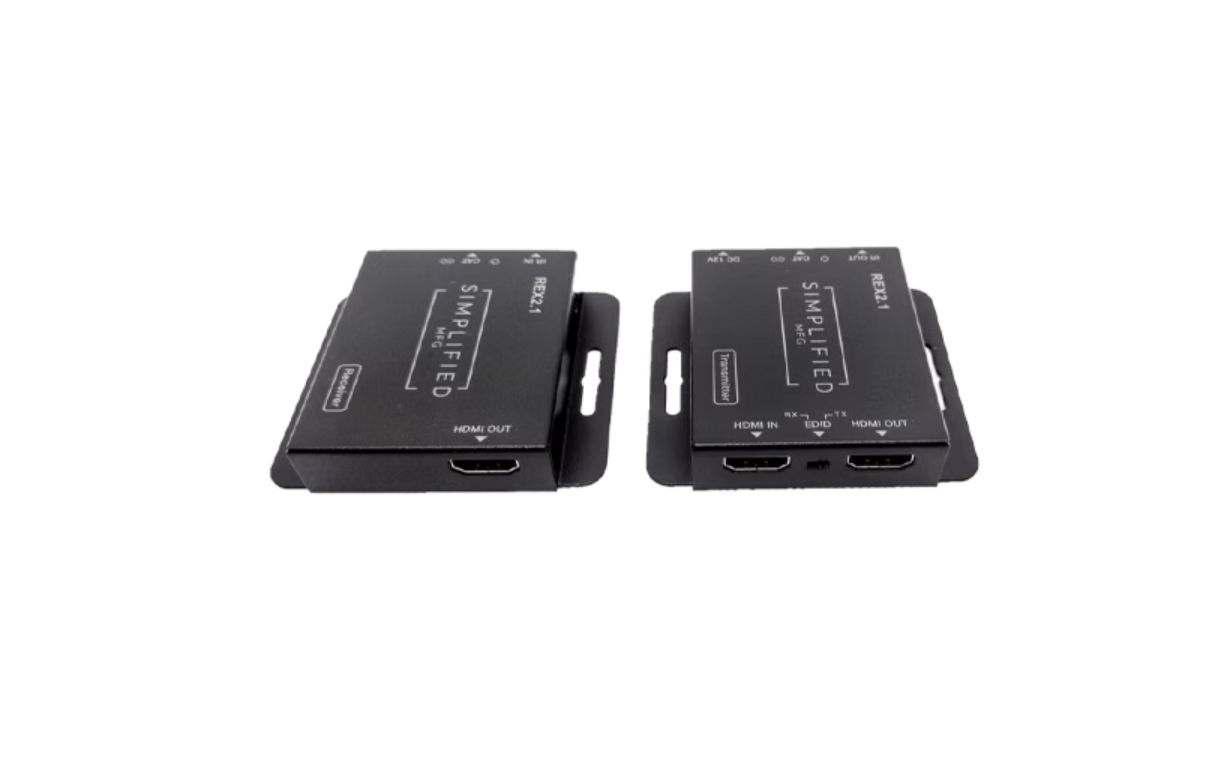

The REX2.1 extender includes two units: a transmitting unit and a receiving unit. The transmitting unit is used to capture the HDMI input with IR carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for decoding the transmitted HDMI signal. The extender cost effective HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for Set top boxes, live performance and/or security cameras.
*Cat5e may be used, but some loss of distance may occur.
Features
• HDMI 1.4b (10.2Gbps)
• HDCP 1.4 and DVI compliant
• Video resolutions up to 4K2K@24/25/30Hz (YUV444)
• CEC Pass-Thru
• HDMI loop out (can be used to manipulate EDID or to a local display)
• EDID management
• IR Return for RX to TX (kit included)
• Compact design for easy placement
• Supports up to 7.1 digital audio
• 3-Year warranty
