Description
Product Details

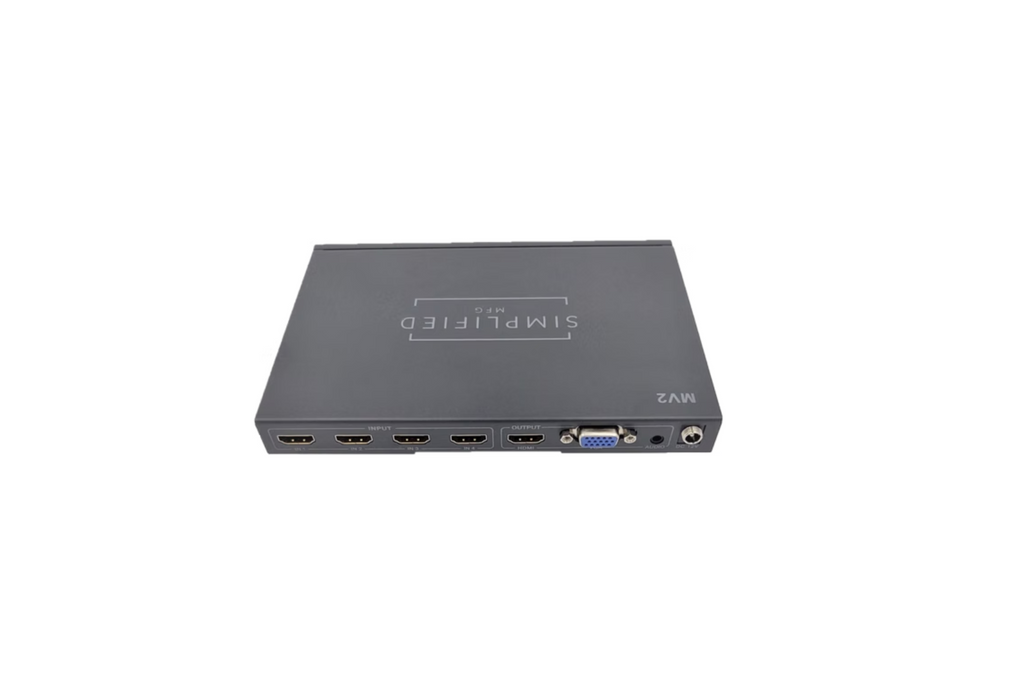

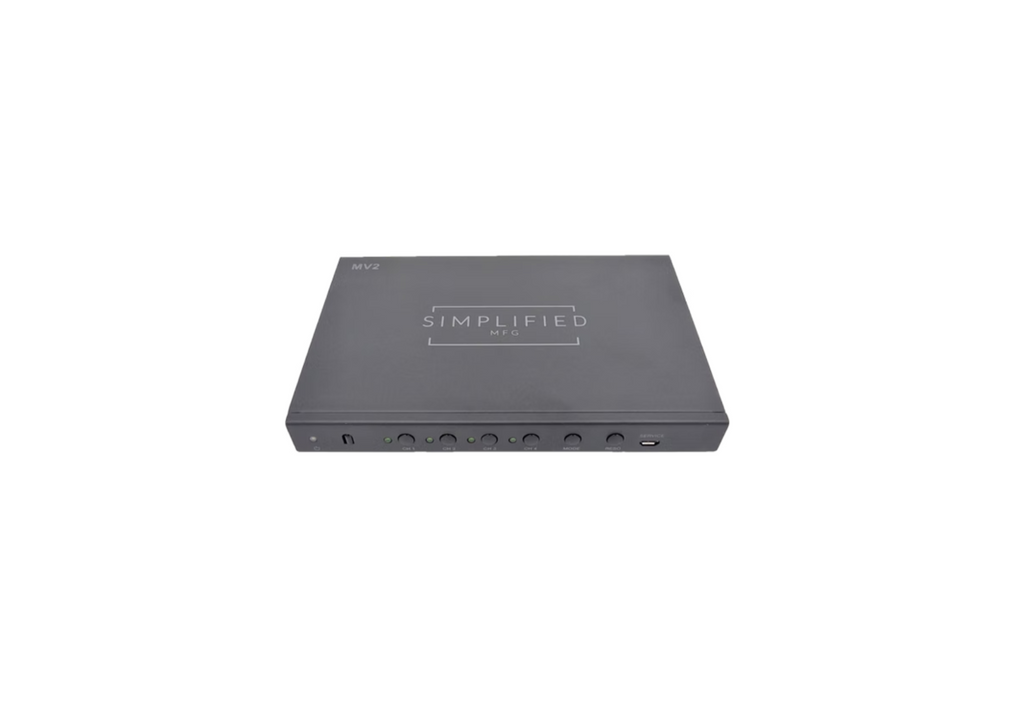

The MV2 is a 4 input, single multiview output device that will accept four inputs and scale them to a Side by Side, Quad, or Collaboration view in 4K @ 30Hz/1080p/720p resolutions. This device can also be used as a instant 1080p/4k 30Hz. switch.
This is a perfect device for collaboration in a boardroom or classroom setting as well as sports bars. Because of the instant switching, it's also ideal for live events such as presentations, education, and houses of worship. The MV2 can be controlled via IR Remote control and front panel buttons.
Features
• HDMI1.4 / HDCP1.4 Compliant
• Supports multiplexed HDMI 4-input and 1-output
• Selectable output resolutions;(3840x2160@30Hz, 1920x1080@50/60 Hz, 1280x720@50/60Hz, 1920x1200@60Hz, 1024x768@60Hz)
• Single, Side by side, Quad ,& 2 versions of Collaboration format
• Seamless switching
• Up and Down Scaling
• Multiple Output Resolutions up to 4K @ 30Hz
• VGA Output (up to 1080p)
• Great for a "set and forget" quad feed into a matrix
• Manual and IR control options
• Manual, IR, RS232, and IP Control Options
• 3 Year Warranty
Downloads
