Description

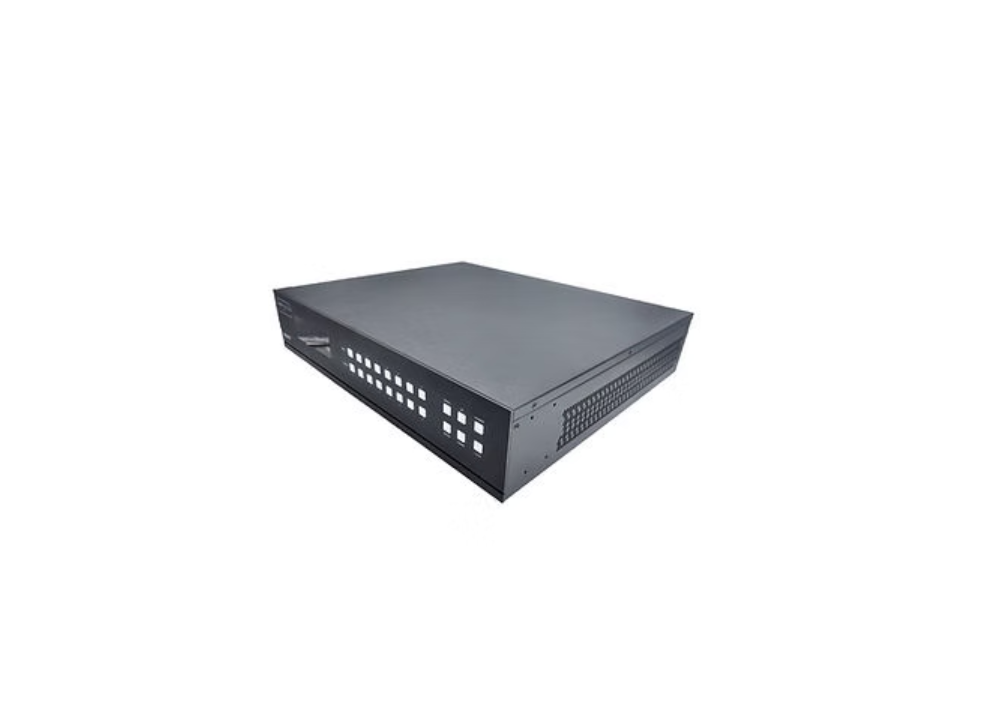

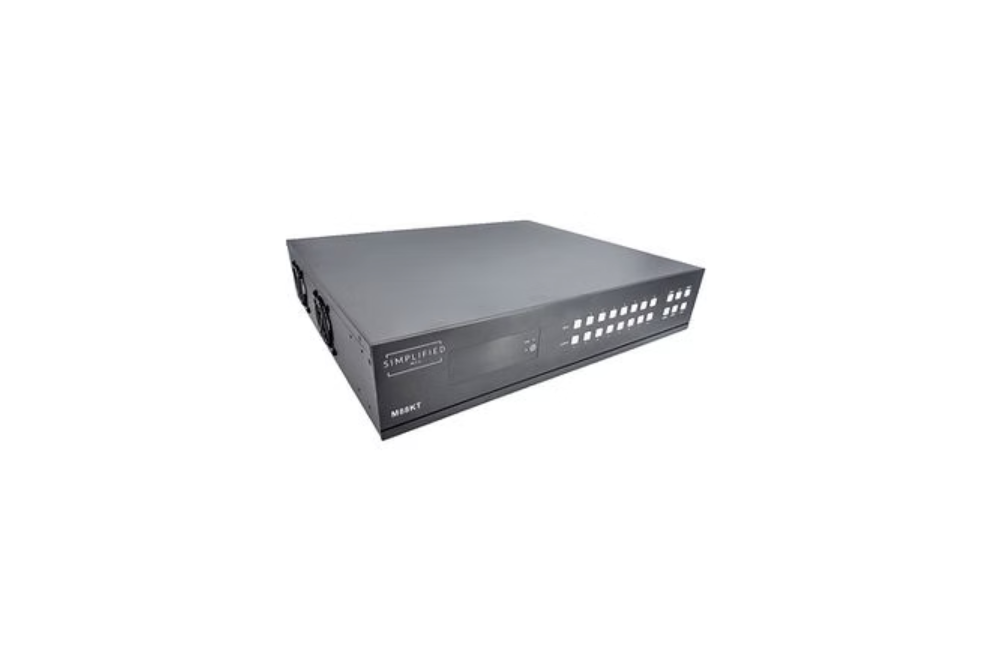

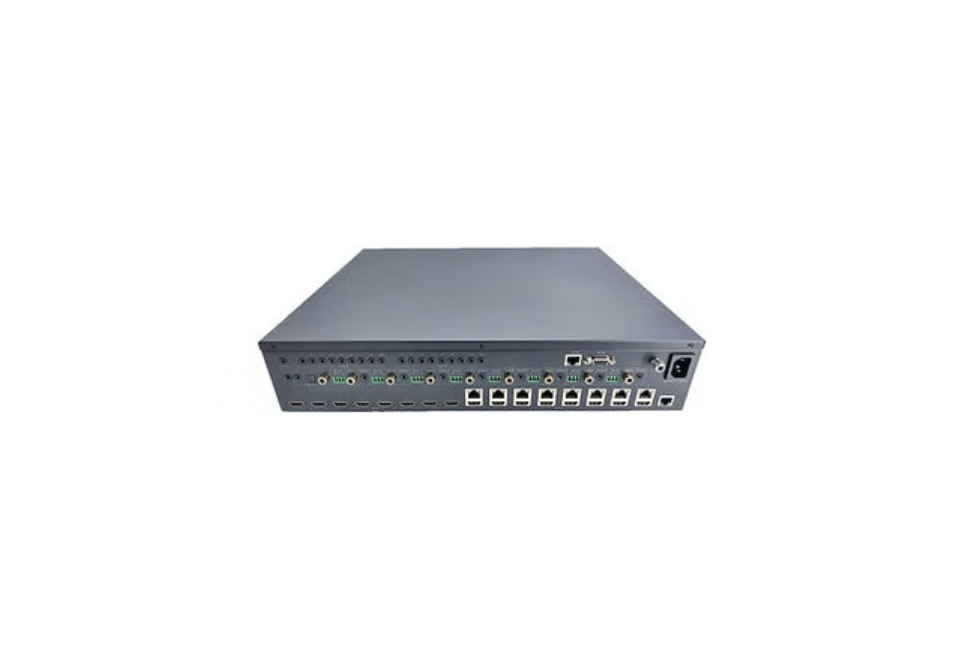

Simplified M88KT 8x8 HDMI 2.0b (18Gbps) Scaling Matrix Kit with 8 RX Devices
Product Details:
The M88KT HDMI Matrix kit features eight HDMI inputs, 8 x 18gbps Scaling HDBaseT outputs (90m @ 4K RX devices included), and 8 Scaling HDMI outputs. The HDMI and HDBaseT outputs can scale independently of each other. The RX devices support ARC, RS232, 2-Way IR, and a two port Ethernet Switch. It provides true matrix routing for HDMI signals. It supports transmission of video (resolutions up to 2160p@60Hz Ultra HD 4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos and DTS-HD Master Audio. The M88KT will also pass HDR8/10/10+ High Dynamic Range information as well as Dolby Vision. Each output can be set to scale independently of the other. Audio can be assigned and routed independently as well.
Features:
- HDMI2.0, HDCP2.2/HDCP1.4 compliant
-
Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0
-
Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats
-
100m 1080p transmission via Category 6 cable, 70m 4K transmission via Category 6 cable
-
Audio Routing including ARC return from display
-
Supports HDR8/10/10+ and Dolby Vision
-
Supports high resolution VESA mode video formats up to QSXGA@60Hz
-
Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats
-
Simultaneous HDMI, Coax (SPDIF), and L/R outputs
-
Smart EDID management
-
Control of the M88KT can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control)
-
3 Year Warranty
