Simplified HDMI Audio Extractor With Downmix

SimplifiedSKU: DAC1

Price:

Login to see pricing

MSRP:
$179.99
Stock:
5 available

Description

Product Details

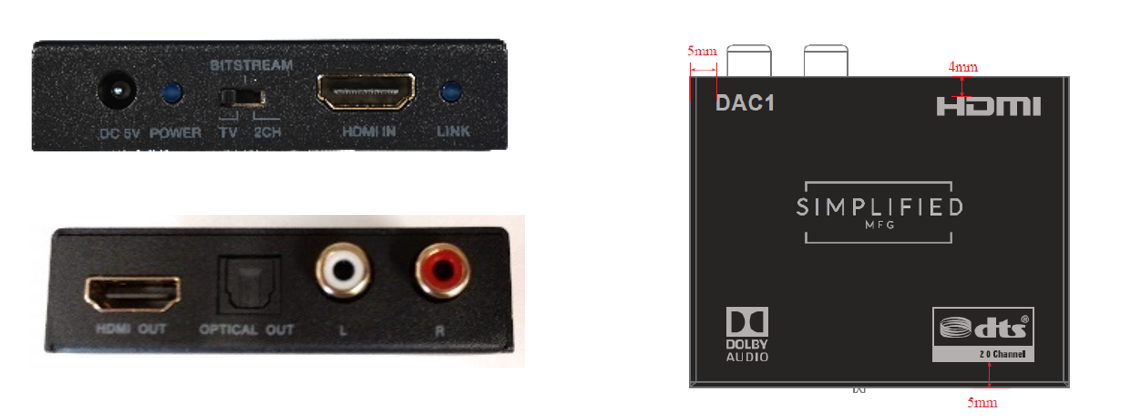

The DAC1 Audio Extractor extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. The DAC1 also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio passthrough. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR passthrough and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and ECE bypass are supported.

Features & Benefits

  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
  • Video resolutions up to 4K2K@50/60Hz (YUV444)
  • Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
  • Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
  • Supports HDMI High Bit Rate(HBR) audio pass through
  • Audio sample rates up to 192kHz
  • HDR10+, and DolbyVision™ (High Dynamic Range) pass through
  • Supports CEC bypass
  • 3-Year Warranty

Specifications

Technical
HDMI Compliance   HDMI 2.0b
HDCP Compliance   HDCP 2.2 and HDCP 1.4
Video Bandwidth   594KHz (18gbps)
Video Resolutions   up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space   RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth   8-bit, 10-bit, & 12-bit
HDMI Audio Formats (Pass-through)   LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, & Dolby Digital+
Optical Audio Formats   LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
L/R Audio Formats   Analog Stereo 2CH
ESD Protection

Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

Connections
Inputs  1x HDMI Type A [19-pin female]
Outputs  1x HDMI Type A [19-pin female]
  2x L/R Audio Out RCA Connectors


1x Optical Out [S/PDIF]

Mechanical
Housing  Metal Enclosure
Color  Black
Dimensions  73.5mm/2.9" [W] x 60.7mm/2.4" [D] x 17mm/0.67" [H]
Weight  130g/4.6 oz.
Power Supply Input   AC100 - 240V 50/60Hz
Power Supply Output   DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption   1W (Max)
Operation Temperature   32 - 104°F / 0 - 40°C
Storage temperature   -4 - 140°F / -20 - 60°C
Relative Humidity   20 - 90% RH (no condensation)
