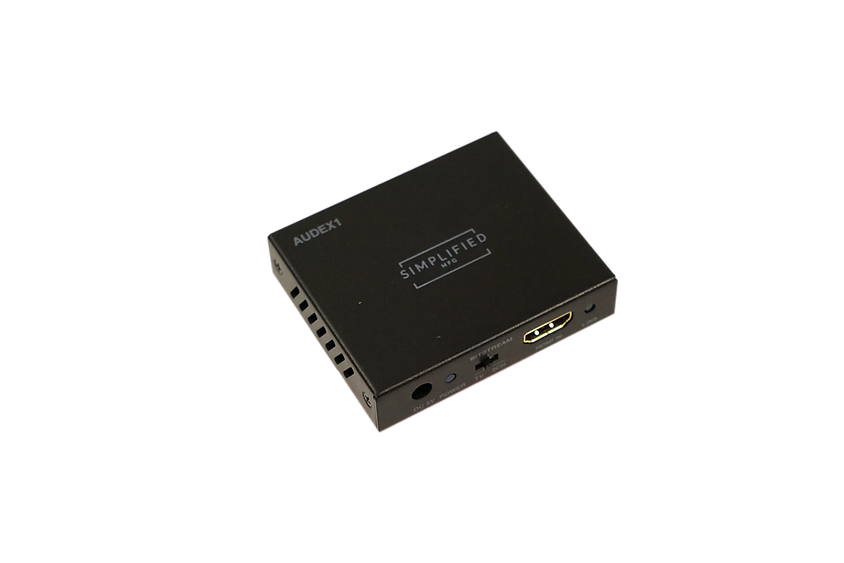

Simplified AUDEX1 HDMI Audio Extractor
Product Details
The AUDEX1 HDMI audio extractor extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R outputs. Both input and output HDMI connections support video resolutions up to 4K2K@50/60Hz while supporting 10bit HDR pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD master audio. Audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
Features & Benefits
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
- Supports HDMI High Bit Rate(HBR) audio pass through
- Audio sample rates up to 192kHz
- HDR 10+, and DolbyVision™ (High Dynamic Range) pass through
- Supports CEC bypass
- 3-Year Warranty
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolutions | up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit, 10-bit, & 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| L/R Audio Formats | Analog Stereo 2CH |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
|---|---|

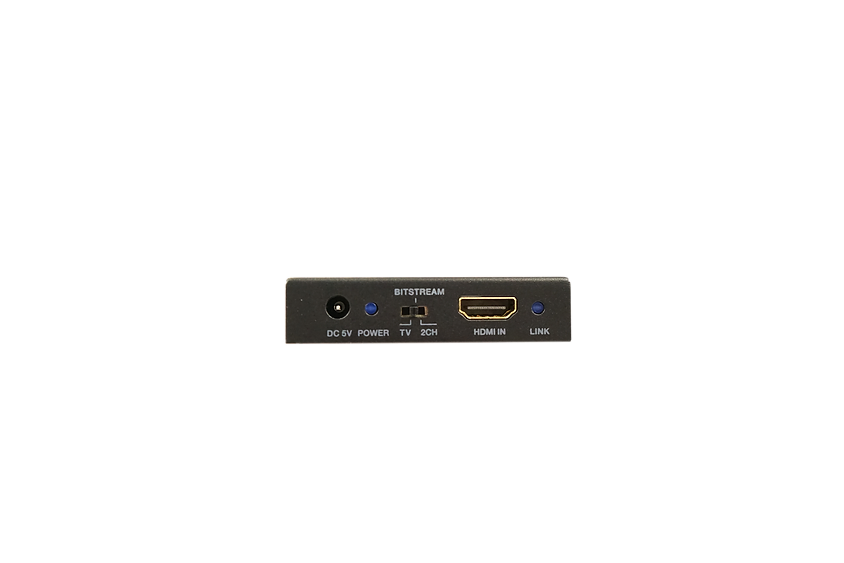

| Inputs | 1x HDMI Type A [19-pin female] |

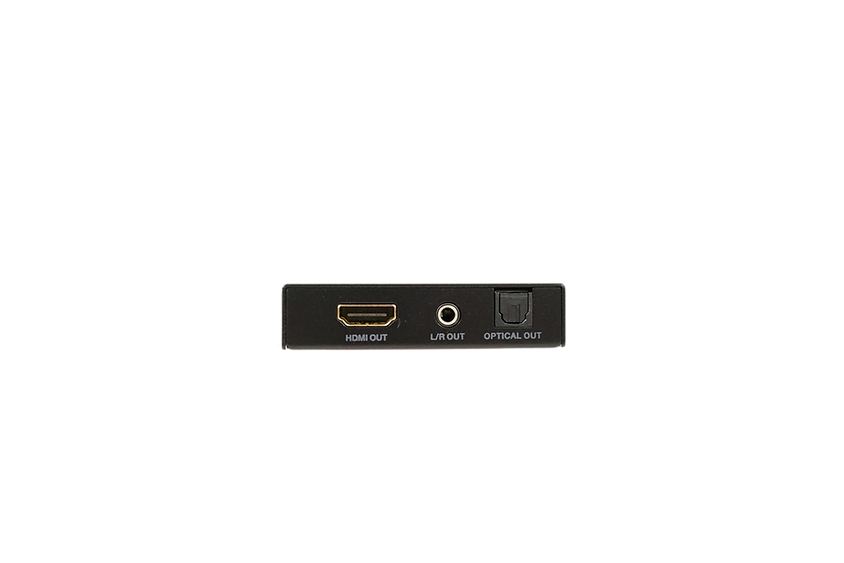

| Outputs | 1x HDMI Type A [19-pin female] |
| 1x L/R Audio Out [3.5mm Stereo Mini-jack] | |
| 1x Optical Out [S/PDIF] |
| Mechanical | |
|---|---|
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 73.5mm/2.9" [W] x 60.7mm/2.4" [D] x 17mm/0.67" [H] |
| Weight | 130g/4.6 oz. |
| Power Supply Input | AC100 - 240V 50/60Hz |
| Power Supply Output | DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 1W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Specifications subject to change.
