Product Details

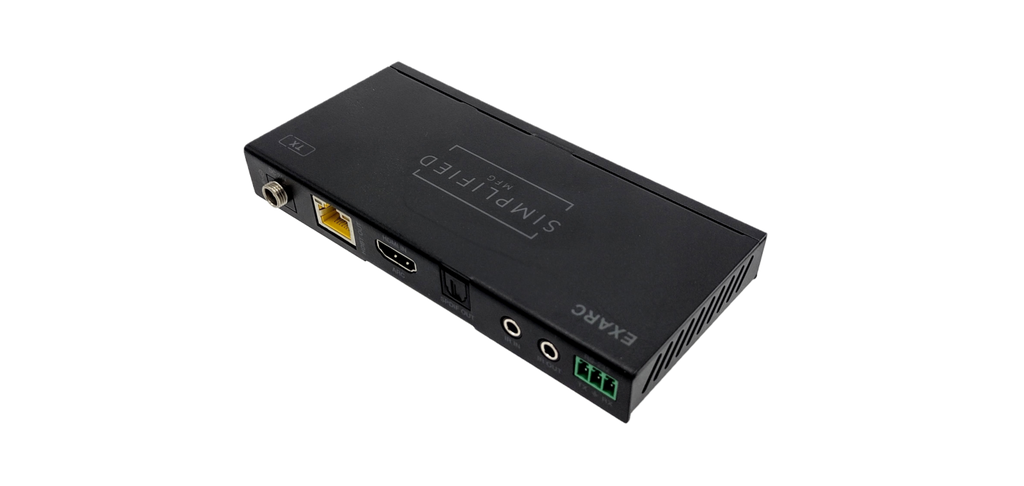

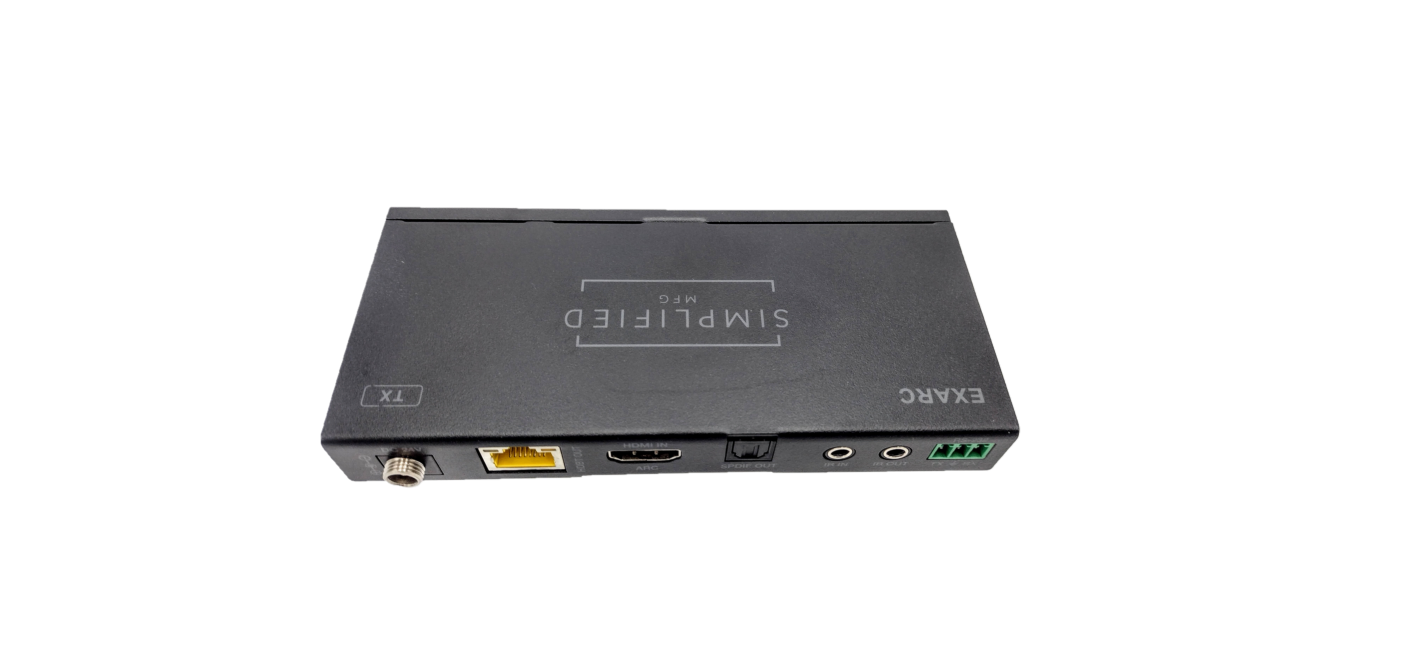

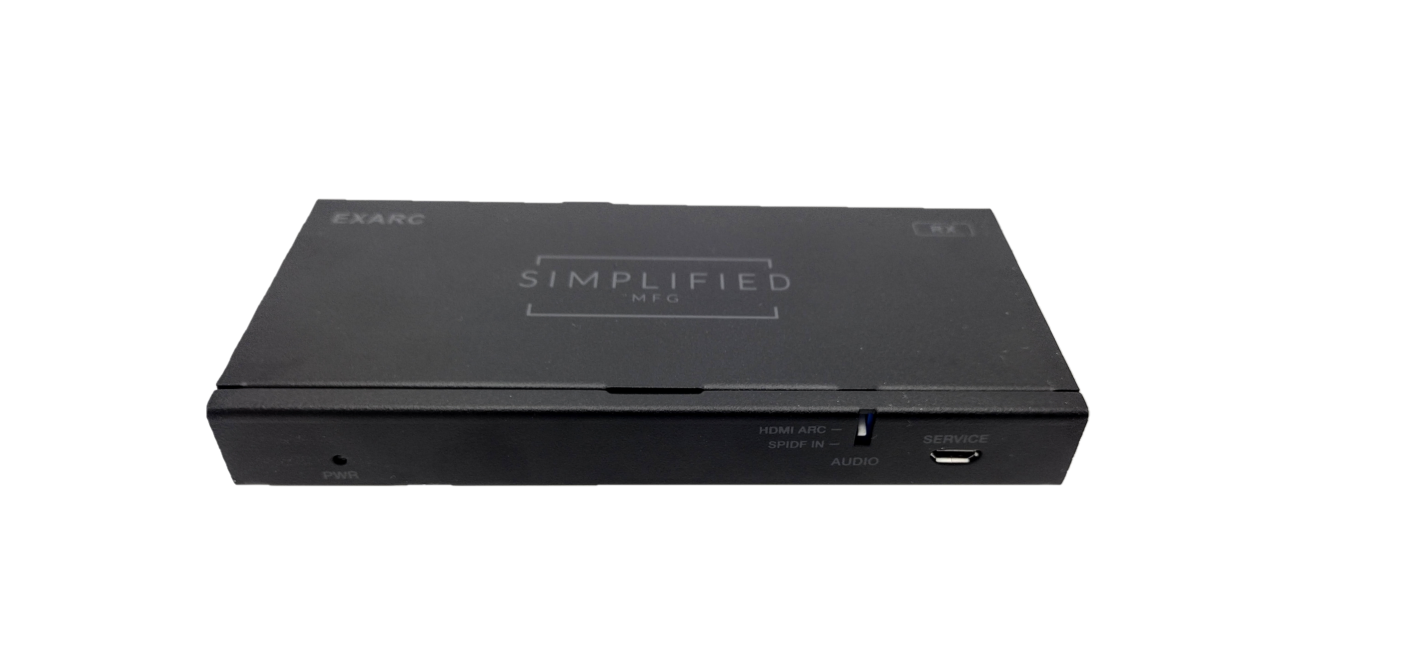

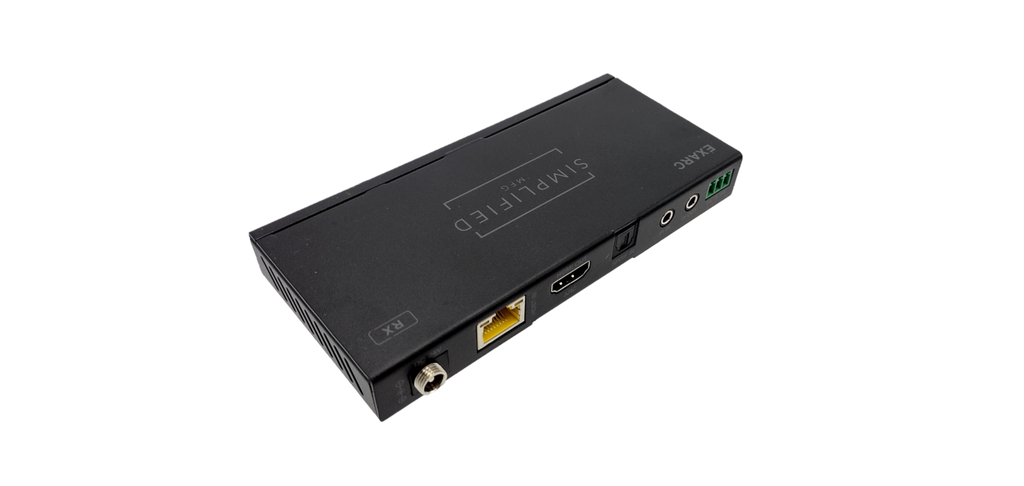

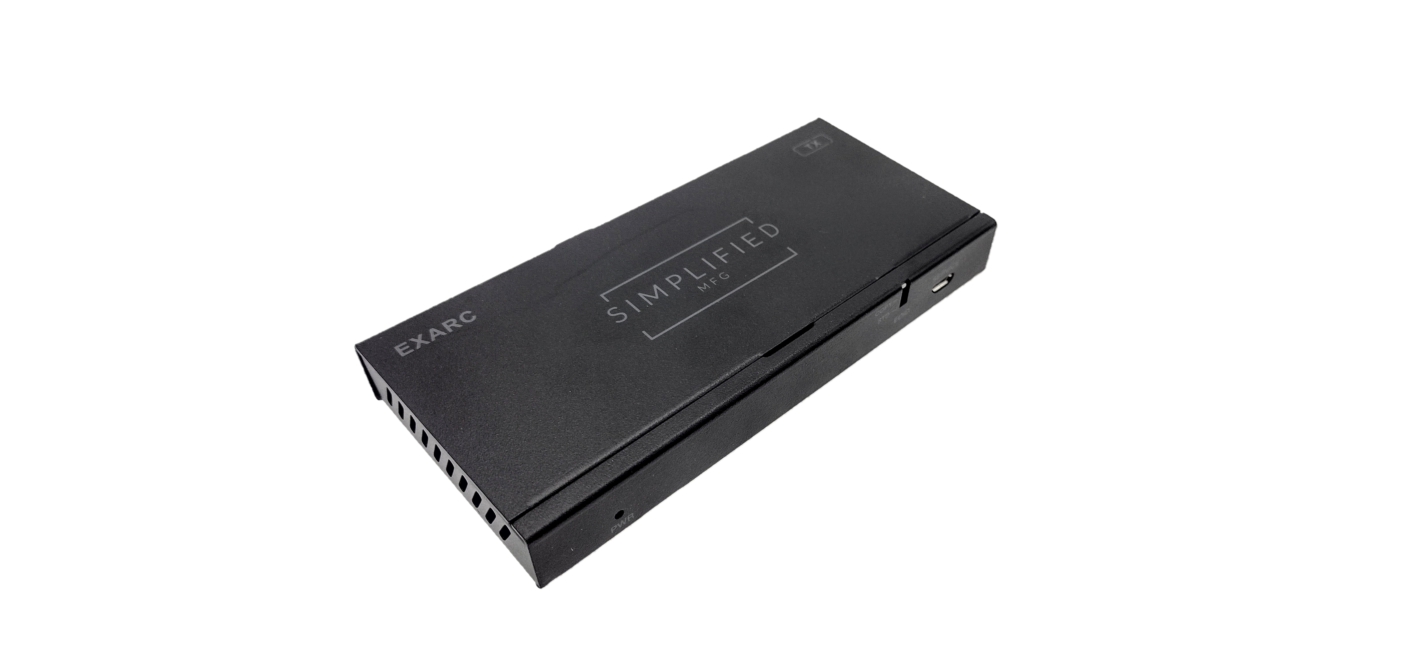

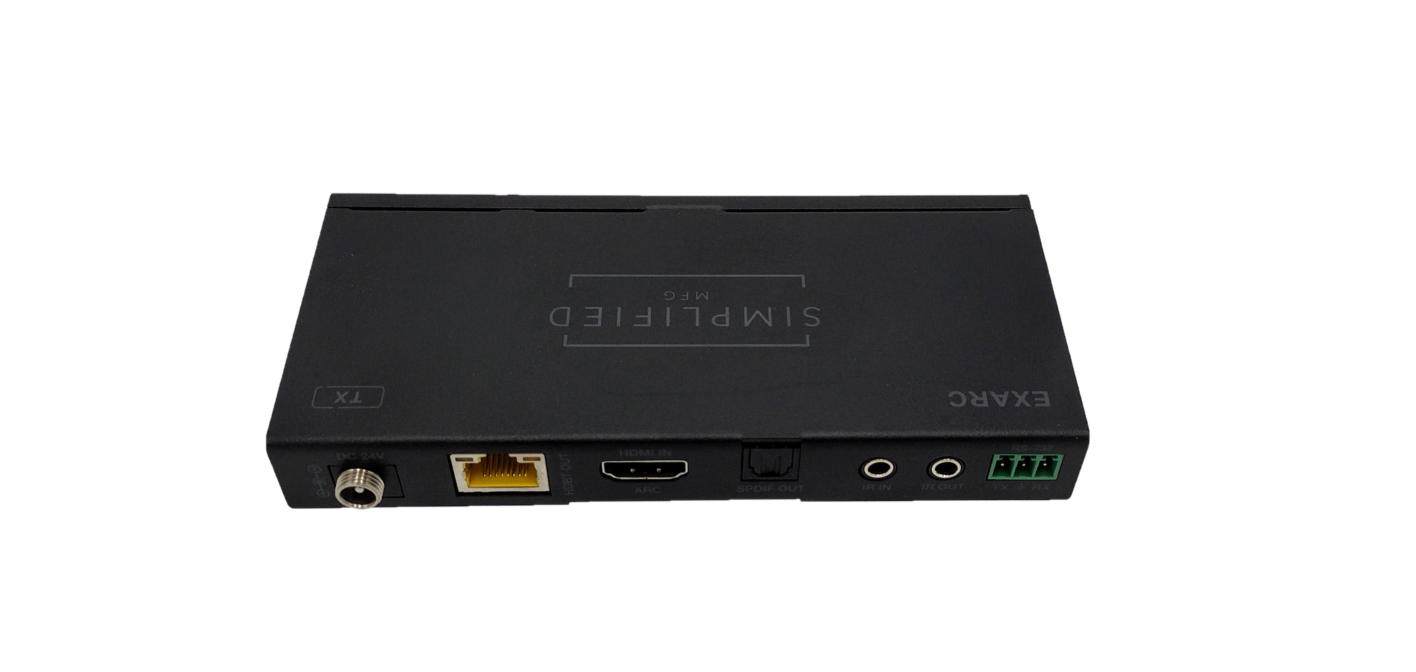

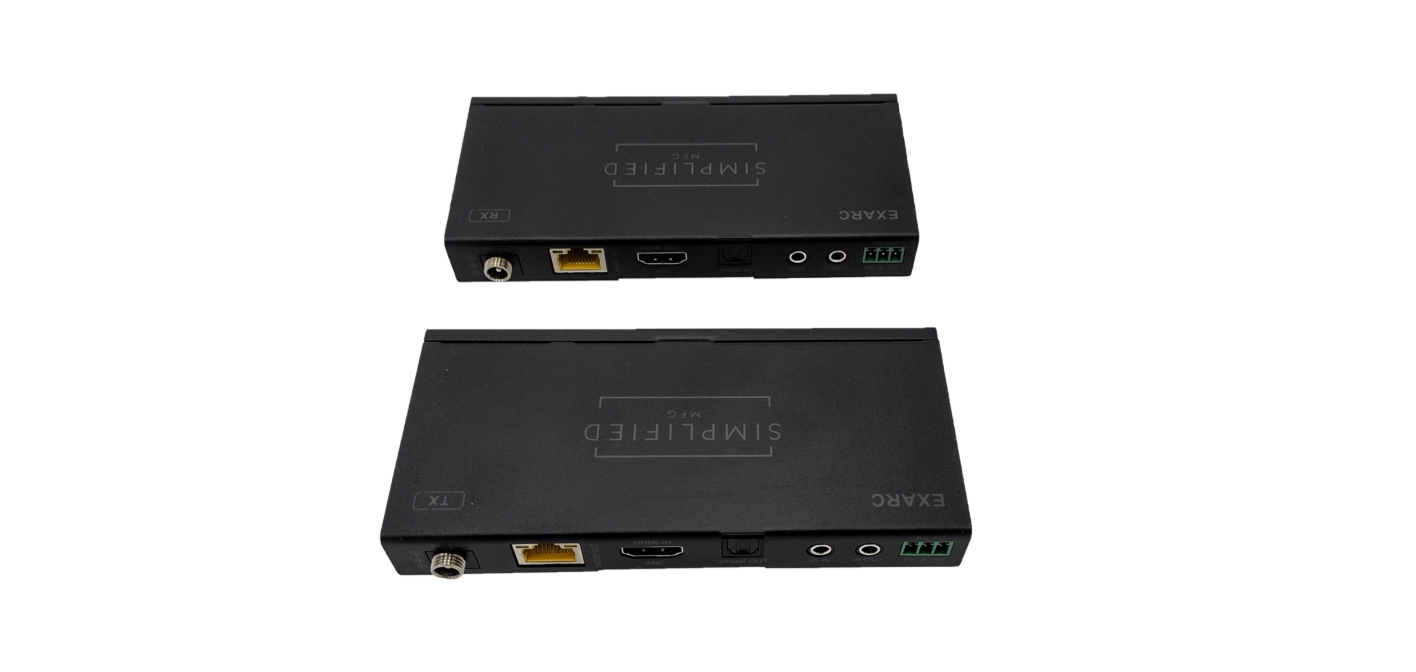

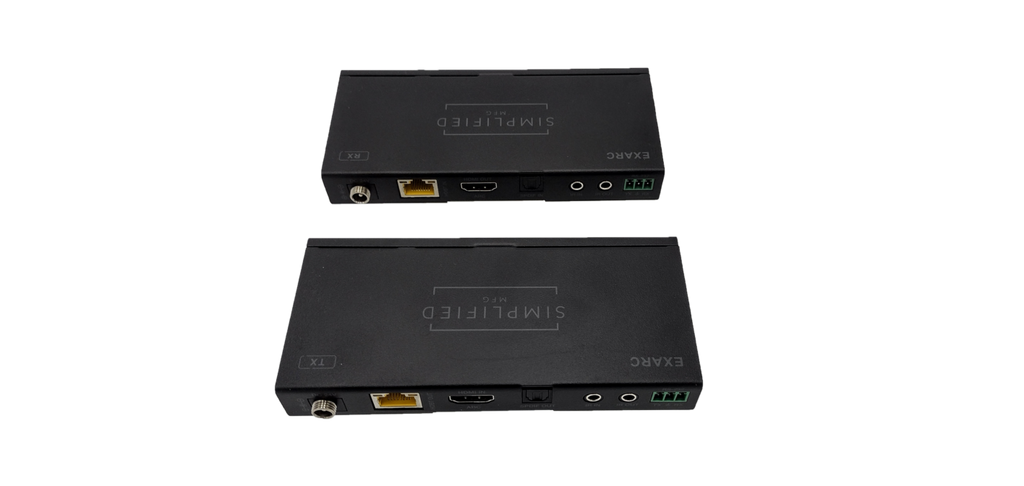

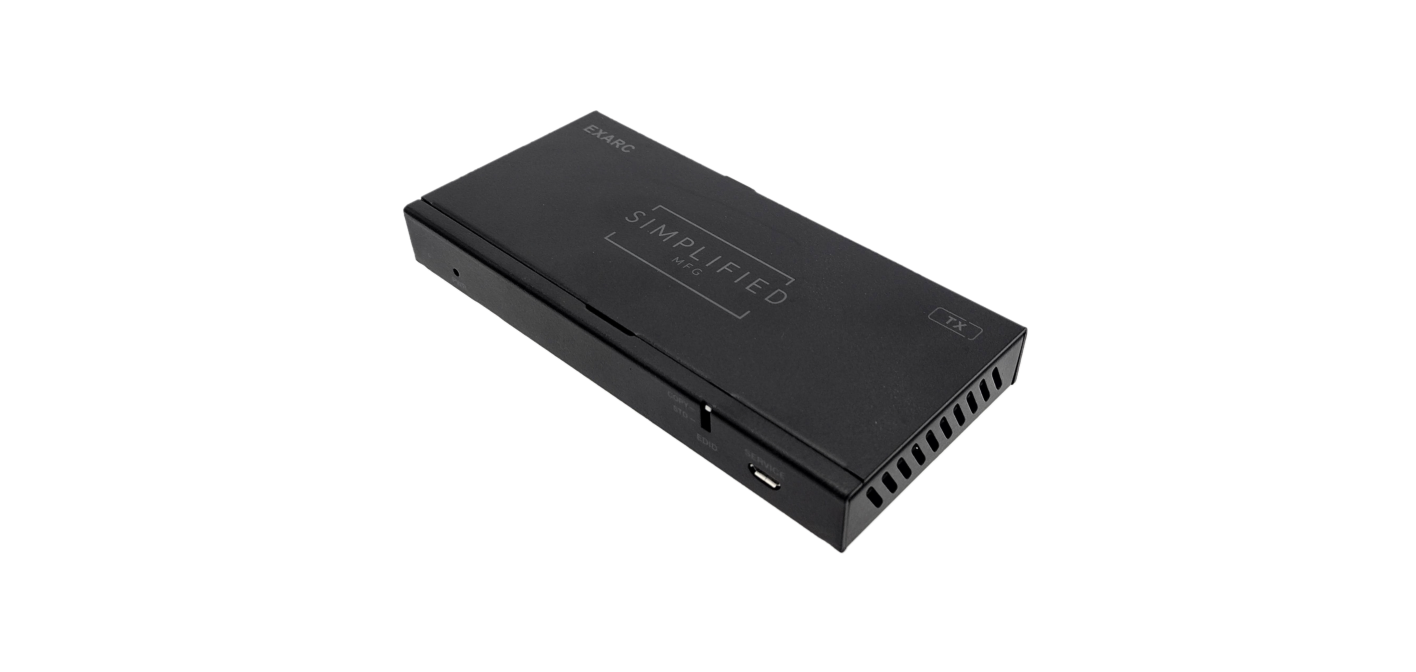

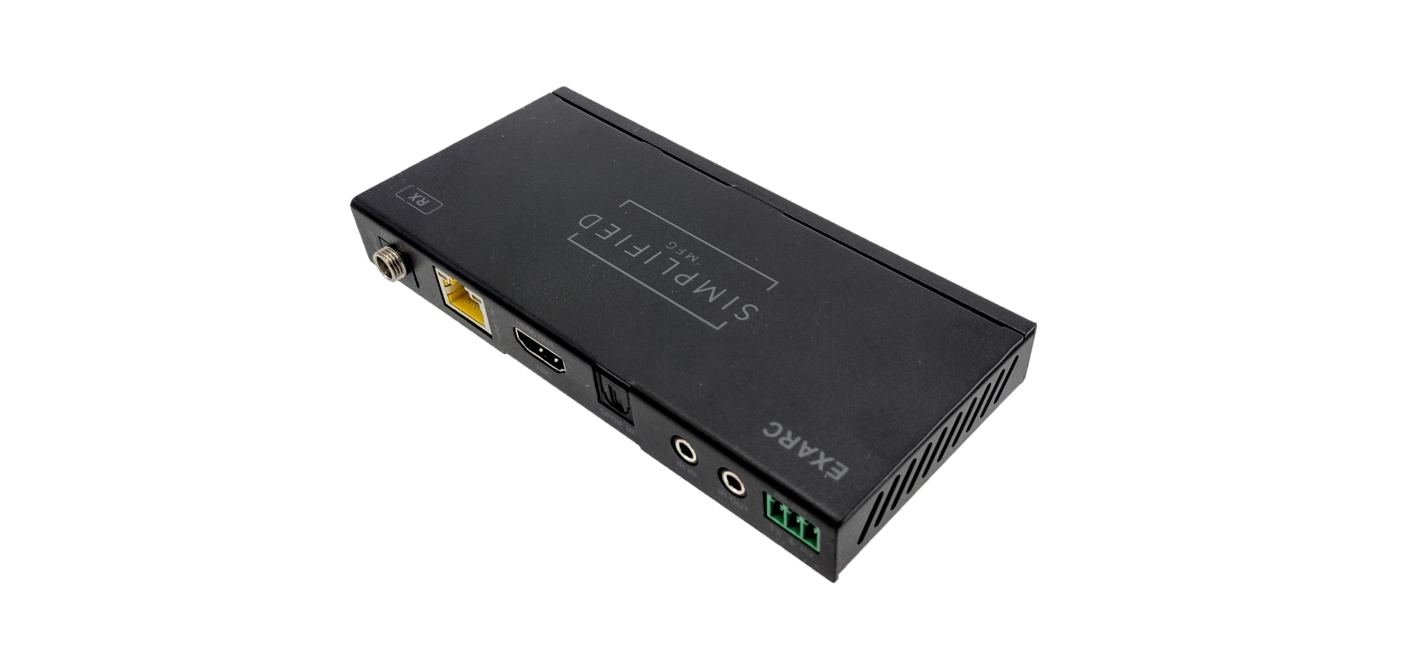

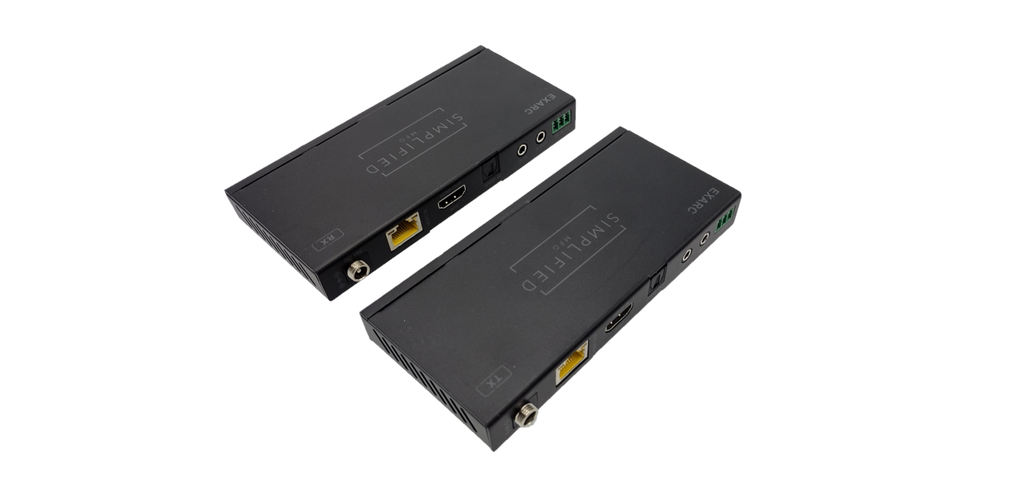

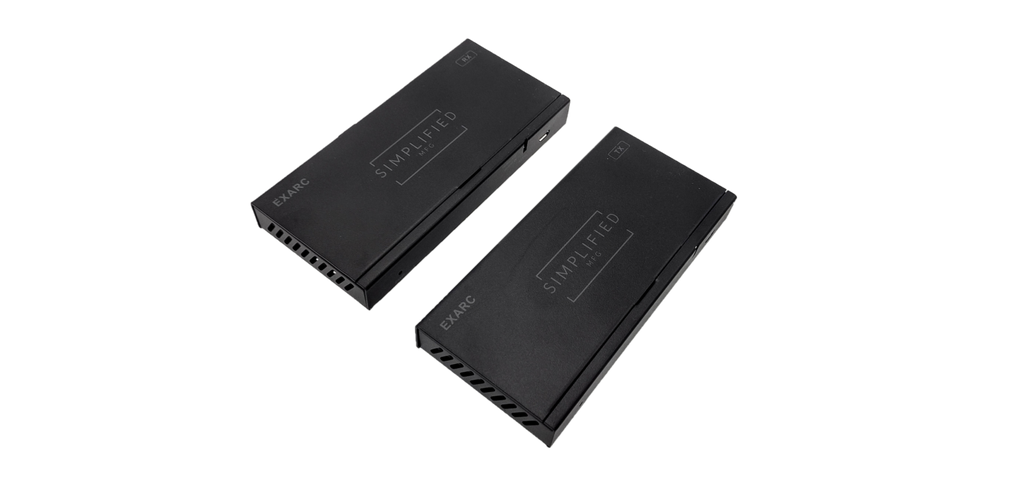

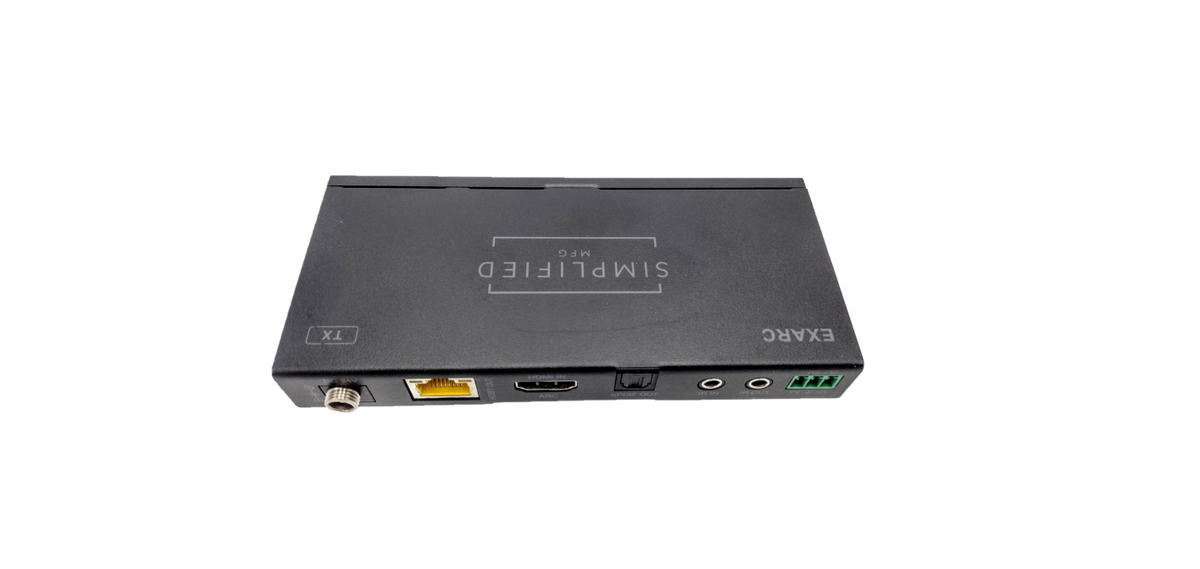

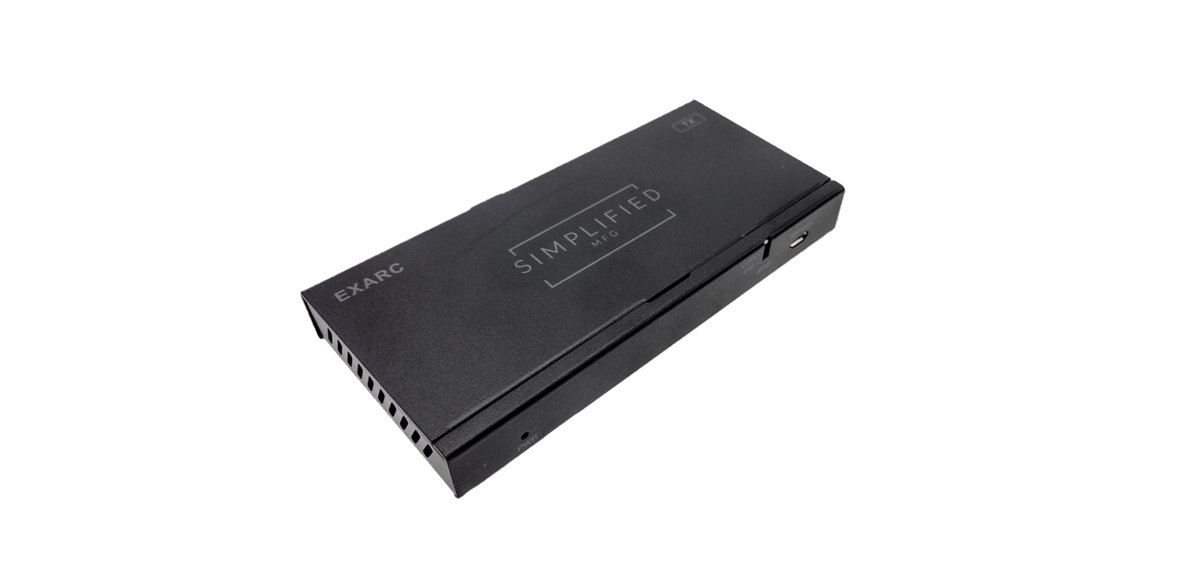

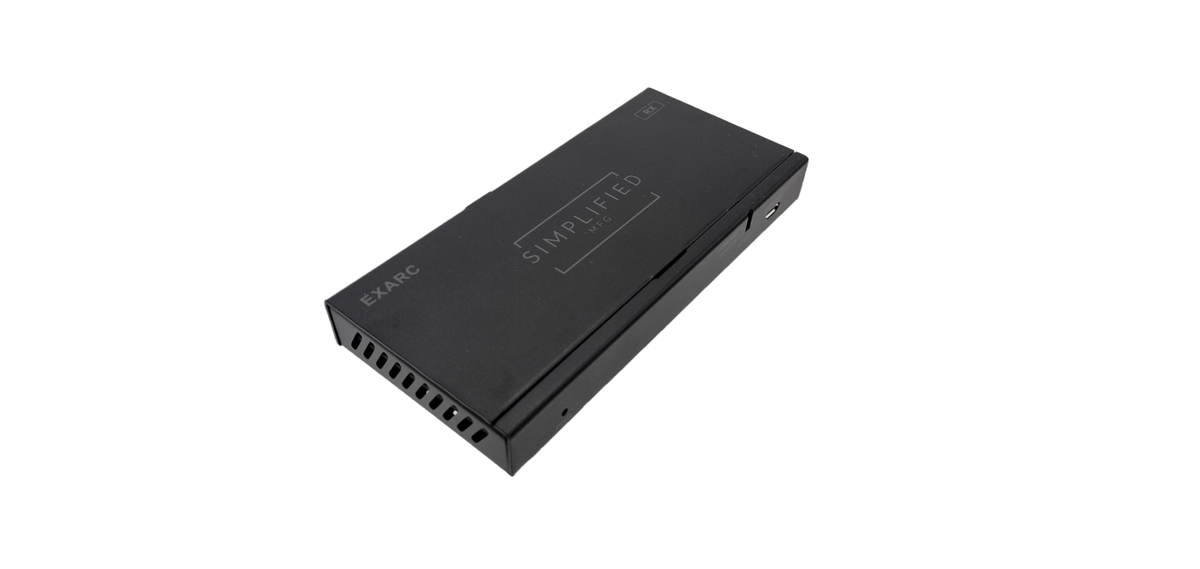

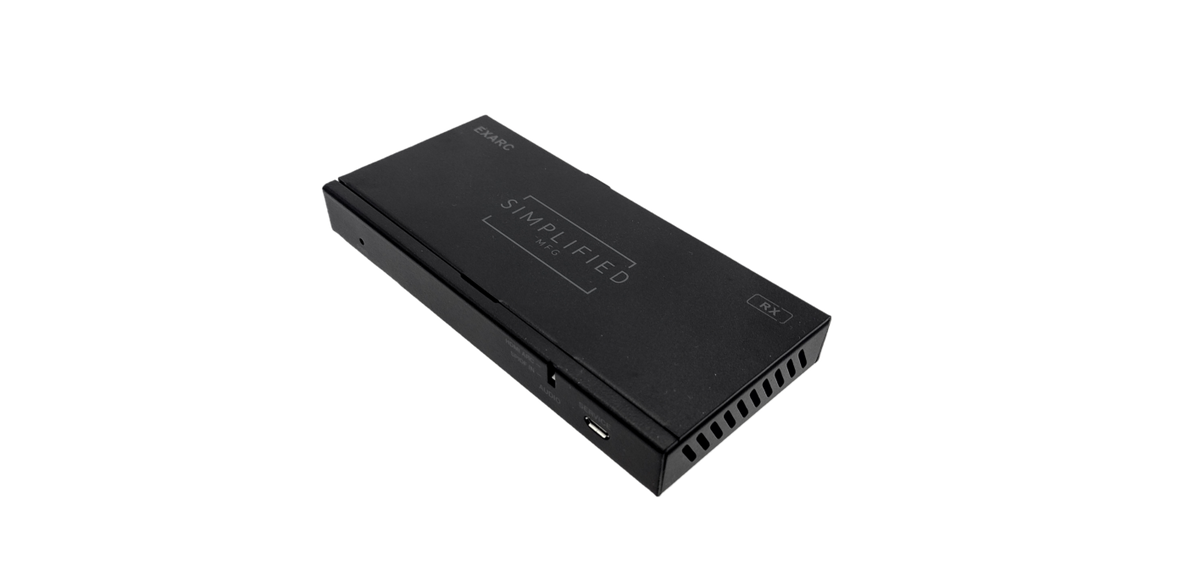

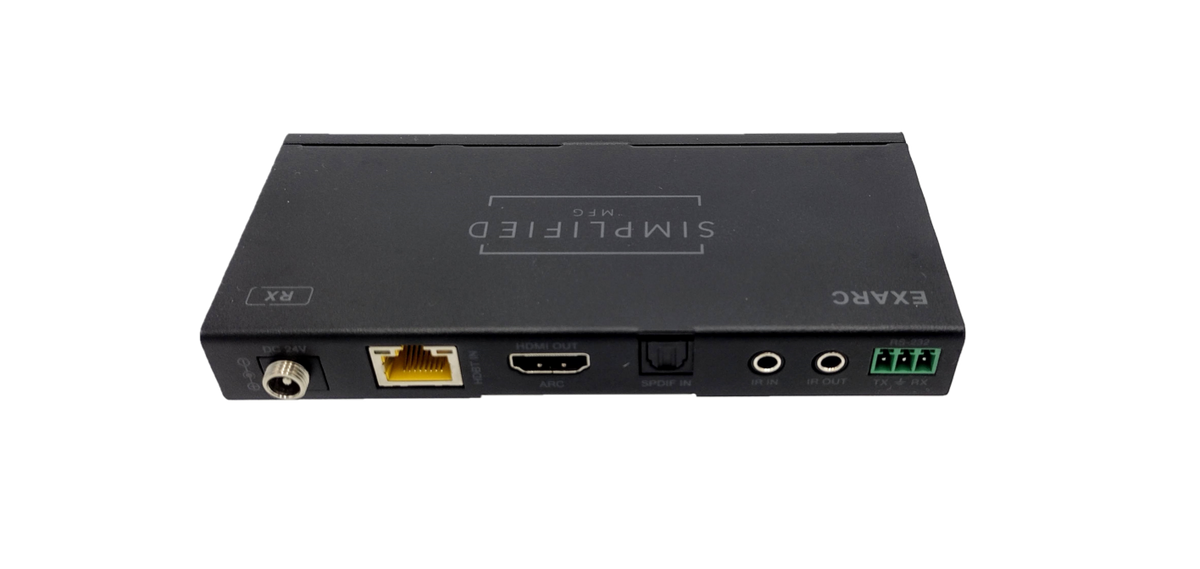

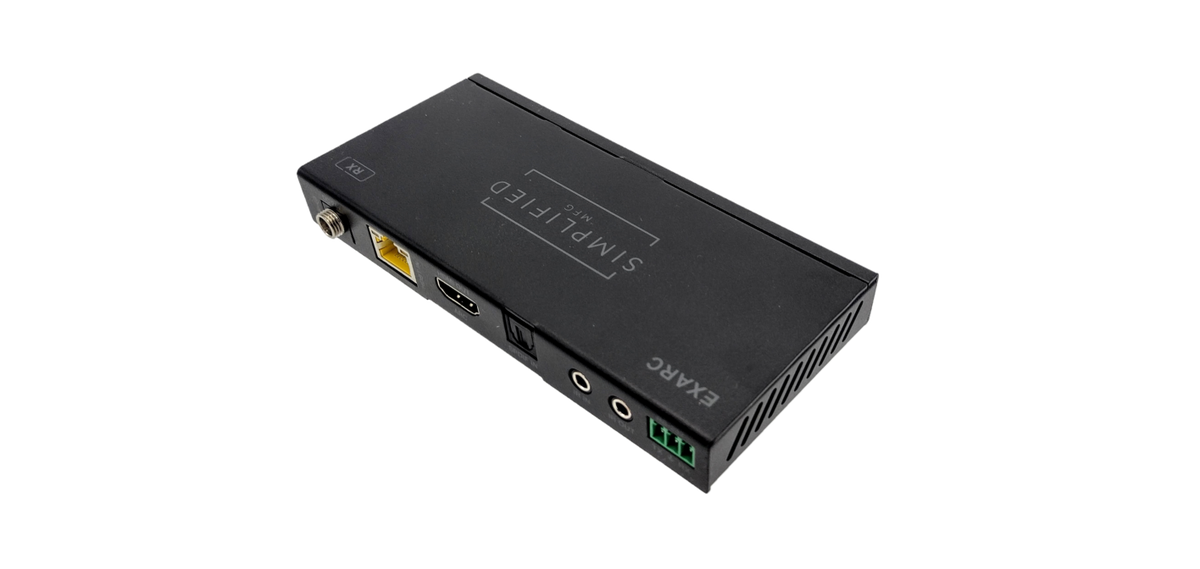

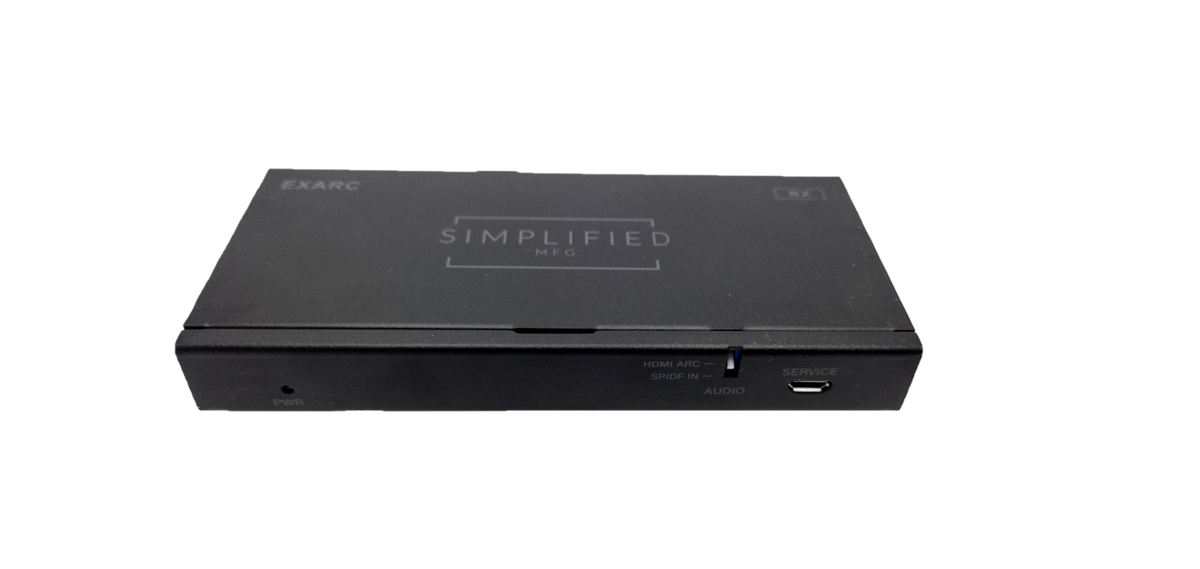

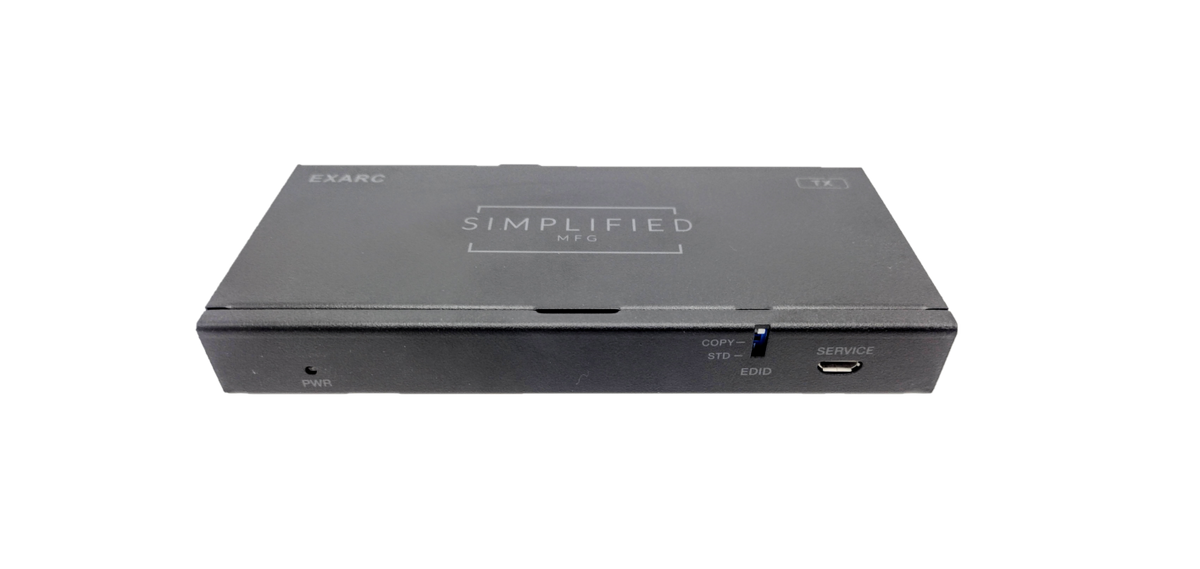

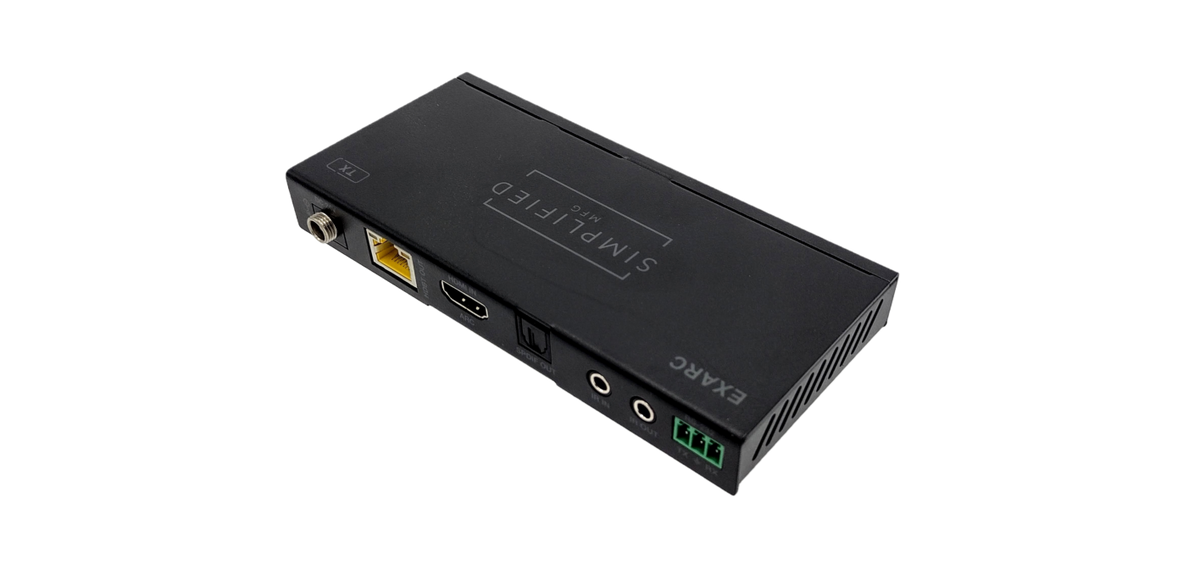

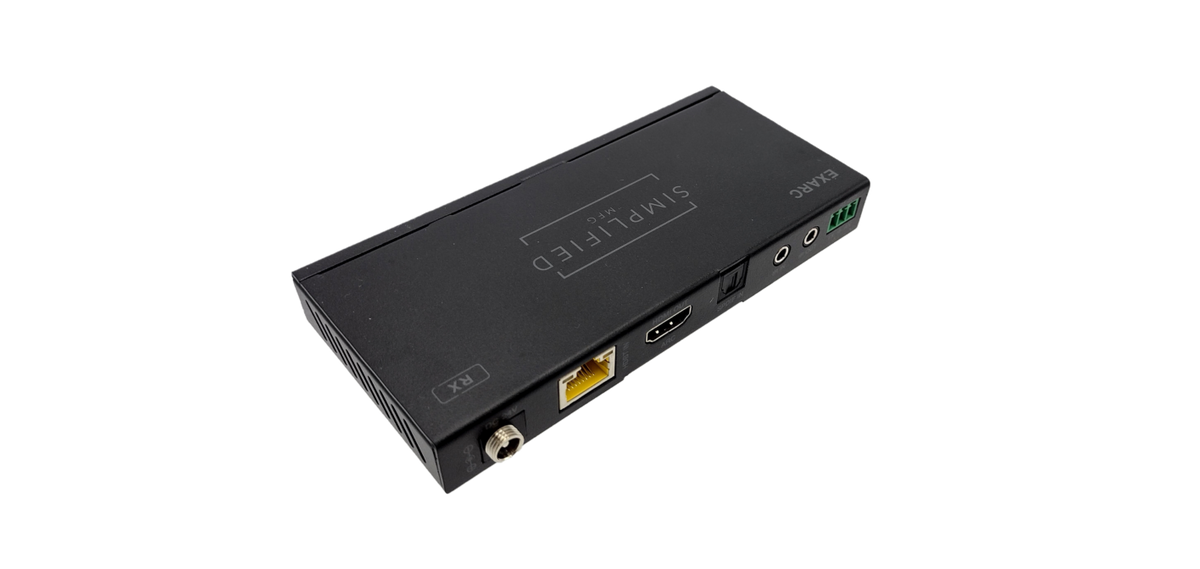

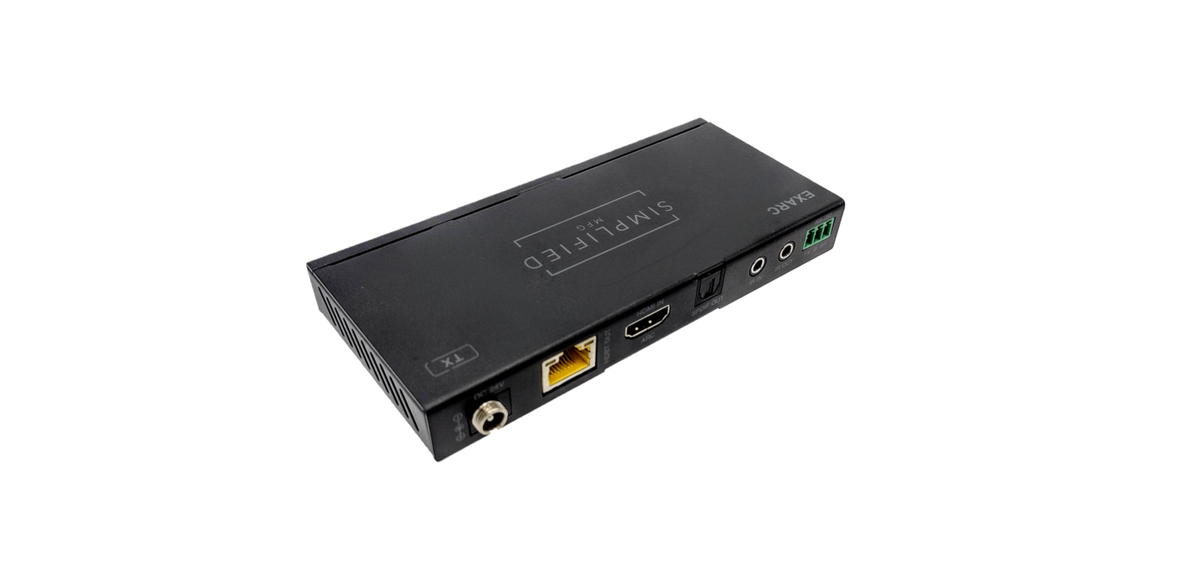

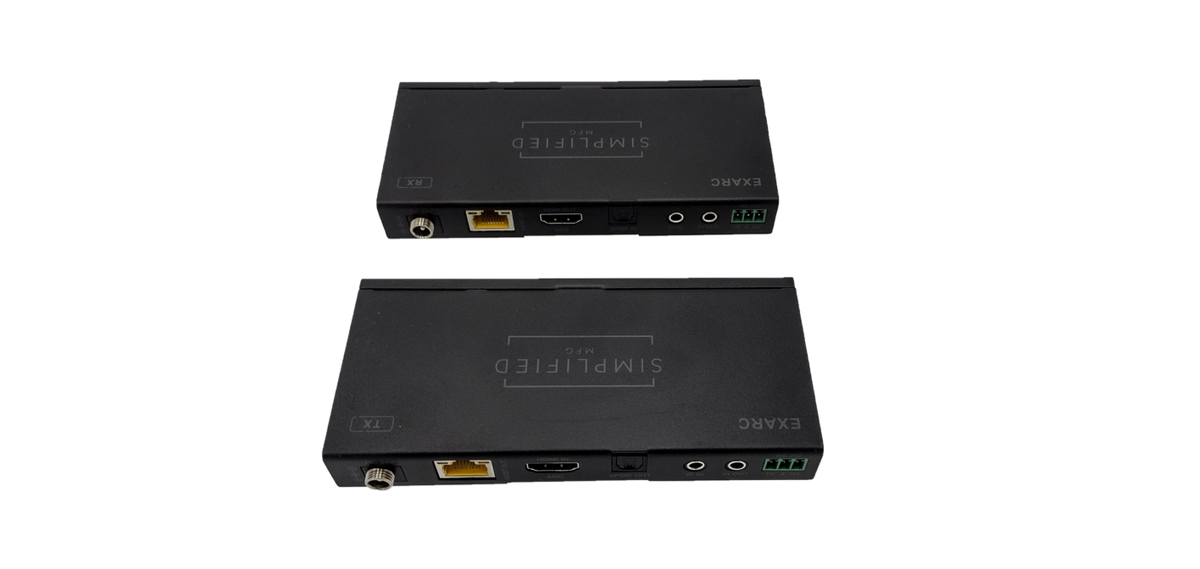

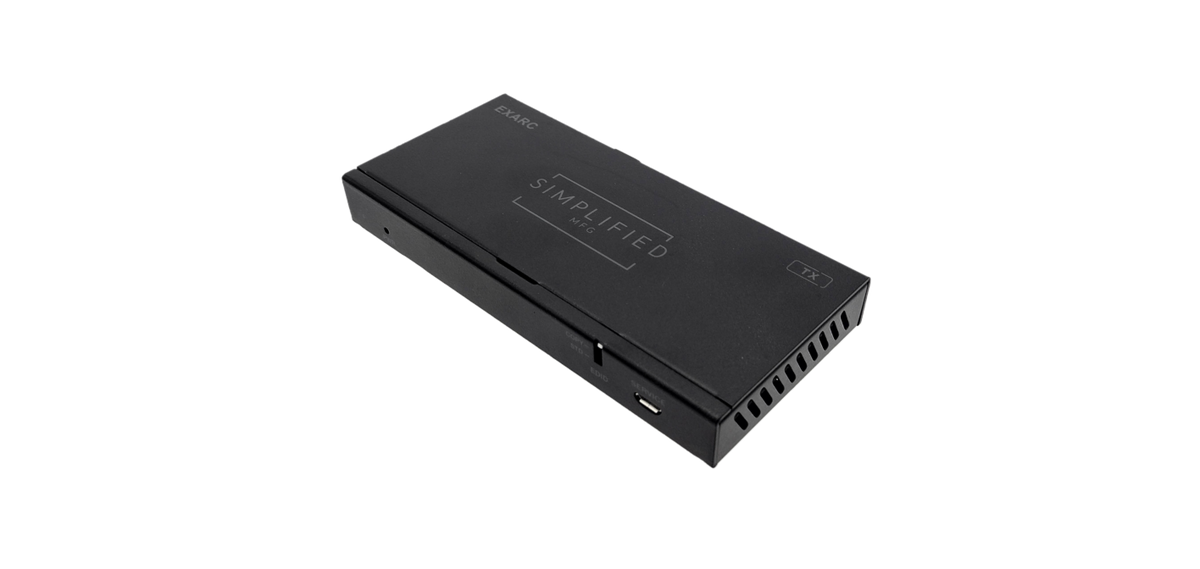

The EXARC 18Gbps HDMI Extender is a device which can extend your HDMI signal over 230t/70meters to a compatible 1080p display, 131ft/40meters to a HDMI 2.0b 18gbps compatible display. The EXARC supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. The multifunction ARC/Audio feature makes the EXARC great when you need to bring audio back to the TX/Rack from the display. The ARC or S/PDIF [optical] can be output at the TX via the HDMI cable (ARC) or via the S/PDIF [optical] output. It also supports Bidirectional 12V Infrared control and RS232.

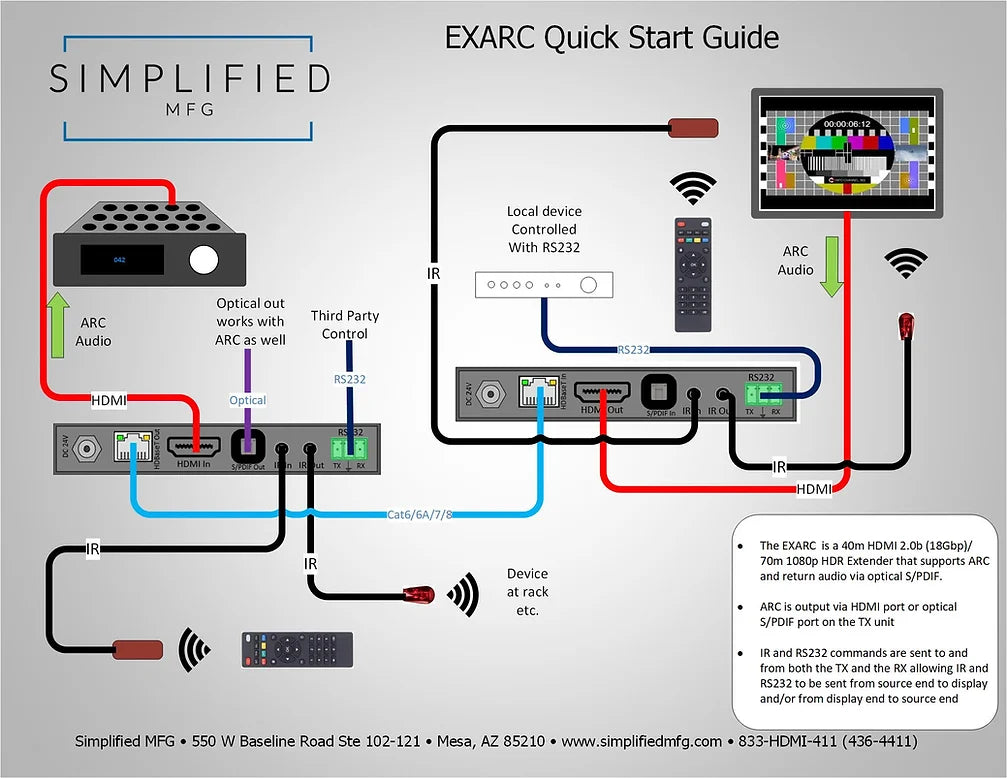

Primary Use: Extending HDMI AV signals along with control, ARC or S/PDIF return from display over a single Category cable.
Features & Benefits
-
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
-
Video resolutions up to 4K2K@50/60Hz (YUV444)
-
HDR8/10/10+ (High Dynamic Range) pass through
-
Dolby Vision™ pass through
-
Supports ARC or S/PDIF return from display to TX/Rack via HDMI and/or optical S/PDIF
-
Supports HDMI High Bit Rate(HBR) audio pass through
-
Supports Dolby+, Atmos and DTS-X
-
Supports CEC
-
Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
-
12V Bidirectional Infrared control signal together with the HDMI signal.
-
Transfers Bidirectional RS232 control signal together with the HDMI signal.
-
Transmission distance: Over CAT6 cable
-
70 meters/230ft.
-
1080P @60Hz36bit; 3D1080P@30Hz36bit;
-
-
40 meters/131ft.
-
4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
-
-
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolutions | up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit,10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| POE Format | 24V |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
|---|---|

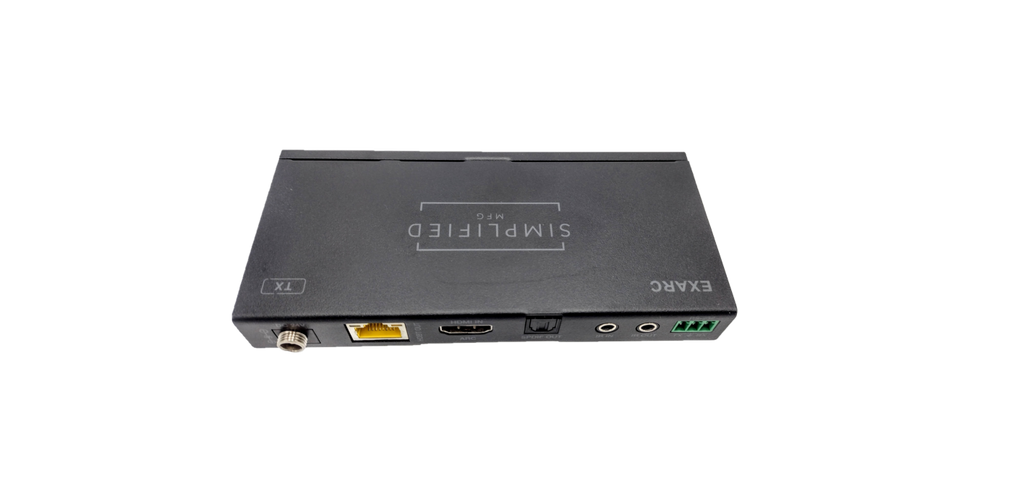

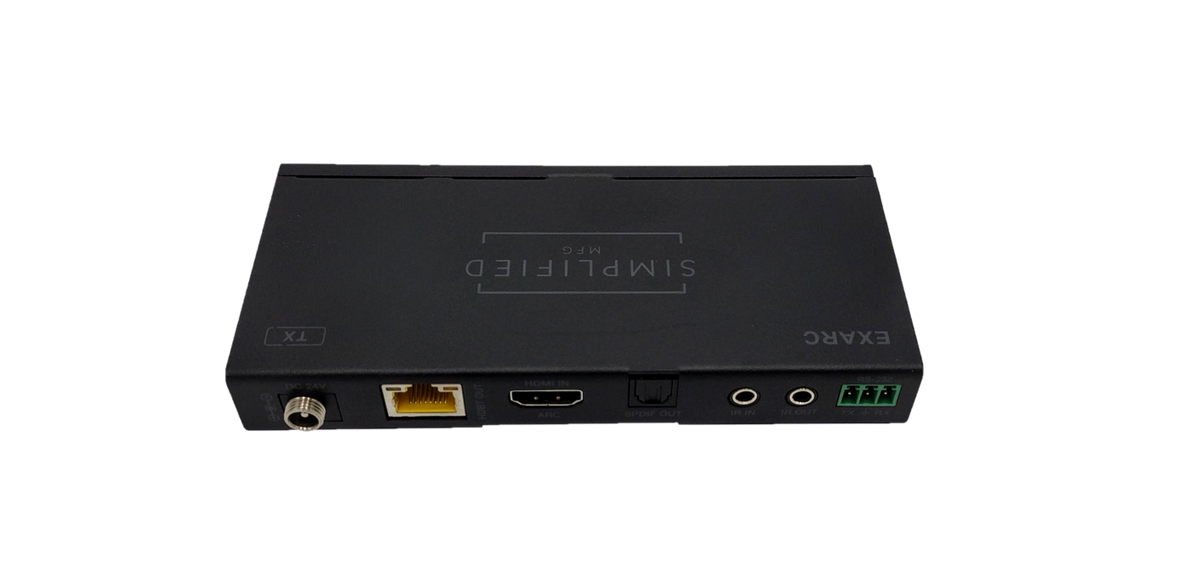

| Inputs: Transmitter | 1x HDMI Type A [19-pin female] |
| 1x IR INPUT [3.5mm Stereo Mini-jack] | |
| 1x RS232 [Phoenix jack] | |

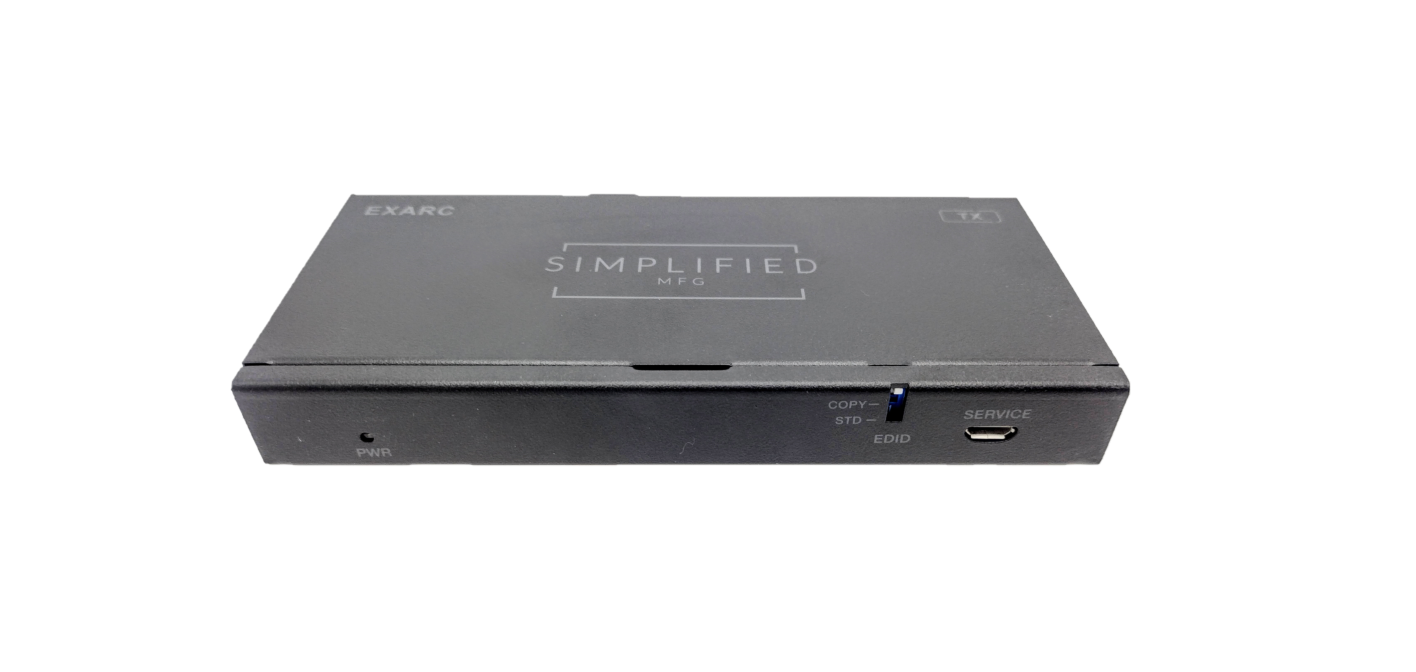

| 1x Service [Mini-USB jack | |

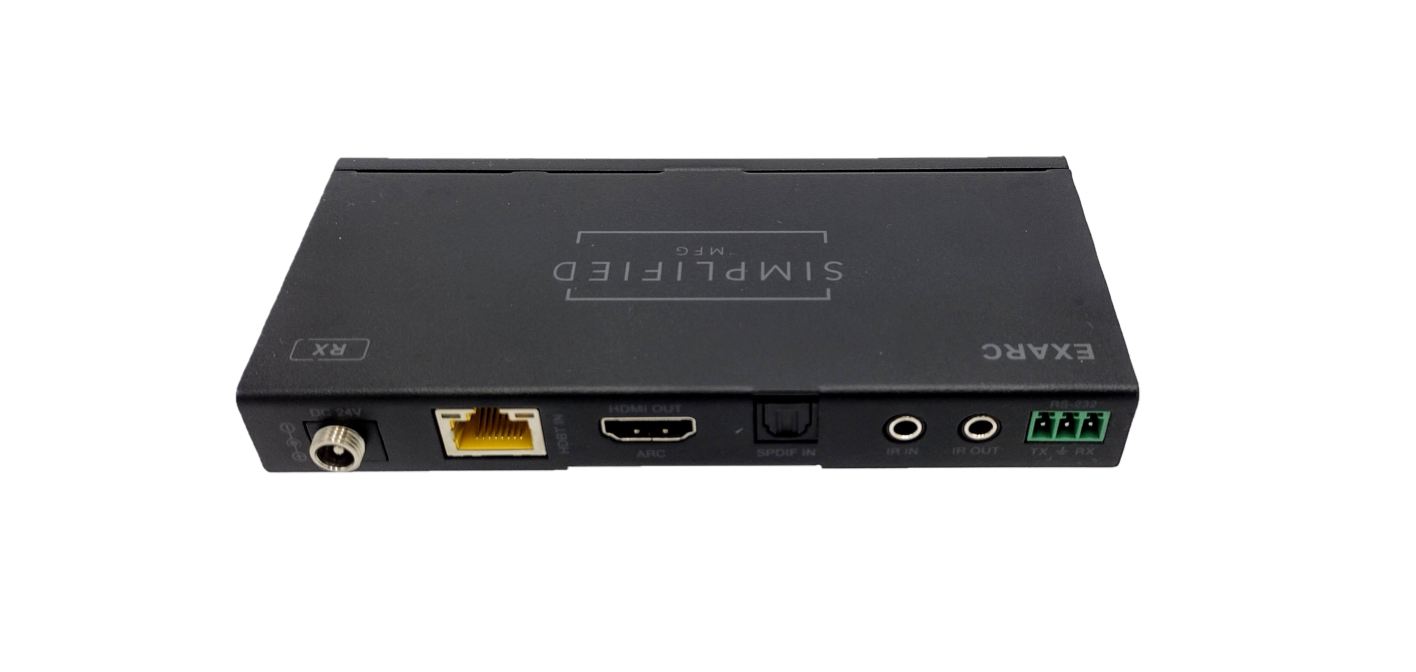

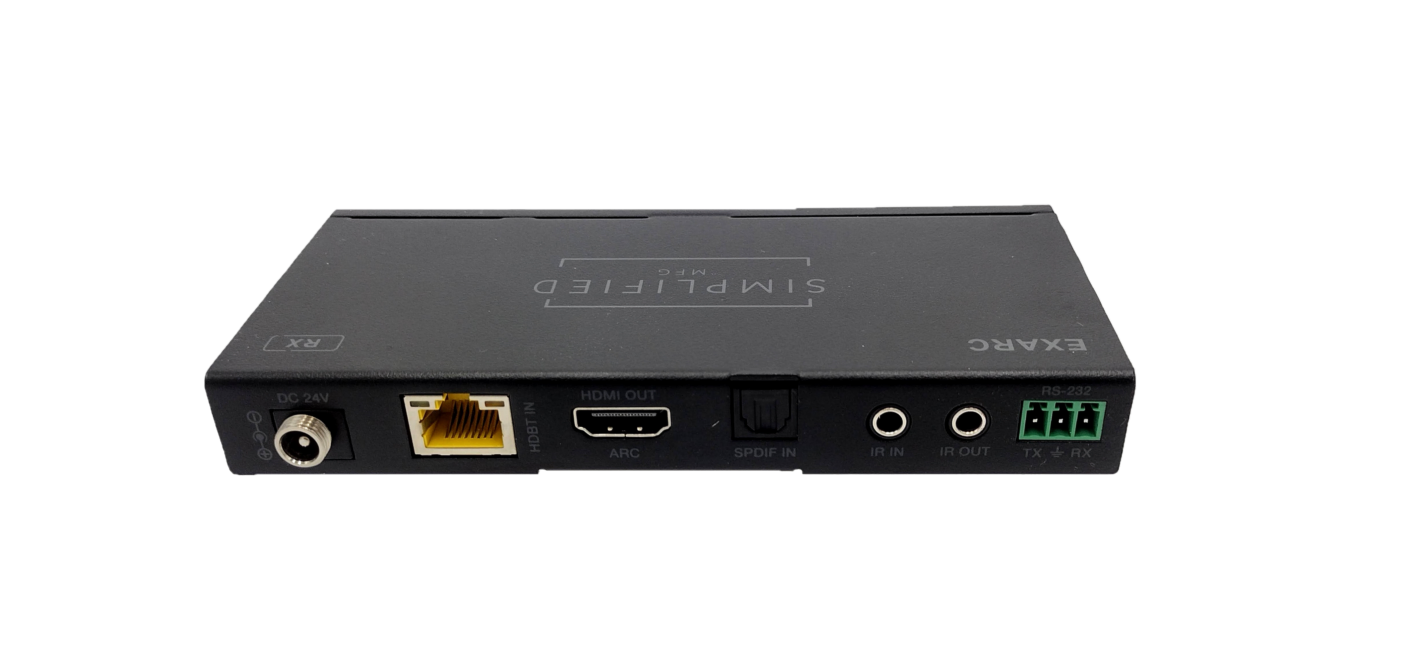

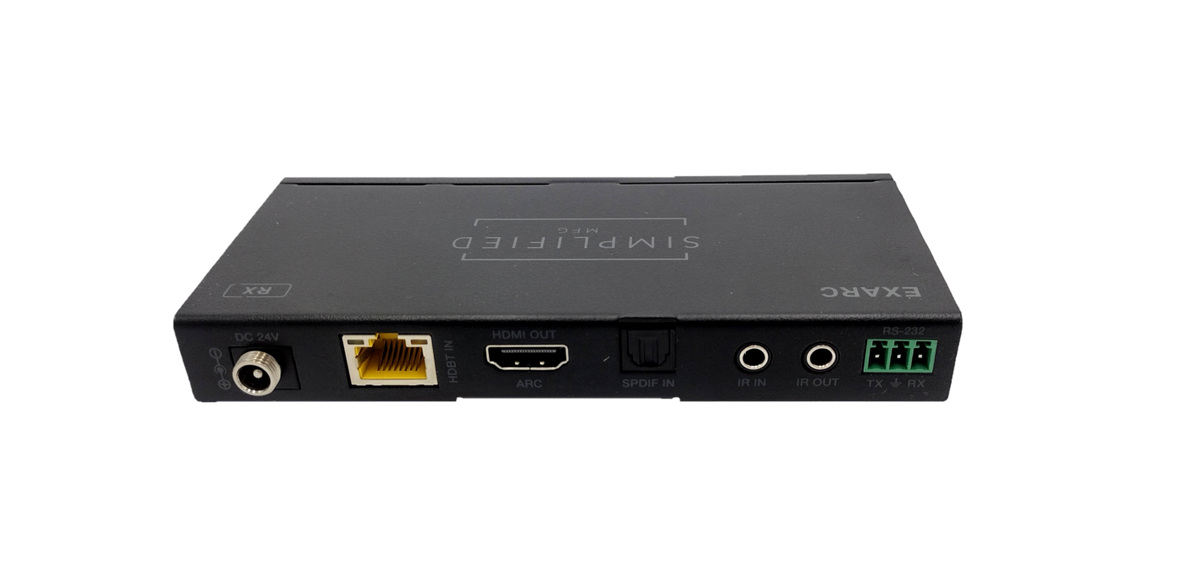

| Inputs: Receiver | 1x HDBaseT In [RJ45] |
| 1x IR INPUT [3.5mm Stereo Mini-jack] | |
| 1x RS232 [Phoenix jack] | |
| 1x Service [Mini-USB jack] | |
| Outputs Transmitter | 1 x HDBaesT [RJ-45] |
| 1 x Optical S/PDIF | |
| 1 x 3.5mm Mini [12V IR] | |
| Outputs Receiver | 1x HDMI Type-A [19-Pin] |
| 1 x 3.5mm Mini 12V IR |
| Mechanical | |
|---|---|
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 183mm/7.2" [W] x 88mm/3.5" [D] x 18mm/0.71" [H] |
| Weight | 450g/15.88 oz. |
| Power Supply Input | AC100 - 240V 50/60Hz |
| Power Supply Output | DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 24W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Specifications subject to change.
