Description
Product Details

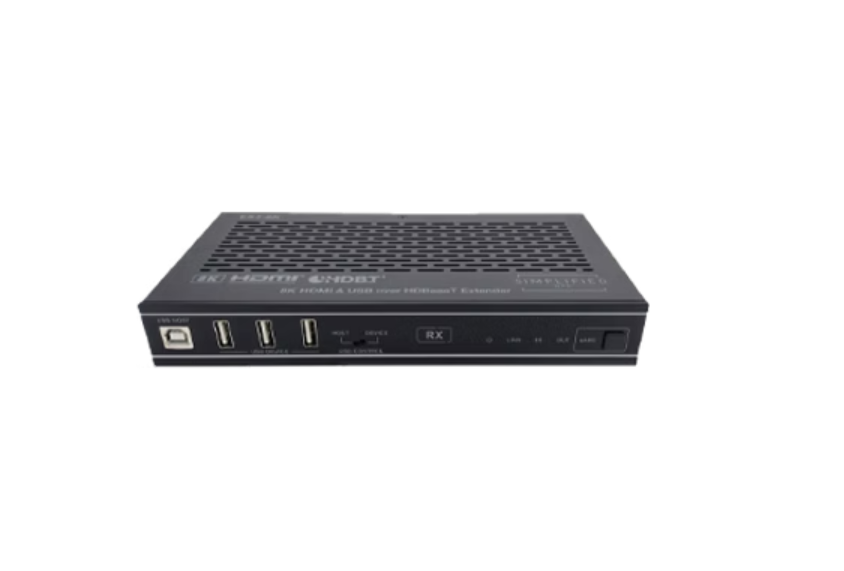

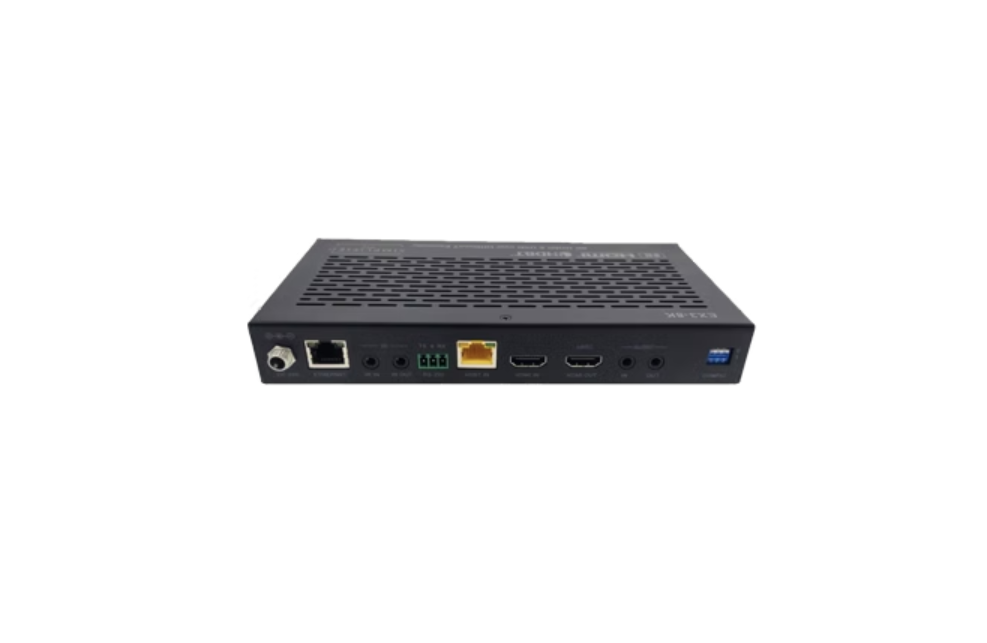

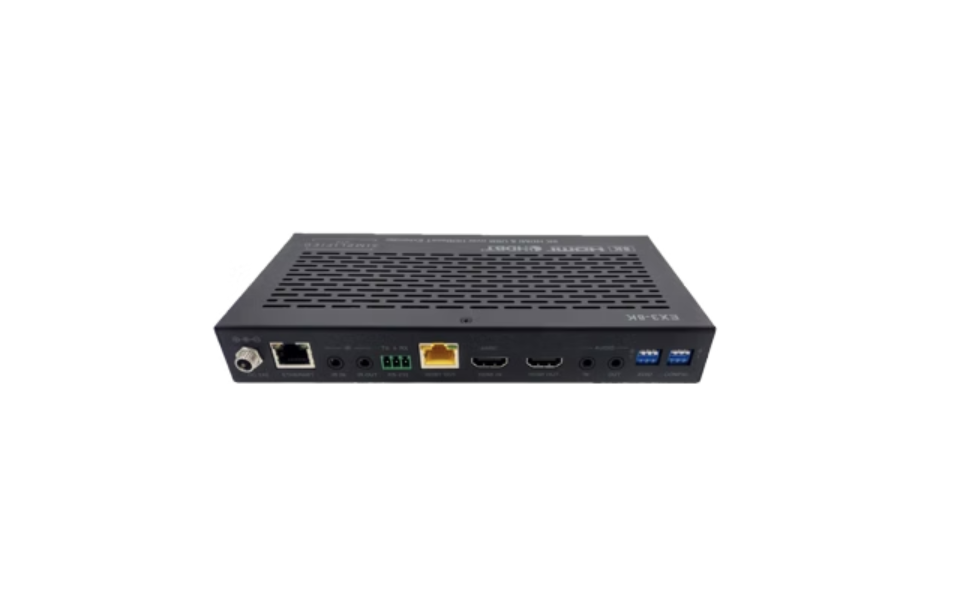

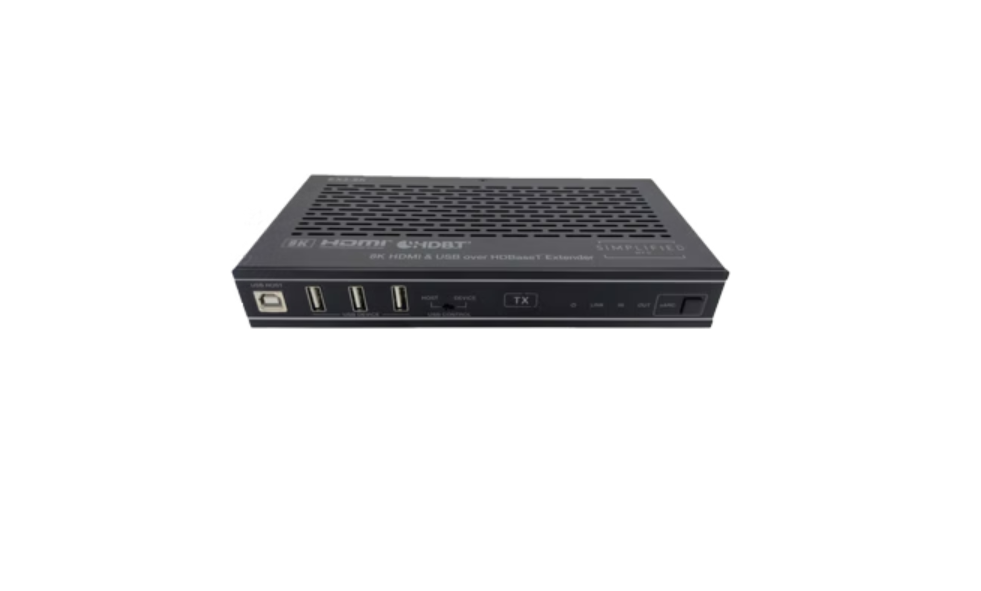

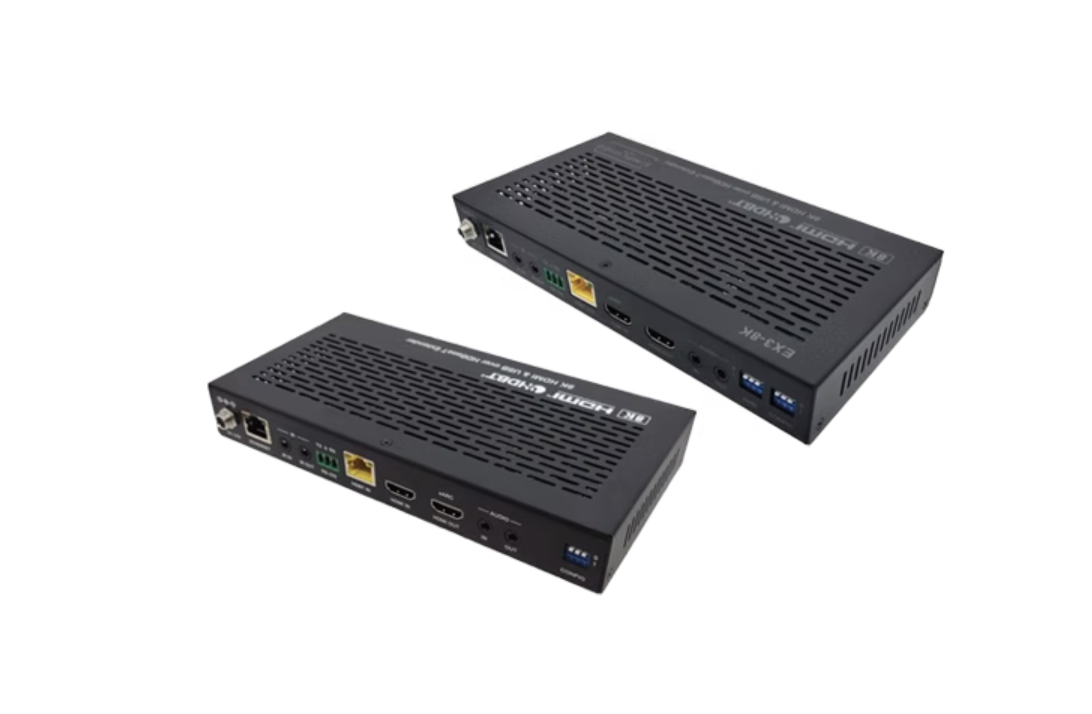

The EX3-8K Extender is a device which can extend your 8K or 4K@120Hz. HDMI signal over 330ft/100meters to a compatible 8K/4K display. The EX3-8K also supports eARC/ARC, 1Gbps Etherenet pass-thru, USB 2.0, 2-Way IR, RS-232, and a separate stereo audio pass-thru (both directions). This is the most capable 8K, on category cable HDMI extender, on the market. Other advanced features include, EDID management, configurable RS-232 functions (can reset extender with a command), and even a 1080p @24Hz video return ability.
Primary Use: Extending High bandwidth 8K or 4K@120Hz. HDMI AV and a myriad of control (including USB) and audio functions up to 330ft on category cable. The EX3-8K will operate on Cat 6 at a shorter distance of 50-60m.
Features
• HDMI 2.1 (40Gbps)
• HDCP 2.3/2.2/1.4 and DVI Compliant
• Uncompressed eARC support
• USB 2.0 (Client or Server from either end)
• 1Gbps Ethernet Pass-Thru
• Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
• Bidirectional 5V or 12V Infrared control signal together with the HDMI signal
• Transfer Bidirectional RS232 control signal together with the HDMI signal
• Separate stereo pass-through (both directions)
• RS-232 pass through can be routed to the extender to update and do basic commands, like a reset.
• Supports all high-definition audio formats including Dolby+/Atmos
• eARC/ARC bandwidth can be used for 1080p @24Hz video return
• 3 Year Warranty
