Description
Product Details

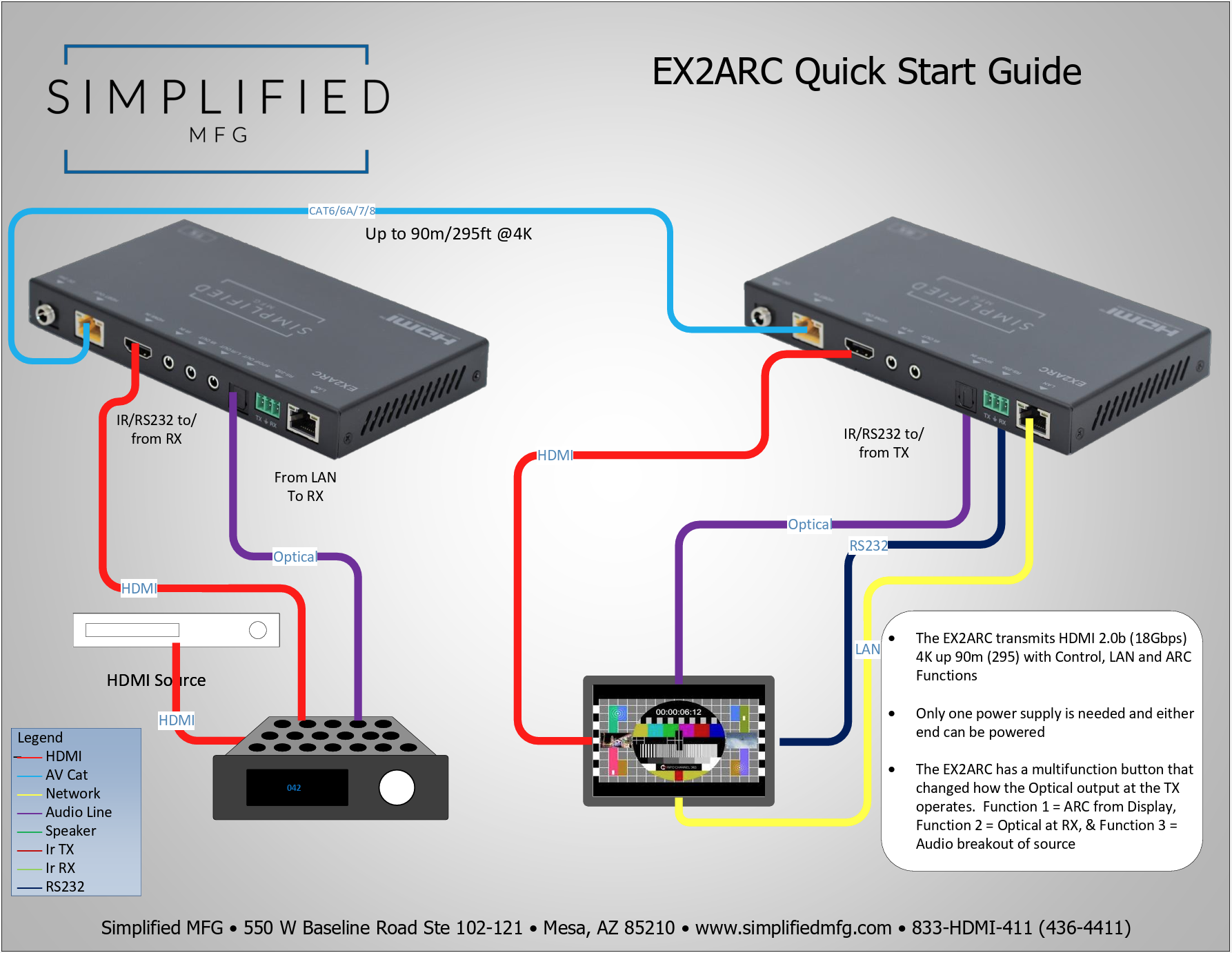

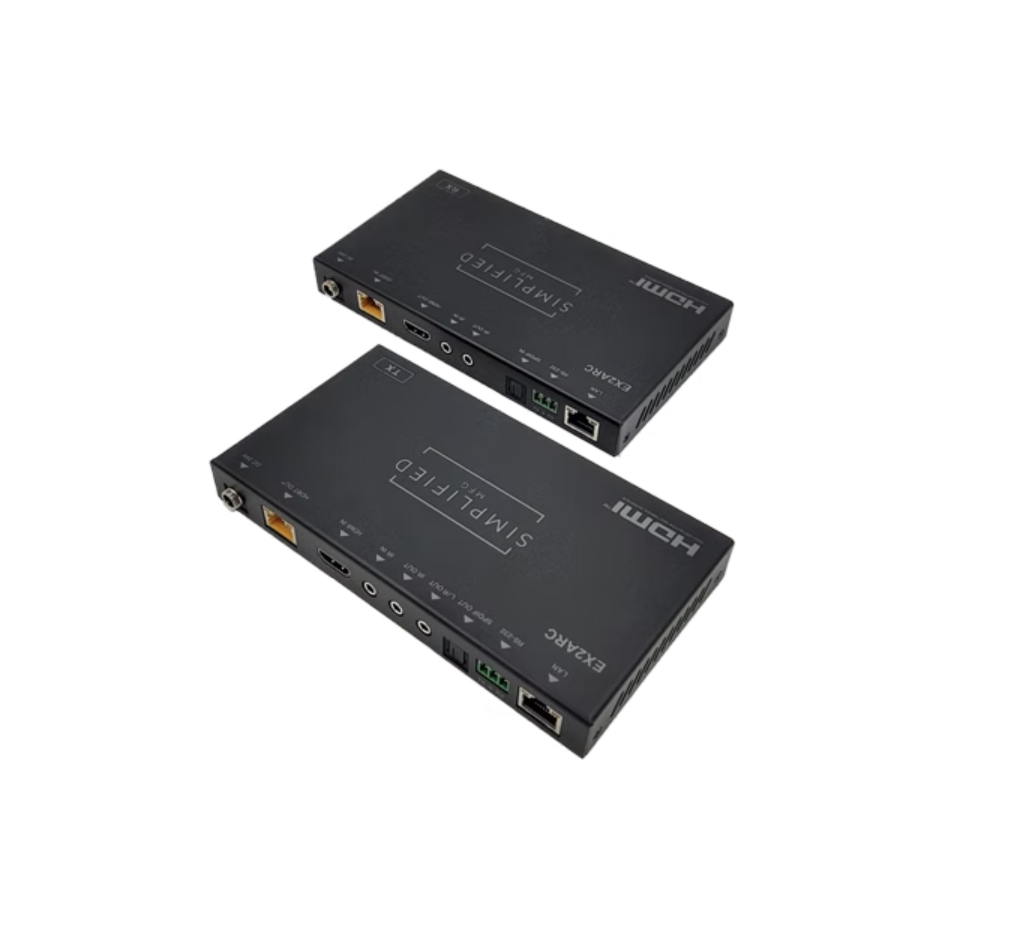

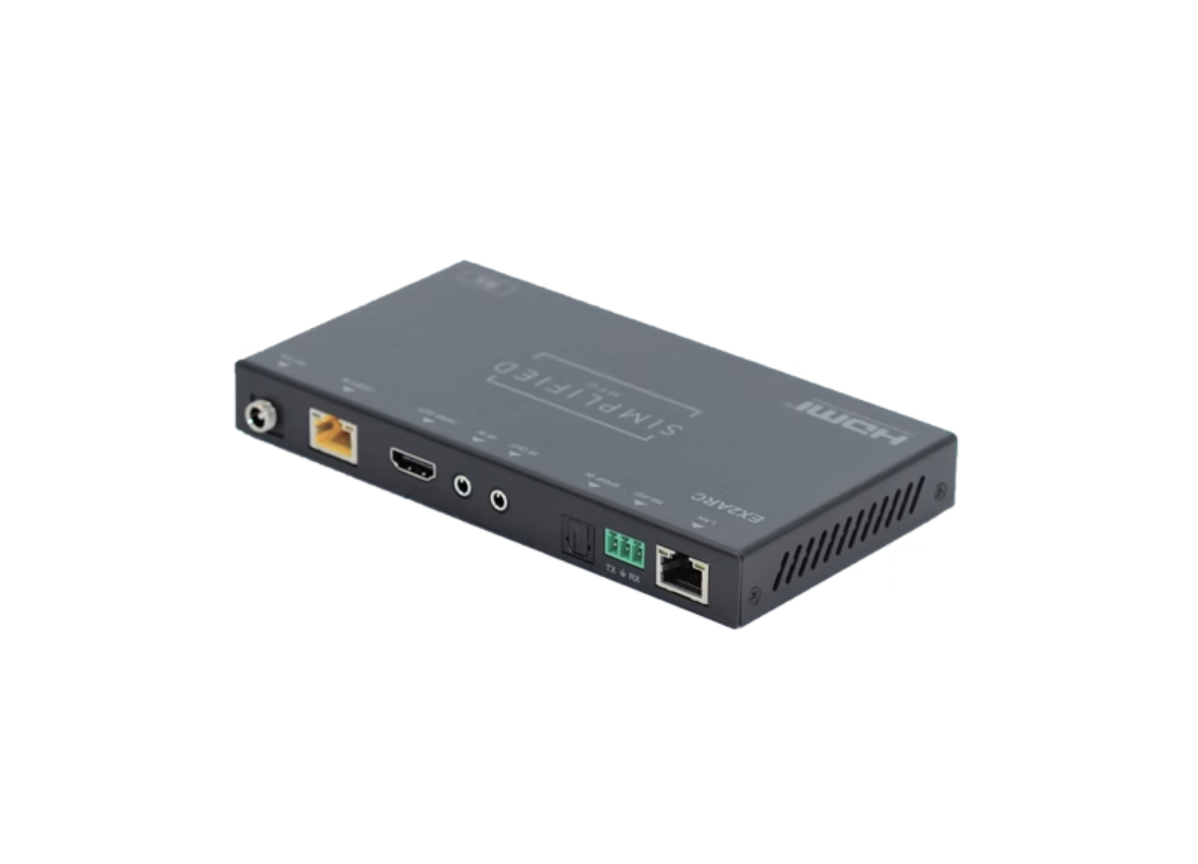

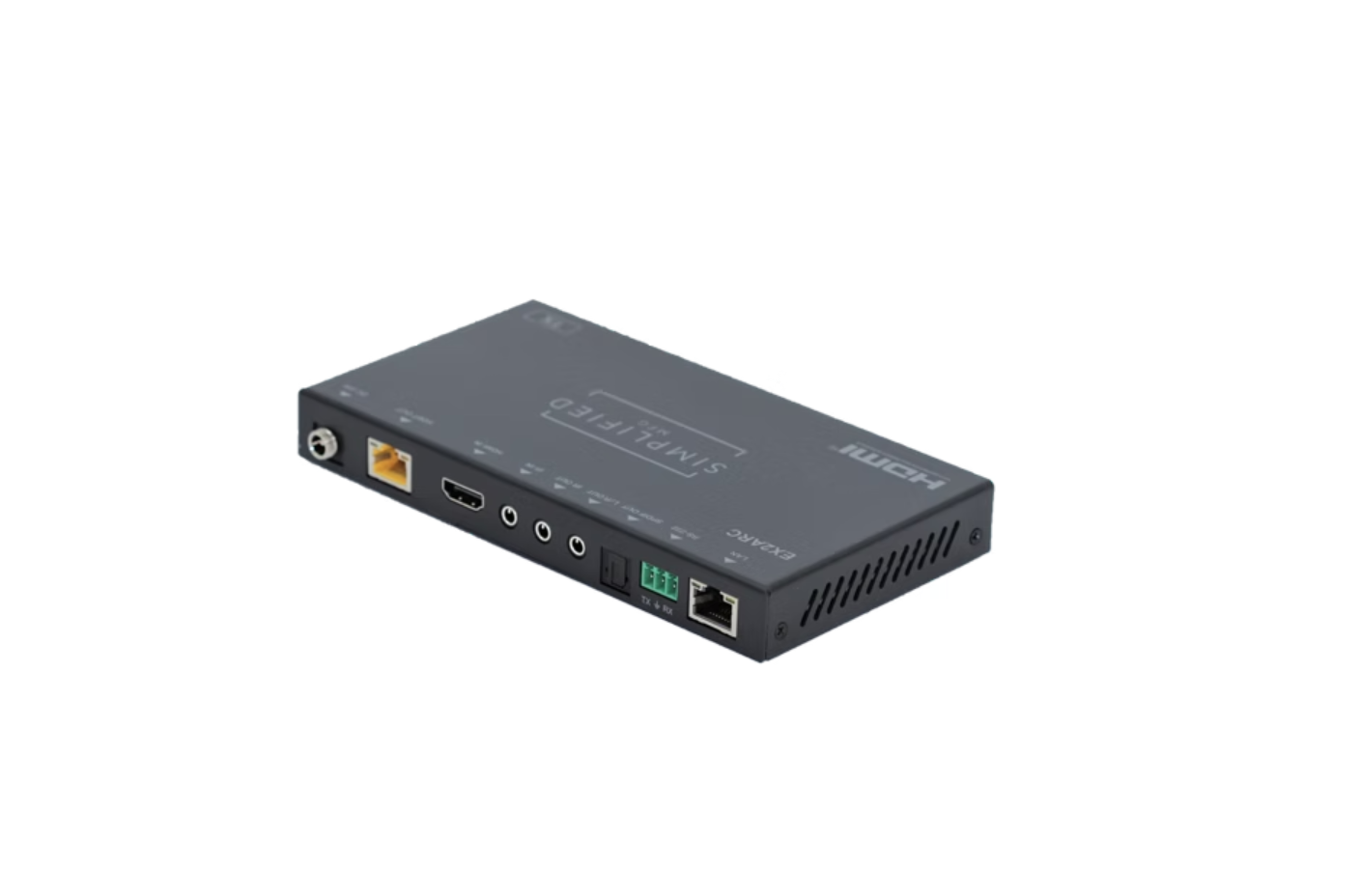

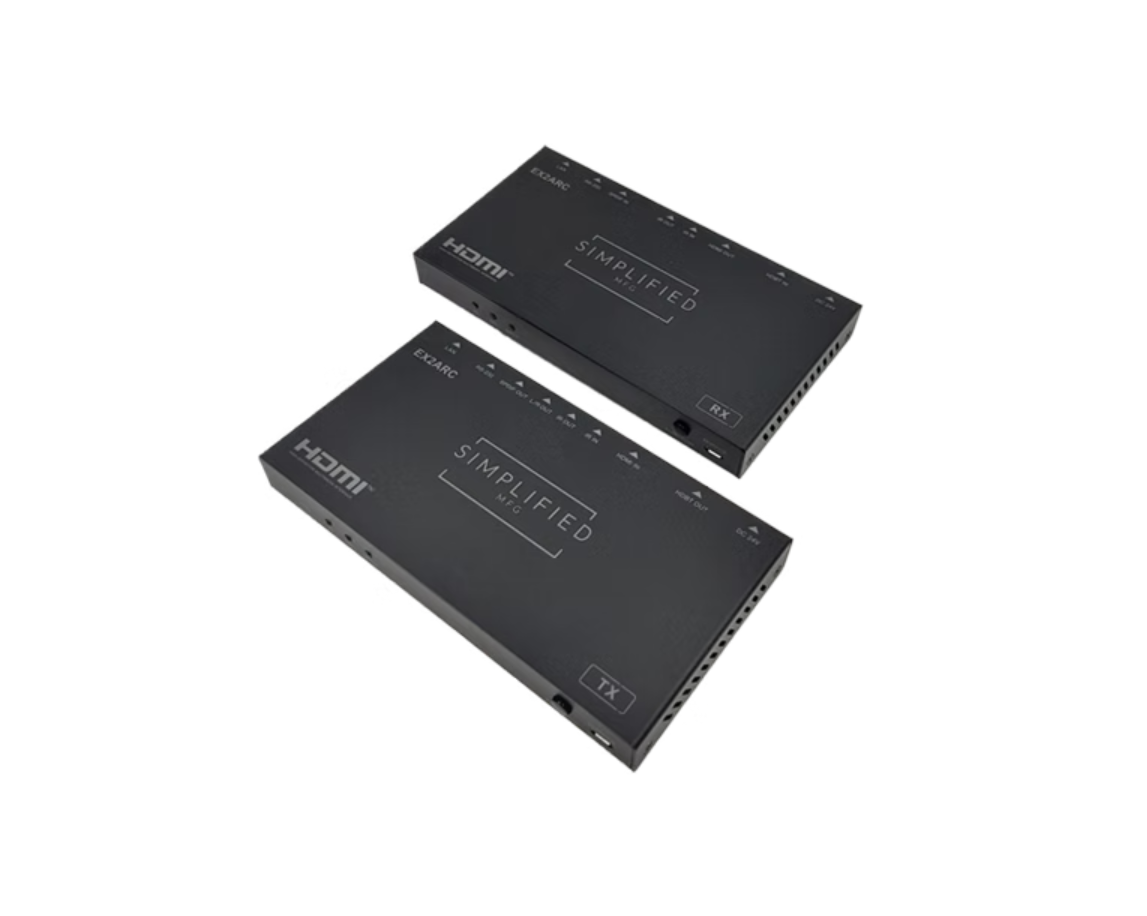

The EX2ARC 18Gbps HDMI Extender is a device which can extend your HDMI signal over 330ft/100meters to a compatible 1080p display or 295ft/90meters to a HDMI 2.0b 18Gbps compatible display. The EX2ARC supports HDR10+ and DolbyVision™ as well as the entire HDMI 2.0b standard. The multifunction ARC/Audio feature makes the EX2ARC great for "one wire" situations or when you need to bring audio back to the TX/Rack from the display. It also supports Bidirectional 12V Infrared control, RS232, & 100 Base T Ethernet together with the 18Gbps HDMI 2.0b signal.
Primary Use: Extending HDMI AV signals along with control, ARC or S/PDIF return from display, and Ethernet over a single Category cable. *Cat5e may be used, but some loss of distance may occur.
Features
• HDMI 2.0b (18Gbps)
• HDCP 2.2, HDCP 1.4 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
• Sophisticated audio circuit with 3 functions. 1. HDMI ARC at RX to optical S/PDIF at TX. 3. S/PDIF at RX to S/PDIF at TX. 4. Audio extraction from source to S/PDIF at TX.
• 100 BaseT Ethernet pass-thru
• Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
• Bidirectional 12V Infrared control signal together with the HDMI signal
• Transfer Bidirectional RS232 control signal together with the HDMI signal
• Supports all high-definition audio formats including Dolby+/Atmos
• 90m at 4k/UHD / 100m at 1080p
• 3 Year Warranty
